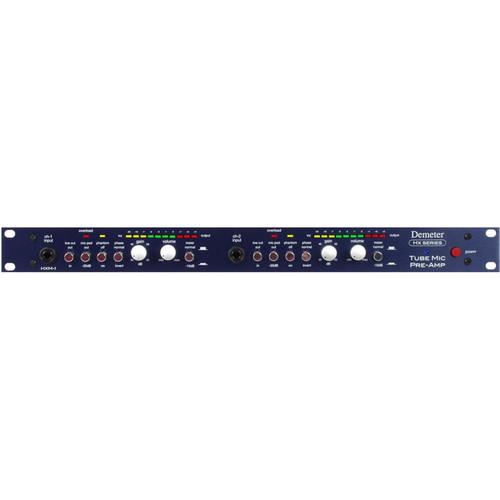

User Manual for Demeter HXM-1 HX Series Dual Channel Tube Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Demeter HXM-1 HX Series Dual Channel
- Product category: Microphone Preamps Demeter
- Brand: Demeter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Demeter Microphone Preamps
|
User manual for the Demeter HXM-1 HX Series Dual Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Demeter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Demeter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Demeter product will considerably shorten its lifespan!
|
Product description The HXM-1 from Demeter Amplification is a two channel microphone preamplifier that features a revolutionary approach in tube design amplification. It combines innovative tube circuitry for the highest in true sound quality, with the latest in solid state components for reliable driver functions. The unit features quality components like metal film resistors, first-rate film capacitors and Jensen transformers, all meticulously assembled in a cobalt aluminum and steel case that fits in a single rack space. All units feature fully regulated power supplies (200v to the tubes and -18v for the solid state components) for tremendous head room. - Two channel microphone preamplifier with 12AX7A tubes in the first stage (for maximum sonic benefit) followed by a transistor output stage
- Includes Jensen input transformers, metal film resistors, high-spec film caps and custom toroidal power transformers
- Two instrument inputs on the front panel provide DI duties
- 200Hz, 6dB/octave highpass filter and switchable -20dB mic pad
- Phantom power and phase (polarity) reverse
- 30dB rotary gain pot and seperate volume control
- 10-segment LED meter with -10/+4dB switching
In the Box Demeter HXM-1 HX Series Dual Channel Tube Microphone Preamplifier AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter HXM-1 HX Series Dual Channel Tube Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter HXM-1 Specs | Number of Channels | Two | | Inputs | 1 x XLR (rear)
1 x 1/4" TRS phone (rear)
1 x 1/4" TS phone (front) | | Output | 1 x XLR (rear)
1 x 1/4" TRS phone (rear) | | Phantom Power | Yes | | Multi Function | No | | Gain Range | Not specified by manufacturer | | Maximum Output Level | Balanced +28dB into 600Ω | | Frequency Response | 20Hz to 20kHz, +/-0.1dB | | Noise | SNR: -120dB EIN | | Dimensions (WxDxH) | 1U 19" rackspace enclosure | | Weight | Not specified by manufacturer | | Specialties | Selected 12AX7a tubes | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.5 x 16.0 x 7.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
