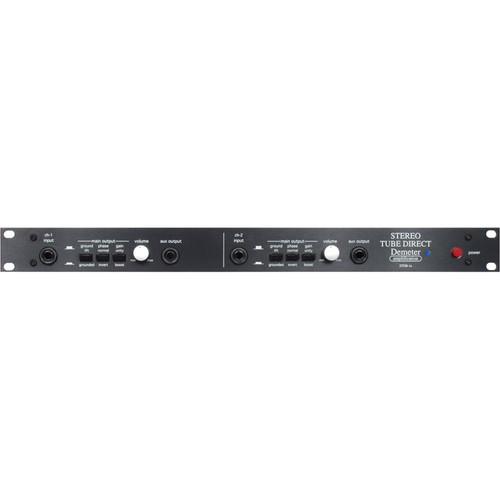

User Manual for Demeter STDB-1 2 Channel Rackmountable Tube Direct Box with Variable Gain Click to enlarge the picture
Contents of the user manual for the Demeter STDB-1 2 Channel Rackmountable Tube
- Product category: Direct Boxes Demeter
- Brand: Demeter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Demeter Direct Boxes
|
User manual for the Demeter STDB-1 2 Channel Rackmountable Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Demeter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Demeter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Demeter product will considerably shorten its lifespan!
|
Product description The STDB-1 is an AC-powered two-channel direct box with all the features of the VTDB-2B plus the additional features of variable gain (up to 20dB) in the boost mode and low impedance, line level, 1/4" output jacks. Aside from typical direct-inject functions, the unit can be used for warming up synthesizers and alleviating digital harshness on any recorded signal. Operating at a higher-than-normal level of impedance, the STDB-1 delivers a strong low-impedance signal. This extra headroom means that a performer can play with a wide dynamic range without overloading the system or creating distortion. The high-impedance output signals also get an extra boost from the 12AX7 tubes. They act like a pre-preamplifier, adding noticeable clarity to the sound. The boost switch increases the low-impedance output, which is useful when the input signal is a little weak or when that extra punch is required. A buffered loop through output can be used as a line driver (at unity gain) for long cable runs or multiple stomp box layouts. A boost switch selects -20 dB or -4 dB at the XLR output, and a ground lift switch unearths pin 1. The STDB-1 must be plugged into an AC outlet, instead of using a battery or phantom power from the mixing board and comes with a 1/4" phone input and balanced XLR output along with the loop through 1/4" phone output. - Two channel tube direct box
- Acoustic Guitar
- The extremely high impedance of the Tube Direct insures a perfect match with every pickup to provide a warmer, more natural sound-both live and in the studio
- Electric Guitar
- Provides a clear, warm sound that retains all of the guitar's natural brilliance and harmonics for creating a viable direct sound with or without additional signal processing
- Warms up the sound of the synthesizer and provides an ideal interface for the variety of synthesizer output levels and impedances
- The clarity and sheen of digital and hard disk recording can sometimes seem a little harsh or more brittle than desired. Use of the Tube Direct can often mitigate this problem at several points in the recording chain, including mixdown
- Ground lift switch eliminates typical ground loop problems
In the Box Demeter STDB-1 2 Channel Rackmountable Tube Direct Box with Variable Gain AC Power Cord One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter STDB-1 2 Channel Rackmountable Tube Direct Box with Variable Gain in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter STDB-1 Specs | Input Connections | 2 x 1/4" TS phone (unbalanced) | | Output Connectors | 2 x XLR (balanced)
4 x 1/4" TS phone (unbalanced) | | Input Level | Instrument (-20 to -5dB) | | Output Level | Unity
16dB with boost switched in | | Frequency Response | 7Hz to 100kHz (unity)
20Hz to 20kHz (gain mode) | | Noise | Better than 100dB | | Power | Internal transformer | | Dimensions (WxDxH) | 19' x 10 1/2" x 1 3/4" | | Weight | 14 lbs | | Specialties | The buffered 1/4" phone output can be used to drive an amplifier through up to 50 feet of guitar cable. It also prevents cable loading to produce a fuller sound from both single coil and humbucking pickups | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 21.5 x 15.5 x 7.0" |
