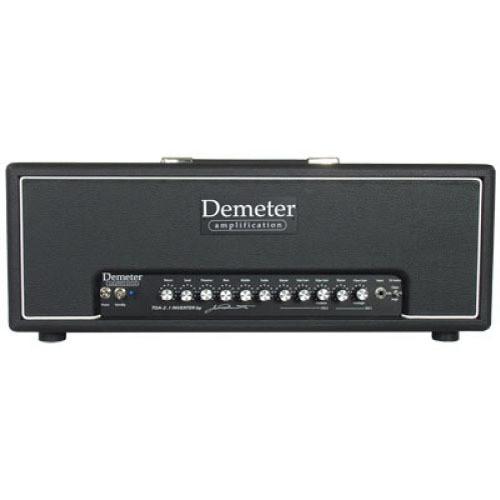

User Manual for Demeter TGA-2.1 T-110A 110-Watt Tube Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Demeter TGA-2.1 T-110A 110-Watt Tube Guitar
- Product category: Guitar Amplifiers Demeter
- Brand: Demeter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Demeter Guitar Amplifiers
|
User manual for the Demeter TGA-2.1 T-110A 110-Watt Tube Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Demeter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Demeter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Demeter product will considerably shorten its lifespan!
|
Product description The Demeter TGA-2.1 T-110A 110-Watt Tube Guitar Amplifier Head by Demeter features an all-tube, two-channel design that is capable of up to 110 watts of output. Its Clean channel features a Bright switch, and the Edge channel has a second variation called Boost mode, which engages a tube-driven version of Demeter's Fat Control, providing a midrange boost for classic lead tones. Both channels have independent Gain and Master controls, while the active Presence control is universal. The TGA 2.1 T-110A has a tube-buffered effects loop with front-panel controls that allow you to adjust your Send and Return levels without having to reach for the back of the head.
A rear-panel Pentode/Triode switch allows you to cut the amp's power by approximately 50%, changing the character of the amp and increasing its pick sensitivity. The included footswitch gives you control for switching channels and engaging the Boost on the Edge channel. - Class A Power Amp
- Demeter built the TGA 2.1 T-110A with a Class-A power amp using toroidal power transformers which provide efficiency and lower mechanical hum
- Tube Design
- The TGA 2.1 T-110A features four 12AX7 preamp tubes and two 6L6 power tubes
- Made in the USA
- The TGA 2.1 T-110A has a hand-wired steel chassis and is entirely made in the USA
In the Box Demeter TGA-2.1 T-110A 110-Watt Tube Guitar Amplifier Head FS-2 Footswitch IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter TGA-2.1 T-110A 110-Watt Tube Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter TGA-2.1T-110A Specs | Inputs | 1x 1/4" (6.35 mm) TS Hi-Z
1x 1/4" (6.35 mm) Footswitch | | Tubes | Preamp Section: 4x 12AX7
Power Section: 4x 6L6 | | Output Wattage | 110 W | | Output Impedance | 1x 16 Ω 1/4" (6.35 mm) Output
1x 8 Ω 1/4" (6.35 mm) Output
1x 4 Ω 1/4" (6.35 mm) Output | | Controls | 1x Power Switch
1x Standby Switch
1x Send Level Knob
1x Return Level Knob
1x Presence Level Knob
1x Bass Control Knob
1x Middle Control Knob
1x Treble Control Knob
1x Channel 2 Master Control Knob
1x Channel 2 Solo Gain Control Knob
1x Channel 2 Edge Gain Control Knob with pull-out Boost Switch
1x Channel 1 Master Control Knob
1x Channel 1 Clean Gain Control Knob with pull-out Bright Switch
1x Channel Switch
1x Pentode/Triode Switch | | Operating Voltage | 117/240 V | | Effects Loop | 1x 1/4" (6.35 mm) Send Jack
1x 1/4" (6.35 mm) Return Jack | | Dimensions (L x W x H) | 24.0 x 9.5 x 9.0" (61 x 24 x 23 cm) | | Weight | 23 lbs (10.4 kg) |
