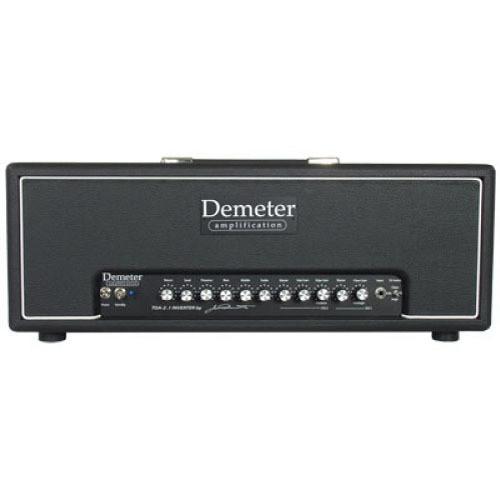

Product description The Demeter TGA-2.1 T-75A 75-Watt Tube Guitar Amplifier Head by Demeter features an all-tube, two-channel design that is capable of up to 75 watts of output. Its Clean channel features a Bright switch and the Edge channel has a second variation called Boost mode, which engages a tube-driven version of Demeter's Fat Control, providing a midrange boost for classic lead tones. Both channels have independent Gain and Master controls, while the active Presence control is universal. The TGA 2.1 T-75A has a tube-buffered effects loop with front-panel controls that allow you to adjust your Send and Return levels without having to reach for the back of the head.

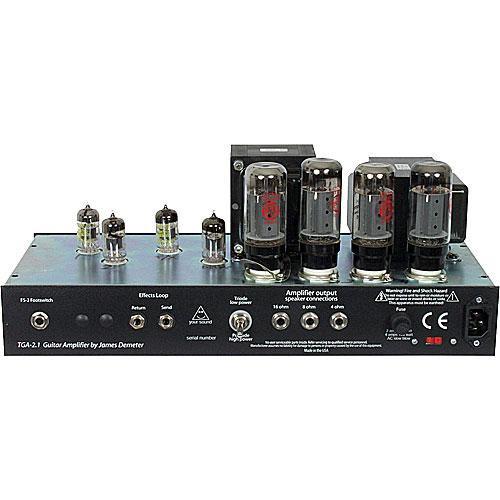

A rear-panel Pentode/Triode switch allows you to cut the amp's power by approximately 50%, changing the character of the amp and increasing its pick sensitivity. The included footswitch gives you control for switching channels and engaging the Boost on the Edge channel. - Class A Power Amp
- Demeter built the TGA 2.1 T-75A with a Class-A power amp using toroidal power transformers which provides efficiency and lower mechanical hum
- Tube Design

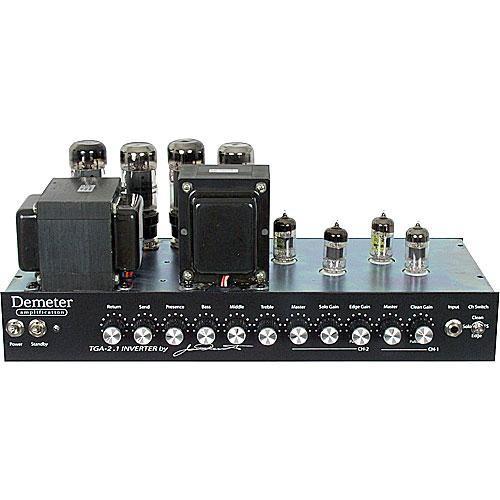

- The TGA 2.1 T-75A features four 12AX7 preamp tubes and two 6L6 power tubes
- Made in the USA
- The TGA 2.1 T-75A has a hand-wired steel chassis and is entirely made in the USA
In the Box Demeter TGA-2.1 T-75A 75-Watt Tube Guitar Amplifier Head FS-2 Footswitch IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter TGA-2.1 T-75A 75-Watt Tube Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter TGA-2.1T-75A Specs | Inputs | 1x 1/4" (6.35 mm) TS Hi-Z
1x 1/4" (6.35 mm) Footswitch | | Tubes | Preamp Section: 4x 12AX7
Power Section: 2x 6L6 | | Output Wattage | 75 W | | Output Impedance | 1x 16 Ω 1/4" (6.35 mm) Output
1x 8 Ω 1/4" (6.35 mm) Output
1x 4 Ω 1/4" (6.35 mm) Output | | Controls | 1x Power Switch
1x Standby Switch
1x Send Level Knob
1x Return Level Knob
1x Presence Level Knob
1x Bass Control Knob
1x Middle Control Knob
1x Treble Control Knob
1x Channel 2 Master Control Knob
1x Channel 2 Solo Gain Control Knob
1x Channel 2 Edge Gain Control Knob with pull-out Boost Switch
1x Channel 1 Master Control Knob
1x Channel 1 Clean Gain Control Knob with pull-out Bright Switch
1x Channel Switch
1x Pentode/Triode Switch | | Operating Voltage | 117/240 V | | Effects Loop | 1x 1/4" (6.35 mm) Send Jack
1x 1/4" (6.35 mm) Return Jack | | Dimensions (L x W x H) | 24.0 x 9.5 x 9.0" (61 x 24 x 23 cm) | | Weight | 23 lbs (10.4 kg) |
