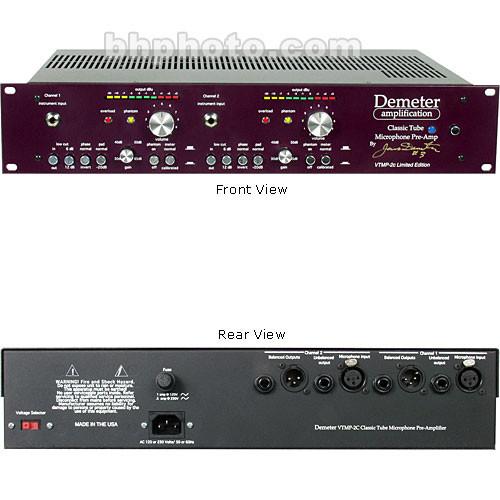

User Manual for Demeter VTMP-2C Dual Channel Tube Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Demeter VTMP-2C Dual Channel Tube Microphone
- Product category: Microphone Preamps Demeter
- Brand: Demeter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Demeter Microphone Preamps
|
User manual for the Demeter VTMP-2C Dual Channel Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Demeter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Demeter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Demeter product will considerably shorten its lifespan!
|
Product description The VTMP-2C, a two channel microphone preamp, is completely tube-based for a distinctively warm, but clean and quiet sound. It is designed to give the recording studio the unsurpassed sound of tube amplification in a package that is convenient to operate and easy to interface with modern consoles and tape recorders. The design of the original VTMP-2 (1985) on which the VTMP-2C is based, included many firsts that are now commonly found on other microphone preamps, such as instrument inputs, solid-state regulated supplies, variable tube gain and audiophile specifications to name a few. This limited edition hand-built unit uses the original main and power PCB's in an updated chassis and input boards. The unit has the same unsurpassed sound as the original but with added features such as a two stage low cut, continuously variable gain, greater gain range, LED VU meters, new Jensen microphone transformers and active balanced outputs. Each unit is tested, signed and numbered by the designer, James Demeter. - Two channel all tube microphone preamplifier with DI functions
- Each independent channel of the preamp has a variable gain control of 30 to 60dB
- Power supply features full regulation of the B+ voltage (250 V) and the filament voltage (12.6 V) for low noise and quick response
- Jensen 110KHPC input transformers, polypropylene capacitors and metal film resistors
- Phase switch and two position low cut switch
- 20dB microphone pad, fader, phantom switch and indicator, LED VU meter with selectable modes (dBu or peak)
In the Box Demeter VTMP-2C Dual Channel Tube Microphone Preamplifier AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Demeter VTMP-2C Dual Channel Tube Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDemeter VTMP-2C Specs | Number of Channels | Two | | Inputs | 1 x XLR (rear)
1 x 1/4" TS phone (front) | | Output | 1 x XLR (rear)
1 x 1/4" TRS phone (rear)
1 x 1/4" TR phone (rear)
1 x 1/4" TS phone (front) | | Phantom Power | Yes | | Multi Function | No | | Gain Range | Variable 30 to 65dB | | Maximum Output Level | +29dBu into 600Ω | | Frequency Response | 20Hz to 20kHz, +/-0.3dB | | Noise | SNR: -125dB EIN | | Dimensions (WxDxH) | 19" x 12" x 3 1/2" | | Weight | Not specified by manufacturer | | Specialties | 115/230V AC selectable | | | | Package Weight | 16.1 lb | | Box Dimensions (LxWxH) | 22.0 x 15.8 x 7.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
