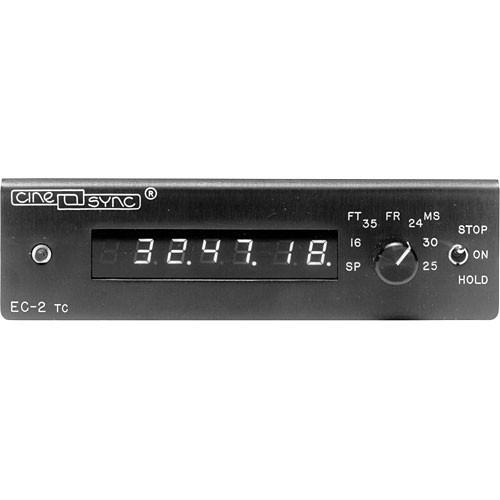

User Manual for Denecke Cine Sync EC-2TC Footage Frame Counter Click to enlarge the picture
Contents of the user manual for the Denecke Cine Sync EC-2TC Footage Frame
- Product category: Time Code Generators & Readers Denecke
- Brand: Denecke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denecke Time Code Generators & Readers
|
User manual for the Denecke Cine Sync EC-2TC Footage Frame contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denecke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denecke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denecke product will considerably shorten its lifespan!
|
Product description The Cine Sync EC-2TC Footage/Frame Counter from Denecke is a universal footage, frame, and time-frame counter. It displays footage in 16mm, 35mm, total frames, and time at 24, 25, and 30fps.
The unit offers count speed up to 500fps and film speed to 1/10fps. Frame blanking eliminates distracting flicker above 20fps. It also features zero-reverse count for display of negative numbers. Memory is not lost even when the unit is powered down. - Electronic Footage/Frame Counter
- This unit counts footage/frames and time/frames with multiple film formats and timing standards.
- Non-Volatile Memory
- Settings are saved even when the unit is turned off.
In the Box Denecke Cine Sync EC-2TC Footage/Frame Counter Footage/Frame Counter One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Denecke Cine Sync EC-2TC Footage Frame Counter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenecke EC-2TC Specs | Input | Bi-phase 5V logic
Rates include 0.5, 1, 2 ,4, 5, 8, 10, 20, 25, 32, 40, 50, 80, 100, 160 pulses per frame | | Output | Optically isolated zero stop switch at 24V @ 100mA
Time Code output
Differential 1V running at 30fps
+5V encoder power | | Power | 9 to 24V @ 170mA or 5V (as supplied from the Cine Sync K-2 interlock) | | Dimensions (HxWxD) | 1.75 x 6 x 5" | | Weight | 1.2 lbs | | | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 5.0" |
