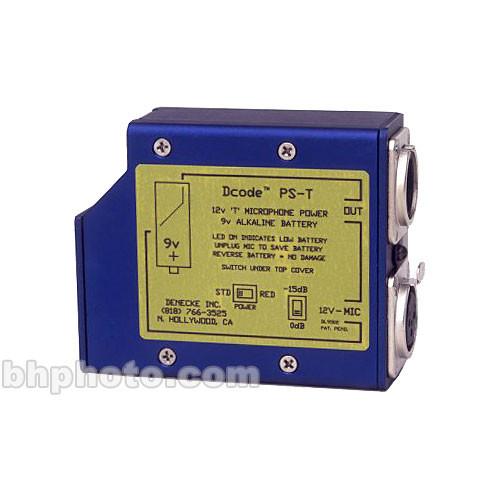

User Manual for Denecke Dcode PS-T Microphone Power Supply Click to enlarge the picture
Contents of the user manual for the Denecke Dcode PS-T Microphone Power Supply
- Product category: Phantom Power Supplies Denecke
- Brand: Denecke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denecke Phantom Power Supplies
|
User manual for the Denecke Dcode PS-T Microphone Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denecke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denecke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denecke product will considerably shorten its lifespan!
|
Product description Denecke's Dcode PS-T Microphone Power Supply is a low noise 12V parallel or T power supply that feeds a broad range of condenser mics. In addition to -15dB pad, it uniquely features a polarity reversal switch for powering older red dot mics.
A single 9V battery can run a high current microphone for up to 24 hours. Small, rugged, and light weight construction makes the PS-T perfect for mobile applications. A noise floor under 0.01 mVAC also suits it for mics feeding DAT machines, radio mics, tape machines, and mixing panels. - Support for Red Dot Microphones
- A unique polarity reversal feature lets you feed some older specialty mics with the PS-T. Red dot mics don't work under the usual T-Power scheme of sending positive current on XLR pin 2 and returning negative current via pin 3. The PS-T's Red Dot switch lets you reverse this relationship, so you can use these mics too.
- Low Noise
- With a noise floor under 0.01 mVAC, the PS-T sounds surprisingly quiet when the mic is capturing dead air.
- Excellent Battery Performance
- A single 9V battery can feed a high current mic up to 24 hours (results will vary with different mics). When you first put a battery in, the PS-T flashes to let you know it's okay. If the battery is weak, the LED lights and remains steady to warn of possible poor mic performance.
- Pad Switch
- The Microphone Power Supply offers -15 pad to boost the signal when mic performance is low or the signal is weak.
- Rugged Construction
- The Phantom Power Supply is made small but tough to handle use on the road as well as in the studio.
In the Box Denecke Dcode PS-T Microphone Power Supply Microphone Power Supply 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denecke Dcode PS-T Microphone Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenecke PS-T Specs | Input Connectors | 3-Pin XLR Female | | Output Connectors | 3-Pin XLR Male | | Adapter | No | | Battery | 1 x 9VDC | | Power | 12V ±2V Power Output
-12v (reversed polarity) Output in Red Dot mode
Operates on a 9V Battery | | Dimensions | 4.0 x 1.25 x 3.0" (10.1 x 3.18 x 7.62 cm) | | Weight | 8.0 oz (226.8 g) | | | | Package Weight | 0.58 lb | | Box Dimensions (LxWxH) | 8.35 x 4.25 x 2.35" |
