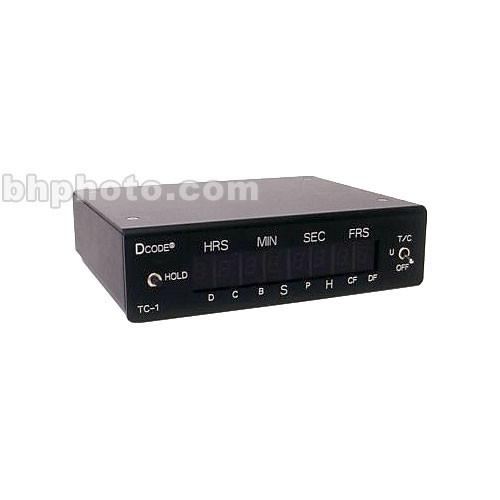

User Manual for Denecke TC-1 Time Code Reader - SMPTE EBU Click to enlarge the picture
Contents of the user manual for the Denecke TC-1 Time Code Reader -
- Product category: Time Code Generators & Readers Denecke
- Brand: Denecke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denecke Time Code Generators & Readers
|
User manual for the Denecke TC-1 Time Code Reader - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denecke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denecke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denecke product will considerably shorten its lifespan!
|
Product description The Deneke Dcode TC-1 Time Code Reader allows the access of time code to film editing at a substantially lower cost of other systems. When using time coded film dailies, editors working directly with film can use the TC-1 to assist them in syncing, making high speed searches, logging, and keeping accurate time-date records of the actual production. - Read
- Reads SMPTE and EBU time code from VTRs, Film editing machines and Film Synchronizers from 1/50th to 50 time speed in forward and reverse directions.
- Application
- When transferring audio tape to mag film it cleans and reshapes time code while generating a 60 Hz sync pulse from 24 or 30 fps.
- Function
- A standard function is the Freeze mode which halts the display at a desired point; this is accomplished by utilizing the hold button.
In the Box Denecke TC-1 Time Code Reader - SMPTE / EBU AC Power Adapter 90 Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denecke TC-1 Time Code Reader - SMPTE EBU in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenecke TC-1 Specs | Input | TC Input, -35 to +35 dB @ 50K ohms, on a 1/4" Phono Connector | | Output | TC Output, 1 Vpp Square Wave @ 2K ohms, on a 1/4" Phono Connector | | Television System | NTSC @ 3.58 MHz
PAL @ 4.43 MHz | | Control | Hold
Time Code/User Bit/Off | | Power Supply | 7 to 24 VDC or VAC on a Power Adapter | | Dimensions | 6 x 5 x 1.625"
15.2 x 12.7 x 4.1cm | | Weight | 1.5 lbs
680 grams | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 5.0" |
