User Manual for Denecke TS-3 Time Code Slate - Color Clapper, EL Backlit Display Click to enlarge the picture
Contents of the user manual for the Denecke TS-3 Time Code Slate -
- Product category: Time Code Generators & Readers Denecke
- Brand: Denecke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denecke Time Code Generators & Readers
 |
User manual for the Denecke TS-3 Time Code Slate - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denecke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denecke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denecke product will considerably shorten its lifespan!
|

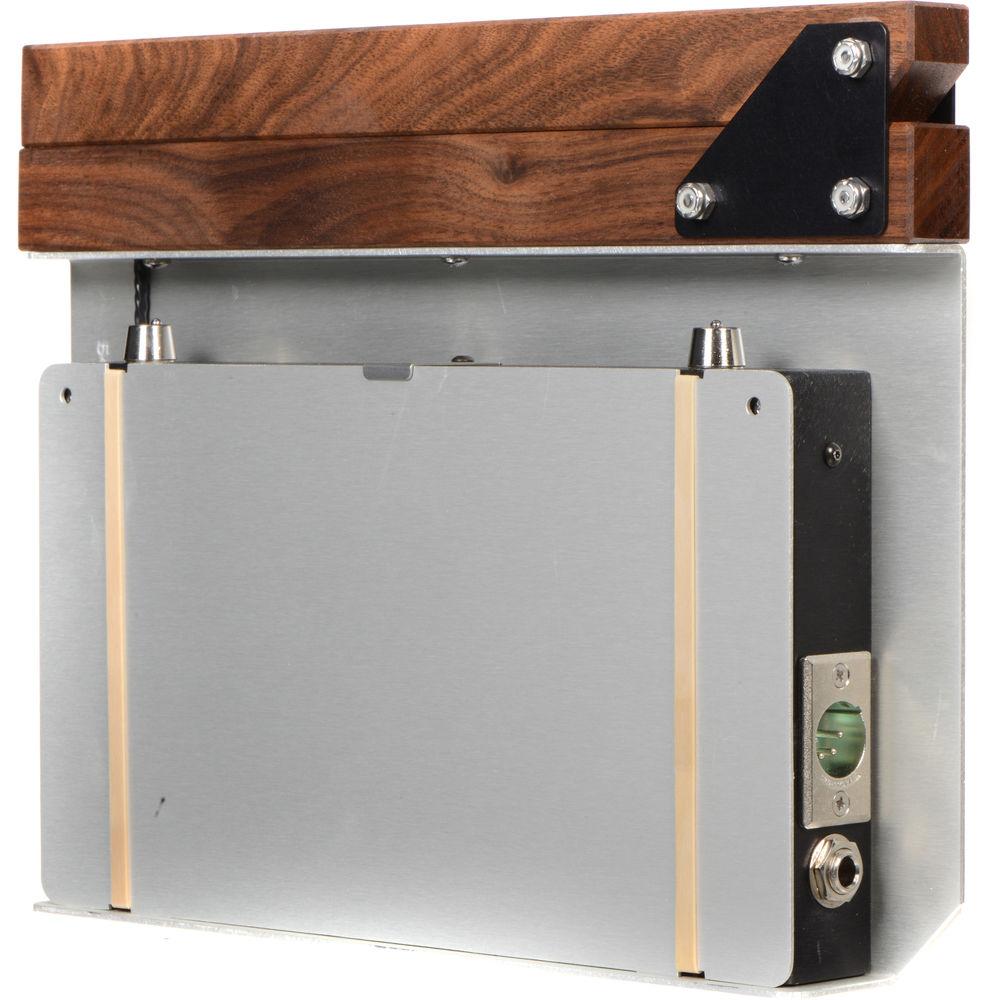

Product description The Deneke TS-3 Time Code Slate reads and displays SMPTE/EBU Time Code; it utilizes an internally mounted SB-2 Syncbox Time Code Generator. This unit Jams to all standard frame rates, including 30 df; user bits jam automatically when the time is set. The high stability crystal ensures low drift and now comes standard with the TCXO option for extreme temperature ranges. - Flat Back

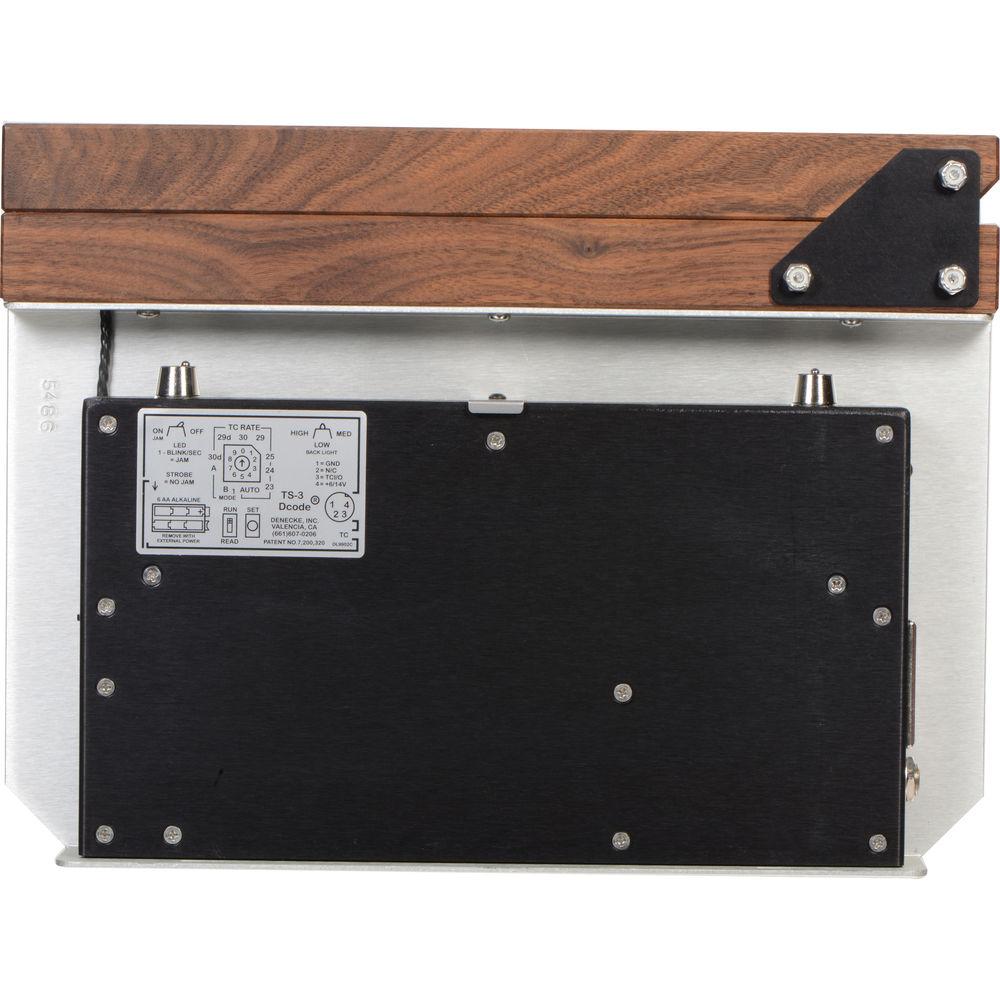

- This slate features a flat back for easy holding; also has a removable plate for holding camera logs.
- Clapper
- This unit features a colored clapper.
- EL Backlit Display
- The EL Backlit Display is particularly useful during night shoots and on dimly lit stages.
- Voltage Readout
- A battery voltage readout and low battery warning keep the user informed.
- Access Door
- A small sliding door allows quick access to controls and battery pack.
- Error Warning
- A Sync Error warning lets the user know different frame rates are being input.
- Automatic
- The incoming frame rate is read and the reader automatically sets to that frame rate.
- Logging
- A logging feature allows the user to scroll back through the last 16 time code claps.
- TCXO
- The high stability Temperature Compensated Crystal Oscillator ensures low drift and is standard on the TS-3.

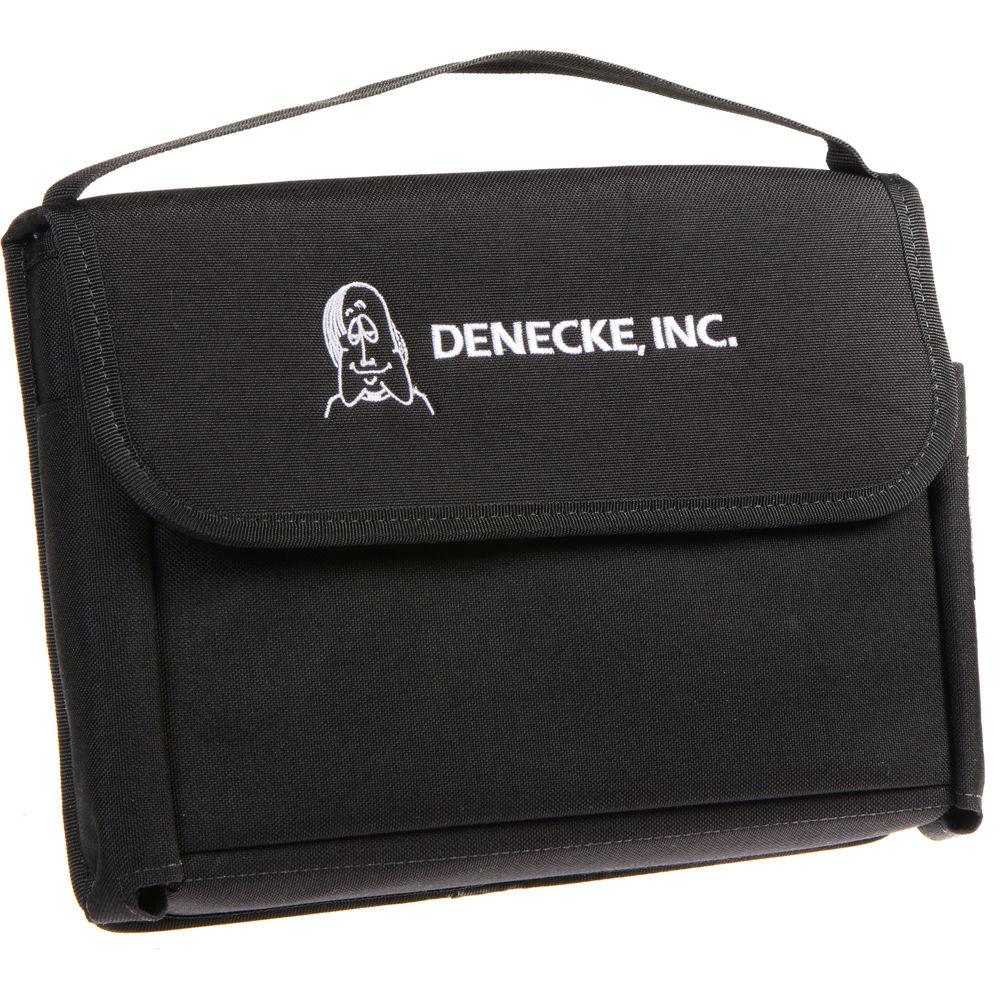

In the Box Denecke TS-3 Time Code Slate - Color Clapper, EL Backlit Display Versa Flex Pouch 90 Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denecke TS-3 Time Code Slate - Color Clapper, EL Backlit Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenecke TS-3EL Specs | Input | TC Input, -15dB at 4.7K, on a 1/4" Phone Jack | | Output | Not Specified by Manufacturer | | Television System | NTSC @ 3.58 MHz
PAL @ 4.43 MHz | | Control | Rotary Switch:
LED Brightness
Time Code Type
User Bit | | Power Supply | 5.7 to 16 VDC
6 AA Batteries | | Dimensions | 8.25 x 11 x 1.3" (21 x 28 x 3.3cm) | | Weight | 2.7 lbs (1.25kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 13.8 x 8.9 x 3.1" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Denecke TS-3 Time Code Slate - Color Clapper, EL Backlit Display
| Subject: odd behaviour of TS-3 | | Date: 02.10.2020 14:19:25 | Name: Steve de Souza | Hi
when the clapper is closed the TC occassionally continues to run instead of going blank after the UB are displayed. If I press in certain spots on the back plate this goes away. Seems like somethng may be loose maybe? Any suggestions?
thanks
Steve | | Post reply |
