User Manual for Denecke TS-C Compact Time Code Slate - Color Clapper, EL Backlit Click to enlarge the picture
Contents of the user manual for the Denecke TS-C Compact Time Code Slate
- Product category: Time Code Generators & Readers Denecke
- Brand: Denecke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denecke Time Code Generators & Readers
 |
User manual for the Denecke TS-C Compact Time Code Slate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denecke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denecke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denecke product will considerably shorten its lifespan!
|

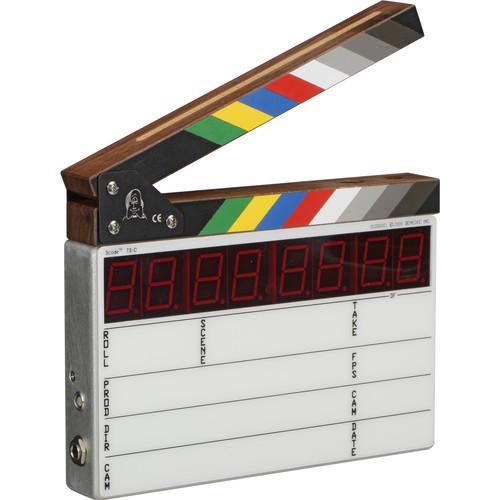

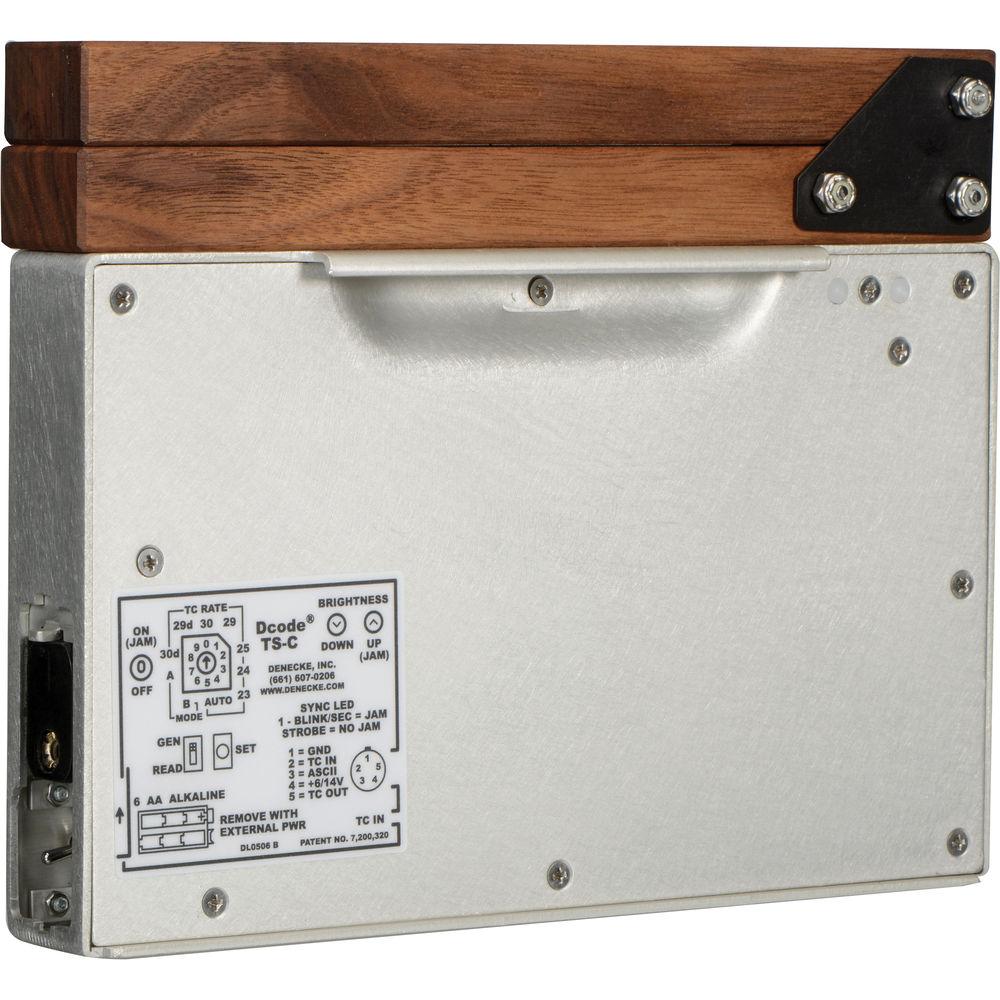

Product description The Denecke TS-C is a compact full featured smart slate, capable of reading, generating and displaying SMPTE/EBU time code. Its new compact size makes the TS-C ideal for documentary work, insert shots, or anywhere a big slate is too cumbersome. The TS-C jams to all standard frame rates, including 23.976 for HD. - Flash Microprocessor
- A 16 Bit Flash Microprocessor produces greater accuracy and allows for future firmware upgrades.
- Clapper
- This unit features a colored clapper.
- Voltage Readout
- A battery voltage readout and low battery warning keep the user informed.

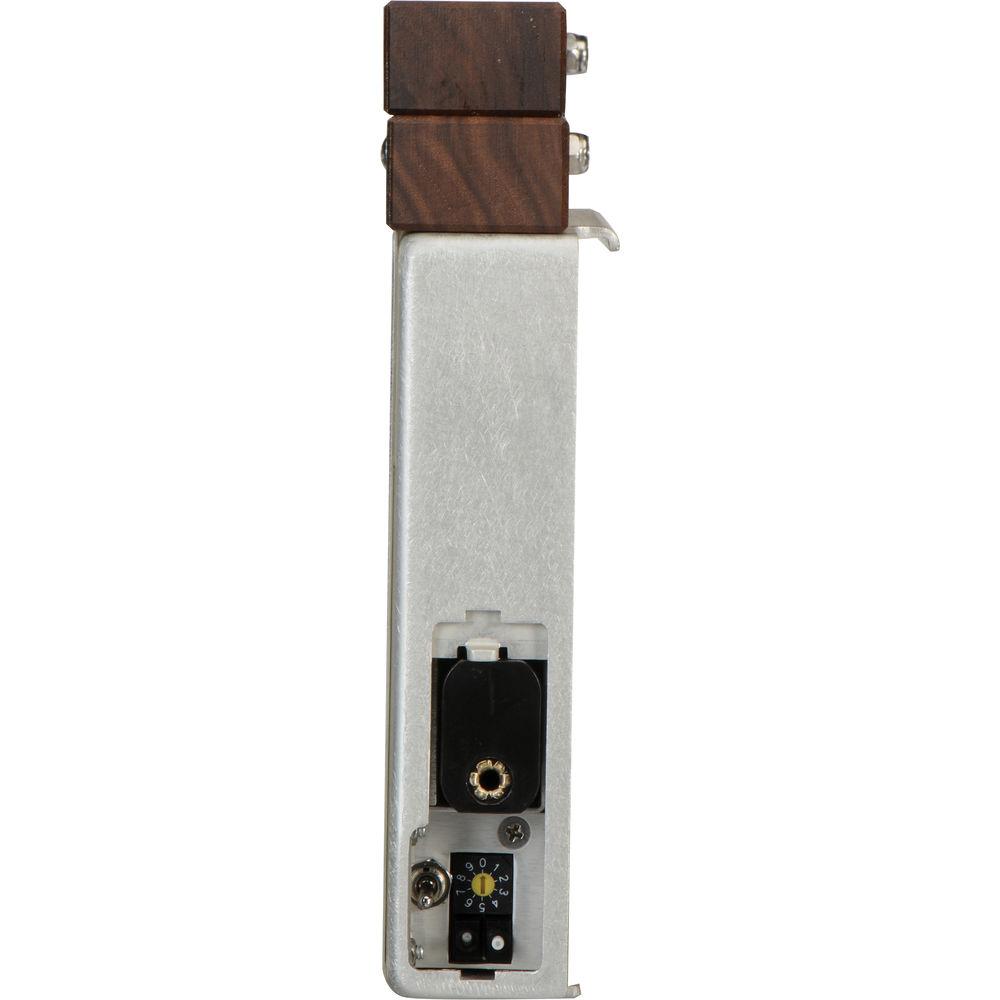

- Access Door
- A small sliding door allows quick access to controls and battery pack.
- Error Warning
- A Sync Error warning lets the user know different frame rates are being input.
- EL Backlit
- The EL Backlit Display is particularly useful during night shoots and on dimly lit stages.
- Automatic
- The incoming frame rate is read and the reader automatically sets to that frame rate.
- TCXO
- The high stability Temperature Compensated Crystal Oscillator ensures low drift and is standard on the TS-3.
In the Box Denecke TS-C Compact Time Code Slate - Color Clapper, EL Backlit Versa Flex Pouch 90 Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denecke TS-C Compact Time Code Slate - Color Clapper, EL Backlit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

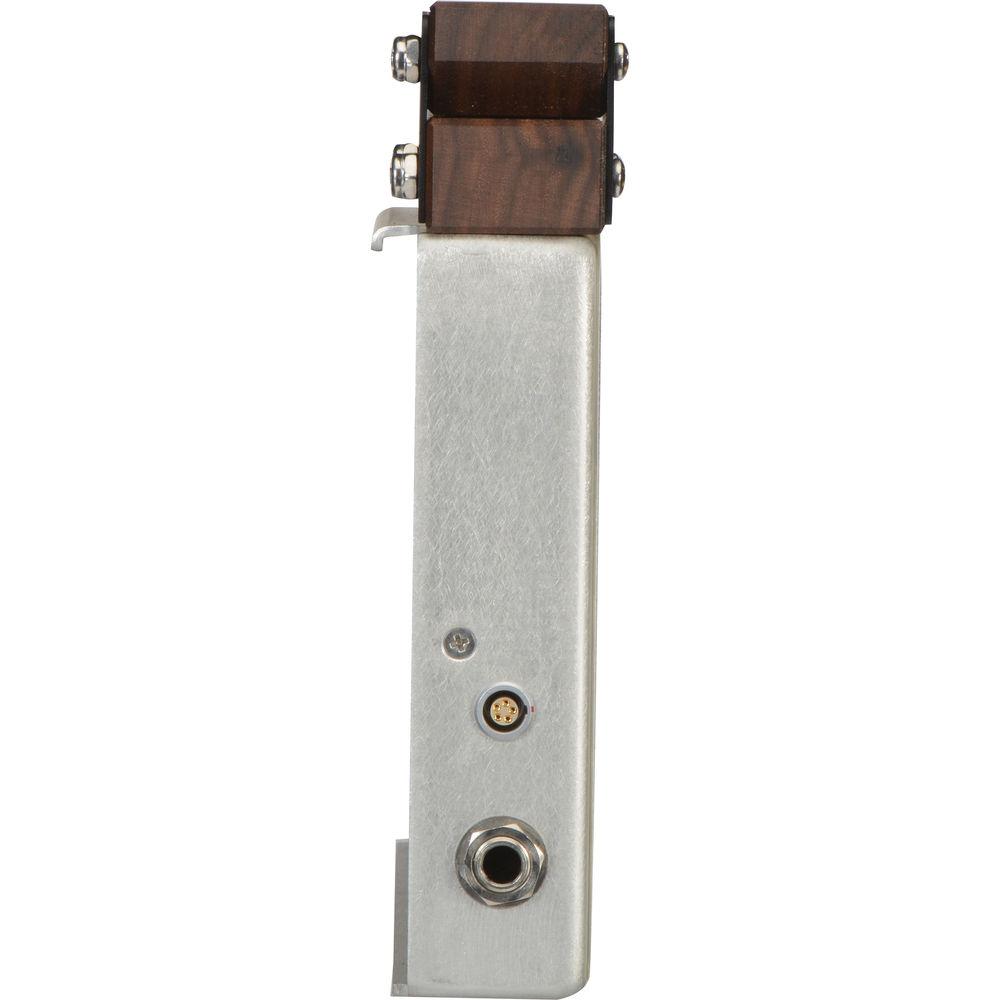

Technical parametersDenecke TS-C Specs | Input | TC Input, -15dB at 4.7K, on a 1/4" Phone Jack or 5-Pin Lemo plug | | Output | Not Specified by Manufacturer | | Television System | NTSC @ 3.58 MHz
PAL @ 4.43 MHz | | Control | Rotary Switch:
LED Brightness
Time Code Type
User Bit | | Power Supply | 5.7 to 16 VDC
6 AA Batteries | | Dimensions | 5 x 8.25 x 1.24"
12.7 x 21 x 3.14cm | | Weight | 1.90 lbs
861 grams | | | | Package Weight | 2.37 lb | | Box Dimensions (LxWxH) | 13.3 x 12.5 x 3.7" |
