Product description - Denon Professional Lectern Active Portable Speaker

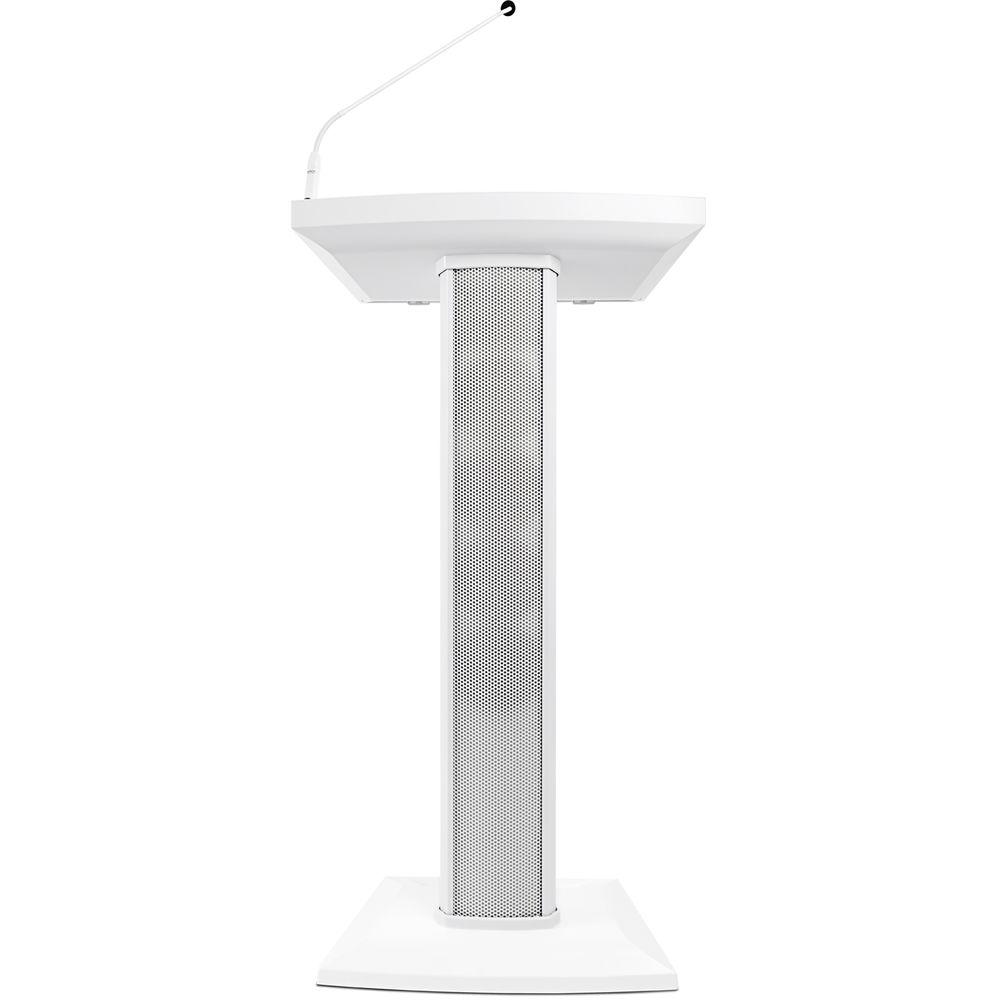

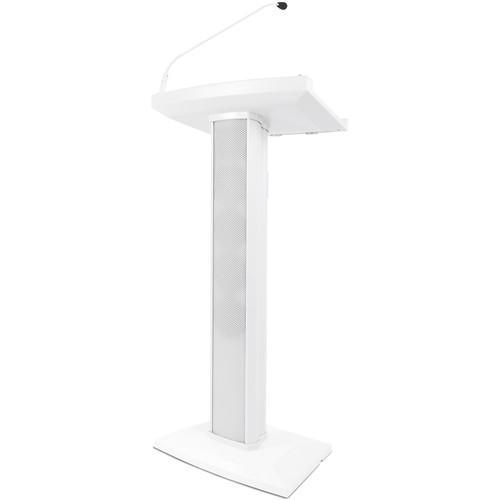

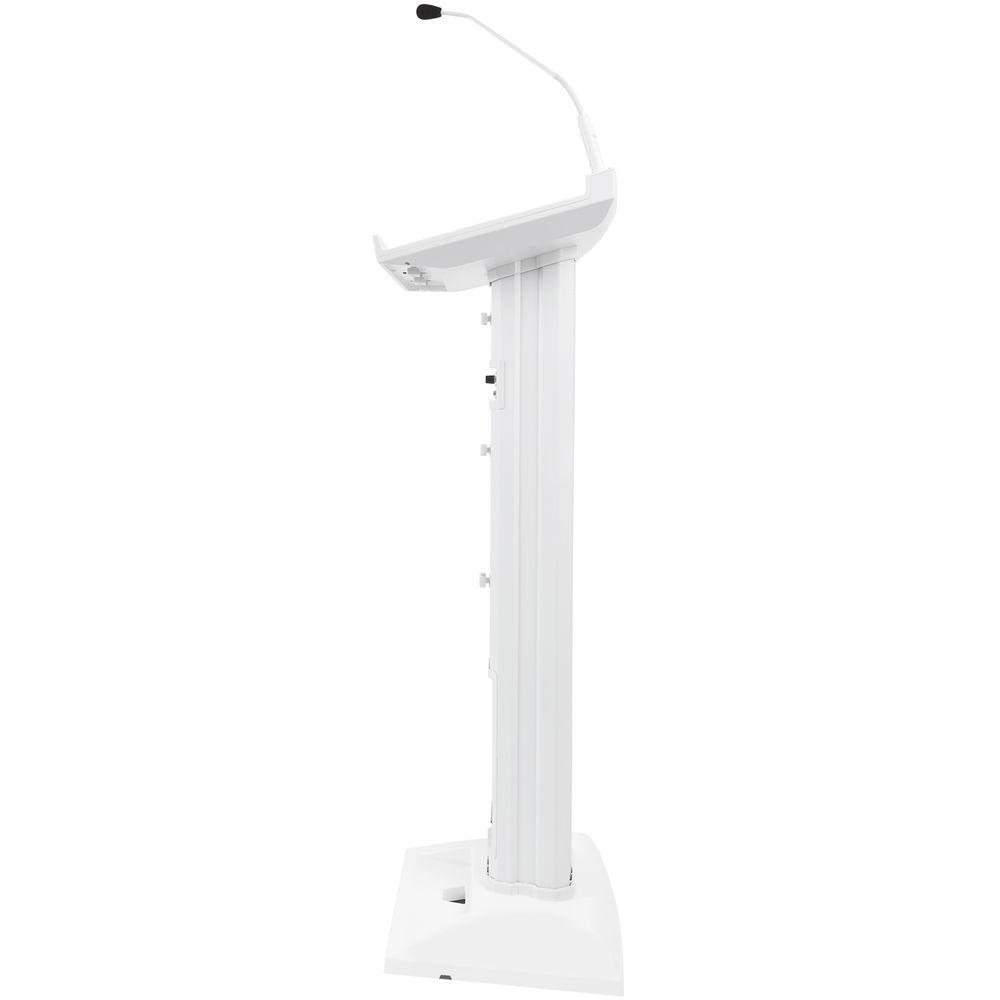

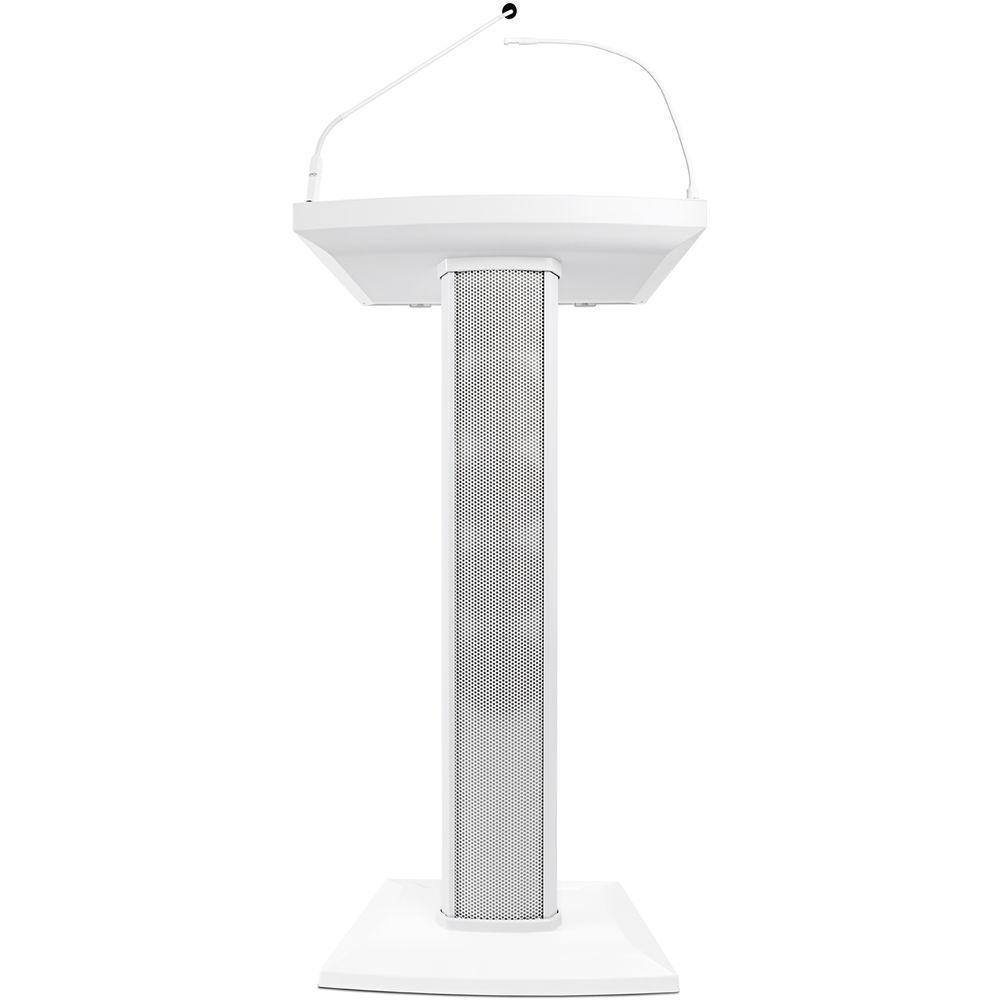

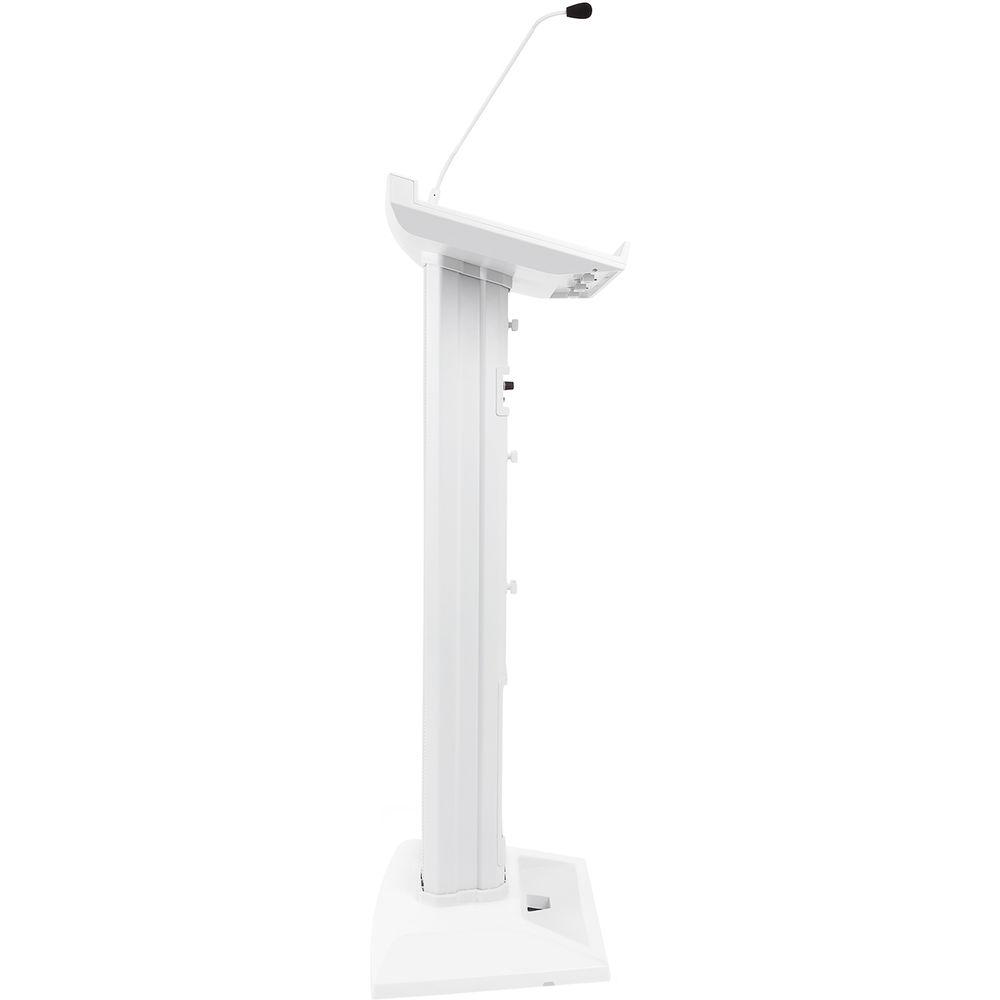

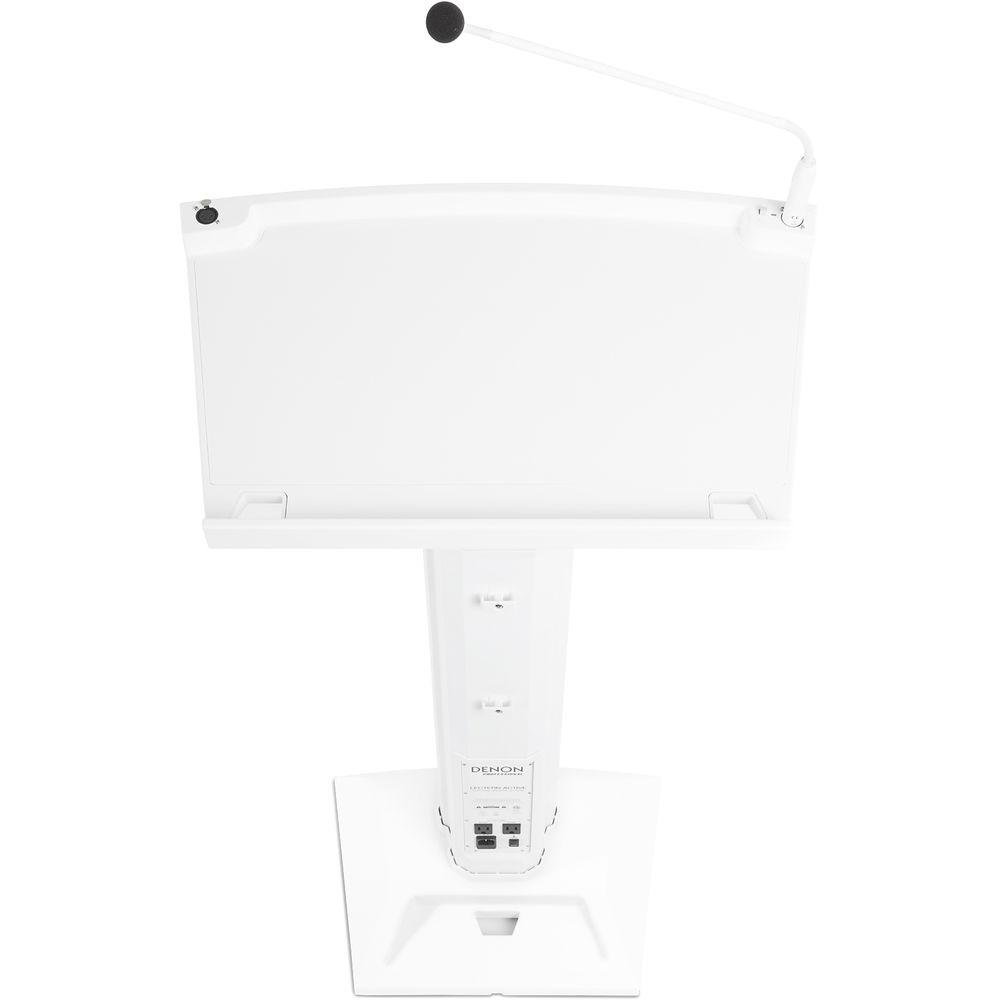

The white All-In-One Audio Lectern with Speaker, Gooseneck Mic, and USB from Denon is a portable lectern designed for multi-media presentations in event spaces. Self-powered and featuring a built-in speaker system, flexible gooseneck microphone, multiple inputs for your devices, USB-powered lamp port, and AC charging sockets, this lectern eliminates the need for separate tripod stands, external speakers, mixers, and cables. Moreover, the All-In-One Audio Lectern has a rubberized top surface, so your presentation materials don't slide all over the place. - Key Features
-
- Powered lectern with built-in 2-way speaker column
- Gooseneck microphone with XLR base
- 200W peak amplifier drives four 5.25" speakers
- Horn-loaded, high-frequency driver ensures sound is delivered with high clarity
- Distortion-limiting circuit keeps sound clean and clear at all times
- 2-channel mixer allows you to select and combine different signal sources
- XLR, 3.5mm stereo, and RCA stereo pair inputs

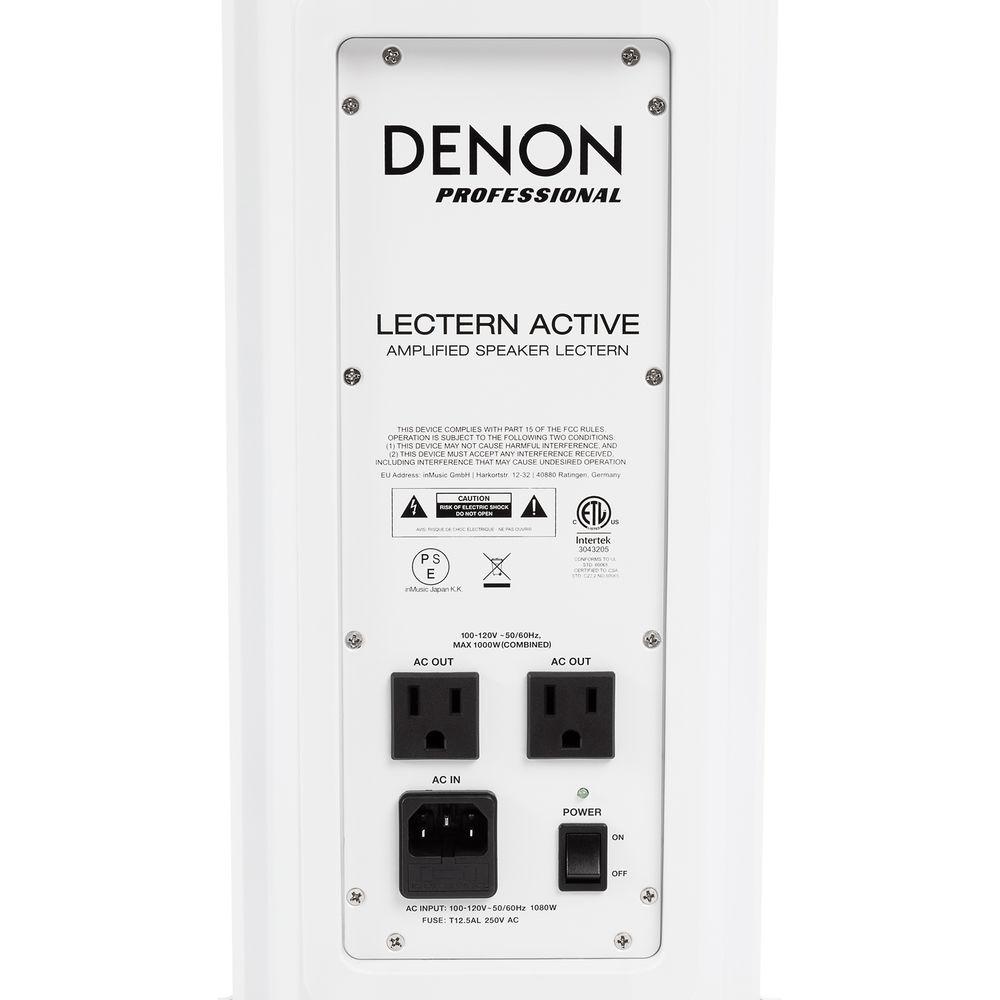

- XLR output, two USB charging ports, two 110 VAC power outlets
- Precision electronic crossover and limiter
- 80 Hz to 20 kHz Output Frequency Range
- Mute button
- Two volume controls (CH1 and AUX)
UPC: 694318022771 In the Box Denon All-In-One Audio Lectern with Speaker, Gooseneck Mic, and USB (White) Gooseneck XLR Microphone & Windscreen Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon All-In-One Audio Lectern with Speaker, Gooseneck Mic, and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon LECTERN ACTIVE WHITE Specs | System | 100 W RMS (200 W Peak) Class-D amplifier
4 x 5.25" / 13.3 cm full-range speakers
1 x horn-loaded 1" / 2.5 cm HF driver, 25 mm voice coil
Output Frequency Range: 80 Hz to 20 kHz
Max. SPL: 112 dB at 3.3 ft / 1 m | | Microphone | Type: Condenser
Frequency Range: 50 Hz to 16 kHz
Max. SPL: 130 dB
Self Noise: 26 dB
Signal-to-Noise Ratio: 68 dB
Impedance: 200 Ohms
Length: 23.5" / 60 cm
Weight: 0.35 lb /0.16 kg | | Inputs | 1 x XLR microphone input
1 x 3.5 mm stereo input
1 x RCA stereo input pair (line-level) | | Outputs | 1 x XLR output
2 x 5 V USB Type-A charging ports
2 x 110 VAC outlets | | Input Voltage | 100-120 V, 1080 W | | Fuse | 100-120 V: T12.5AL 250 V | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 85% RH | | Dimensions | 24.8 x 15 x 47" / 63 x 38 x 119 cm | | Weight | 44 lb / 20 kg | | | | Package Weight | 68.0 lb | | Box Dimensions (LxWxH) | 52.0 x 27.0 x 20.0" |
