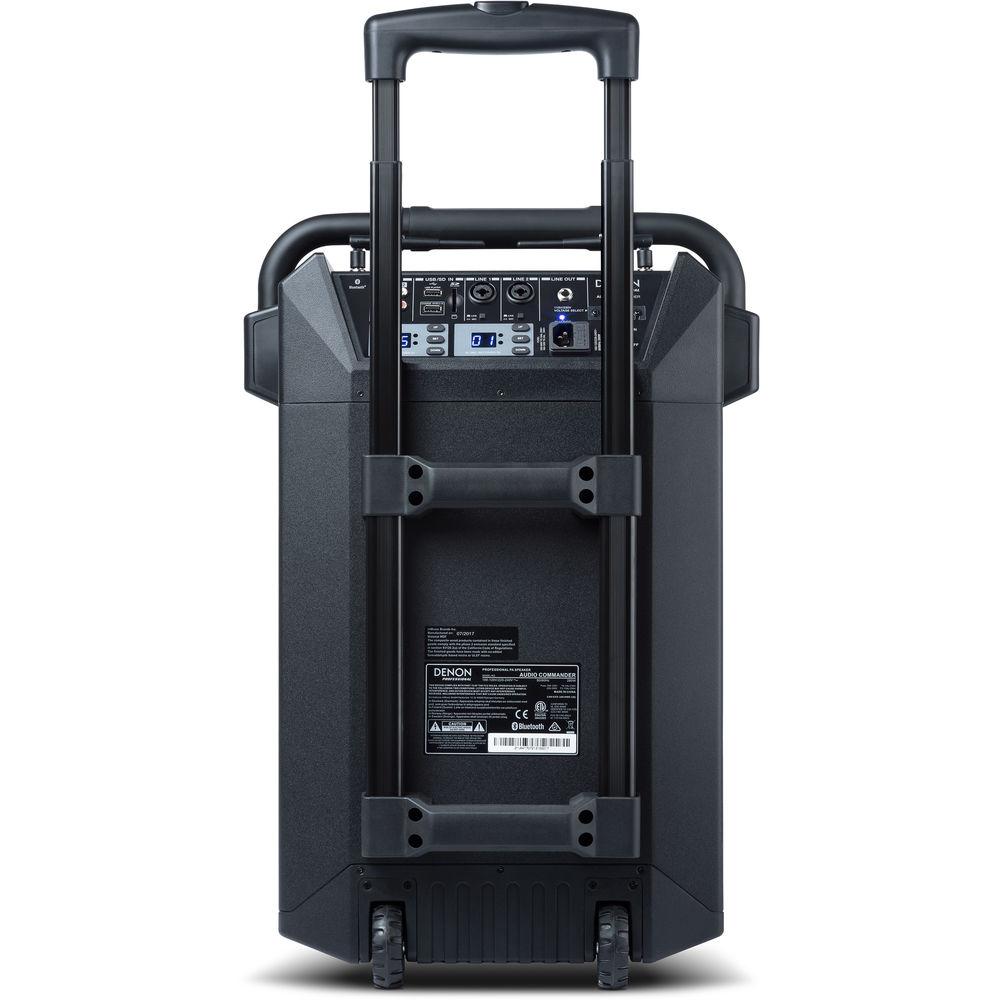

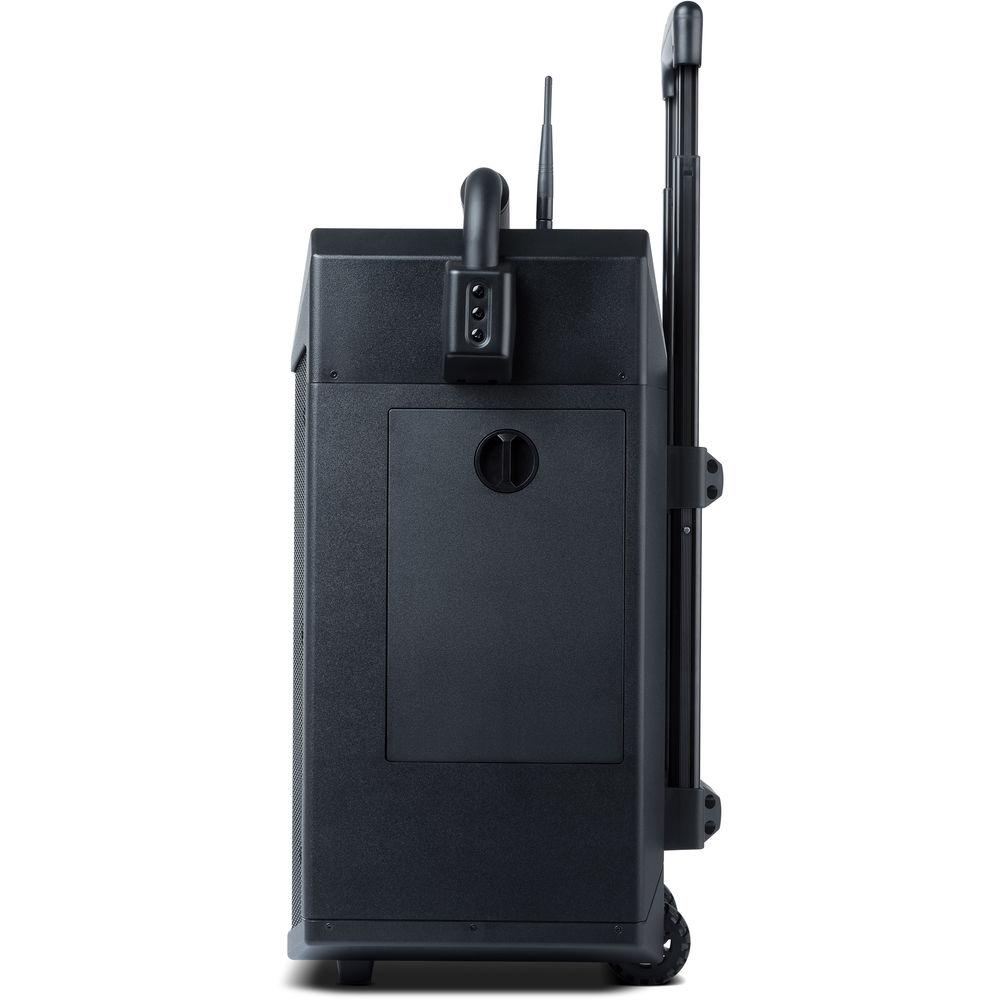

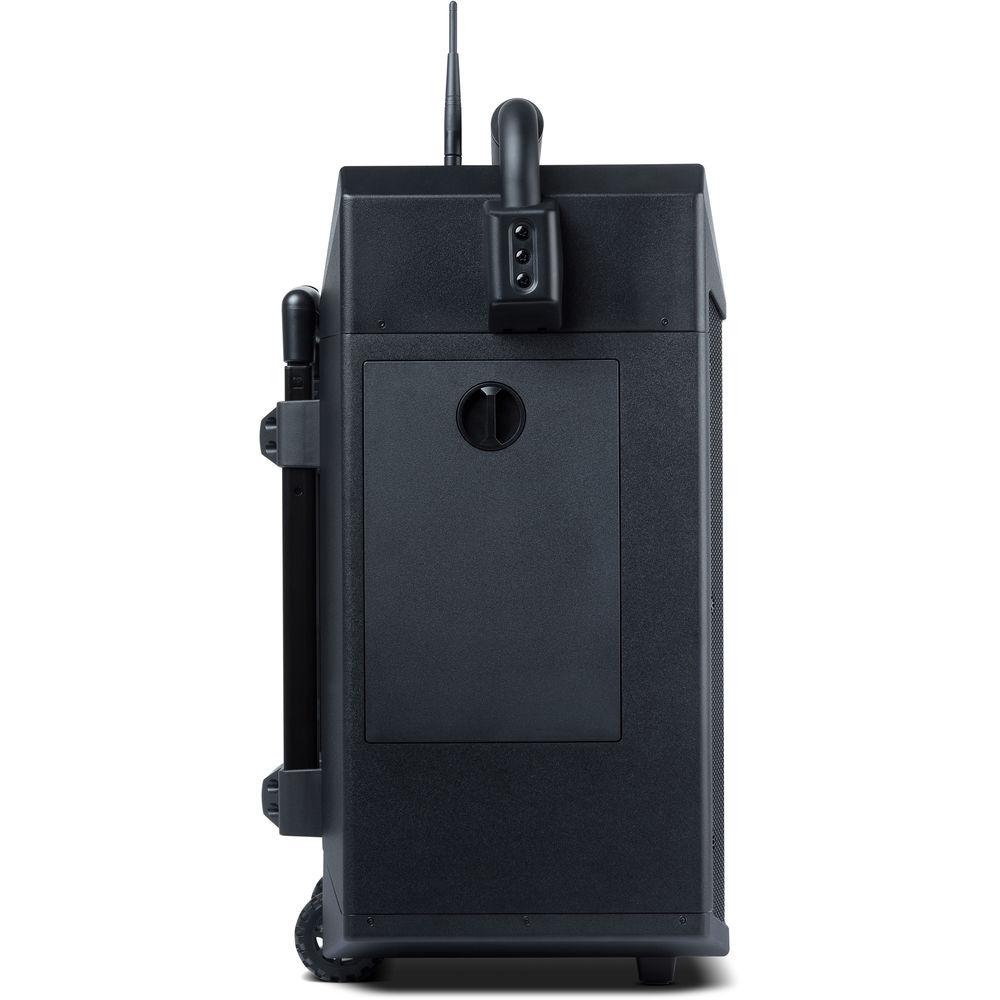

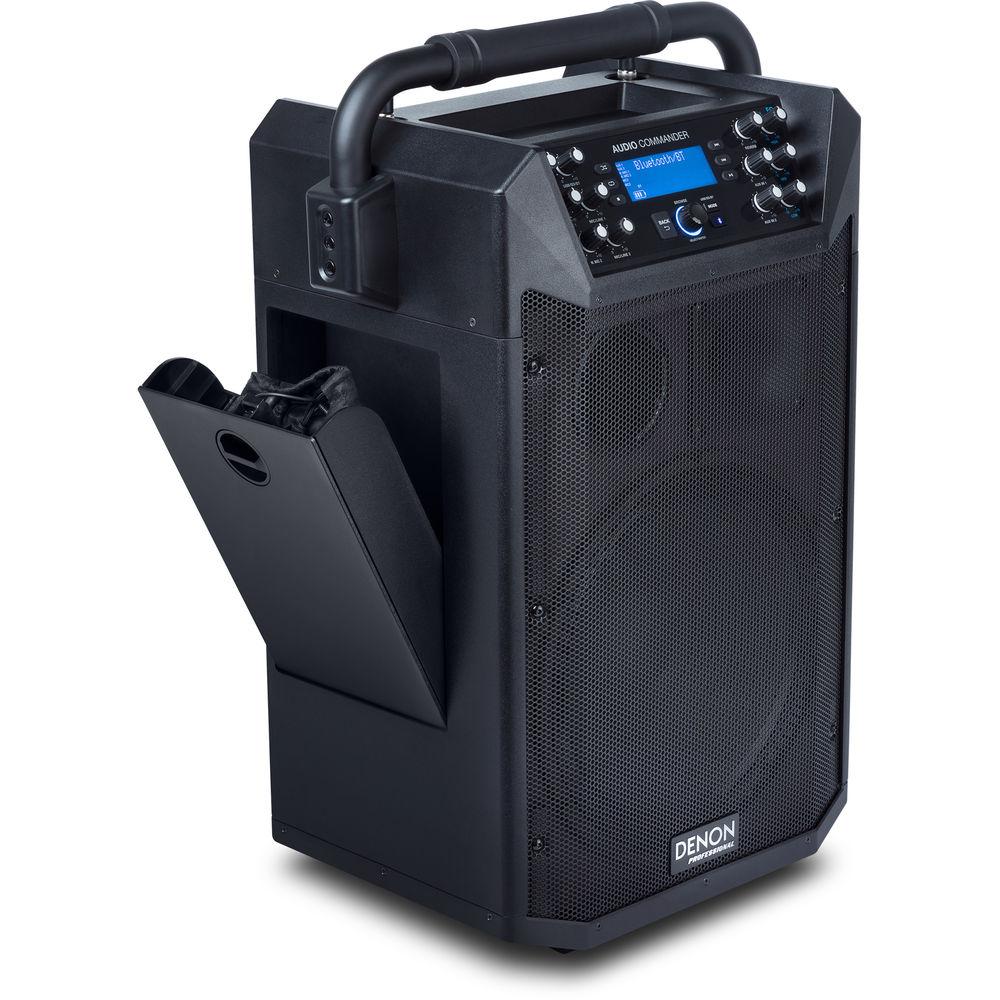

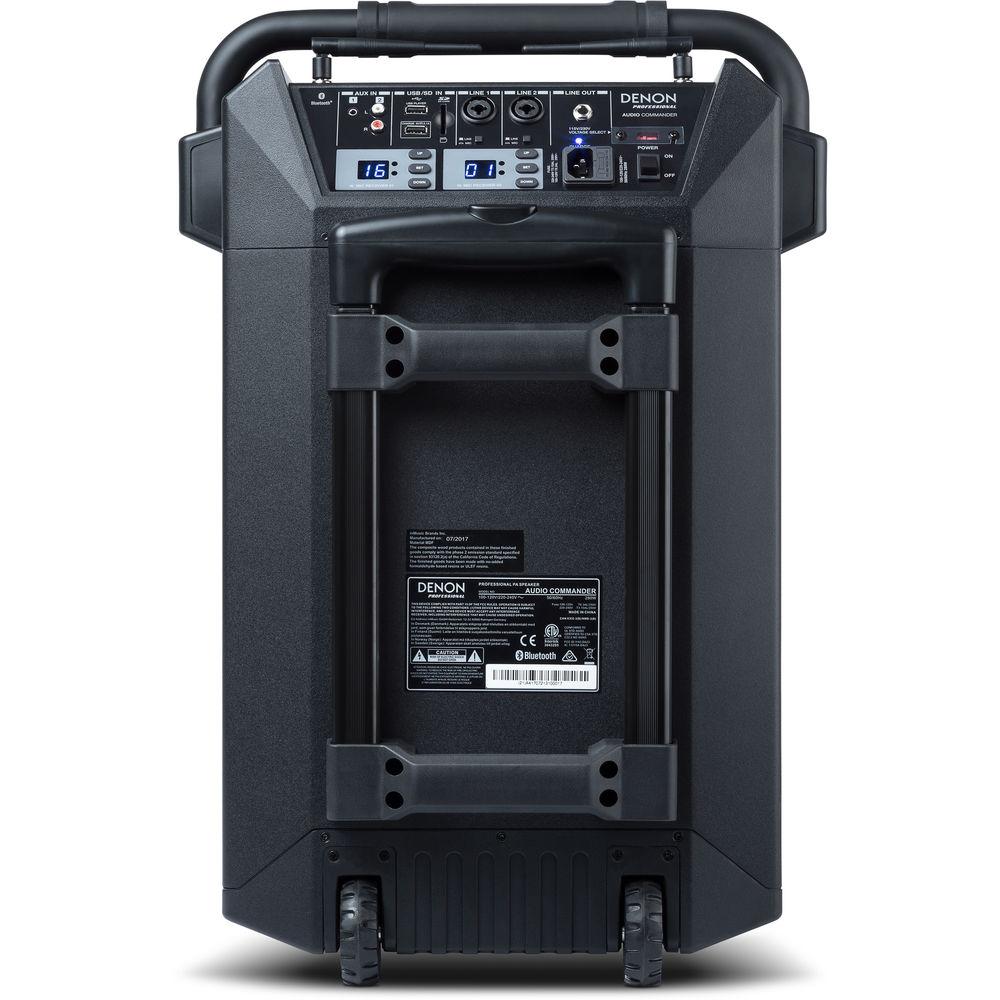

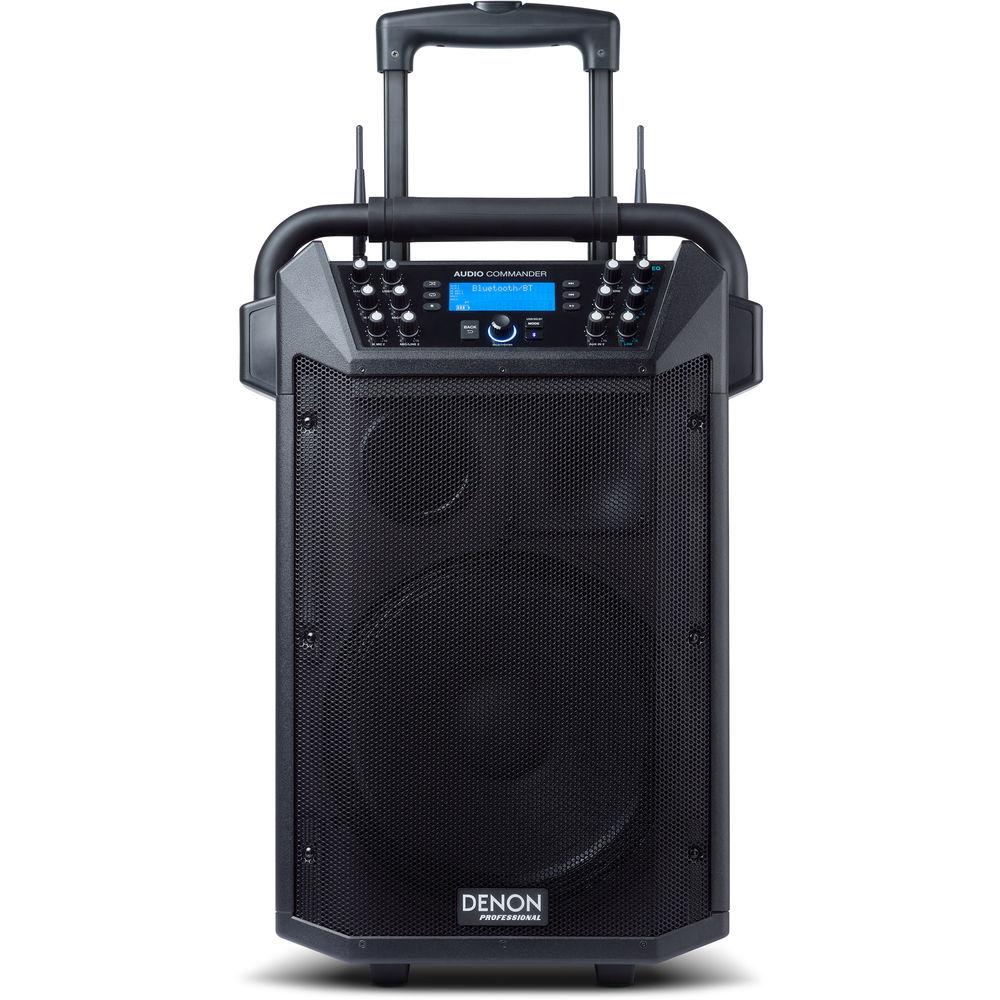

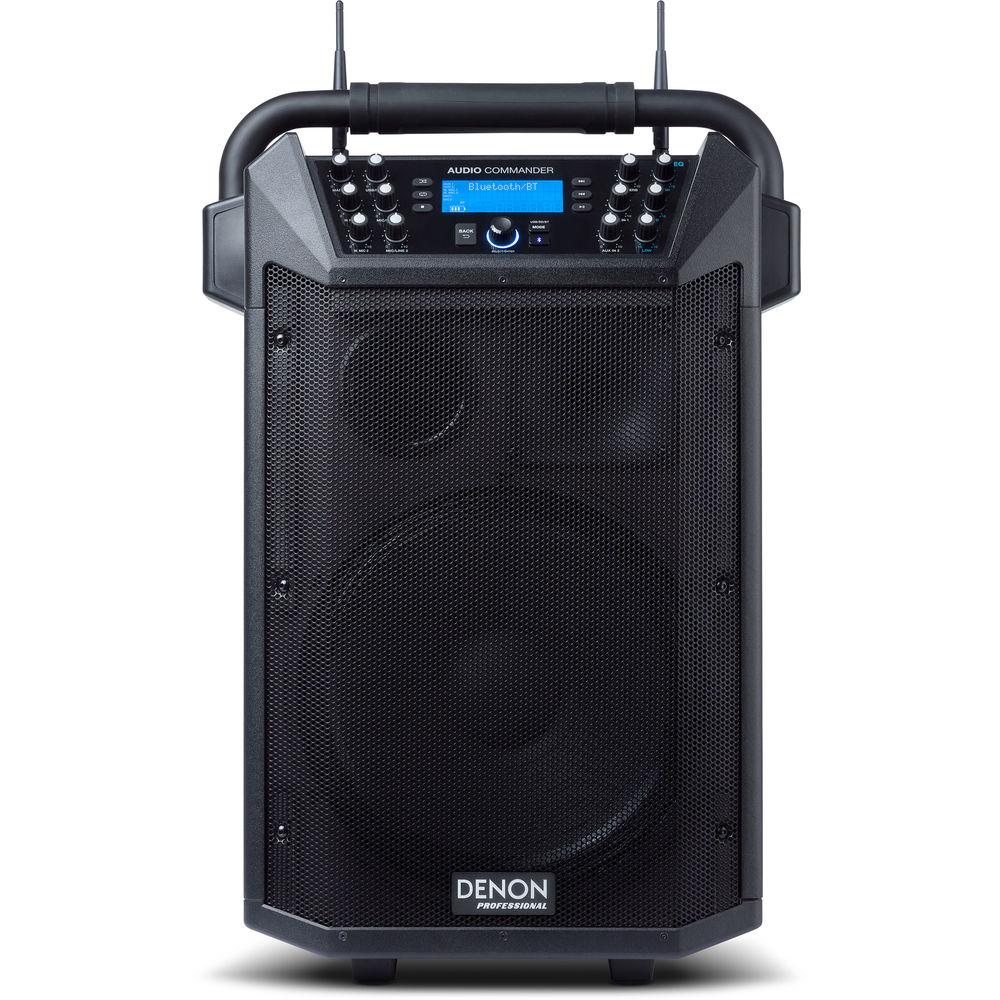

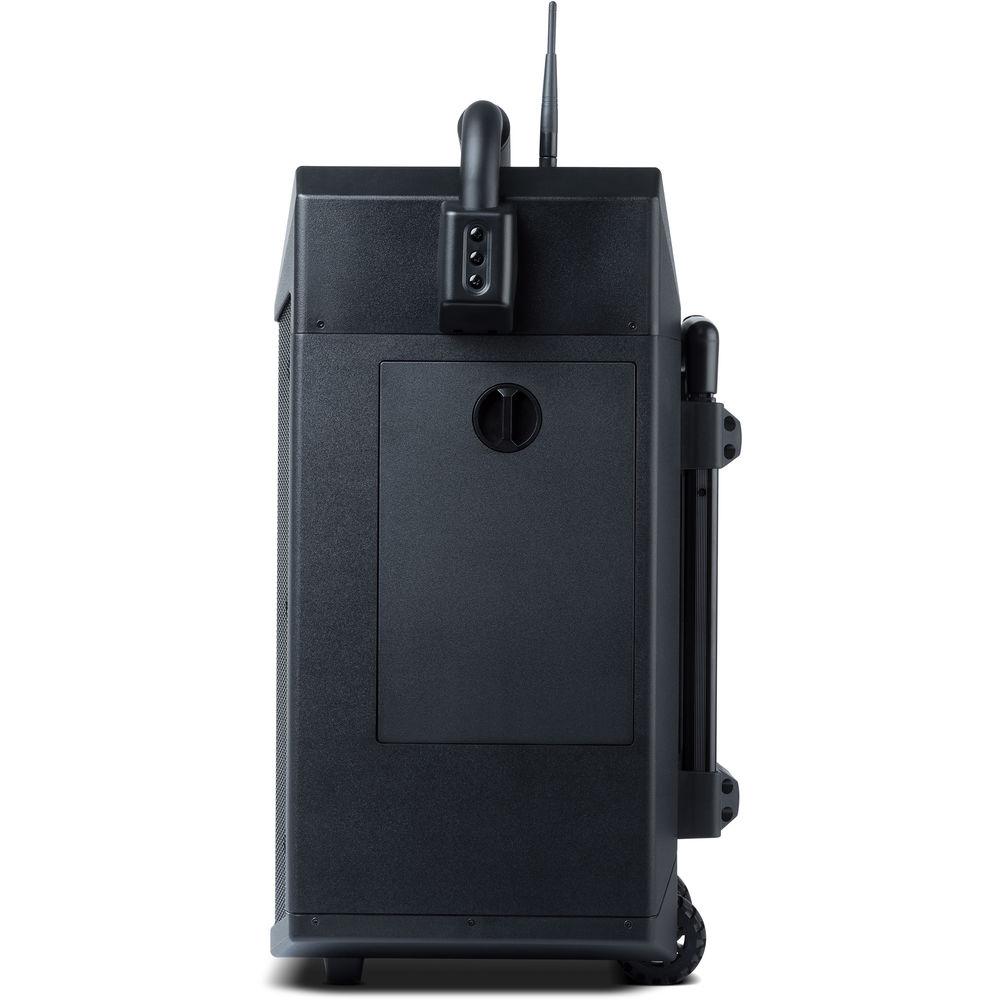

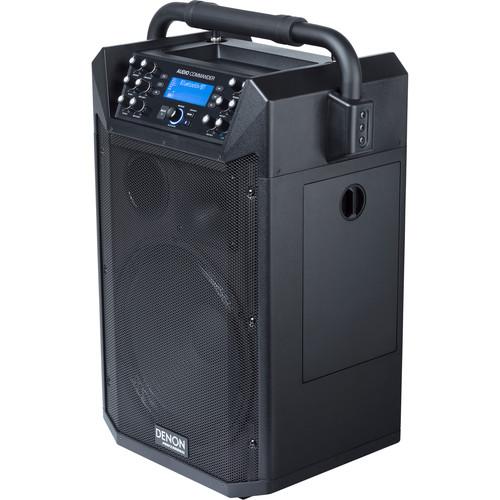

User Manual for Denon Audio Commander Professional Mobile PA System with Two Wireless Microphones Click to enlarge the picture
Contents of the user manual for the Denon Audio Commander Professional Mobile PA
- Product category: Portable PA Systems Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Portable PA Systems
 |
User manual for the Denon Audio Commander Professional Mobile PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More szxvybqvsfvsfftdrtrbateeserrx - Denon Professional Audio Commander Portable Speaker with 2 Wireless Microphones
The Denon Envoi Pro Audio Commander is an all-in-one portable PA system designed for professional DJs, aerobics instructors, presenters, or anyone needing a self-contained, self-powered compact audio system with wireless capabilities. The Audio Commander utilizes a 12" woofer and a compression-driver tweeter that combine to provide a frequency range of 20 Hz to 20 kHz. The unit includes two integrated 16-channel UHF wireless receivers, a wireless handheld microphone, and a wireless belt-pack transmitter with headworn microphone. The unit offers two XLR-1/4" combo jacks for wired mic/line inputs and aux inputs including a 3.5mm stereo mini-jack and a stereo set of RCAs.

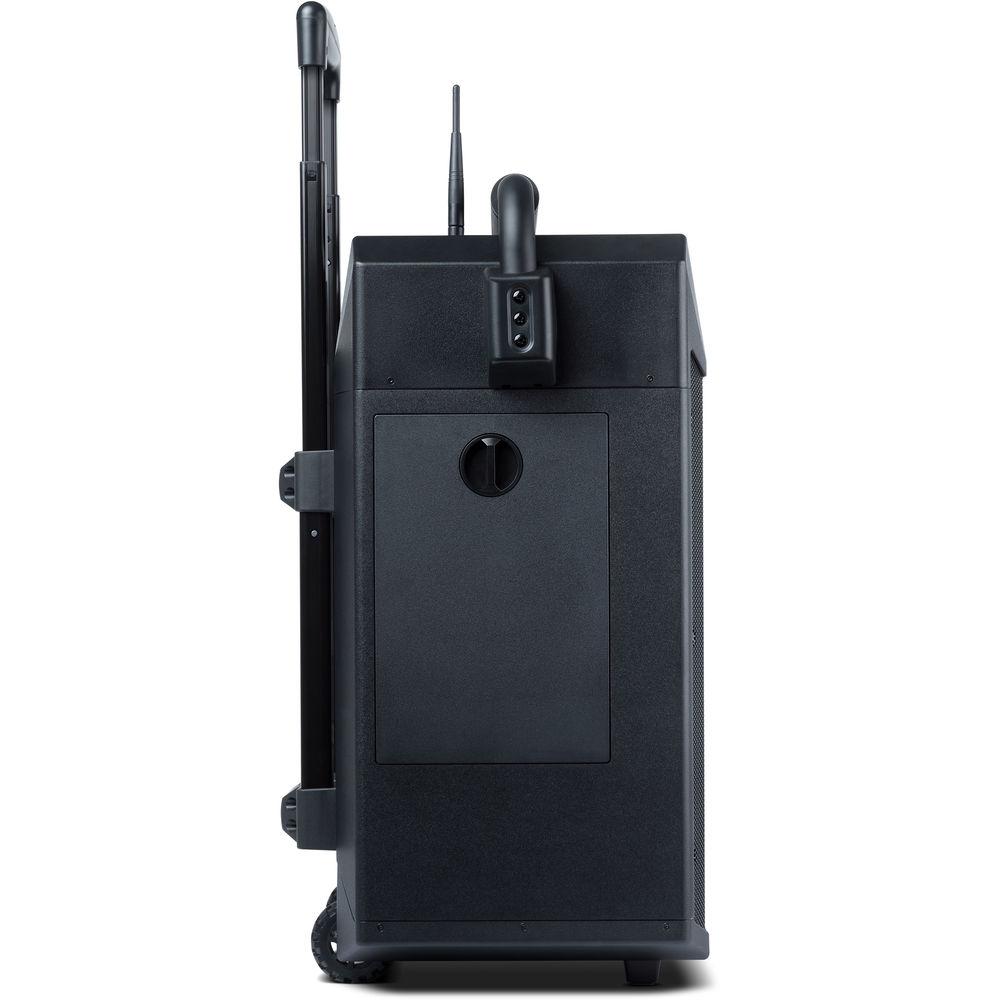

The Audio Commander offers audio playback from USB, SD media, and can stream audio wirelessly via any compatible Bluetooth device. The unit can be powered from AC power or via its internal rechargeable battery. The ported wooden enclosure features a luggage handle and wheels for ease in transport and setup. The Denon Envoi ships with a water-resistant cover. -
- Self-contained mobile PA system
- Operates on internal battery or AC power
- Two integrated UHF 16-channel wireless receivers
- Wireless handheld microphone
- Wireless belt-pack transmitter with headworn microphone
- Playback from Bluetooth, SD/USB, external mics or portable players
- Luggage handle and wheels
- Water-resistant cover
UPC: 694318021316 In the Box Denon Audio Commander Professional Mobile PA System with Two Wireless Microphones Power Cord Wireless Handheld Microphone Headworn Microphone Wireless Belt-Pack Transmitter Water-Resistant Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon Audio Commander Professional Mobile PA System with Two Wireless Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon AUDIO COMMANDER Specs | Speaker System | Amplifier: 200 W RMS Class-D
Woofer: 12.0" / 30.5 cm
Tweeter: Compression driver
Frequency Response: 20 Hz to 20 kHz
THD: < 1.0% | | Inputs | 2 x Integrated 16-channel UHF wireless mic receivers
2 x XLR-1/4" / 6.35 mm TRS combo jacks, switchable mic or line level
Aux 1: 1/8" / 3.5 mm TRS
Aux 2: 2 x stereo RCA
USB1: USB playback slot
USB2: USB 2.1 A charging slot
SD card slot | | Output | Line Output: 1/4" / 6.35 mm TRS | | Bluetooth | Version: 4.0
Profiles: A2DP
Range: Up to 60.0' / 18.3 m
Maximum Transmission Power: +4 dBm
Frequency: 2400 - 2480 GHz | | Equalizer | 3-band | | Cabinet | Wood construction (MDF)
Ported design
2 handles
Pole-Mount Socket: 1.4" / 35.0 mm
Luggage handle and wheels | | Power | Connection: IEC
Input Voltage: 100 to 120 VAC, 60 Hz, 220 to 240 VAC, 50 Hz
Fuse: T6.3A / T3.15A
Consumption: 280 W | | Dimensions | 17.2 x 13.5 x 25.4" / 436.9 x 342.9 x 645.2 mm | | Weight | 47.8 lb / 21.7 kg | | | | Package Weight | 61.0 lb | | Box Dimensions (LxWxH) | 30.0 x 21.0 x 18.0" |
