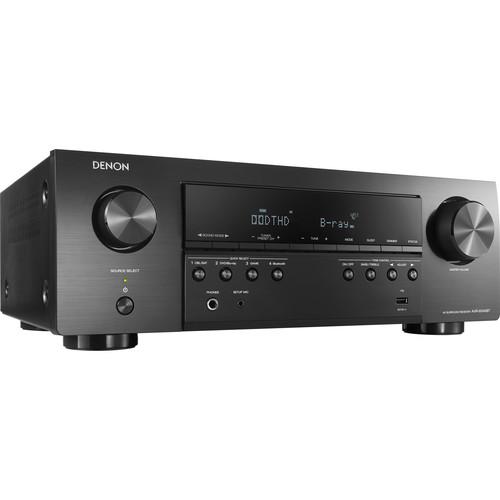

Denon AVR-S540BT 5.2-Channel A V Receiver

Search your instruction manual in PDF to download

User Manual for Denon AVR-S540BT 5.2-Channel A V Receiver

Click to enlarge the picture
Denon AVR-S540BT 5.2-Channel A V Receiver Contents of the user manual for the Denon AVR-S540BT 5.2-Channel A V Receiver
  • Product category: Receivers Denon
  • Brand: Denon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Denon Receivers

Denon AVR-S540BT 5.2-Channel A V Receiver Denon AVR-S540BT 5.2-Channel A V Receiver Denon AVR-S540BT 5.2-Channel A V Receiver Denon AVR-S540BT 5.2-Channel A V Receiver Denon AVR-S540BT 5.2-Channel A V Receiver Denon AVR-S540BT 5.2-Channel A V Receiver Denon AVR-S540BT 5.2-Channel A V Receiver
User manual for the Denon AVR-S540BT 5.2-Channel A V Receiver contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Denon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!



Product description

Enjoy true surround sound with your favorite speaker system and the Denon AVR-S540BT 5.2-Channel A/V Receiver. It outputs up to 70W per channel at 8 Ohms, or 90W per channel at 6 Ohms. With HDR UHD and 3D pass-through via HDMI, and a total of five HDMI inputs with one HDMI output, you can connect a variety of sources to your display and speakers. The AVR-S540BT features Bluetooth wireless connectivity and a front-panel USB input, which will accept compatible portable USB devices. Calibration of the receiver is simplified with the sound calibration system and included setup microphone.

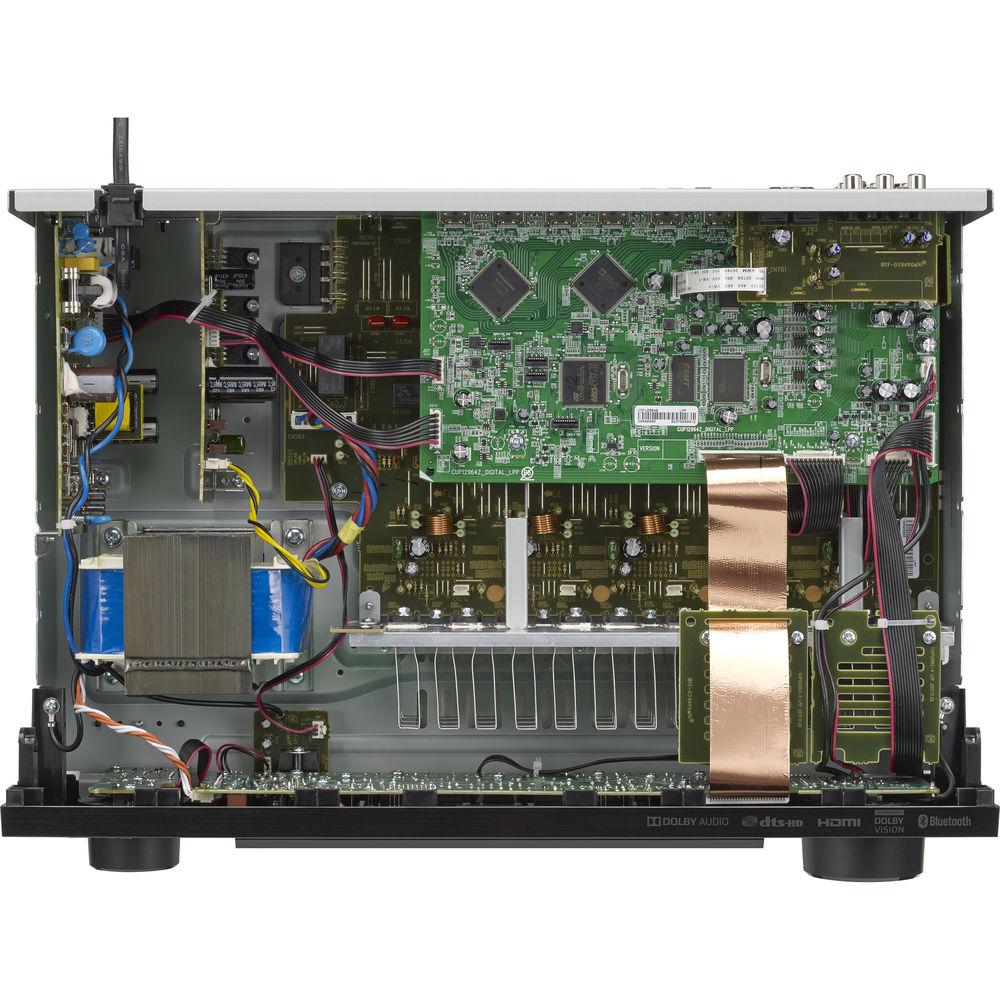

    5-Channel Discrete Amplifier
  • Featuring discrete power output devices on all channels, the AVR-S540BT is designed to deliver high power and is rated up to 70 watts per channel. For compatibility with a variety of speakers, the AVR-S540BT is equipped with low-impedance drive capability.
    HDMI 2.0 and HDCP 2.2 Specifications
  • All five HDMI inputs support 4:4:4 Pure Color sub-sampling, BT.2020 pass-through, 3D, HDR10, Dolby Vision, and HLG (Hybrid Log-Gamma); full 4K Ultra HD with 60 Hz pass-through and HDCP 2.2 processing is available on three HDMI ports to support copy-protected content.
    Smart TV Connectivity
  • Control the Denon AVR-S540BT with your compatible smart TV remote via the HDMI CEC functionality associated with your smart TV. Simply set "HDMI Control" to "On" in the receiver, then set "Smart Menu" to "On" and begin controlling the receiver with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the receiver's setup menu, and four Smart Selects.
    Built-In Bluetooth
  • Thanks to built-in Bluetooth, you can stream your music from any compatible Bluetooth phone, tablet, or computer. Simply select the AVR-S540BT from your device's Bluetooth menu to turn on the receiver and start playing your music. The receiver can remember up to eight paired Bluetooth devices, so family and friends can listen to their favorite tracks.
    Mobile Control with the Denon AVR Remote App
  • The Denon 500 Series Remote app for iOS and Android allows you to adjust volume, turn the receiver on or off, mute the music, and select a source.

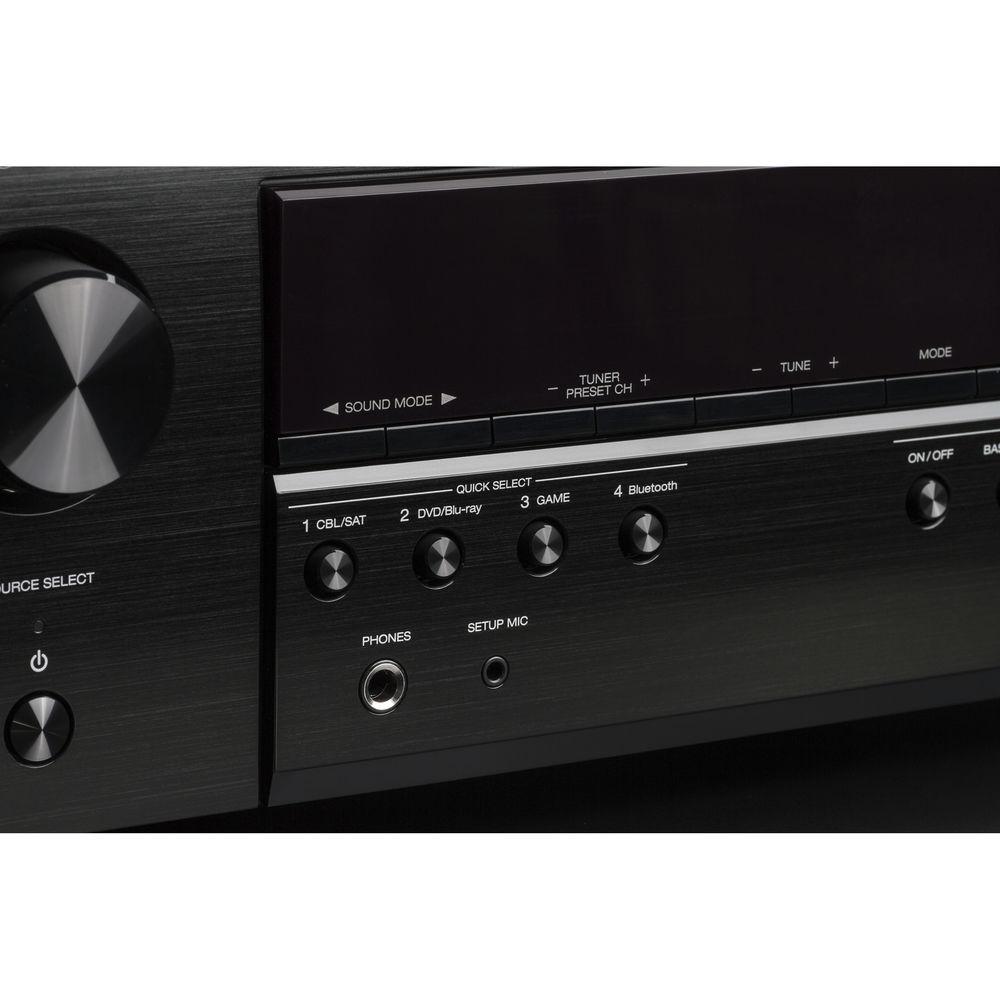

    Quick Select Functions for Simplified Audio Tuning
  • The front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players, and more – and the receiver adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the remote for faster control.

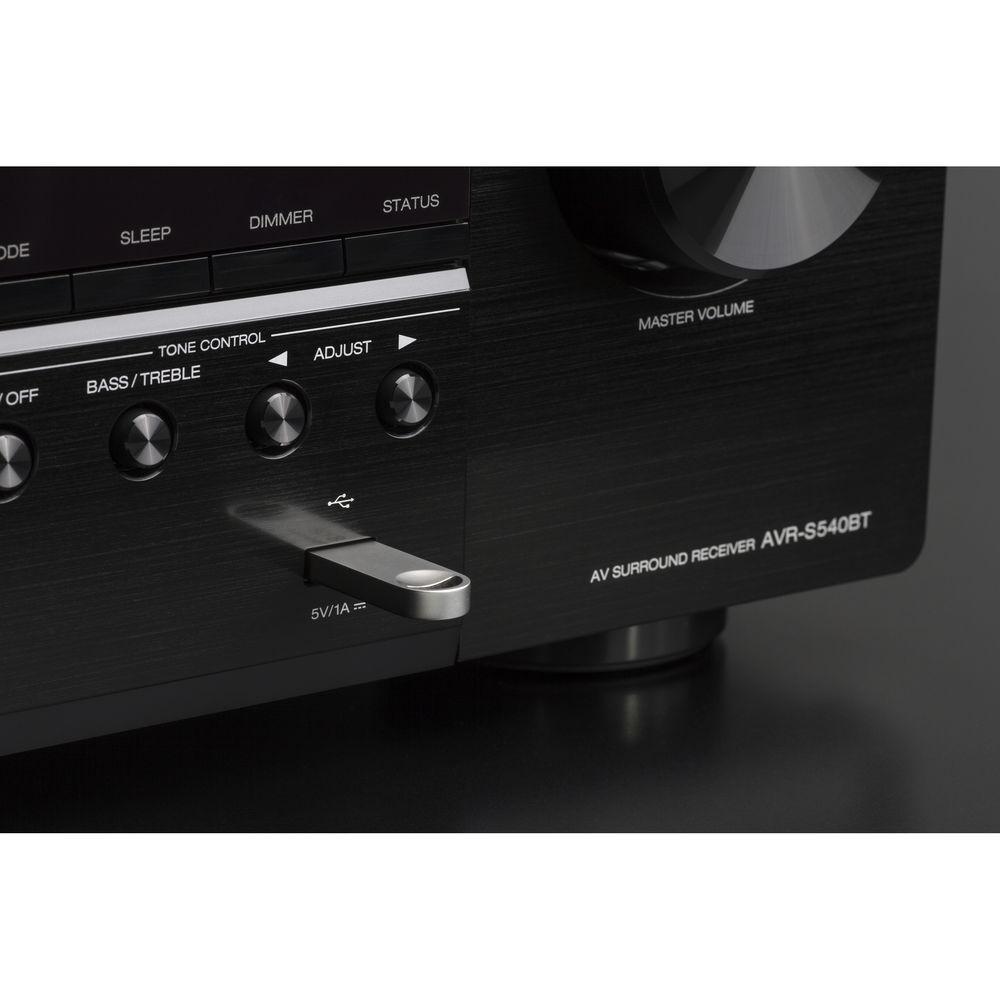

    Front-Panel USB Connectivity
  • In addition to numerous analog and digital A/V connectors, the AVR-S540BT features a USB port on the front panel that's compatible with portable USB devices, and can play back a range of audio file types including MP3, WMA, FLAC, and MPEG-4/AAC tracks.
    Additional Features
    • Multi-channel stereo
    • Compressed Audio Restorer
    • 3-language GUI overlay on HDMI
    • HDMI pass-through in Standby Mode
    • Auto LipSync
    • Auto speaker setup by microphone
    • 1-line FL display
    • Setup Assistant
    • Firmware update by USB
    • Variable crossover
    • ECO Mode
    • Auto Power Off
    • Sleep Timer
UPC: 883795004466 In the Box Denon AVR-S540BT 5.2-Channel A/V Receiver
  • Remote Control
  • 2 x AAA Batteries
  • FM Indoor Antenna
  • AM Loop Antenna
  • Sound Calibration Microphone
  • Limited 2-Year Warranty
  • User Manual PDF 3.1mbcuuqsbsxytyfxf Table of Contents




    Upload User Manual

    Have you got an user manual for the Denon AVR-S540BT 5.2-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Denon AVRS540BT Specs

    Channels 5.2
    RMS Power Output per Channel 70 W @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven
    90 W @ 6 Ohms, 1 kHz, 0.7% THD, 2 channels driven
    140 W @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven
    Output Impedance 6 to 16 Ohms
    Dolby / DTS Decoding Dolby TrueHD
    DTS-HD Master Audio
    FM/AM Tuner Yes/Yes
    Reception Frequencies FM: 87.5 to 107.9 MHz
    AM: 520 to 1710 kHz
    Sensitivity FM, Effective: 1.2 μV (12.8 dBf)
    AM, Effective: 18 μV
    50dB Sensitivity Mono/Stereo Mono: 2.8 μV (20.2 dBf)
    Signal to Noise Ratio FM, Mono: 70 dB (IHF-A weighted, Direct mode)
    FM, Stereo: 67 dB (IHF-A weighted, Direct mode)
    Distortion FM, Mono: 0.7% @ 1 kHz
    FM, Stereo: 1% @ 1 kHz
    HDCP Support HDCP 2.2 (on inputs 3, 4, 5)
    Pass-Through 4K, CEC
    ARC (Audio Return Channel) Yes
    Input Sensitivity and Impedance Analog: 200 mV, 47 kOhms
    Frequency Response ± 3dB 10 Hz to 100 kHz (+1, -3 dB, Direct mode)
    Signal to Noise Ratio 98 dB (IHF-A weighted, Direct mode)

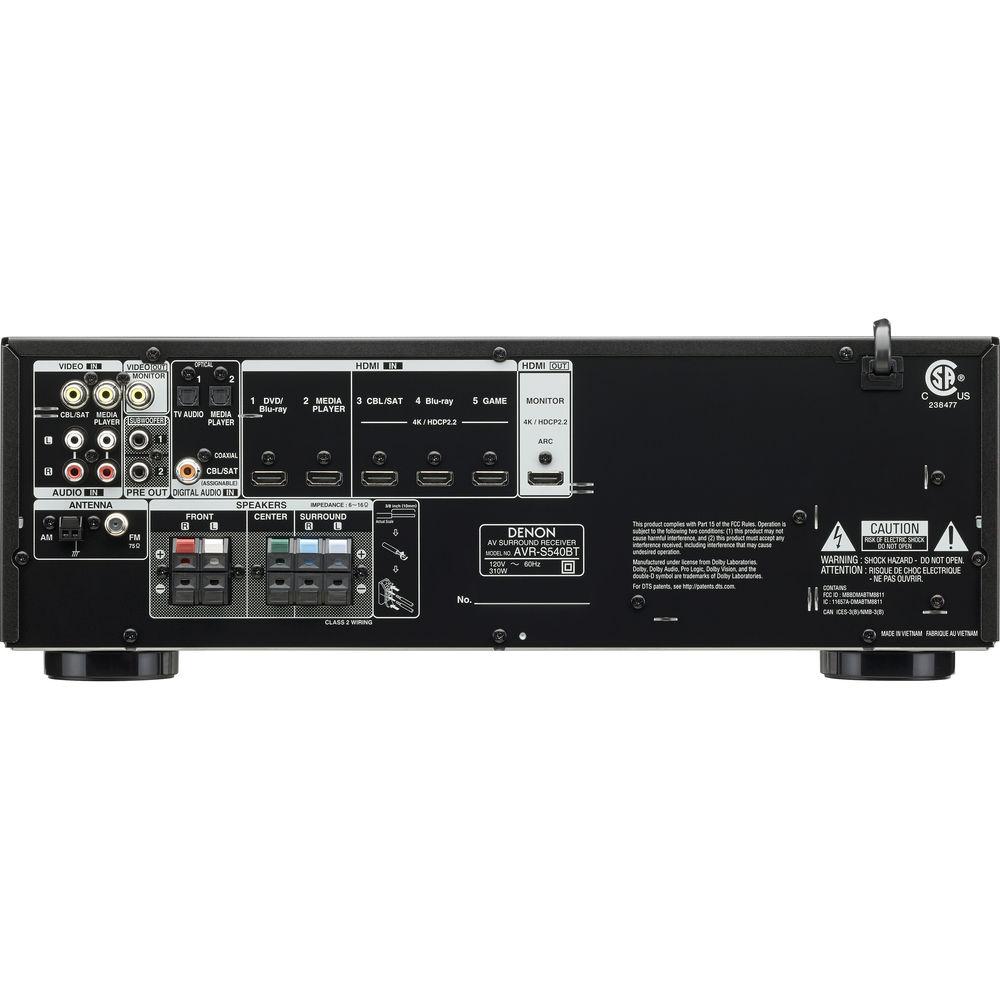

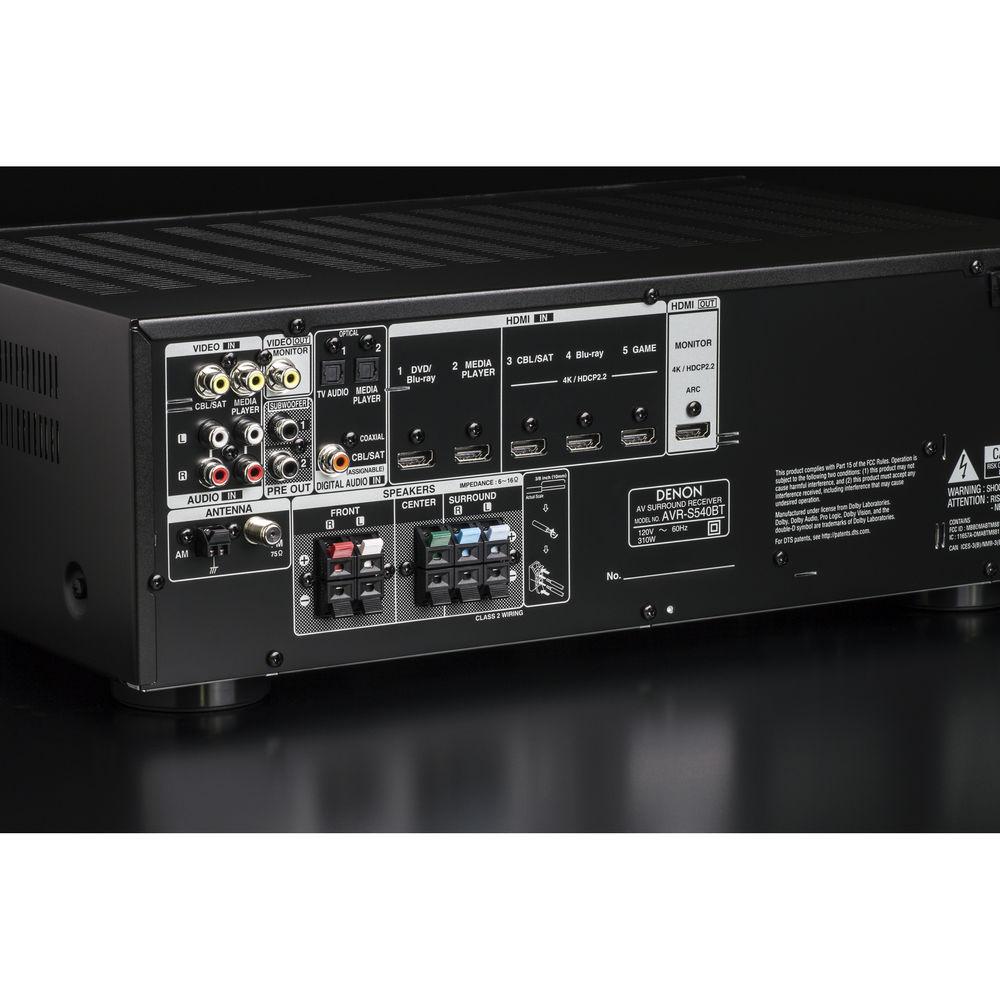

    Inputs 5 x HDMI
    2 x RCA composite video
    2 x stereo RCA
    2 x optical TOSLINK
    1 x digital coaxial
    Outputs 1 x HDMI
    1 x composite video
    2 x subwoofer preout
    1 x 1/4" / 6.35 mm headphone (front)
    Other Connections 1 x USB (front)
    1 x AM antenna
    1 x FM antenna
    1 x 1/8" / 3.5 mm sound calibration microphone (front)
    Speaker Connectors 5 x spring-clip pairs
    Bluetooth Specification Version: 3.0 + EDR (Enhanced Data Rate)
    Transmission Power: ≤2.5 mW (Class 2)
    Frequency: 2.4 GHz
    Modulation Scheme: FHSS
    Bluetooth Range 32.8' (10 m) with line of sight
    Bluetooth Transmission Range A2DP: 20 Hz to 20 kHz
    Bluetooth Profile Support A2DP 1.2
    AVRCP 1.5
    Bluetooth Codecs SBC, AAC
    Power Requirements 120 VAC, 60 Hz
    Power Consumption (Operating) Typical: 310 W
    Power Consumption (Standby) Typical: 0.1 W
    CEC On: 0.5 W
    Bluetooth Standby: 1 W
    Dimensions (W x H x D) 17.1 x 6 x 12.6" / 434 x 151 x 319 mm
    Weight 16.8 lb / 7.6 kg
    Package Weight 20.25 lb
    Box Dimensions (LxWxH) 21.0 x 18.0 x 9.0"
