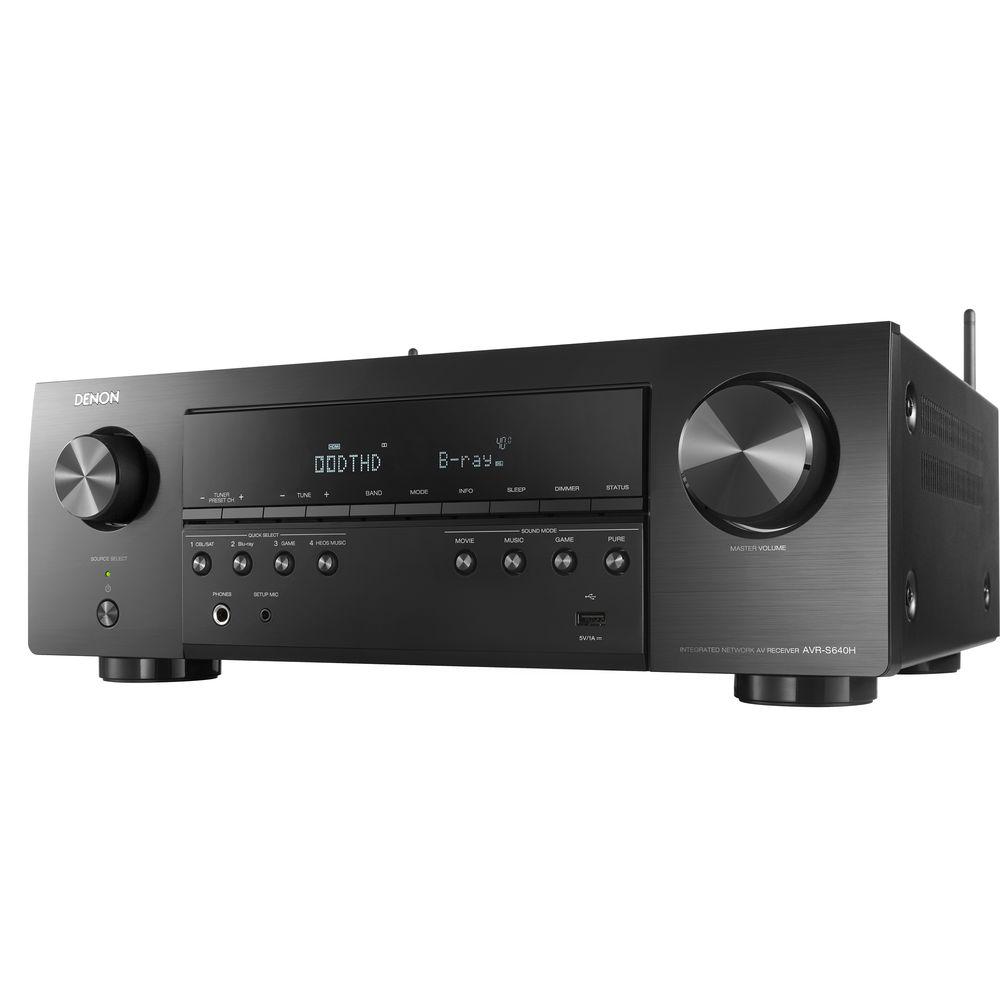

User Manual for Denon AVR-S640H 5.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Denon AVR-S640H 5.2-Channel Network A V
- Product category: Receivers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Receivers
 |
User manual for the Denon AVR-S640H 5.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

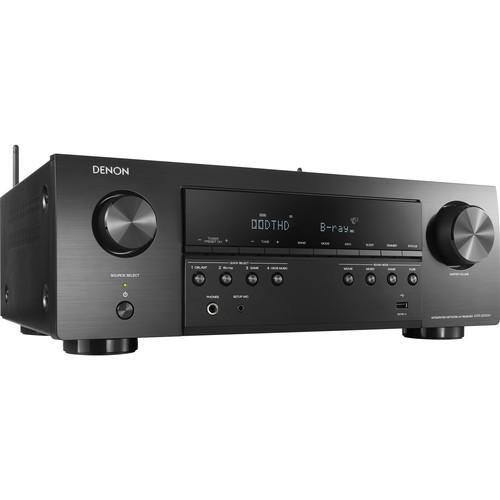

Product description Enjoy up to 5.2-channel surround sound and wireless connectivity with your favorite speaker system and the Denon AVR-S640H 5.2-Channel Network A/V Receiver. It has Bluetooth, Wi-Fi, and Apple AirPlay built-in for wirelessly connecting with your compatible smart devices. The receiver outputs up to 75W per channel at 8 Ohms and features Audyssey MultEQ sound optimization to tailor the sound to your specific room.
In addition to Bluetooth and AirPlay, the AVR-S640H has five HDMI inputs and one output, which all support 4K, HDR, 4:4:4 color, and ARC. It also has a USB port on the front for direct device connectivity and audio playback. - 5-Channel Discrete Amplifier
- Featuring discrete power output devices on all channels, the AVR-S640H is designed to deliver high power and is rated up to 75 watts per channel at 8 Ohms. For compatibility with a variety of speakers, the receiver is equipped with low-impedance drive capability.
- Get the HEOS Experience
- Enjoy your favorite music in any room of your home wirelessly with built-in HEOS technology. Play the same song in every room, or select a different song for each connected room. Stream music stored on your home network by connecting to your HEOS wireless speakers or other HEOS-enabled receivers. Play music from TuneIn, Internet radio, Pandora, Spotify, Amazon Prime Music, iHeartRadio, SiriusXM, SoundCloud, TIDAL, Napster, and Deezer.
- Amazon Alexa Voice Control
- Control the receiver hands-free with your Amazon Alexa-compatible devices and your voice. Adjust the volume, skip to the next track, switch inputs between your different connected media players, and more. Download the HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for the AVR-S640H, HEOS devices, and other select Denon products. Please note that availability varies by region and country.
- HDMI 2.0 and HDCP 2.2 Specifications
- All five HDMI inputs support 4:4:4 Pure Color sub-sampling, BT.2020 pass-through, 3D, HDR10, Dolby Vision, and HLG (Hybrid Log-Gamma); full 4K Ultra HD with 60 Hz pass-through and HDCP 2.2 processing is available on all five HDMI ports to support copy-protected content.
- Smart TV Connectivity
- Control the receiver with your compatible smart TV remote via the HDMI CEC functionality associated with your smart TV. Simply set "HDMI Control" to "On" in the receiver, then set "Smart Menu" to "On" and begin controlling the receiver with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the receiver's setup menu, and four Smart Selects.
- Customized Sound by Audyssey MultEQ
- Every room has its own characteristics and acoustical anomalies, so the AVR-S640H is equipped with Audyssey MultEQ. With the included microphone, it measures the speakers in your home theater during setup and provides a smooth listening experience. Audyssey Dynamic Volume and Audyssey Dynamic EQ help smooth out annoying jumps in volume (such as TV commercials), letting you listen at lower levels and still enjoy clear dialogue, music, and sound effects, with tonal tailoring for full-range clarity at nearly any listening level.
- Built-In Bluetooth & Wi-Fi
- With built-in Bluetooth and Wi-Fi connectivity, the AVR-S640H is equipped with a dual-antenna transceiver system for robust streaming, even in congested urban environments, allowing you to enjoy listening to your favorite audio content wirelessly from your compatible smart devices.
- Mobile Control with the Denon AVR Remote App
- The Denon AVR Remote app for iOS and Android allows you to adjust the receiver's volume, turn it on or off, mute the music, and select a source.
- Quick Select Functions for Simplified Audio Tuning
- The front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players, and more – and the receiver adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the remote for faster control.
- Front-Panel USB Connectivity
- In addition to numerous analog and digital A/V connectors, the AVR-S640H features a USB port on the front panel that's compatible with portable USB devices, and can play back a range of audio file types, such as MP3, and high-resolution lossless files, like 24-bit / 192 kHz ALAC, FLAC, WAV, and DSD 2.8 or 5.6 MHz.
- Additional Features
-
- Multi-channel stereo
- Compressed Audio Restorer
- Media Server
- AirPlay & AirPlay 2
- 3-language GUI overlay on HDMI
- HDMI pass-through in Standby Mode
- Auto LipSync
- Hybrid GUI
- 1-line FL display
- Setup Assistant
- Quick Select Plus
- Firmware update by network or USB
- Variable crossover
- Optimized Bass Redirection
- ECO Mode
- Auto Power Off
- Sleep Timer

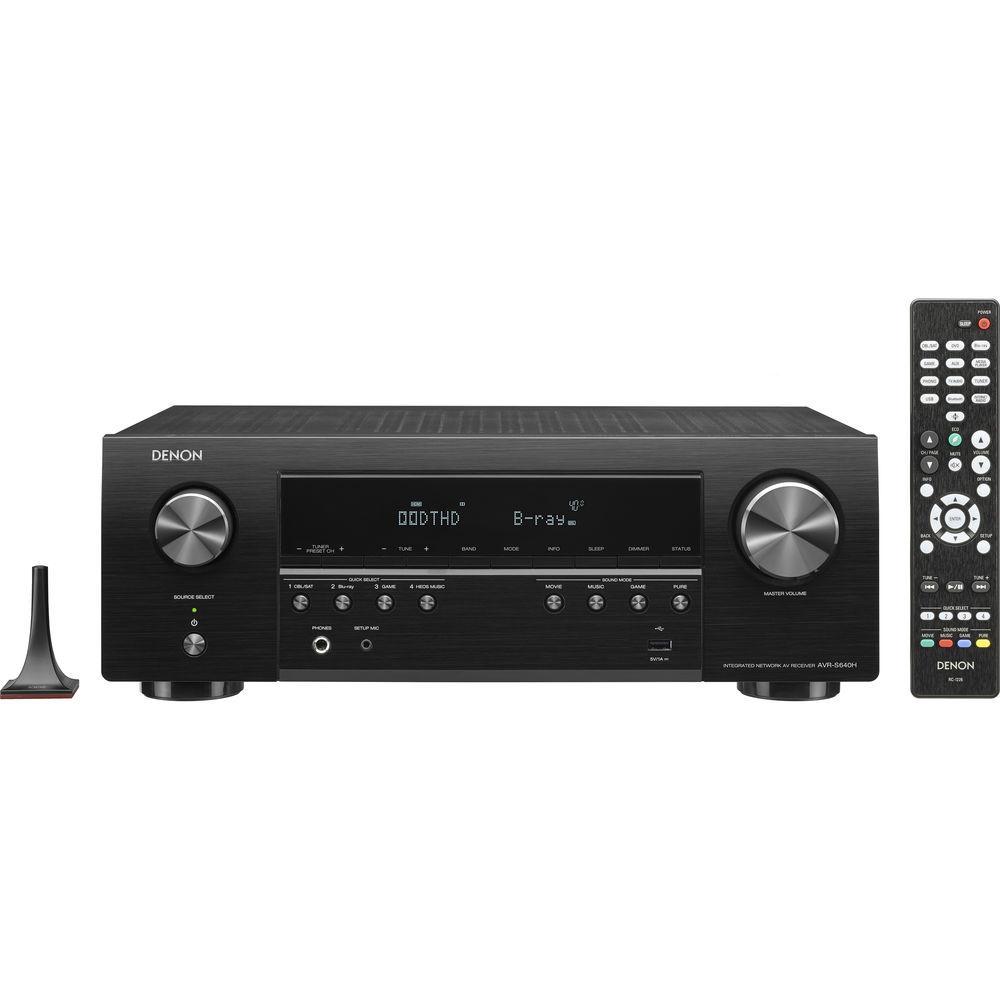

UPC: 883795004459 In the Box Denon AVR-S640H 5.2-Channel Network A/V Receiver Remote Control 2 x AAA Batteries FM Indoor Antenna AM Loop Antenna Cable Labels Sound Calibration Microphone Sound Calibration Microphone Stand Limited 2-Year Warranty User Manual PDF 9.8mbuaeqcdawfwxadxdsaaewtqwtyayqtu Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon AVR-S640H 5.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon AVRS640H Specs | | | Channels | 5.2 | | Power Output | 75 W @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD per channel, 2-channels driven
100 W @ 6 Ohms, 1 kHz, 0.7% THD per channel, 2-channels driven
150 W @ 6 Ohms, 1 kHz, 10% THD, 1-channel driven | | Speaker Impedance | 4 to 16 Ohms | | Input Sensitivity | Analog: 200 mV | | Level & Impedance | Video I/O: 1 Vp-p, 75 Ohms | | Frequency Response | Audio: 10 Hz to 100 kHz, +1, -3 dB (Direct mode)
Video: 5 Hz to 10 MHz, 0, -3 dB | | Signal to Noise Ratio | 98 dB (IHF-A weighted, Direct mode) | | Audio Decoding | Dolby: Dolby TrueHD
DTS: DTS HD Master | | Files Supported | DSD (2.8/5.6 MHz), FLAC, ALAC, and WAV | | | | Reception Frequencies | FM: 87.5 to 107.9 MHz
AM: 520 to 1710 kHz | | Sensitivity | FM: 1.2 μV (12.8 dBf) effective
AM: 18 μV effective
Mono FM, @ 50 dB: 2.8 μV (20.2 dBf) | | Signal to Noise Ratio | Mono FM: 70 dB (IHF-A weighted, Direct mode)
Stereo FM: 67 dB (IHF-A weighted, Direct mode) | | Distortion | Mono FM: 0.7% @ 1 kHz
Stereo FM: 1% @ 1 kHz | | | | Pass-Through | 3D, 4K, CEC, ARC | | HDCP Compliance | 2.2 | | | | Wi-Fi | Yes, dual-band (2.4 / 5 GHz)
IEEE 802.11a/b/g/n | | Wi-Fi Security | WEP 64-bit, WEP 128-bit
WPA/WPA2-PSK (AES)
WPA-WPA2-PSK (TKIP) | | Bluetooth | Version 3.0 + EDR
FHSS (Frequency-Hopping Spread Spectrum) modulation scheme | | Bluetooth Transmitter Power | Class 1 | | Bluetooth Range | Approximately 98.4' / 30 m with line-of-sight | | Bluetooth Frequency | 2.4 GHz | | Bluetooth Profile Support | A2DP 1.2, AVRCP 1.5 | | A2DP | Transmission Range: 20 Hz to 20 kHz | | Bluetooth Codecs | SBC | | Inputs | 5 x HDMI

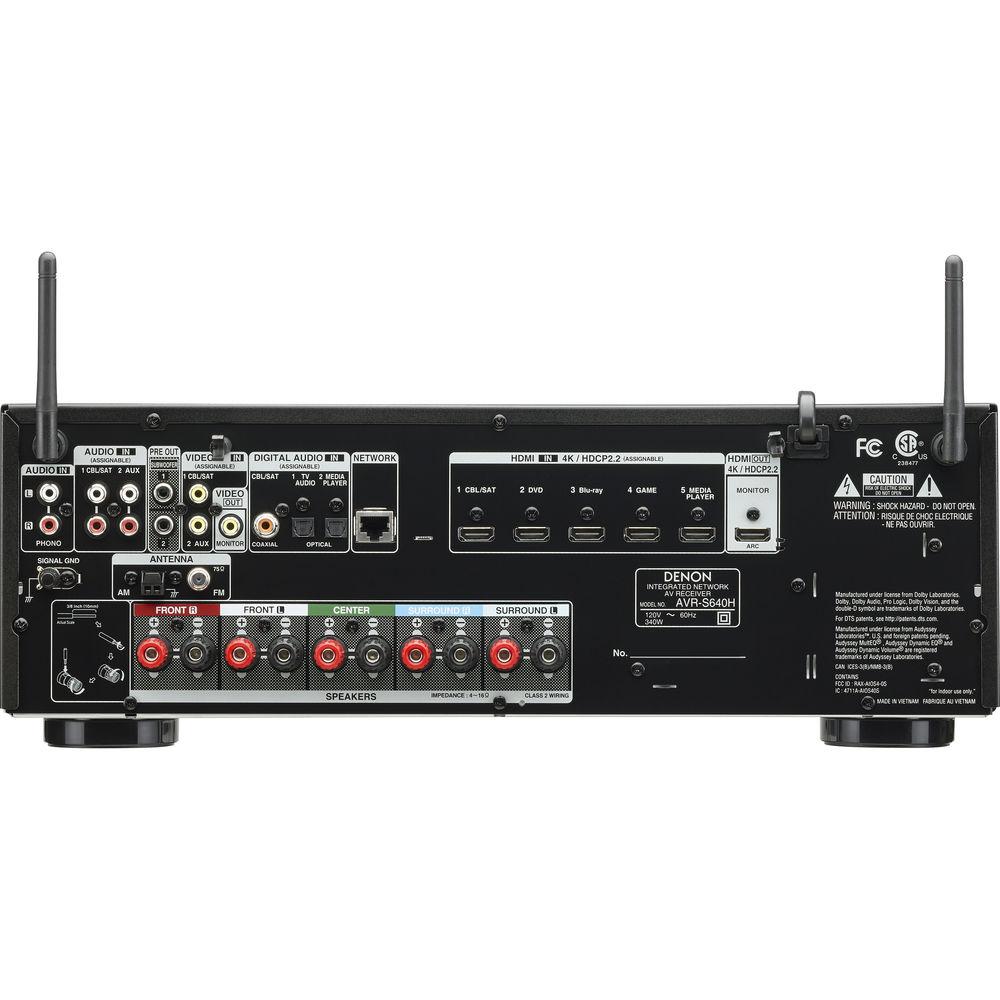

2 x composite video
2 x stereo RCA
1 x stereo RCA phono with ground screw
2 x optical TOSLINK
1 x digital coaxial | | Outputs | 1 x HDMI
1 x composite video
2 x subwoofer pre-out
1 x 1/4" / 6.35 mm headphone (front) | | Other Connections | 1 x USB (front)
1 x 1/8" / 3.5 mm setup mic (front)
1 x RJ45 Ethernet LAN
1 x AM antenna
1 x FM antenna | | Speaker Connectors | 5 x binding post pairs | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Active: 340 W
Standby: 0.1 W
CEC Standby: 0.5 W
Network Standby: 2.7 W | | Dimensions (W x H x D) | 17.1 x 6 x 13.3" / 43.4 x 15.1 x 33.9 cm with antennas horizontal
17.1 x 8.5 x 13.3" / 43.4 x 21.5 x 33.9 cm with antennas vertical | | Weight (Approx.) | 17.2 lb / 7.8 kg | | | | Package Weight | 20.95 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 8.0" |
