User Manual for Denon AVR-X1500H 7.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Denon AVR-X1500H 7.2-Channel Network A V
- Product category: Receivers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Receivers
 |
User manual for the Denon AVR-X1500H 7.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

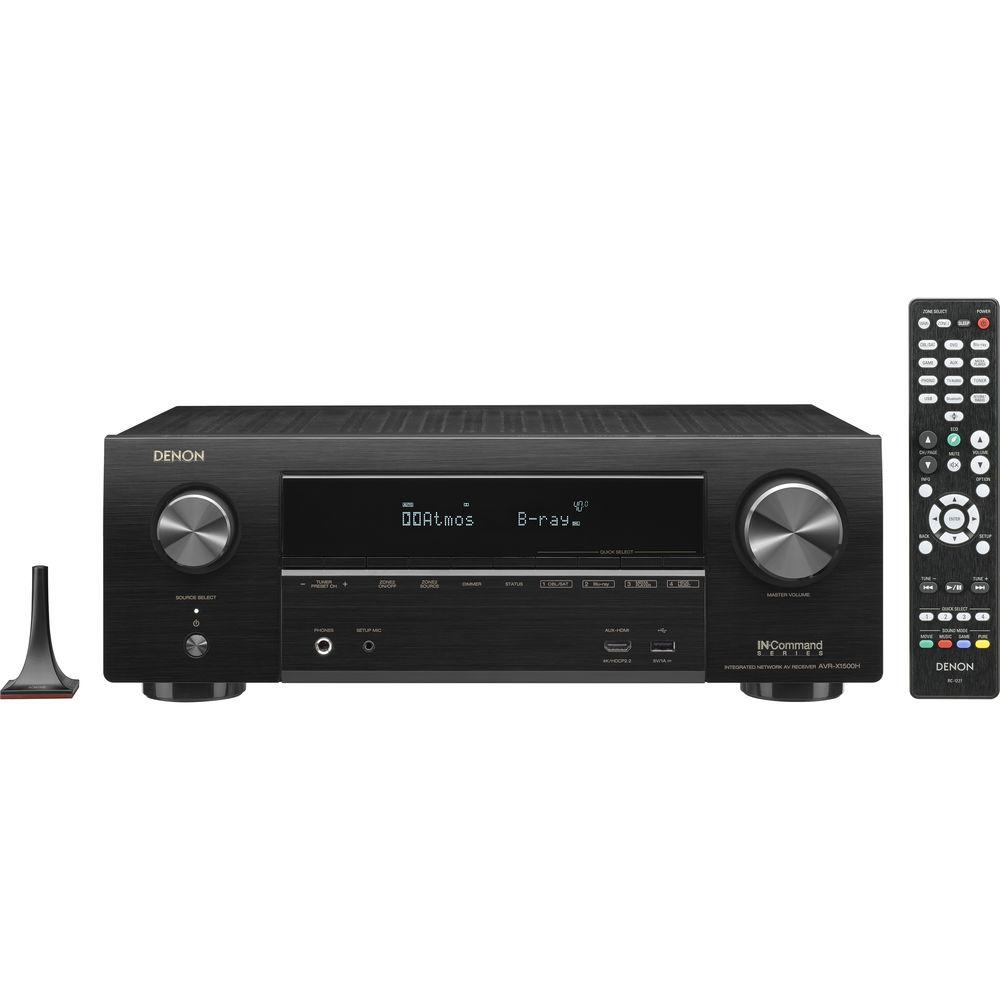

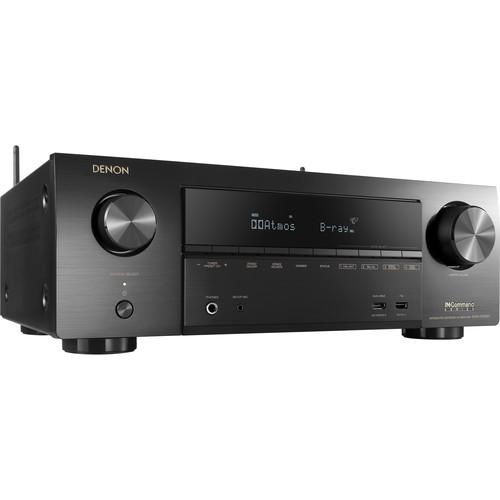

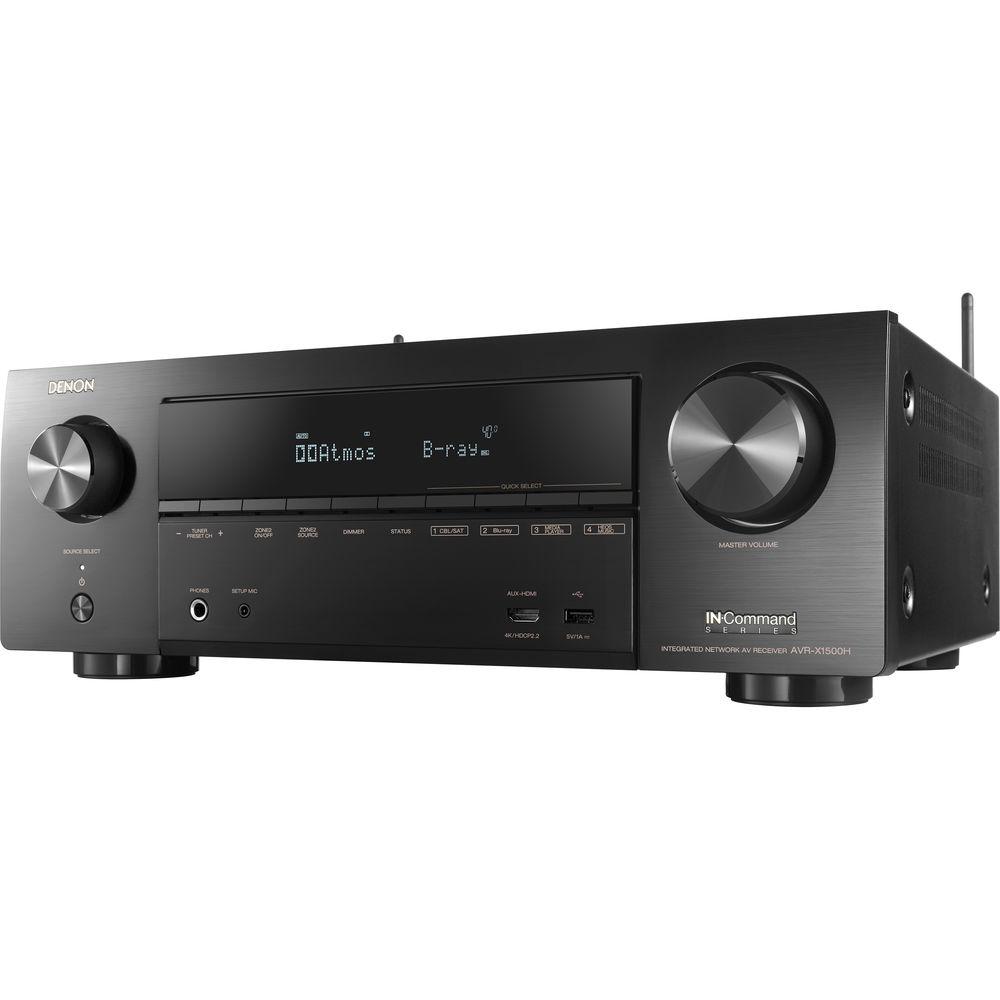

Product description Enjoy immersive multi-channel sound with the Denon AVR-X1500H 7.2-Channel Network A/V Receiver. It delivers up to 80W of power at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets. Onboard Wi-Fi and Ethernet connectivity allows the AVR-X1500H to access a variety of Internet-based music sources like Pandora, SiriusXM, and TuneIn Internet radio. As an added convenience, you can download the free Denon 2016 AVR Remote App to control the receiver from your Android or iOS devices.
With six HDMI inputs and one HDMI output, this receiver can act as a video switcher for your HD source components. It will pass through 4K signals along with HDR10, HLG, and Dolby Vision HDR formats. The receiver also has a USB port for accessing media stored on USB flash drives. Audyssey MultiEQ XT sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience. Note: Access to certain Internet-based content may require a subscription to a service. - Dolby Atmos
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The AVR-X1500H features the ability to connect a 5.1-channel surround sound speaker system with two additional overhead speakers, or additional Dolby Atmos-certified up-firing speakers.
- DTS:X
- DTS:X brings the home theater experience to new heights with its immersive object-based audio technology, which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room, leading to a richer, more immersive audio experience in a 5.1.2-channel configuration.
- DTS Virtual:X
- DTS Virtual:X enables you to enjoy an immersive sound experience from as little as a 2.1-channel system, creating virtual height effects.
- 4K Ultra HD, HDR10, HLG, Dolby Vision, and HDCP 2.2 Support
- Featuring six HDMI ports, including one located on the front panel, plus an HDMI output, the AVR-X1500H is compatible with 4K Ultra HD 60 Hz content, 4:4:4 Pure Color sub-sampling, BT.2020, 21:9 video, 3D, and HDR pass-through. It is also HDCP 2.2-compliant for 4K UHD copy-protected content. HDR10, HLG, and Dolby Vision pass-through are supported for enhanced contrast and color with compatible displays and content.
- Discrete Amplification with Eco Mode
- Featuring discrete power output devices on all channels, the AVR-X1500H delivers up to 80W per channel at 8 Ohms. The Auto Eco mode is designed to adjust the maximum power available according to the volume level, as well as an on-screen Eco meter that lets you see the power consumption reduction in real time.
- Built-In Bluetooth, Wi-Fi, and AirPlay Capability
- Wireless connectivity is provided by Wi-Fi and Bluetooth, and AirPlay is also supported. The built-in HEOS technology allows the AVR-X1500H to become the app-controlled heart of a whole-house wireless multi-room sound network.
- Designed for Easy Setup
- The receiver guides you through the setup process to help ensure proper configuration. You can optimize the audio and video settings to match the rest of your system.
- Audyssey MultEQ XT
- With Audyssey MultEQ XT and the included microphone, the receiver analyzes each speaker's output to optimize each channel. With the Audyssey MultEQ Editor app (available for purchase in your app store), advanced users can further fine-tune their audio.
- Alexa Voice Command
- Amazon Alexa's Smart Home Skill for Entertainment Devices enables voice commands to control a range of functions on the receiver, including volume control, transport control, next track, and external input switching.
- Dual Antenna System
- The dual antenna system is engineered for robust, error-free streaming for Bluetooth, Wi-Fi, and AirPlay.
- Denon 2016 AVR Remote App
- With the Denon 2016 AVR Remote app, you can control the receiver's operation, as well as command your multi-room streaming.
- Quick Select Functions
- Store your preferred setup and sound mode for every source, so you can access them at the push of a button on the front panel or remote control.
- Quad-Core DSP
- The DSP (Digital Sound Processor) features four 300 MHz DSP cores that can process over 1 billion computations per second.
- High-Resolution Audio
- The receiver features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC, and WAV at up to 24-bit / 196 kHz, along with compatibility for 2.8/5.6 MHz DSD files, which is the audio coding format of SACD.
- Multi-Source/Multi-Room
- With the AVR-X1500H, you can enjoy 5.1-channel surround in one room, while another zone plays another source, such as a CD or streaming audio.
- Dual Subwoofer Outputs
- When positioned in different locations in the listening area, having two subwoofers instead of one will even out the low frequencies for more accurate bass nearly anywhere in the room.
- HEOS Wireless Multi-Room Music Streaming
- Share music stored on your home network, Internet radio, or streaming services with your HEOS wireless speakers, or other optional HEOS-capable receivers, throughout the house. Control it all with the free HEOS app. Enjoy music from TuneIn, Pandora, Spotify, Amazon Prime Music, iHeartRadio, SiriusXM, SoundCloud, TIDAL, Napster, and Deezer.
- External Control and IP Control Capabilities
- This receiver is part of Denon's IN-Command series of custom-integration-friendly A/V components, equipped with a range of features to provide enhanced control capabilities and compatibility with third-party and custom integration solutions. It features IP control capability for integration with 3rd-party control devices and Control4 SDDP (Simple Device Detection Protocol) certification for simple integration with Control4 home automation equipment. For simpler integrated control setups, the receiver has an IR (infrared) remote control input on the rear panel, allowing remote control compatibility with other components in your home theater system.
- AirPlay 2, Scheduled to be Made Available via a Future Firmware Update
- AirPlay 2 enables multi-music streaming over connected receivers and Apple's HomePod speakers. This feature is scheduled to be made available via a future firmware update.
- Additional Features
-
- ECO mode
- Setup assistant with icon-based GUI
- Horizontal layout of speaker terminals with color labeling (speaker cable labels included)
- Sleep Timer up to 120 minutes in 10-minute increments
- Standby HDMI pass-through
- Smart TV connectivity
- Supports Smart Remote Management capability with Temperature Monitor
- Supports web UI for setup
UPC: 883795004442 In the Box Denon AVR-X1500H 7.2-Channel Network A/V Receiver Remote Control with Batteries FM Antenna AM Antenna Audyssey Microphone Cardboard Microphone Stand Wire Labels Limited 3-Year Warranty User Manual PDF 12.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon AVR-X1500H 7.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

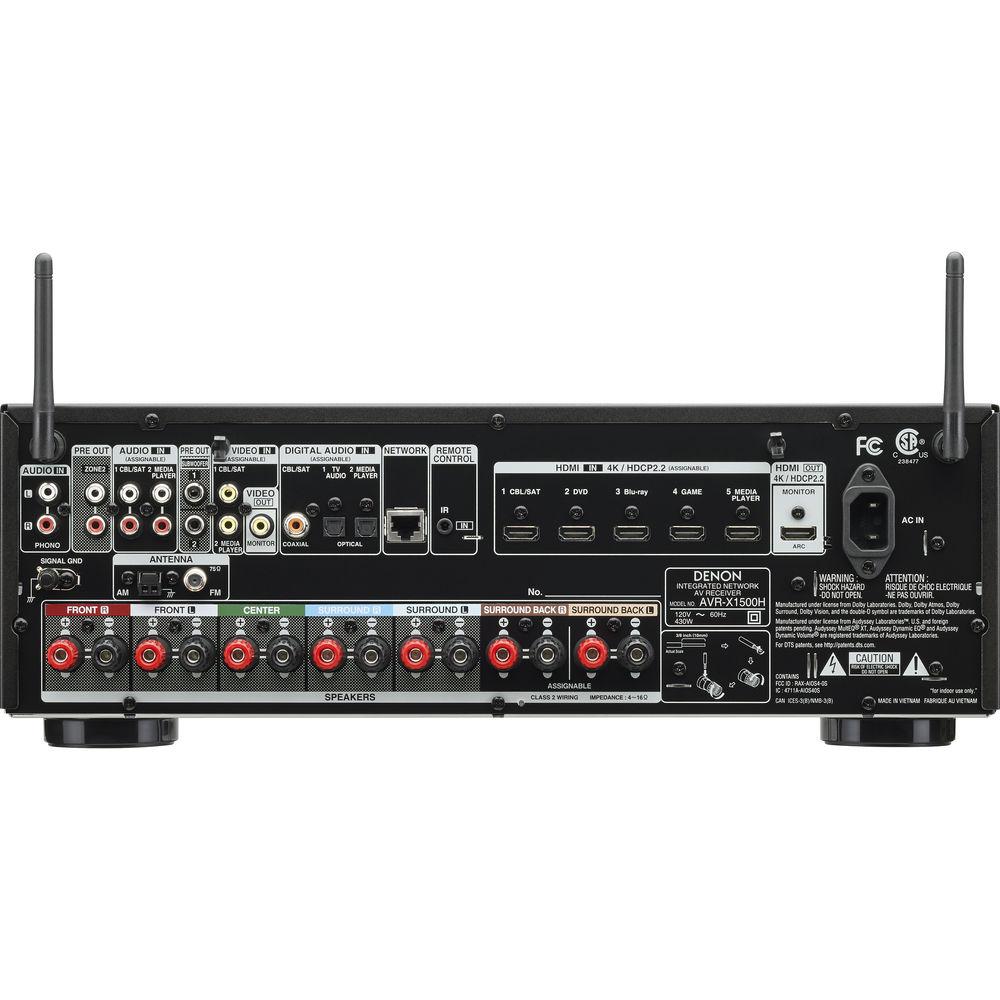

Technical parametersDenon AVRX1500H Specs | | | Channels | 7.2 | | Output Power | 80 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD | | Object-Based Audio Support | Dolby Atmos (up to 5.1.2), DTS:X (up to 5.1.2), DTS Virtual:X | | | | Pass-Through | 4K/60 Hz, 4:4:4 color resolution, HDR10, HLG, Dolby Vision, and BT.2020 | | HDCP Version | 2.2 | | | | Tuner | AM / FM | | Wireless Connectivity | Bluetooth, dual-band Wi-Fi, Apple AirPlay2 | | Music Services Supported | TuneIn, Pandora, Spotify, Amazon Prime Music, iHeartRadio, SiriusXM, SoundCloud, TIDAL, Napster, Deezer | | Inputs | 6 x HDMI (1 front)
2 x optical TOSLINK
1 x digital coaxial
2 x composite video
3 x stereo RCA audio (1 phono)
1 x USB (front) | | Outputs | 1 x HDMI
1 x composite video
2 x subwoofer pre-out
1 x Zone 2 stereo pre-out
1 x 1/4" / 6.35 mm headphone out (front) | | Other Ports | 1 x setup microphone input (front)
1 x FM antenna
1 x AM antenna
1 x Ethernet
1 x 1/8" / 3.5 mm IR remote in | | Speaker Connectors | 7 x color-coded, 4-way binding post pairs | | HDMI CEC | Yes | | | | On-Screen Display | Yes | | Power Requirements | Not specified by manufacturer | | Dimensions (W x H x D) | 17.1 x 5.9 x 13.3" / 434 x 151 x 339 mm | | Weight | 19 lb / 8.6 kg | | | | Package Weight | 23.3 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 8.5" |
