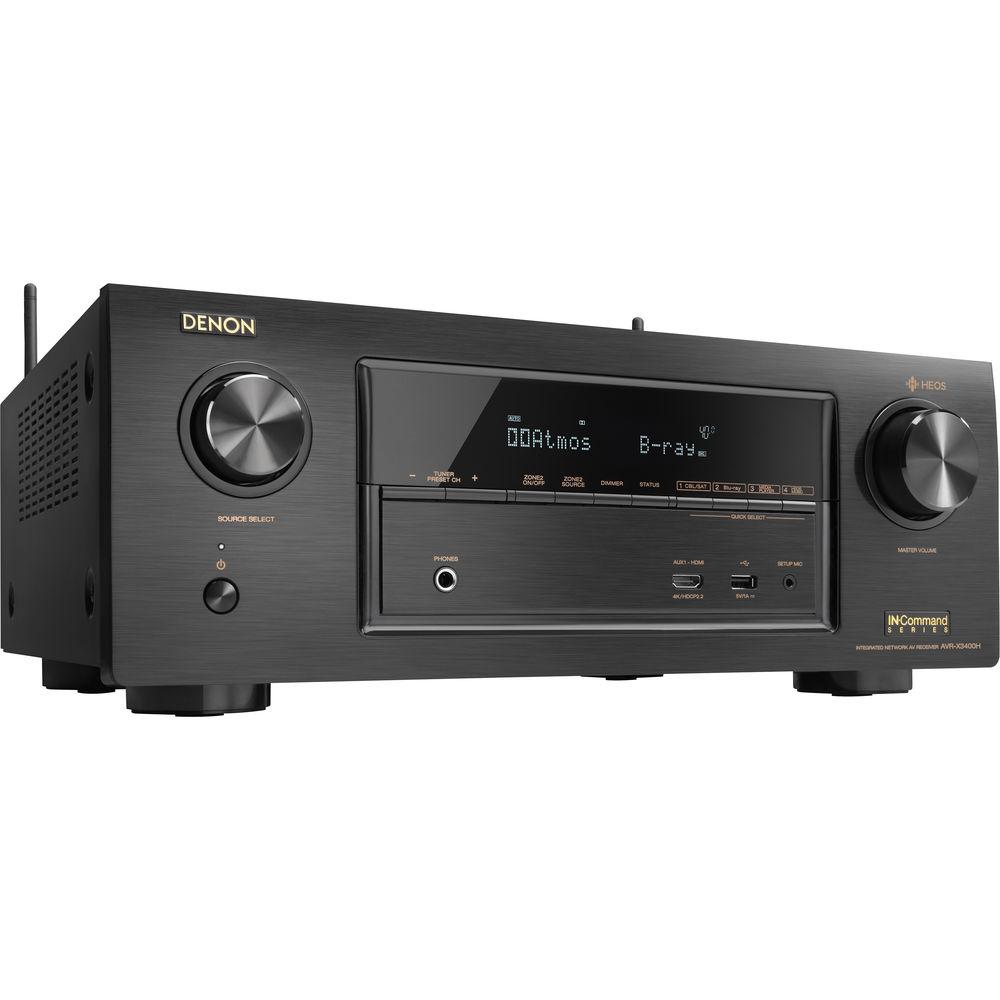

User Manual for Denon AVR-X3400H 7.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Denon AVR-X3400H 7.2-Channel Network A V
- Product category: Receivers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Receivers
|
User manual for the Denon AVR-X3400H 7.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description Enjoy immersive multi-channel sound with the Denon AVR-X3400H 7.2-Channel Network A/V Receiver. It delivers up to 105W of power at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets. Onboard Wi-Fi and Ethernet connectivity allows the AVR-X3400H to access a variety of Internet-based music sources, including Internet radio. As an added convenience, you can download the free Denon 2016 AVR Remote App to control the receiver from your Android or iOS devices.
With eight HDMI inputs and three HDMI outputs, this receiver can act as a video switcher for your HD source components. It will pass through 4K signals along with HDR10 and Dolby Vision HDR formats, plus it will upscale non-UHD resolutions to near-4K quality. The receiver also has a USB port for accessing media stored on USB flash drives. Audyssey sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience. Note: Access to certain Internet-based content may require a subscription to a service. - 7-Channel Discrete Amplification
- For enhanced realism and dynamic range, the amplifier section features discrete power devices for compatibility with a range of speakers down to four Ohms. Eco Mode adjusts the amplifier's output according to the volume level to reduce power consumption, with an on-screen Eco meter providing real-time monitoring of the power saving.
- Dolby Atmos
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The AVR-X3400H features the ability to connect a 5.1-channel surround sound speaker system with additional overhead speakers, or additional Dolby Atmos-certified up-firing speakers.
- DTS:X
- DTS:X brings the home theater experience to new heights with its immersive object-based audio technology, which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room, leading to a richer, more immersive audio experience.
- Audyssey LFC (Low Frequency Containment)
- Audyssey LFC is designed to solve the problem of low frequency sounds disturbing people in neighboring rooms or apartments by dynamically monitoring the audio content and removing the low frequencies that pass through walls, floors, and ceilings. It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room for enhanced sound that no longer disturbs the neighbors.
- Discrete Subwoofers with Audyssey Sub EQ HT
- The AVR-X3400H has two subwoofer outputs and can adjust the level and delay for each individually. Audyssey Sub EQ HT is designed to help make the integration seamless by first compensating for any level and delay differences between the two subwoofers, then applying Audyssey MultEQ XT32 to both subwoofers together for augmented bass response and detail.
- 4K 60 Hz Supported with HDCP 2.2
- When paired with 4K/60p (60 frames per second) content and a compatible display, you can enjoy enhanced resolution with smooth action. The AVR-X3400H also supports 4K/60p with 4:4:4 and 24-bit video, plus HDR and the BT.2020 color gamut.
- Digital Video Processor Upscales Analog Video Signals to HD and UHD
- The AVR-X3400H is equipped with a UHD video upscaling function that allows analog video or SD (standard definition) video to be output via HDMI at near-4K (3840 x 2160) resolution.
- HDMI Connectivity

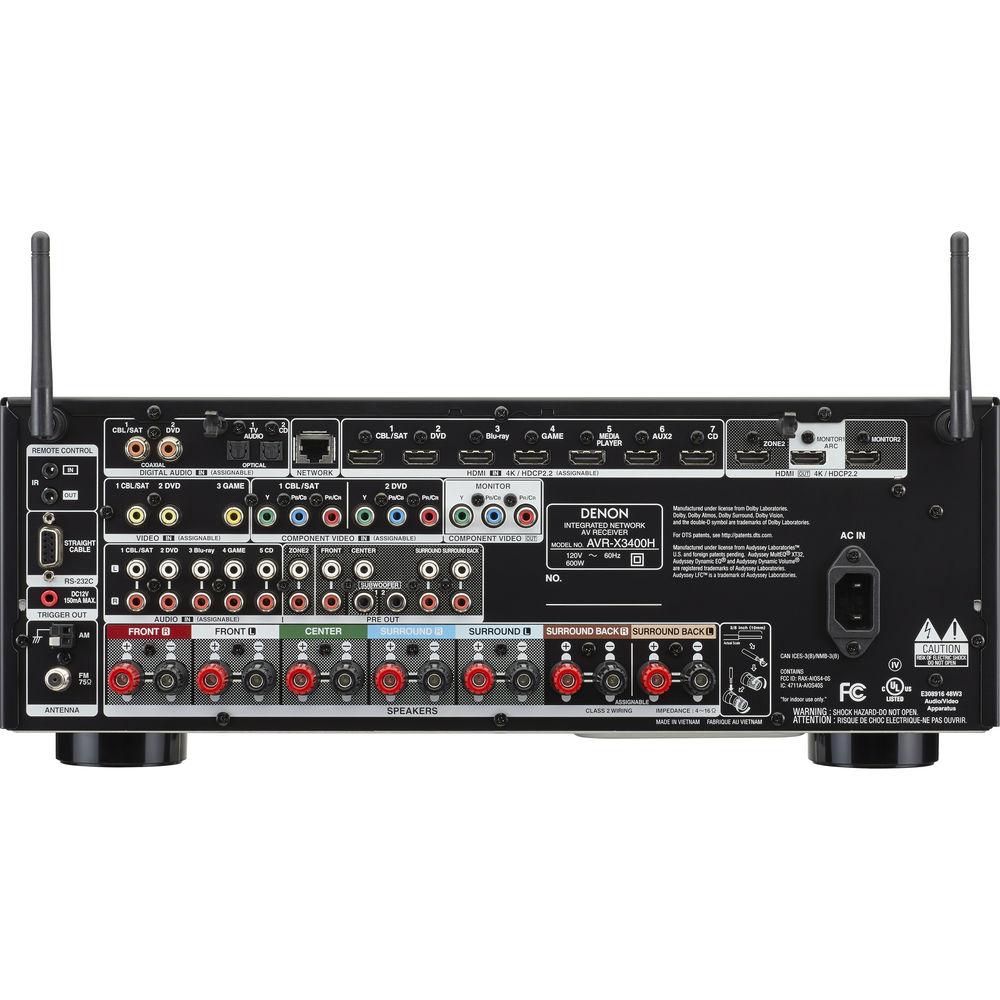

- The AVR-X3400H features eight HDMI inputs and three HDMI outputs, enabling connection to various HDMI-compatible devices such as Blu-ray players, game consoles, and HD camcorders. Two outputs will let you to output the same image to two displays, while the third output can send a different A/V source to ZONE2.
- HDMI ZONE2 Output
- The ZONE2 multi-room output includes an HDMI output that lets you enjoy a different A/V source in that room from what's playing in the main room.
- Apple AirPlay, Internet Radio, and More
- Enjoy a variety of content, including Internet radio and files stored on your computer. AirPlay lets you stream your music library from an iPhone, iPod touch, or iTunes.
- DSD and FLAC Files Playable via USB and Networks
- The AVR-X3400H supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files.
- Bluetooth Connectivity
- Enjoy music from your smartphone, tablet, computer, or other compatible Bluetooth device.
- Multi-Room Audio
- You can enjoy your favorite movie in the main room while others can also view it in the second zone. In addition, when the All Zone Stereo function is used, the music playing in the main zone can be enjoyed in all zones at the same time, useful for creating whole-home background music.
- Energy-Saving ECO Mode
- The AVR-X3400H is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, plus an auto-standby function that automatically turns off the power supply when the unit is not in use, further helping to reduce unnecessary power use.
- Denon 2016 AVR Remote App
- With the free Denon 2016 AVR Remote app for iOS, Android, and Kindle Fire, you can control the receiver's operation, as well as accessing its setup menu, from your smartphone or tablet. The app also gives you access to the receiver's status display, option menus, control of Denon Blu-ray players, and an online owner's manual. Through the app, you can switch directly to the HEOS app for further control over your music contents, streaming services, and HEOS wireless multi-room control.
- HEOS Wireless Multi-Room Music Streaming
- Built-in HEOS technology allows the AVR-X3400H to become part of your HEOS wireless multi-room system, allowing you to enjoy your favorite music anywhere around your home. Share music stored on your home network, Internet radio, or streaming services, with HEOS wireless speakers or other HEOS-capable receivers throughout the house. It's all controlled by the free HEOS app, which can be installed on as many compatible smartphones and tablets as you like. The app gives you multi-room audio control, allowing you to command music in every room from any HEOS device; you can play different music from different sources in every room or group several rooms together and play the same song. The HEOS app will let you enjoy music from multiple streaming services, including Pandora, Spotify, TuneIn Internet radio, Amazon Music Unlimited, and more, or you can use the HEOS app to stream from your phone, USB stick, computer, or NAS drive on your home network.
- Designed for Easy Setup & Use
- With the "Setup Assistant," simply select your language, then follow the instructions shown on your display to set up your speakers and network. After the initial setup, you can change settings using the Graphical User Interface.

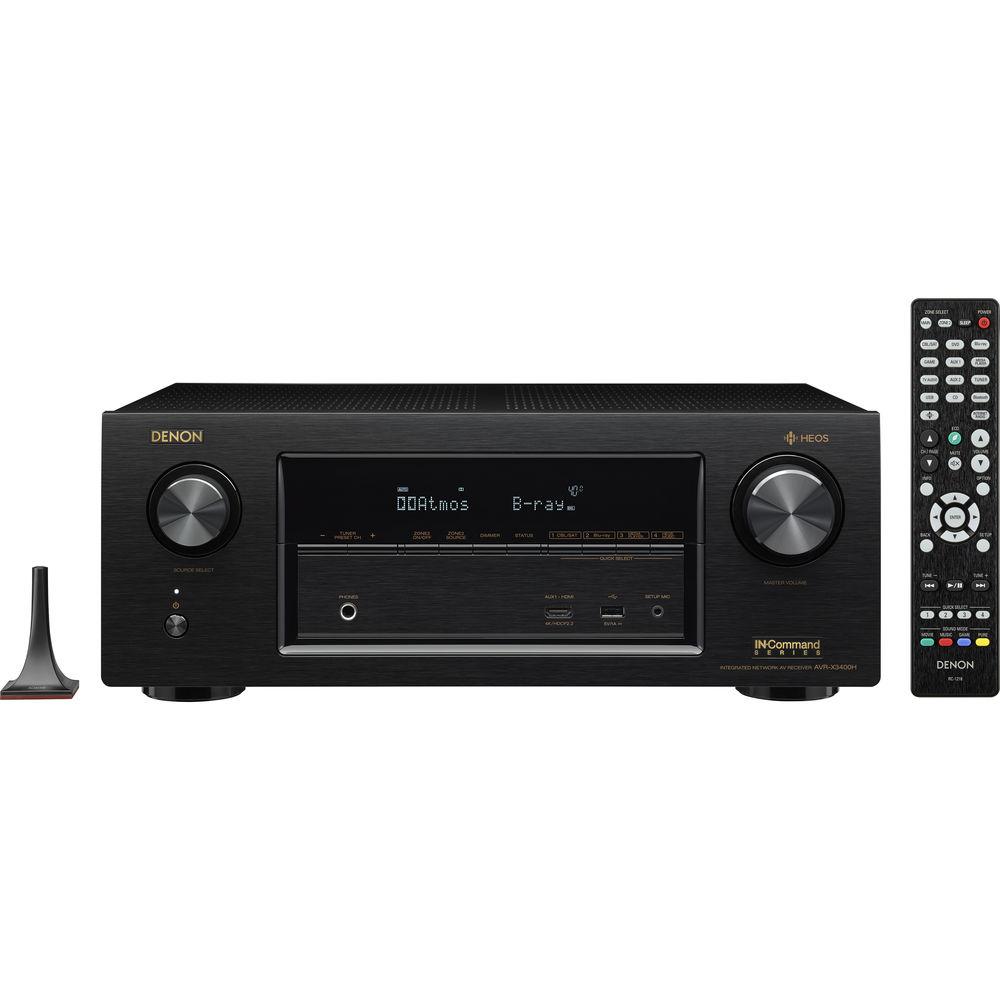

UPC: 883795004220 In the Box Denon AVR-X3400H 7.2-Channel Network A/V Receiver Remote Control 2 x AAA Batteries FM Indoor Antenna AM Loop Antenna Sound Calibration Microphone Sound Calibration Microphone Stand Cable Labels Power Cord Limited 3-Year Warranty User Manual PDF 16mbtavweysrefsfeb Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon AVR-X3400H 7.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon AVR-X Specs | Output Power | 105 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD 135 W per channel @ 6 Ohms, 1 kHz, 0.7% THD | Channels | 7.2 | Input Sensitivity | Analog: 200 mV | Frequency Response | Analog: 10 Hz to 100 kHz (+1, -3 dB, Direct Mode) | Signal to Noise Ratio | Analog: 100 dB (IHF-A weighted, Direct Mode) | Distortion | Analog: 0.008% (20 Hz to 20 kHz, Direct Mode) | Rated Output | Analog: 1.2 V | Speaker Impedance | 4 to 16 Ohms | | Upscaling | Yes, to near-4K | Pass-Through | 4K/60p, 4:4:4, HDR, and BT.2020 | HDCP Version | 2.2 | Input/Output Level and Impedance | Component Video, Y Signal: 1 Vp-p, 75 Ohms Component Video, PB/CB and PR/CR Signals: 0.7 Vp-p, 75 Ohms | Frequency Response | Component Video: 5 Hz to 60 MHz (0, -3 dB) | | Tuner Bands | AM / FM | Reception Frequencies | AM: 520 to 1710 kHz FM: 87.5 to 107.9 MHz | Sensitivity | AM, Effective: 18 μV FM, Effective: 1.2 μV (12.8 dBf) | 50dB Sensitivity Mono/Stereo | FM, Mono: 2.8 μV (20.2 dBf) | S/N Ratio | FM, Mono: 70 dB (IHF-A weighted, Direct Mode) FM, Stereo: 67 dB (IHF-A weighted, Direct Mode) | Distortion | FM, Mono: 0.7% (1 kHz) FM, Stereo: 1.0% (1 kHz) | | Bluetooth | Version: 3.0 + EDR (Enhanced Data Rate) Transmission Power: Class 1 Maximum Communication Range: Approximately 98.4' (30 m) in line of sight Frequency Band: 2.4 GHz Modulation Scheme: FHSS (Frequency-Hopping Spread Spectrum) Supported Profiles: A2DP (Advanced Audio Distribution Profile) 1.2, AVRCP (Audio Video Remote Control Profile) 1.5 Corresponding Codec: SBC Transmission Range (A2DP): 20 Hz to 20 kHz | Wi-Fi | Radio Frequency: Dual-band (2.4 / 5 GHz) Network Type: IEEE 802.11a/b/g/n Security: WEP 64-bit, WEP 128-bit; WPA/WPA2-PSK (AES); WPA/WPA2-PSK (TKIP) | Inputs | 8 x HDMI (1 front) 2 x optical TOSLINK 2 x digital coaxial 2 x component video 3 x composite video 5 x stereo RCA audio 1 x USB (front) | Outputs | 3 x HDMI (1 with ARC) 1 x component video 1 x 1/4" (6.35 mm) headphone (front) 2 x subwoofer pre-out 1 x 7-channel analog pre-out | Other Ports | 1 x FM antenna 1 x AM antenna 1 x Ethernet 1 x IR in 1 x IR out 1 x setup mic in (front) 1 x 12 VDC, 150 mA trigger out 1 x RS-232C 1 x AC in | Speaker Connectors | 7 x binding post pairs | HDMI CEC | Yes | File Support | WMA, MP3, WAV, MPEG-4 AAC, FLAC, Apple Lossless, DSD | | Power Consumption | Operational: 600 W Standby, Network Control Off, HDMI Pass-Through Off: 0.1 W CEC Standby: 0.5 W | Power Requirements | 120 VAC, 60 Hz | Dimensions (W x H x D) | 17.125 x 9.375 x 15.375" (434 x 235 x 389 mm) with antennas up 17.125 x 6.625 x 15.375" (434 x 167 x 389 mm) with antennas down | Weight (Approximate) | 23.8 lb (10.8 kg) | | Package Weight | 30.0 lb | Box Dimensions (LxWxH) | 20.0 x 19.0 x 10.0" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
