User Manual for Denon AVR-X8500H 13.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Denon AVR-X8500H 13.2-Channel Network A V
- Product category: Receivers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Receivers
 |
User manual for the Denon AVR-X8500H 13.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

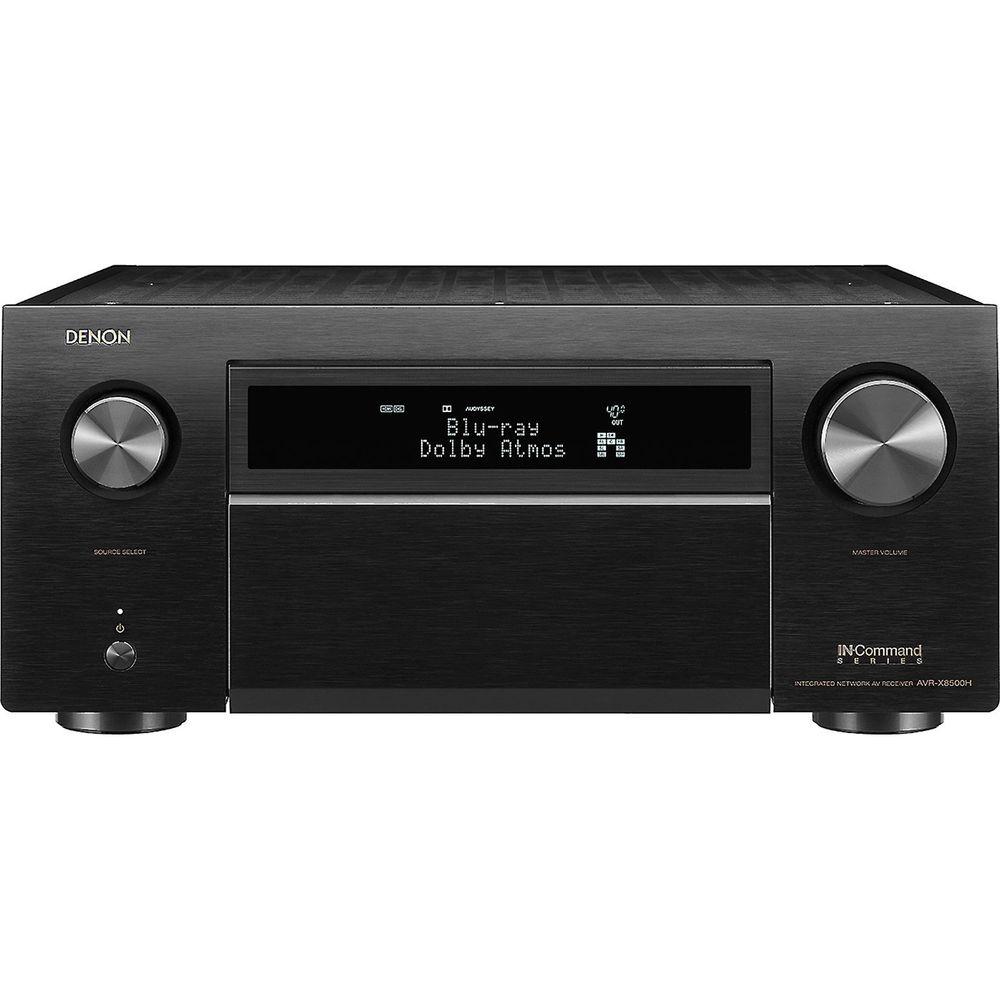

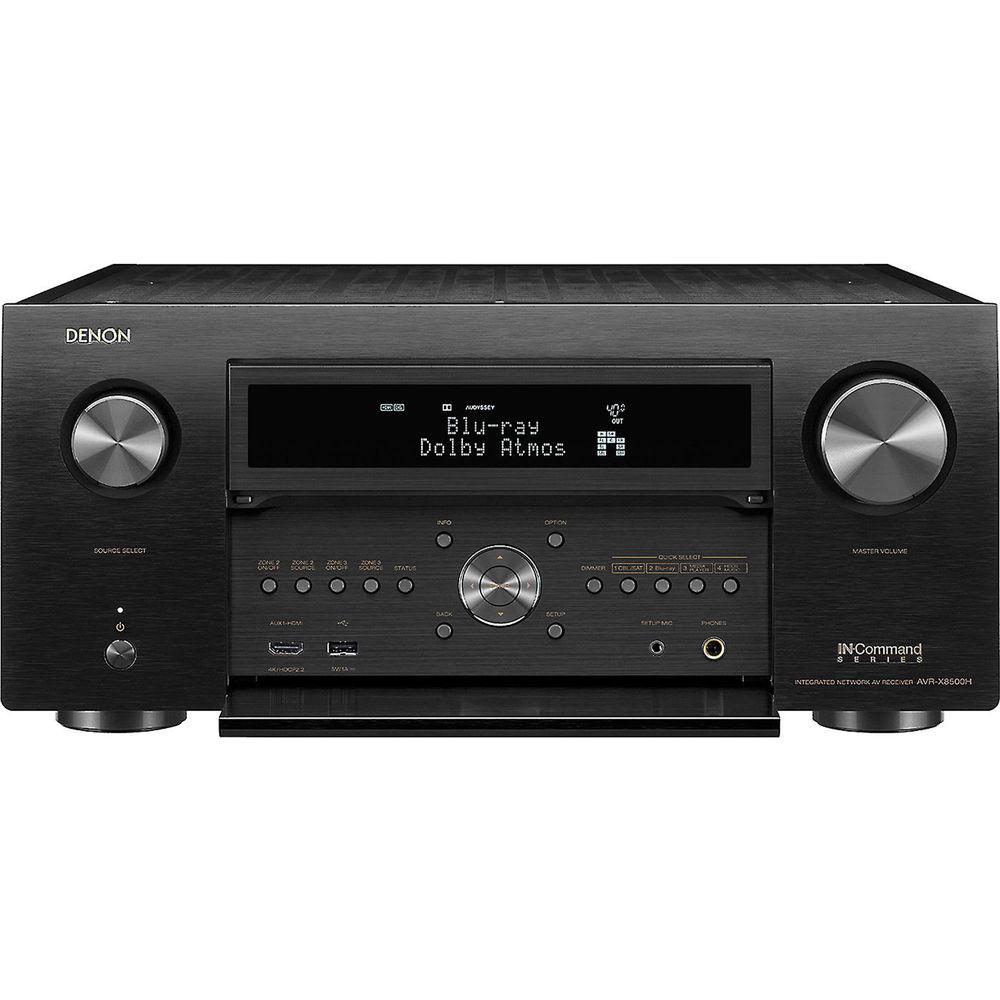

Product description Enjoy immersive multi-channel sound with your speakers and the black Denon AVR-X8500H 13.2-Channel Network A/V Receiver. It delivers up to 150W of power per channel at 8 Ohms and features Dolby Atmos, DTS:X, and Auro-3D compatibility for object-based audio support. Built-in Bluetooth and AirPlay 2 capability allow the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets. Onboard Wi-Fi and Ethernet connectivity allow the AVR-X8500H to access a variety of Internet-based music sources, like Pandora, SiriusXM, Internet radio, and more.
With eight HDMI inputs and three outputs, this receiver can act as a video switcher for your HD source components. It will pass through 3D and 4K signals, and upscale non-UHD signals from any input to near-4K quality for enhanced viewing of lower-resolution sources when paired with a 4K display. HDR pass-through is also supported for HDR10, Dolby Vision, and HLG technologies. The receiver also has a USB port for accessing media stored on USB flash drives. Equipped with the full Audyssey Platinum suite of advanced DSP algorithms, the AVR-X8500H features Audyssey MultEQ XT32 automatic room acoustic correction.
The AVR-X8500H can be integrated into your smart home with support for Amazon Alexa, the Google Assistant, Siri, and Josh.ai voice control. You can also download the free Denon 2016 AVR Remote App to control the receiver from your compatible Android, iOS, Amazon, or Kindle devices. - IMAX Enhanced Technology
- This technology program from IMAX is designed to provide clear pictures and bright images with DTS audio. You can also enjoy content digitally remastered by IMAX.
- HEOS Wireless Multi-Room Music Streaming
- Share music stored on your home network, streaming services with HEOS wireless speakers or even other HEOS-capable receivers and listen throughout the whole house. With the free HEOS app enjoy music from TuneIn, Internet Radio and a wide range of streaming services including Pandora, Spotify, Amazon Prime Music, iHeartRadio, SiriusXM, SoundCloud, TIDAL, Napster, or Deezer. The app is available for Android, iOS, and Amazon Kindle devices.
- Dolby Atmos
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The AVR-X8500H features the ability to connect a 7.1- or 9.1-channel surround sound speaker system and up to six additional overhead or Dolby Atmos-certified up-firing speakers.
- DTS:X
- DTS:X audio is designed to place sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. Built-in DTS Neural:X technology is engineered to enhance the realism of your movies, games, and music.
- Auro-3D
- Auro-3D provides an immersive surround sound experience with dedicated height and overhead channels, in addition to traditional channels supporting up to a 13.2-channel configuration. Formatting helps identify sound objects individually and project them to different spaces in your listening environment to help create a three-dimensional sound stage.
- HDMI with HDCP 2.2
- All eight HDMI inputs and three outputs feature HDCP 2.2 compatibility, including 4K Ultra HD 60 Hz video, 4:4:4 Pure Color sub-sampling, High Dynamic Range (HDR), 21:9 video, 3D, and BT.2020 pass-through support. It is also ready for Enhanced Audio Return Channel (eARC) for 3D audio playback through TV apps. eARC support is scheduled to be made available via a future firmware update.
- 4K UHD
- The video processor in the AVR-X8500H can upscale existing lower resolution video from any analog or digital source to 4K UHD. And with three HDMI outputs, you can connect a TV and a projector in the main room, while playing different content on a second zone screen.
- HDR/Dolby Vision
- The AVR-X8500H supports HDR10, Dolby Vision, and HLG (Hybrid Log Gamma) for enhanced brightness, contrast, and color. HLG provides HDR imaging for compatible broadcast content.
- Smart TV Connectivity
- Control the receiver with your smart TV remote via the HDMI CEC functionality associated with your display. Simply set "HDMI Control" to "on" in your receiver, then set "Smart Menu" to "on" and begin controlling the AVR-X8500H with your TV remote.
- Audyssey MultEQ XT32
- Equipped with the Audyssey Platinum suite of DSP algorithms, the AVR-X8500H features Audyssey MultEQ XT32 automatic room acoustic correction. With the included microphone, MultEQ XT32 is designed to analyze each speaker's output, including the subwoofers, at up to eight measurement locations and generate digital filters that optimize each channel for the correct frequency and time domain response.
- Bluetooth and Wi-Fi Connectivity
- Featuring Bluetooth and Wi-Fi wireless streaming connectivity, the Denon AVR-X8500H is equipped with a dual-antenna system for robust streaming, even in congested wireless environments.
- Denon + HEOS Apps
- With the Denon 2016 AVR Remote app, you can control the receiver's operation as well as your connected compatible Denon Blu-ray player. You can also control your music and multi-room streaming within the HEOS app, or use your voice for Amazon Alexa voice control.
- Quick Select
- Store your preferred setup and sound mode for every source. Jump right to them with the push of one of the Quick Select buttons on the front panel or remote control.
- DSP Processing
- The AVR-X8500H sports four 4th-generation SHARC DSP processors, which together have a combined continuous processing capability of 10 GFLOPS (10 billion floating point numerical computations per second).
- High-Resolution Audio
- Discover the augmented fidelity of high-resolution audio tracks with the ability to decode up to 24-bit/192 kHz ALAC, FLAC, and WAV lossless files as well as DSD 2.8 MHz and 5.6 MHz tracks (the audiophile format of SACD) via the front-panel USB port and network sources. you can also listen to other popular file types such as MP3.
- AL32 Processing
- AL32 multi-channel processing is designed to provide ultra-high-resolution digital audio filtering and precision for all audio channels, delivering a natural soundstage with enhanced imaging. For content recorded in multi-channel, such as Blu-ray discs, the recorded low frequency effects (LFE) may be out of sync and delayed; Bass Sync technology corrects such a delay of low frequency effects for an enhanced audio experience.
- 32-Bit D/A Conversion
- The Denon AVR-X8500H features 32-bit AKM AK4490EQ D/A converters on all channels to help provide consistent high-fidelity and precise channel matching.
- Alexa Voice Command
- Ask Alexa to play music from Pandora, Spotify, Amazon Music, and much more. Switch between inputs, turn volume up or down, pause, mute and play the next song, all with your voice. To start streaming with Alexa voice commands, the HEOS Home Entertainment skill must be added and activated via the Alexa app.
- Google Assistant Voice Control
- Ask your Google Assistant-enabled device to control content across your listening environment. Start music in the HEOS app, then ask your Google Assistant to control volume, playback, and more.
- AirPlay 2 with Siri Compatibility
- Stream audio from your favorite music services like Apple Music and Spotify, or watch videos from services like YouTube and Netflix from any compatible iPhone, iPad, Mac, or Apple TV device, and hear the audio synced to your sources. AirPlay 2 also supports multi-room audio, enabling you to wirelessly stream content to multiple AirPlay 2-compatible devices simultaneously with smooth playback. AirPlay 2 provides control and grouping of compatible devices within the Apple Music or Home apps. Use AirPlay 2 in-app or with your voice via Siri.
- Josh.ai Smart Home Voice Automation
- Josh.ai is designed to offer flexible voice control for nearly any aspect of your day-to-day experience and entertainment environment. Use voice commands to control your thermostat, lights, appliances, speakers, receiver, and more. Josh.ai is installed by custom integrators and accessed through an app on your compatible iOS or Android phone or tablet.
- External Control and IP Control Capabilities
- The AVR-X8500H is part of Denon's IN-Command series of custom integration-compatible A/V components, equipped with enhanced control capabilities and compatibility with third-party and custom integration solutions. The AVR-X8500H features IP control capability for integration with major third-party control devices, and Control4 SDDP (Simple Device Detection Protocol) certification for quick and easy integration with Control4 home automation equipment. An RS-232C serial port provides direct connection to external home automation and control equipment. For simpler integrated control set-ups, the AVR-X8500H also features an IR remote control input on the rear panel, allowing remote control compatibility with other components in your home theater system.
- Additional Features
-
- DTS HD Master, Dolby TrueHD, Dolby Surround
- Multichannel stereo

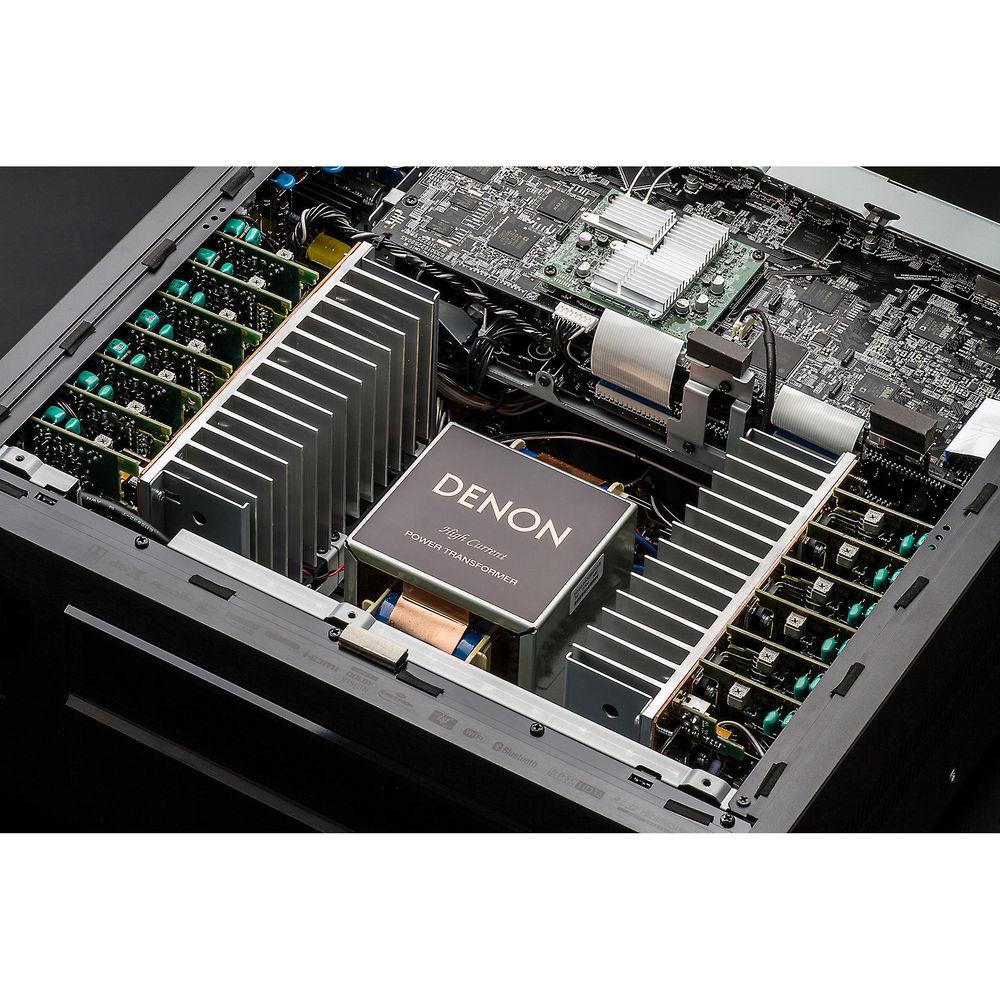

- Discrete power amplifier
- Pure Direct mode
- Gold-plated RCA terminals
- Clock jitter reducer
- Denon Link HD
- Audyssey Dynamic EQ / Dynamic Volume
- Audyssey LFC
- Compressed audio restorer
- DLNA certified
- Gapless playback of FLAC, WAV, ALAC, and DSD files
- TuneIn Internet radio
- Media server
- Spotify Connect
- Pandora
- SiriusXM, Amazon Music, TIDAL, Deezer, iHeartRadio, Napster, SoundCloud, Mood Mix
- Analog and digital upscaling up to 4K UHD / 60 Hz
- GUI overlay via HDMI
- HDMI pass-through in standby mode
- Picture Adjust/Noise Reduction
- DSD audio capability
- HDMI with ARC and InstaPrevue
- Auto LipSync
- HDMI diagnostics
- 2-line FL display
- ISF certified
- Three GUI languages
- Setup Assistant
- Quick Select Plus
- Firmware updates via network and USB
- Variable crossover
- Optimized bass redirection
- Bass sync
- ECO mode
- Auto power off
- Sleep timer
- A/B speakers, bi-amp drive, and multi-room speaker terminals assignable
- Metal front panel

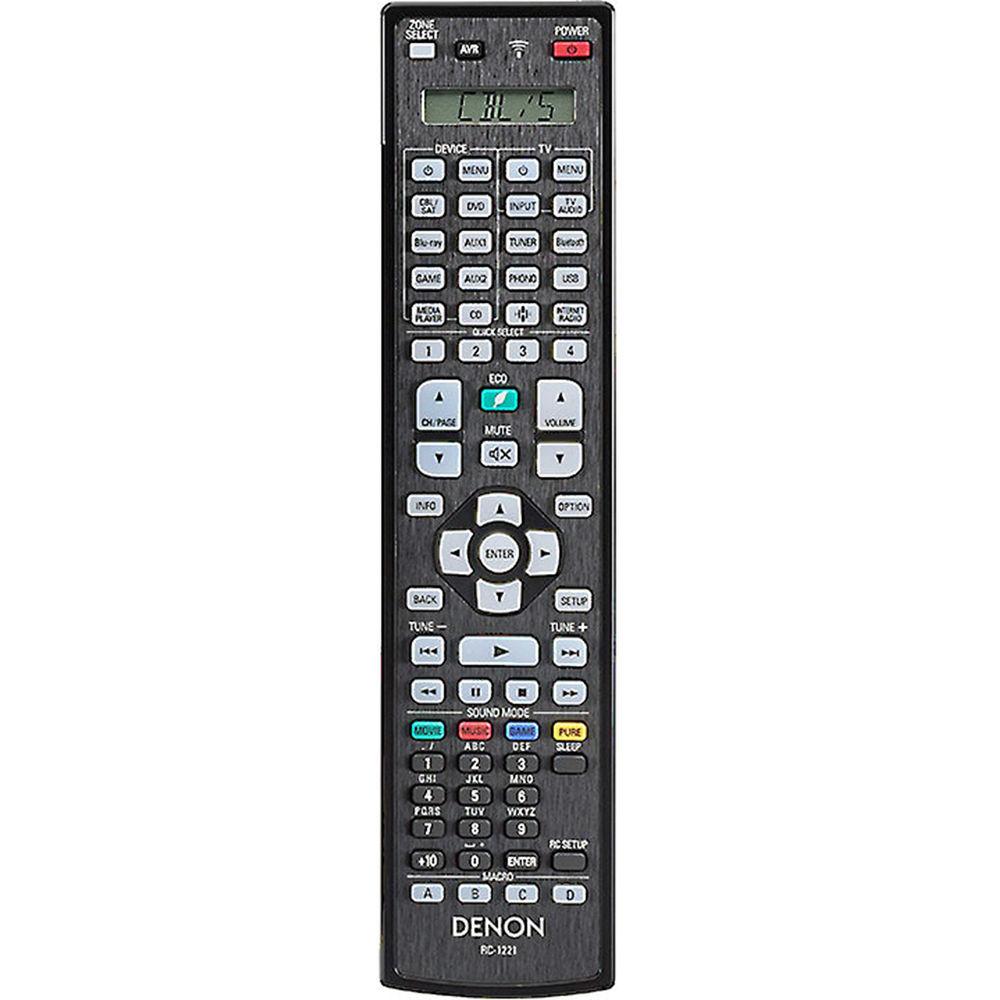

UPC: 883795004374 In the Box Denon AVR-X8500H 13.2-Channel Network A/V Receiver (Black) Remote Control 2 x AA Batteries FM Indoor Antenna AM Loop Antenna 2 x Bluetooth/Wi-Fi Antennas Sound Calibration Microphone Sound Calibration Microphone Stand Cable Labels Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon AVR-X8500H 13.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon AVR-X8500H Specs | | | Configuration | 13.2-channel | | Rated Output | 150 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.05% THD, 2 channels driven
190 W per channel @ 6 Ohms, 1 kHz, 0.7% THD, 2 channels driven
260 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven | | Dynamic Power per Channel | 170 W @ 8 Ohms
280 W @ 4 Ohms | | Impedance Support | 4 to 16 Ohms | | Input Sensitivity | Analog: 200 mV
Phono: 2.5 mV | | Frequency Response | Analog: 10 Hz to 100 kHz, +1, -3 dB (direct mode) | | Signal to Noise Ratio | Analog: 102 dB (IHF-A weighted, direct mode)
D/A Output: 102 dB
Phono: 74 dB (IHF-A) | | Distortion | Analog: 0.005 % (20 Hz to 20 kHz, direct mode)
Phono: 0.03% (1 kHz, 3 V) | | Rated Output | Analog: 1.2 V
D/A Output: 2 V (@ 0 dB playback) | | THD | D/A Output: 0.008% (1 kHz @ 0 dB) | | Dynamic Range | D/A Output: 100 dB | | Deviation | Phono, RIAA: ±1 dB (20 Hz to 20 kHz) | | | | Input/Output Level and Impedance | Composite: 1 Vp-p, 75 Ohms
Component Y Signal: 1 Vp-p, 75 Ohms
Component PB/CB, PR/CR Signal: 0.7 Vp-p, 75 Ohms | | Frequency Response | Composite: 5 Hz to 10 MHz, 0, -3 dB
Component: 5 Hz to 60 MHz, 0, -3 dB | | | | FM Frequency Range | 87.5 to 107.9 MHz | | AM Frequency Range | 520 to 1710 kHz | | Sensitivity | FM, Effective: 1.2 μV (12.8 dBf)
FM, 50 dB, Mono: 2.8 μV (20.2 dBf)
AM, Effective: 18 μV | | Signal to Noise Ratio | FM, Mono: 70 dB (IHF-A weighted, direct mode)
FM, Stereo: 67 dB (IHF-A weighted, direct mode) | | Distortion | FM, Mono: 0.7% (1 kHz)
FM, Stereo: 1% (1 kHz) | | | | Wi-Fi | Dual-band (2.4/5 GHz) Wi-Fi 4 (IEEE 802.11a/b/g/n)
Security: WEP 64 bit, WEP 128 bit, WPA/WPA2-PSK (AES), WPA/WPA2-PSK (TKIP) | | Bluetooth | Version: 3.0 + EDR (Enhanced Data Rate)
Maximum Communication Range: Up to 98.4' / 30 m in line of sight
Modulation Scheme: FHSS
Supported Profiles: A2DP 1.2, AVRCP 1.5
Codec: SBC

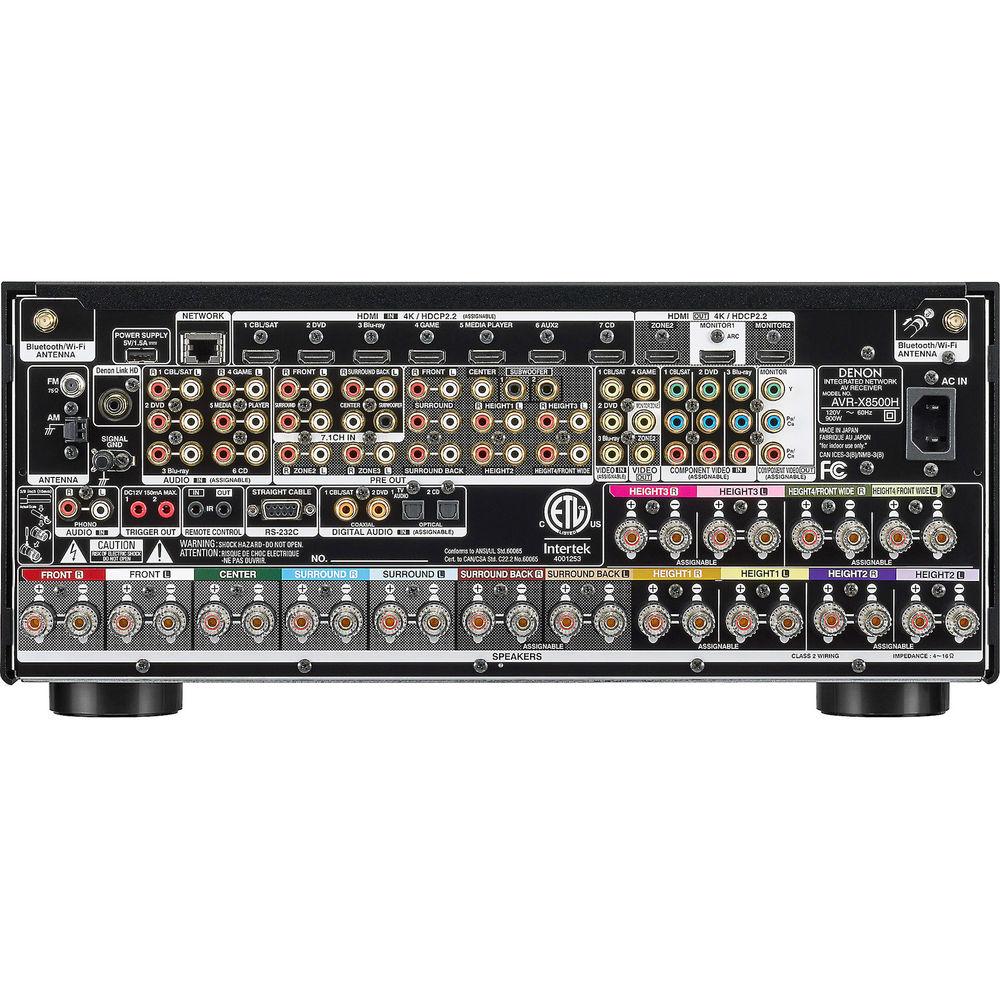

Transmission Frequency Range (A2DP): 20 Hz to 20 kHz | | Inputs | 8 x HDMI (1 front)
2 x optical TOSLINK
2 x digital coaxial
3 x RCA component video
4 x RCA composite video
7 x stereo RCA (1 phono with ground screw)
1 x RCA 7.1-channel analog | | Outputs | 3 x HDMI
1 x RCA component video
2 x RCA composite video
1 x RCA 15-channel analog pre-out
2 x stereo RCA pre-outs (zone 2/3)
2 x subwoofer pre-outs | | Speaker Connectors | 15 x binding post pairs | | Other Connectors | 1 x Denon Link HD
2 x Bluetooth / Wi-Fi antennas
1 x USB (front)
1 x FM antenna
1 x AM antenna
1 x RJ45 Ethernet LAN
1 x 1/8" / 3.5 mm IR remote in
1 x 1/8" / 3.5 mm IR remote out
1 x RS-232C control
2 x 1/8" / 3.5 mm DC trigger out
1 x 1/8" / 3.5 mm setup microphone jack (front)
1 x 1/4" / 6.35 mm headphone jack (front) | | USB Formats | WMA, MP3, WAV, MPEG-4 AAC, FLAC, DSD, Apple Lossless | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operating: 900 W
Standby: 0.1 W
CEC Standby: 0.5 W
Network Control On: 3.5 W | | Dimensions | 17.13 x 10.25 x 17.25" / 434 x 259 x 482 mm with antennas up
17.13 x 7.75 x 17.25" / 434 x 195 x 482 mm with antennas down | | Weight | 51.4 lb / 23.3 kg | | | | Package Weight | 60.05 lb | | Box Dimensions (LxWxH) | 22.6 x 21.6 x 13.4" |
