User Manual for Denon Commander Sport PA with Wireless Handheld Mic and Headset Mic Kit Click to enlarge the picture
Contents of the user manual for the Denon Commander Sport PA with Wireless
- Product category: Portable PA Systems Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Portable PA Systems
|
User manual for the Denon Commander Sport PA with Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

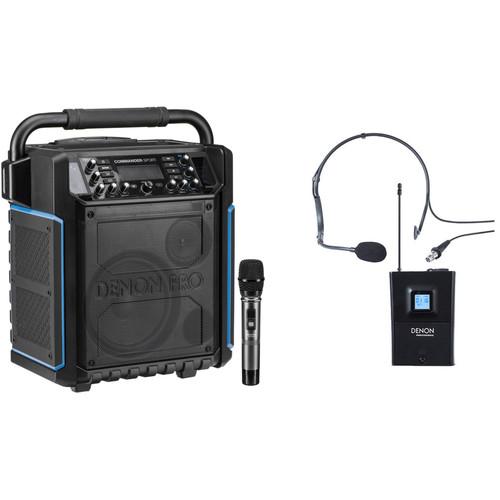

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Denon Commander Sport PA with Wireless Handheld Mic and Headset Mic Kit from includes the Commander Sport portable water-resistant 120W all-in-one PA system, a wireless handheld microphone, a wireless Fitness Pack beltpack transmitter and headset microphone, a 3.5mm audio cable, an IEC power cable, and a microphone bag. This kit can be used in various environments by DJs, musicians, presenters, and announcers and delivers 120W of amplification for parties, camping events, and other sound reinforcement applications. - Denon Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone
- Denon Professional Commander Sport Water Resistant Portable Speaker
The Denon Commander Sport is a portable water-resistant 120W all-in-one PA system designed to provide high-powered audio entertainment for party-goers, DJs, and announcers at indoor and outdoor events such as parties, camping, and presentations. Its two-way design features 120W of amplification driving an 8” woofer and 3” tweeter. The PA is IPX4 water-resistant rated and offers a telescoping luggage handle, large carry handle, and rolling wheels to allow easy transport between events.Stream music from smartphones, tablets, and PCs via the integrated Bluetooth receiver or the 3.5mm auxiliary input jack, or play files from an SD card or USB flash drive. The built-in UHF wireless receiver allows you to use the included wireless handheld microphone for convenient wire-free karaoke and announcements. Connect a wired microphone or instrument via the XLR-1/4” combo jack.Supply power from the built-in, 40-hour rechargeable battery or a standard IEC connection. The Commander Sport ships with a microphone bag, IEC power cable, and 3.5mm audio cable. -
- Built-in telescoping luggage handle, large carry handle, and rolling wheels make transporting the PA easy
- IPX4 water-resistant rated for use at pool parties and lakes
- Stream music from smartphones, tablets, and PCs via the integrated Bluetooth receiver or the 3.5mm auxiliary input jack
- Play files from an SD card or USB flash drive
- 120W RMS of amplification drive an 8" woofer and 3" tweeter
- Built-in UHF wireless receiver allows you to use the included wireless handheld microphone for convenient wire-free karaoke and announcements
- Supply power from the built-in, 40-hour rechargeable battery or standard IEC connection
- On-board mixer with level controls and equalizer
- Tempo control
- Includes 3.5mm audio cable and microphone bag
UPC: 694318023242 - Denon Fitness Pack Beltpack Transmitter and Headset Microphone for Audio Commander and Commander Sport
- Denon Professional Commander Sport Water Resistant Portable Speaker
The Denon Fitness Pack is a beltpack transmitter and headset microphone package designed to provide hands-free voice transmission to a compatible wireless PA system for fitness, sports, and outdoor event applications. It includes a water-resistant UHF beltpack transmitter (584 to 608 MHz) and a water-resistant headset mic, which are intended for use with a Denon Audio Commander or Commander Sport PA speaker. The sweat-proof design of the Fitness Pack is ideal for moisture-heavy environments such as fitness classes and water sports. A locking TA4 connector prevents unintentional cable disconnection. - For use with Denon Audio Commander or Commander Sport PA systems
- 584 to 608 MHz wireless frequency range
- Water-resistant UHF beltpack transmitter
- Water-resistant headset microphone with noise-canceling element
- Sweat-proof design is ideal for fitness and outdoor applications
- TA4 locking connector prevents accidental disconnection
UPC: 694318023532 In the Box - Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone vyexverduudwrbreaa
- Wireless Handheld Microphone
- 3.5mm Audio Cable
- IEC Power Cable
- Microphone Bag
- Limited 1-Year Warranty
- Fitness Pack Beltpack Transmitter and Headset Microphone for Audio Commander and Commander Sport
Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon Commander Sport PA with Wireless Handheld Mic and Headset Mic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Denon Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone
| Drivers | 8" / 203 mm woofer
3" / 80 mm tweeter | | Output Power (RMS) | 120 W | | Frequency Response | 20 Hz to 20 kHz | | Waterproof Standard | IPX4 | | Bluetooth Specification | Version: 4.0
Profiles: A2DP, AVRCP
Range: Up to 60' / 18.3 m
Maximum Transmission Power: +4 dBm
Frequency: 2.4 to 2.48 GHz | | Microphone Specifications | Operating Frequency: UHF 584 to 608 MHz
Available Channels: 16
Power Requirements: 2 x AA alkaline batteries | | Inputs | 1 x XLR-1/4" TRS combo jack
1 x 1/8" (3.5 mm) | | Outputs | 1 x 1/4" | | Media Handling | 1 x SD card
2 x USB Type-A | | Battery | 12 V, 7 Ah | | Power Specifications | Connection: IEC
Input Voltage: 100 to 240 VAC, 50/60 Hz
Fuse: T2AL 250 V
Consumption: 80 W | | Dimensions (W x D x H) | 17.7 x 9.0 x 20.1" / 449 x 228 x 510 mm | | Weight | 25.8 lb / 11.7 kg | | | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 15.0" | - Denon Fitness Pack Beltpack Transmitter and Headset Microphone for Audio Commander and Commander Sport
| Frequency Response | 200 Hz to 16 kHz | | Transmitter Operating Frequency | UHF: 584 to 608 MHz | | Connector | TA4 (locking) | | | | Box Dimensions (LxWxH) | 12.1 x 11.2 x 3.3" |
