User Manual for Denon Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Denon Commander Sport Portable Water-Resistant 120W
- Product category: Portable PA Systems Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Portable PA Systems
 |
User manual for the Denon Commander Sport Portable Water-Resistant 120W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - Denon Professional Commander Sport Water Resistant Portable Speaker

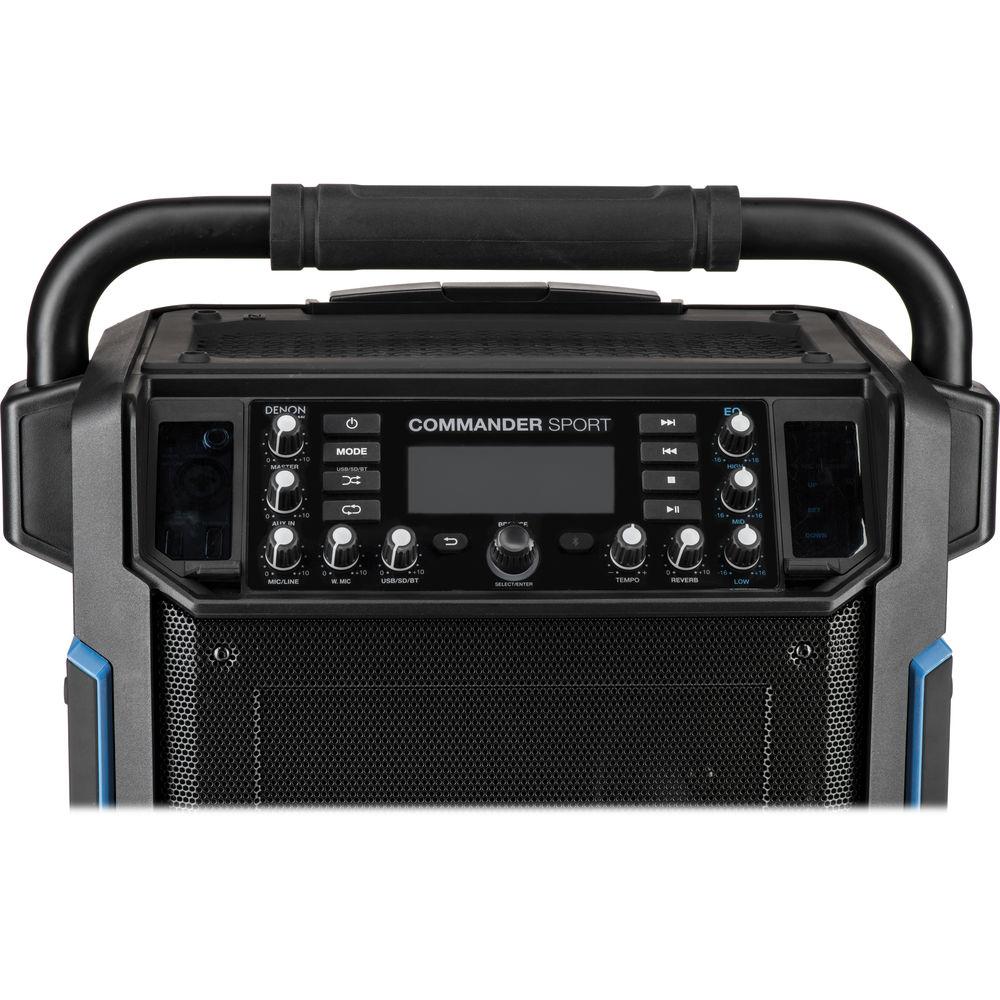

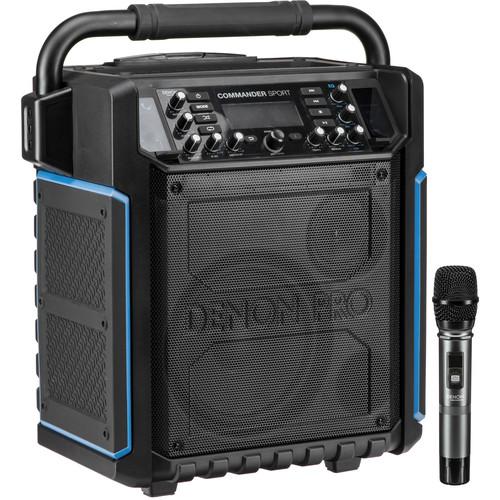

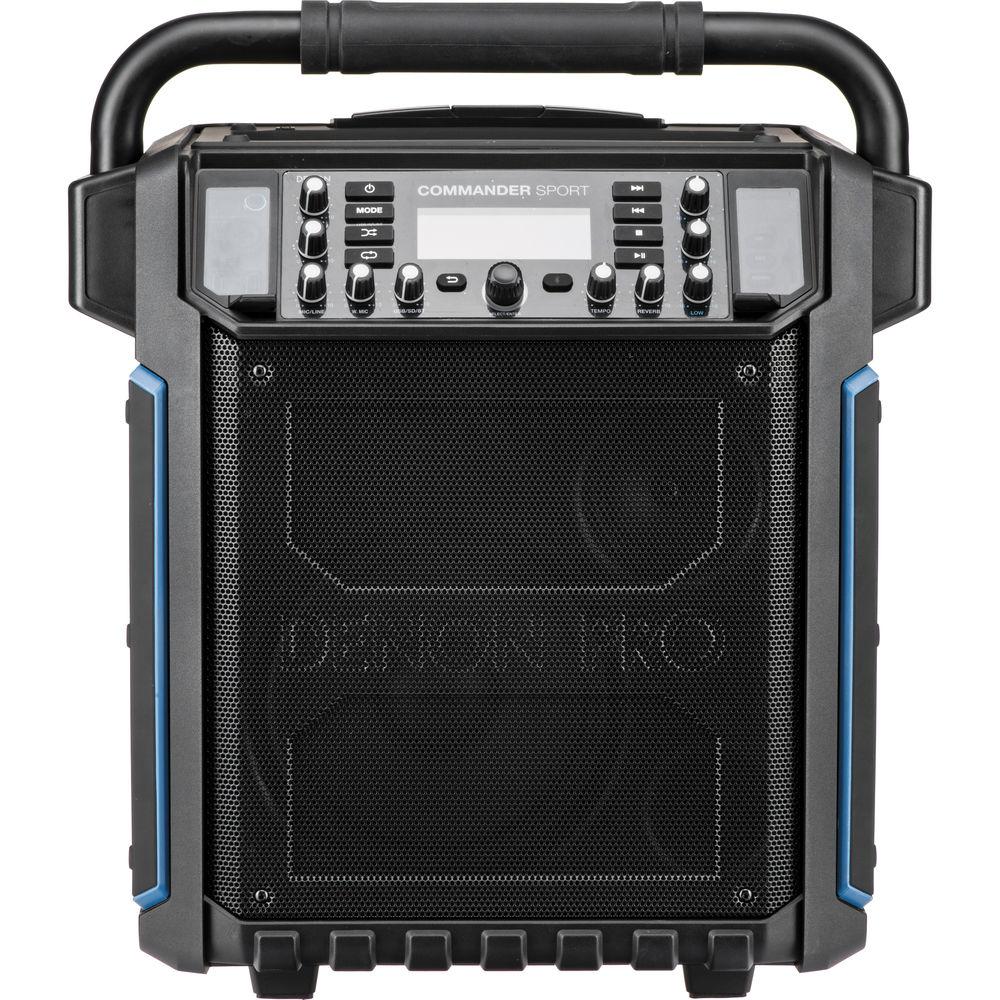

The Denon Commander Sport is a portable water-resistant 120W all-in-one PA system designed to provide high-powered audio entertainment for party-goers, DJs, and announcers at indoor and outdoor events such as parties, camping, and presentations. Its two-way design features 120W of amplification driving an 8” woofer and 3” tweeter. The PA is IPX4 water-resistant rated and offers a telescoping luggage handle, large carry handle, and rolling wheels to allow easy transport between events.Stream music from smartphones, tablets, and PCs via the integrated Bluetooth receiver or the 3.5mm auxiliary input jack, or play files from an SD card or USB flash drive. The built-in UHF wireless receiver allows you to use the included wireless handheld microphone for convenient wire-free karaoke and announcements. Connect a wired microphone or instrument via the XLR-1/4” combo jack.Supply power from the built-in, 40-hour rechargeable battery or a standard IEC connection. The Commander Sport ships with a microphone bag, IEC power cable, and 3.5mm audio cable. -

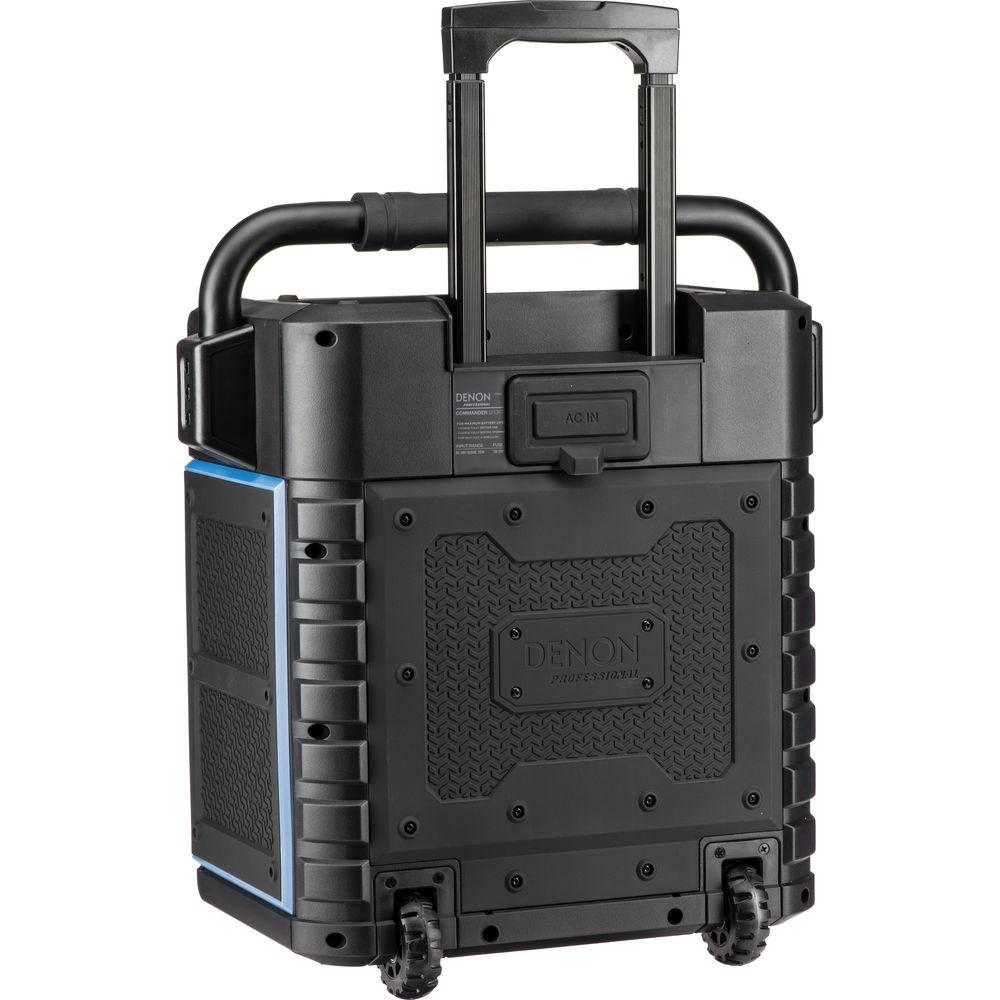

- Built-in telescoping luggage handle, large carry handle, and rolling wheels make transporting the PA easy
- IPX4 water-resistant rated for use at pool parties and lakes
- Stream music from smartphones, tablets, and PCs via the integrated Bluetooth receiver or the 3.5mm auxiliary input jack
- Play files from an SD card or USB flash drive
- 120W RMS of amplification drive an 8" woofer and 3" tweeter

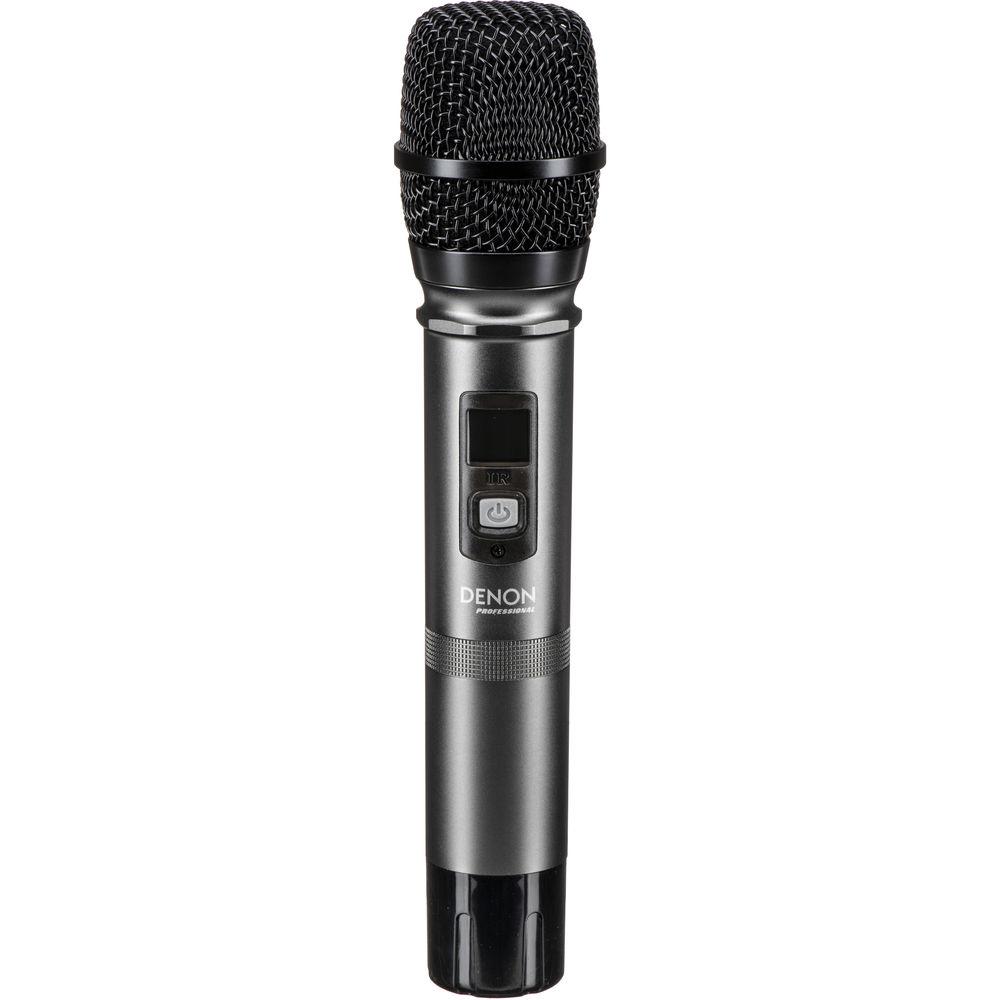

- Built-in UHF wireless receiver allows you to use the included wireless handheld microphone for convenient wire-free karaoke and announcements
- Supply power from the built-in, 40-hour rechargeable battery or standard IEC connection
- On-board mixer with level controls and equalizer
- Tempo control
- Includes 3.5mm audio cable and microphone bag
UPC: 694318023242 In the Box Denon Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone Wireless Handheld Microphone 3.5mm Audio Cable IEC Power Cable Microphone Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon Commander Specs | Drivers | 8" / 203 mm woofer
3" / 80 mm tweeter | | Output Power (RMS) | 120 W | | Frequency Response | 20 Hz to 20 kHz | | Waterproof Standard | IPX4 | | Bluetooth Specification | Version: 4.0
Profiles: A2DP, AVRCP
Range: Up to 60' / 18.3 m
Maximum Transmission Power: +4 dBm
Frequency: 2.4 to 2.48 GHz | | Microphone Specifications | Operating Frequency: UHF 584 to 608 MHz
Available Channels: 16
Power Requirements: 2 x AA alkaline batteries | | Inputs | 1 x XLR-1/4" TRS combo jack
1 x 1/8" (3.5 mm) | | Outputs | 1 x 1/4" | | Media Handling | 1 x SD card
2 x USB Type-A | | Battery | 12 V, 7 Ah | | Power Specifications | Connection: IEC
Input Voltage: 100 to 240 VAC, 50/60 Hz
Fuse: T2AL 250 V
Consumption: 80 W | | Dimensions (W x D x H) | 17.7 x 9.0 x 20.1" / 449 x 228 x 510 mm | | Weight | 25.8 lb / 11.7 kg | | | | Package Weight | 34.4 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 15.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Denon Commander Sport Portable Water-Resistant 120W All-In-One PA System with Wireless Handheld Microphone
| Subject: troubleshooting | | Date: 08.08.2022 18:00:56 | Name: josee dube | | with my 2 mics on all channel, the sound cut few seconds many times when we talk on it... | | Post reply |
