User Manual for Denon DCD-800NE CD Player Click to enlarge the picture
Contents of the user manual for the Denon DCD-800NE CD Player
- Product category: CD Players & Changers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon CD Players & Changers
 |
User manual for the Denon DCD-800NE CD Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description Enjoy stereo sound from a variety of CD types with the Denon DCD-800NE CD Player. It uses a Burr Brown PCM1795 digital-to-analog converter for detailed audio reproduction from the stereo RCA analog output, and also features an optical and digital coaxial output. The DCD-800NE will play CDs, CD-R/RWs, and MP3, WMA, and AAC files from CDs and USB drives. - Advanced AL32 Processing Plus
- This analog waveform reproduction technology utilizes data interpolation algorithms, which support high-resolution audio sources, to add in the points that should exist before and after large quantities of data to smooth out the waveform and restore information lost during the digital recording. This is designed to produce detailed playback that's free of interference, expressive in the lower range, and faithful to the original sound.
- Supports CD, CD-R/RW, MP3, WMA, and USB Playback
- Enjoy extended playback support for your high-resolution audio collection. It will play standard CDs as well as CD-R/RWs in audio, MP3, and WMA format; or you can plug in your USB drive to listen to your DSD 2.8/5.6 MHz tracks in high-resolution.
- Vibration-Resistant Design for Enhanced Audio
- The vibration-resistant design helps mitigate the adverse audio effects of heavy components within amplifiers. The power transformers are installed near the bottom of the CD player and immediately above the insulators to mitigate unwanted vibration.
- DAC Master Clock Design
- To help the DCD-800NE accurately synchronize digital circuits, it is built with a DAC Master Clock design that treats the DAC as the master when clock signals are supplied. The master clock is immediately adjacent to the DAC, helping to suppress jitter and ensure optimal precision in D/A conversion. It serves as the reference for semiconductor operation and helps optimize digital audio circuitry.
- Short Circuit Paths
- The circuit patterns of this CD player are engineered to make signal paths as short as possible, helping to reduce interference between circuits and the left and right channels, thereby minimizing the adverse influences on audio signals. This helps provide a clean audio output that's transparent and faithful to the original recording.
- Pure Direct Mode
- This mode feeds sound directly to the amplifiers by bypassing any processing that might otherwise color the signal to help output clean, detailed, accurate audio.
- Optical and Digital Coaxial Output
- The DCD-800NE features one optical and one digital coaxial output to connect to the digital inputs of your amplifier or receiver.
- Additional Features
-
- USB DAC operation mode
- Separated rectifier circuit for analog and digital circuitry
- Display dimmer and off options
- CD program, repeat, and random play modes
- Auto power off
UPC: 883795004541 In the Box Denon DCD-800NE CD Player Remote Control 2 x AAA Batteries Stereo RCA Audio Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DCD-800NE CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DCD-800NE Specs | Compatible Discs | CD, CD-R/RW | | File Types Supported | CD-R/RW: MP3, WMA, AAC | | Number of Channels | 2 | | Frequency Range | DSD, Playable: 2 Hz to 100 kHz
PCM, Playable, Sampling Frequency of 192 kHz: 2 Hz to 96 kHz
PCM, Playable, Sampling Frequency of 44.1 kHz: 2 Hz to 20 kHz | | Frequency Response | DSD, 192 kHz PCM, Playable: 2 Hz to 50 kHz, -3 dB
44.1 kHz PCM, Playable: 2 Hz to 20 kHz | | Dynamic Range | DSD, 24-Bit PCM: 108 dB
16-Bit PCM: 101 dB | | DAC | Burr Brown PCM1795 (192 kHz, 32-bit) | | Digital Filter | AL32 Processing Plus | | Signal-to-Noise Ratio | 115 dB | | THD | DSD: 0.0015%
PCM, 24-Bit: 0.002%

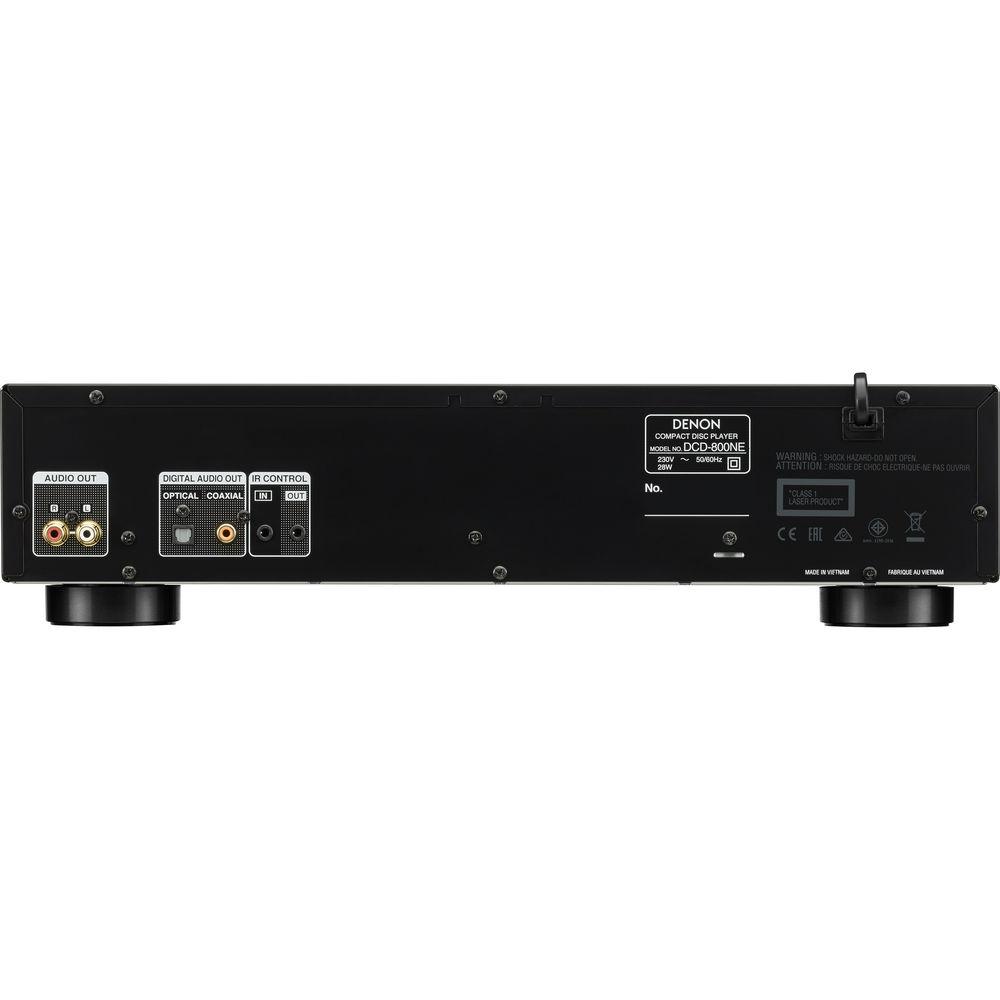

PCM, 16-Bit: 0.0025% | | Input | 1 x USB 2.0 Type-A (front) | | Outputs | 1 x digital coaxial
1 x optical TOSLINK
1 x gold-plated stereo RCA | | Other Connections | 1 x 1/8" / 3.5 mm IR control in
1 x 1/8" / 3.5 mm IR control out | | Output Level | 2.2 V RMS | | Digital Output | Coaxial: 0.5 Vp-p, 75 Ohms
Optical: -21 to -15 dBm | | Supported File Formats | WMA: 32/44.1/48 kHz, 48 to 320 kbps
MP3: 32/44.1/48 kHz, 48 to 320 kbps
WAV: 32/44.1/48/88.2/96/176.4/192 kHz
MPEG-4 AAC/M4A/MP4: 32/44.1/48 kHz, 48 to 320 kbps
FLAC: 32/44.1/48/88.2/96/176.4/192 kHz
Apple Lossless (M4A): 32/44.1/48/88.2/96 kHz
AIF/AIFF: 32/44.1/48/88.2/96/176.4/192 kHz
DSD/DSF/DFF: 2.8/5.6 MHz | | Laser | AlGaAs | | Laser Wavelength | 780 nm | | Signal Type | Optical System: 16-bit linear PCM | | Sampling Frequency | Optical System: 44.1 kHz | | Front Panel Construction | Aluminum | | Power Requirements | 120 VAC, 60 Hz | | Operating Power Consumption | 28 W | | Standby Power Consumption | 0.2 W | | Dimensions (W x H x D) | 17.13 x 10.5 x 4.5" / 434 x 107 x 275 mm | | Weight | 9.9 lb / 4.5 kg | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 8.0" |
