User Manual for Denon Delta 12 - 12" 2-Way Powered Loudspeaker with Wireless Connectivity

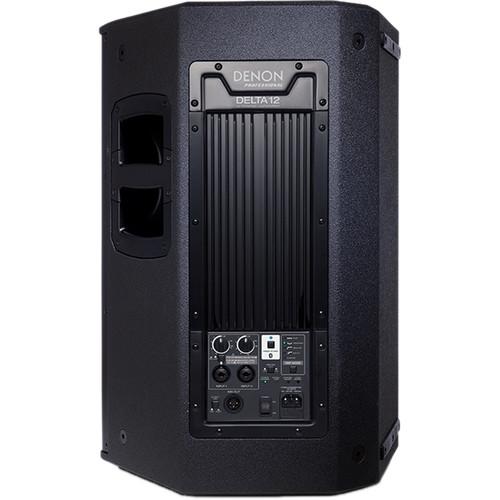

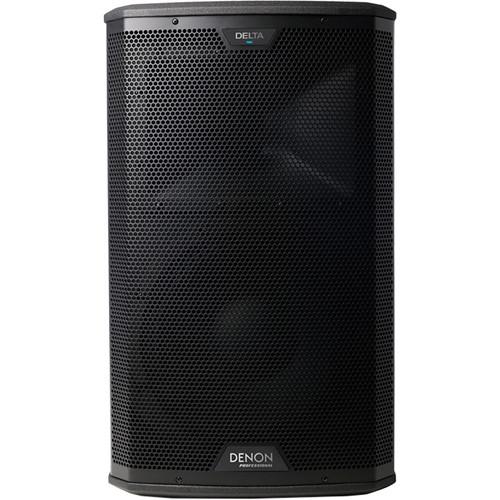

Click to enlarge the picture
Denon Delta 12 - 12" 2-Way Powered Loudspeaker with Wireless Connectivity Contents of the user manual for the Denon Delta 12 - 12" 2-Way
  • Product category: PA Speakers Denon
  • Brand: Denon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Denon PA Speakers

Denon Delta 12 - 12" 2-Way Powered Loudspeaker with Wireless Connectivity Denon Delta 12 - 12" 2-Way Powered Loudspeaker with Wireless Connectivity
User manual for the Denon Delta 12 - 12" 2-Way contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Denon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!



Product description

The Delta 12 from Denon is a 12" 2-way loudspeaker featuring wireless connectivity, an integrated 2400W Class-D amplifier, and ultra-durable, linear transducers that are paired with custom DSP-controlled crossovers. The high frequency driver utilizes a computer-designed waveguide for an optimized 90° x 60° coverage field. The Delta 12 offers clear and natural sound reproduction with full bass and smooth highs.

Additionally, the Delta 12 provides wireless connectivity via Bluetooth, which offers control over internal digital signal processing (DSP), giving operators powerful sound-shaping capabilities in the field and away from the mix position. The free iOS app, Live Drive, offers wireless control of time-compensation, EQ curves, gain, test tones, and more. The Delta 12 ships with a standard IEC power cord.
    • Unrivaled acoustic accuracy via advanced engineering and design
    • 2400 watts peak Class-D power (1200 Watts continuous)
    • 12" LF transducer
    • 1.75” HF driver with 1” acoustic aperture
    • Optimized 90° x 60° sound coverage field
    • Works with free Live Drive iOS app for wireless sound-shaping control
    • Wirelessly level-match, EQ, delay-compensation, and more
    • DSP-controlled, custom crossover, and active thermal protection
    • Built-in mixer, (2) Mic/Line inputs, volume control, XLR output
    • Limit/Clip indicator with red LED
    • EQ contour switch
    • Ground Lift switch
    • Trapezoidal cabinet with custom-molded heavy-duty handle
    • Flyable via (12) M10 rigging points
    • Designed and tuned in the U.S.A.
UPC: 694318017258 In the Box Denon Delta 12 - 12" 2-Way Powered Loudspeaker with Wireless Connectivity (2400 W)
  • IEC Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Denon Delta 12 - 12" 2-Way Powered Loudspeaker with Wireless Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Denon Delta 12 Specs

    System Type System Type: 12" two-way, self-powered, horn-loaded HF
    Operating Acoustics Frequency Range (-10 dB): 43 Hz to 20 kHz
    Frequency Response (+/-3 dB): 51 Hz to 20 kHz
    Maximum Peak SPL (Measured): 133 dB @ 3.3' / 1 m
    Coverage Pattern (Averaged): 90° H x 60° V
    Directivity Index (D.I.): 9.5 dB
    Amplifier Peak Power: 2400 W (1600 W LF + 800 W HF)
    Continuous Power: 1200 W (800 W LF + 400 W HF)
    Amplifier Topology: Class D/switching, bridged LF and HF
    Amplifier Cooling: Passive
    Low Frequency Transducer 12" / 305 mm high excursion cone transducer 3" / 76 mm high-temperature voice coil, ferrite magnet
    High Frequency Transducer 1.75" / 45 mm voice coil, ferrite magnet compression driver with 1" / 25 mm acoustic aperture
    Digital Signal Processing (DSP) System Control:
    High-pass & low-pass crossover filters
    Transducer EQ and delay compensation
    Transducer excursion, thermal, and amplifier clip protection
    User Controls (5 DSP EQ Modes): Flat, Contour, 80 Hz HP, EXT LF, User
    Wireless Wireless Type: Bluetooth 2.0 + EDR Class 2 RF
    Wireless Range (typical): 82' / 25 m clear line-of-sight
    Wireless Control App: Live Drive (App by Alto Professional, available on the App Store)
    Simultaneous Devices Connectable: 1 to 3 Delta Series loudspeakers
    Compatible Wireless Devices: iPhone 3GS and newer, iPad 2 and newer, iPod touch (4th generation) and newer
    iOS Version Requirements: iOS 6.1 and newer
    Wireless Control Features:
    Level Control (-∞ to + 10 dB)
    Mute
    Signal level metering (-70 to 0 dB)
    DSP mode (Flat, Contour, 80 Hz HP, Ext. LF, User)
    Rear Panel control lockout
    3 Band EQ (Low, Mid, High)
    Delay
    Polarity
    User high-pass filter
    Monitoring (Limit, Peak, Fault)
    Power Power Supply Design: Fully regulated switching (with Power Factor Correction)
    Input Voltage Nominal Range: 100-240 VAC, 50/60 Hz
    Input Voltage Operating Range: 90-264 VAC, 50/60 Hz
    Voltage Selection: Automatic (self-regulating)
    Power Connector: Male IEC
    Current Requirement: 6 A per system @ 120 VAC, 3 A per system @ 240 VAC
    AC Line Cord: 9.8' / 3 m IEC female to regional AC male, 18 AWG
    Connectors and Control Input Connectors: 2 x XLR/TRS combo connectors, balanced
    Input Impedance: 10 kOhms balanced, 20 kOhms unbalanced
    Input level Controls: 2 x rotary volume control
    Acoustic Polarity: Positive voltage applied to XLR Pin 2 generates positive pressure from LF driver
    Line/Mic Level Selector: Push-button switch (applies to Input 1 only)
    Output Connector: Male XLR
    Output Mix Control: Switch to select output mix pre- or post-volume control
    Ground Switch: Push-button to lift input signal input ground connection
    Bluetooth: Momentary contact to initiate Bluetooth pairing mode
    DSP Mode Selection: Momentary contact to cycle through DSP EQ modes
    DSP Modes Available (5 Total): Flat, Contour, 80 Hz HP, EXT LF, User
    DSP Wireless Control: Live Drive iOS app over Bluetooth
    Grille Logo LED On/Off Control: Recessed push-button switch
    Standby Mode On/Off Control: Recessed push-button switch
    LED Indicators: Signal Present/Limit, Power/Standby
    Line Input Level Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
    Mic Level Control Range: -∞ to +50 dB
    Enclosure Material Construction: 0.6" / 15.0 mm and 0.7" / 18.0 mm premium plywood, internally-braced
    Finish: High-durability, textured, catalyzed polyurethane, black
    Mounting: 12 x M10 female threaded screw sockets
    Handles: 3 x ergonomic handles with aluminum cross-bar
    Stand mount: 1 x 1.4" / 35.0 mm female socket
    Grille: 0.0" / 1.2 mm perforated steel, black powder-coat
    Operating Temperature 14 to 104°F / -10 to 40°C
    Dimensions (H x W x D) 24.1 x 14.3 x 14.6" / 61.2 x 36.3 x 37.1 cm
    Weight 52.2 lb / 23.7 kg
    Package Weight 63.5 lb
    Box Dimensions (LxWxH) 28.5 x 19.0 x 19.0"
