User Manual for Denon Design Series DCD-50 Compact Hi-Fi CD Player Click to enlarge the picture
Contents of the user manual for the Denon Design Series DCD-50 Compact Hi-Fi
- Product category: CD Players & Changers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon CD Players & Changers
 |
User manual for the Denon Design Series DCD-50 Compact Hi-Fi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

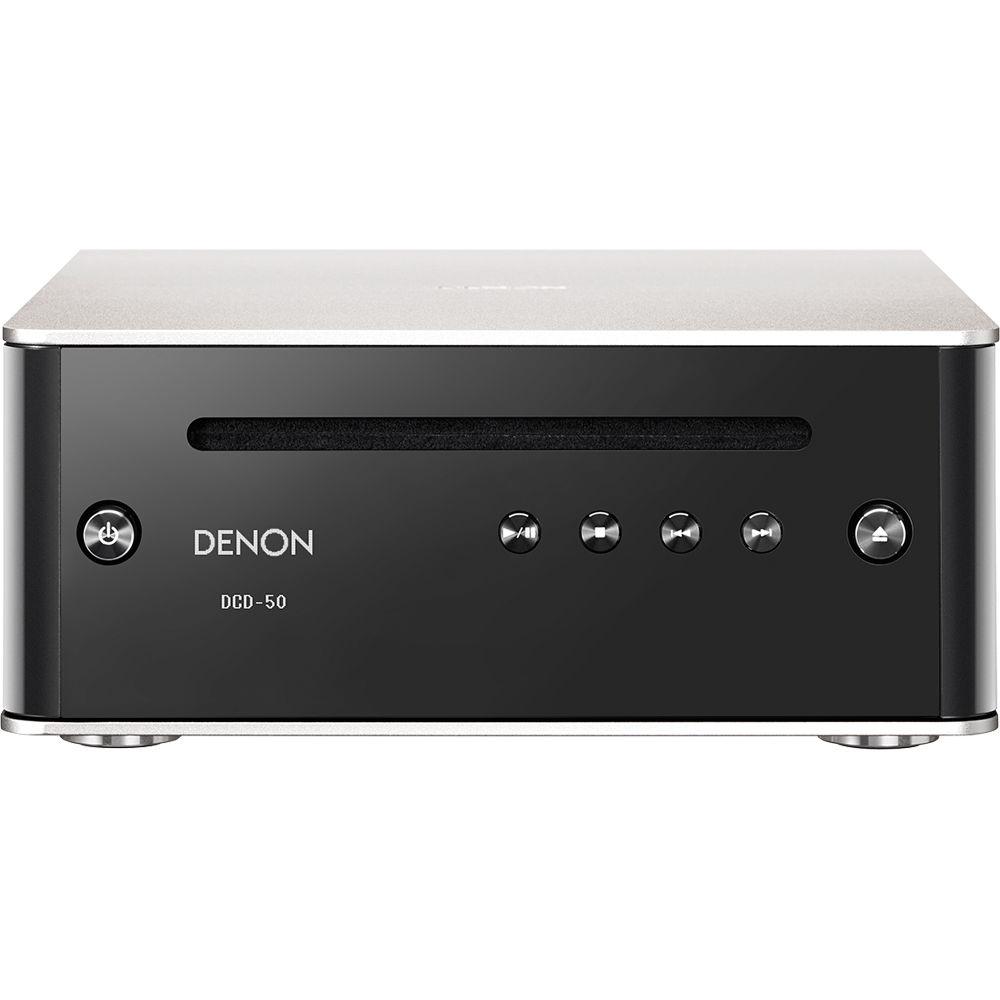

Product description The Denon Design Series DCD-50 Compact Hi-Fi CD Player features a slot-in CD drive ready for regular audio CDs and CD-R/CD-RW discs with MP3 and WAV audio tracks. For optimum audio quality with external amplifiers like the separately available PMA-50 stereo amplifier, the DCD-50 player is equipped with a coaxial digital audio output (cable included). For connection to other audio components that do not have a digital coaxial input, the player features a D/A conversion block with 32-bit / 192 kHz D/A converter that delivers wide dynamic range, along with extremely low noise and distortion. The player's OLED display shows the CD's total tracks and total time, as well as the track number, track time, song title, artist name, and album name (depending on the disc), along with icons for random mode, repeat one/repeat all modes, and a folder icon for data discs. The display automatically rotates to match the installation orientation. The dimmer function features three levels of display brightness, adjustable via the remote control. When paired with the PMA-50 amplifier, you can adjust the display brightness of both units at the same time. The supplied remote control features an ergonomically-designed layout that includes a cursor keypad, number keypad, and dedicated function buttons such as random, repeat, info, and program. The player is housed in a compact chassis that features soft aluminum matte with bright silver tone accents along with glossy and matte black surfaces. It can be placed horizontally or vertically. You can easily remove the four feet at the bottom and place them on the chassis side when choosing a vertical orientation. The CD player comes with an auto standby function, which will automatically put the unit in standby mode after 30 minutes of inactivity. You can easily configure the player via the remote control to wake-up from standby and start immediate playback when a disc is inserted. Once configured, the unit will retain your preferred mode until you change it. - High-quality CD transporter/player suitable for use with the Denon PMA-50 amplifier
- Slot-in CD mechanism, supporting CD audio and MP3/WMA discs
- 32-bit / 192 kHz D/A converter with analog output (RCA)
- Horizontal or vertical placement with rotating display

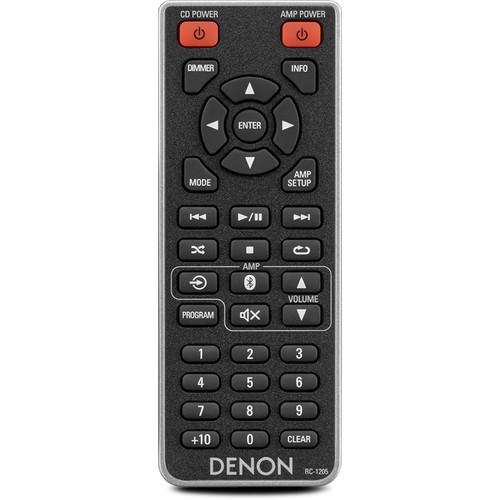

- Ergonomic remote control included
- Low power consumption in standby mode (<0.4W)
UPC: 883795004121 In the Box Denon Design Series DCD-50 Compact Hi-Fi CD Player Remote Control with CR2025 Battery Power Cord Coaxial Digital Cable 4 x Silver Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon Design Series DCD-50 Compact Hi-Fi CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DCD50 Specs | Type | CD player | | Channels | 2-channel stereo | | Compatible Discs | Audio CDs

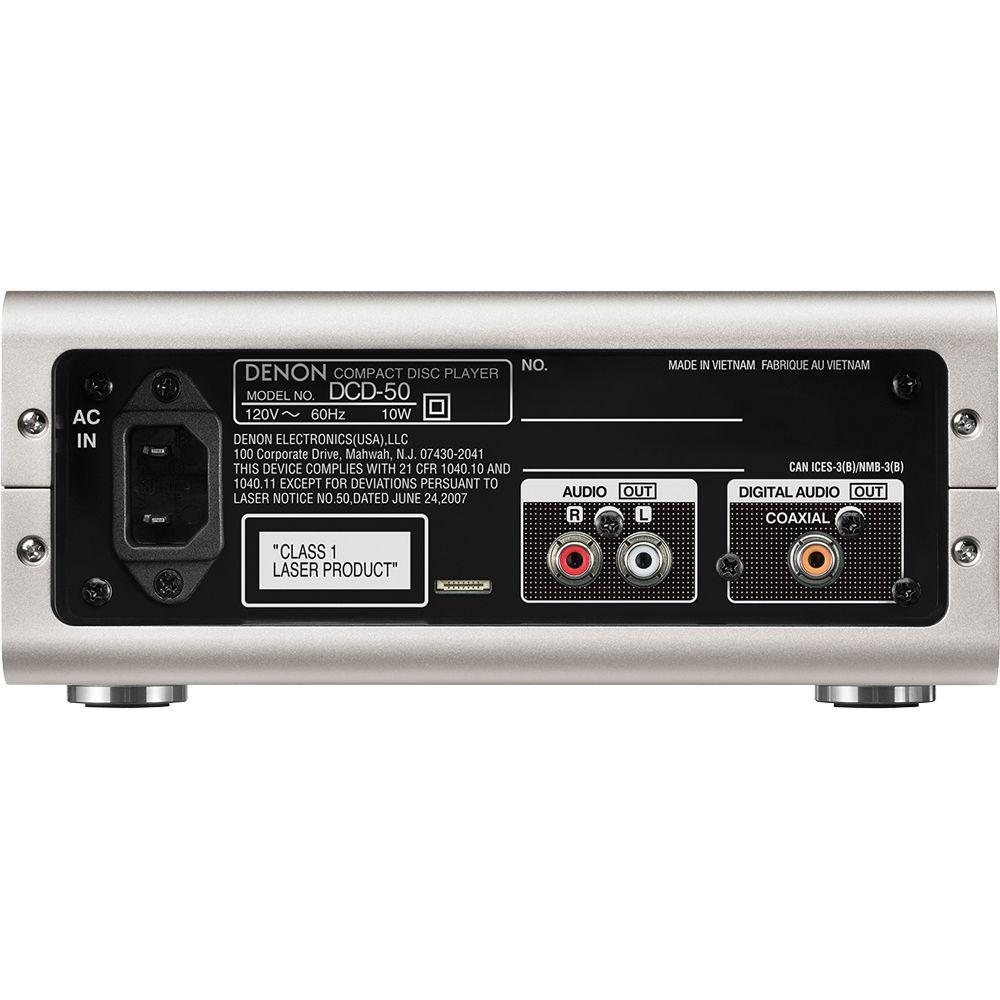

CD-R and CD-RW with MP3 and WAV audio tracks | | Signal Type | 16-bit linear PCM | | Sampling Frequency | 44.1 kHz | | Laser | AlGaAs | | Optical Wave Length | 780 nm | | D to A Converters | 32-bit / 192 kHz converter with analog output (RCA) | | Frequency Range | 2 Hz to 20 kHz | | Frequency Response | 20 to 20 kHz (±1%) | | Dynamic Range | 100 dB | | Signal-to-Noise Ratio | 105 dB | | THD + N | 0.004% (1 kHz) | | Channel Separation | 100 dB | | Wow & Flutter | Crystal accuracy | | Outputs | 1 x stereo RCA
1 x coaxial | | Output Connectors | Digital Coaxial Output: 0.5 V p-p / 75 Ohms | | Output Level | Signal Type: 2 Vrms stereo | | Remote Control | Yes, included | | RAM Buffer | Not specified by the manufacturer | | Power Supply | 120 VAC, 60 Hz | | Power Supply | 120 VAC, 60 Hz | | Power Consumption | 10 W
Standby Mode: <0.4 W or less | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 5 to 90% (non-condensing) | | Dimensions | 7.9 x 3.5 x 9.5" (200 x 86 x 240 mm) | | Weight | 5.5 lb (2.4 kg) | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 12.5 x 11.2 x 8.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
