Denon DJ MC4000 Controller Kit with

Search your instruction manual in PDF to download

User Manual for Denon DJ MC4000 Controller Kit with Carry Case

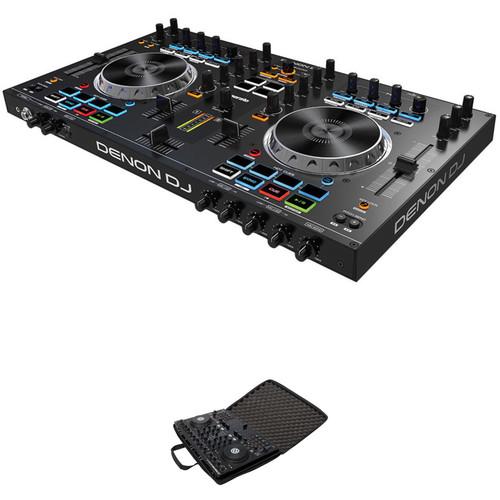

Click to enlarge the picture
Denon DJ MC4000 Controller Kit with Carry Case Contents of the user manual for the Denon DJ MC4000 Controller Kit with
  • Product category: DJ Controllers Denon DJ
  • Brand: Denon DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Denon DJ DJ Controllers

User manual for the Denon DJ MC4000 Controller Kit with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Denon DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Denon DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Denon DJ product will considerably shorten its lifespan!



Product description

This B&H Kit combines the MC4000 Professional DJ Controller for Serato with a carrying case to create a mobile DJ setup with protection from on-the-road wear and tear. The MC4000 is a two-channel Serato MIDI controller designed for professional DJs. The controller features precision touch-activated jog wheels, hot cue & sample pads, long-throw 100mm pitch faders, and an integrated premium 24-bit audio interface. The two high-quality microphone inputs are complemented by a studio-grade echo effect and a ducking feature, which moves the vocals to the top of the mix without having to ride faders. The MC4000 features a robust steel chassis and is compatible with Traktor 2 and Virtual DJ 8.

The carrying case offers a lightweight construction with a molded and reinforced EVA exterior shell. The interior is lined with convoluted foam padding to protect the controller from bumps and knocks while transporting. The case also features a reinforced nylon handle and an adjustable/removable padded shoulder strap for ease in transportation.
  • Denon DJ MC4000 Professional 2-Channel DJ Controller for Serato The MC4000 from Denon is a two-channel Serato MIDI controller designed for professional DJs. The controller features precision touch-activated jog wheels, hot cue & sample pads, long-throw 100mm pitch faders, and an integrated premium 24-bit audio interface. The two high-quality microphone inputs are complemented by a studio-grade echo effect and a ducking feature, which moves the vocals to the top of the mix without having to ride faders. The MC4000 features a robust steel chassis and is compatible with Traktor 2 and Virtual DJ 8.
      • Premium 2-deck controller for Serato
      • Includes Serato DJ Intro; user-upgradeable to Serato DJ
      • Touch-activated jog wheels for accurate scratching and track cueing
      • Dedicated hot-cue and sample trigger pads with illuminated feedback
      • Long-throw, 100mm pitch faders
      • Control layout provides effortless, intuitive use
      • Dedicated EQ and FX controls on each channel
      • Two balanced mic inputs with 2-band EQ, ducking, and echo effect
      • Compatible with Traktor 2 (via .tsi files) and Virtual DJ 8
      • RCA aux input for external device mixing
      • Balanced main and booth outputs
      • Pro-grade steel construction
      • Compatible with Traktor 2 (via .tsi files), Algoriddim djay Pro and Virtual DJ 8
    UPC: 694318017333
  • Magma Bags CTRL Case XL II Universal Controller Case The rigid and durable Magma Bags CTRL Case XL II is designed to protect a variety of DJ and music performance controllers during storage or from the rigors of on-the-road wear and tear. The case fits models from Native Instruments, Denon DJ, Numark, American Audio, Vestax, Akai, Gemini, Reloop, and more.The case is crafted from lightweight Durashock molded EVA foam and has a water-repellent polyester exterior shell. Internally, the lid is lined with high-density egg-crate foam which protects the displays, jog wheels, and controls. Equipped with a pair of carrying handles and a detachable shoulder strap so you can transport your equipment in comfort, the lightweight (2.2 lb) and compact CTRL Case XL II easily fits inside the Magma Rolltop III backpack or into the overhead compartments of most airlines.
      Key Features
      • Lightweight Durashock-molded 5mm EVA foam and water-resistant polyester exterior shell
      • High-density egg-crate foam to protect the displays, jog wheels, and controls
      • Sturdy zipper and comfortable carrying handles
      • Including detachable shoulder-strap
      • Fits inside the Magma Rolltop Backpack III
      Compatibility
      • Native Instruments Kontrol S5
      • Native Instruments Kontrol S4
      • Native Instruments Kontrol S2
      • Denon MC-4000
      • Denon MC-6000
      • Numark Mixdeck II
      • American Audio VMS4
      • Vestax VCI-400
      • Akai MPC Renaissance
      • Akai MPK 25
      • Gemini GV 2
      • Gemini Slate 4
      • Gemini Slate 2
      • Reloop Jockey 3 RMX
In the Box
  • MC4000 Professional 2-Channel DJ Controller for Serato swxfsxwcyfsbse
  • Power Adapter
  • USB Cable
  • Limited 1-Year Warranty
  • Magma Bags - CTRL Case XL II Universal Controller Case
Table of Contents




Upload User Manual

Have you got an user manual for the Denon DJ MC4000 Controller Kit with Carry Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Denon DJ MC4000 Professional 2-Channel DJ Controller for Serato
    Connections 2 x XLR outputs (master left/right, balanced)
    2 x RCA outputs (master left/right, unbalanced)
    2 x 1/4" / 6.35 mm outputs (booth left/right)
    1 x 1/4" / 6.35 mm stereo headphone output
    1 x 1/8" / 3.5 mm stereo headphone output
    2 x RCA inputs (aux left/right, unbalanced)
    1 x Combo XLR-1/4" / 6.35 mm microphone input
    1 x 1/4" / 6.35 mm) microphone input
    1 x USB port
    1 x Power adapter input
    Frequency Response 20 Hz - 20 kHz (±1.0 dB)
    Dynamic Range Digital-to-Analog Converter: > 112 dB (A-weighted)
    Total: > 105 dB (A-weighted)
    Signal-to-Noise Ratio > 88 dB, A-weighted
    Headroom Aux Input: > 17 dB
    Mic Input: > 20 dB
    Outputs: > 20 dB
    THD + N < 0.01% (1 kHz at unity)
    Channel Separation < -80 dB (1 kHz at unity)
    Analog Input Microphone: -60 dBu (minimum), -40 dBu (unity)
    Aux: +17 dBV (maximum), 0 dBV (unity)
    Analog Output Master (XLR): +24 dBu (maximum), +4 dBu (unity)
    Master (RCA): +19 dBu (maximum), 0 dBu (unity)
    Booth: +24 dBu (maximum), +4 dBu (unity)
    Headphone: > 100 mW at 40 Ohms
    Microphone Input Equivalent Input Noise: < -116 dBu (Rs = 150 Ohms, DIN)
    Common Mode Rejection Ratio: > 75 dB
    Microphone Controls Talkover:
    -20 dB attenuation
    40 ms attack time
    250 ms hold time
    100 ms release time
    Echo:
    199 ms rate
    -6 dB feedback
    -∞ to 0 dB range (-9 dB center)
    EQ:
    +15 dB high band (1 kHz cutoff)
    +15 dB low band (1 kHz cutoff)
    USB Audio Port: USB 2.0 (full-speed), 12 Mb/s
    Sampling Rate: 44.1, 48 kHz (0 channels in, 4 channels out)
    Bit Depth: 24-bit
    MIDI USB MIDI I/O: MIDI 1.0 (1 channel in, 1 channel out)
    Operating System Windows, Mac OS X
    Operation Conditions Temperature: 41 to 95°F / 5 to 35°C
    Humidity: 25 to 85% (non-condensing)
    Power Power Adapter: 5 VDC, 3 A, center-positive
    Input Voltage: 110-230 VAC, 50/60 Hz
    Consumption: 9.5 W
    Dimensions (W x D x H) 19.9 x 12.3 x 2.7" / 505 x 312 x 69 mm
    Weight 8.95 lb / 4.06 kg
    Box Dimensions (LxWxH) 26.0 x 15.0 x 5.4"
  • Magma Bags CTRL Case XL II Universal Controller Case
    Compatibility Native Instruments Kontrol S5
    Native Instruments Kontrol S4
    Native Instruments Kontrol S2
    Denon MC-4000
    Denon MC-6000
    Numark Mixdeck II
    American Audio VMS4
    Vestax VCI-400
    Akai MPC Renaissance
    Akai MPK 25
    Gemini GV 2
    Gemini Slate 4
    Gemini Slate 2
    Reloop Jockey 3 RMX
    Construction Rigid Durashock molded EVA foam (thickness: 0.2" / 5.0 mm)
    Water-repellent polyester exterior shell
    High-density egg-crate foam interior
    Type of Closure Zipper
    Carrying/Transport Options Carrying handles
    Detachable shoulder strap
    Color Black
    Dimensions (H x W x D) External: 13.8 x 20.9 x 3.1" / 35.0 x 53.0 x 8.0 cm
    Internal: 13.0 x 19.9 x 2.8" / 33.0 x 50.5 x 7.0 cm
    Weight 2.2 lb / 1.0 kg
    Box Dimensions (LxWxH) 21.7 x 14.6 x 3.3"
