User Manual for Denon DJ MC4000 Professional 2-Channel DJ Controller for Serato Click to enlarge the picture
Contents of the user manual for the Denon DJ MC4000 Professional 2-Channel DJ
- Product category: DJ Controllers Denon DJ
- Brand: Denon DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon DJ DJ Controllers
 |
User manual for the Denon DJ MC4000 Professional 2-Channel DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon DJ product will considerably shorten its lifespan!
|

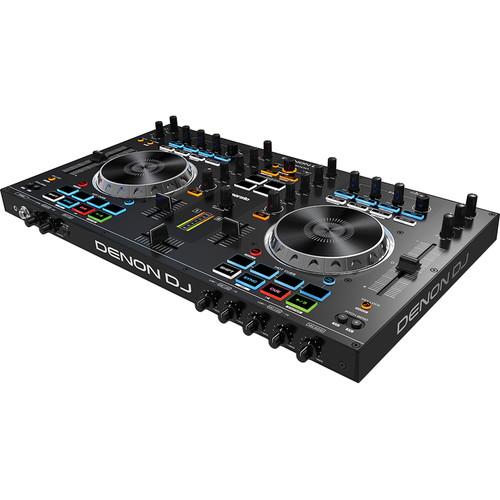

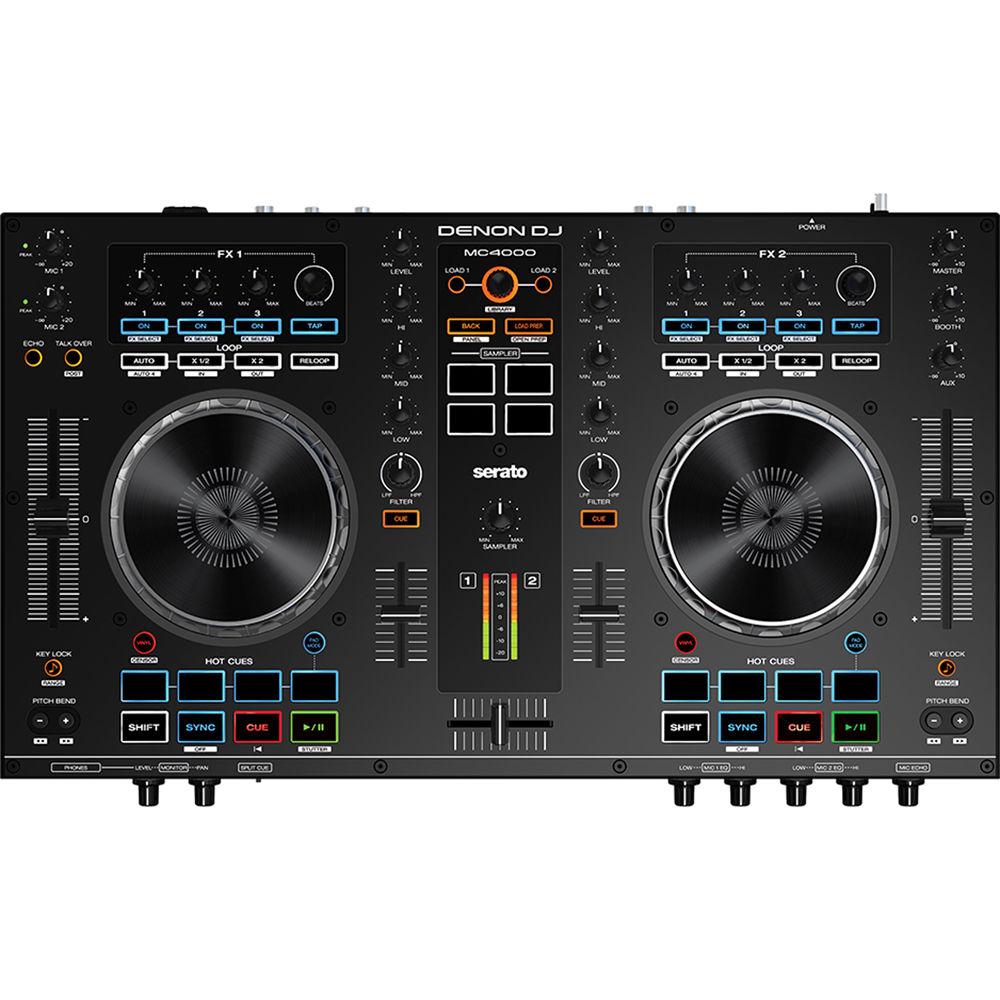

Product description The MC4000 from Denon is a two-channel Serato MIDI controller designed for professional DJs. The controller features precision touch-activated jog wheels, hot cue & sample pads, long-throw 100mm pitch faders, and an integrated premium 24-bit audio interface. The two high-quality microphone inputs are complemented by a studio-grade echo effect and a ducking feature, which moves the vocals to the top of the mix without having to ride faders. The MC4000 features a robust steel chassis and is compatible with Traktor 2 and Virtual DJ 8. -
- Premium 2-deck controller for Serato
- Includes Serato DJ Intro; user-upgradeable to Serato DJ
- Touch-activated jog wheels for accurate scratching and track cueing
- Dedicated hot-cue and sample trigger pads with illuminated feedback
- Long-throw, 100mm pitch faders
- Control layout provides effortless, intuitive use
- Dedicated EQ and FX controls on each channel
- Two balanced mic inputs with 2-band EQ, ducking, and echo effect
- Compatible with Traktor 2 (via .tsi files) and Virtual DJ 8
- RCA aux input for external device mixing
- Balanced main and booth outputs
- Pro-grade steel construction
- Compatible with Traktor 2 (via .tsi files), Algoriddim djay Pro and Virtual DJ 8
UPC: 694318017333 In the Box Denon DJ MC4000 Professional 2-Channel DJ Controller for Serato Power Adapter USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DJ MC4000 Professional 2-Channel DJ Controller for Serato in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

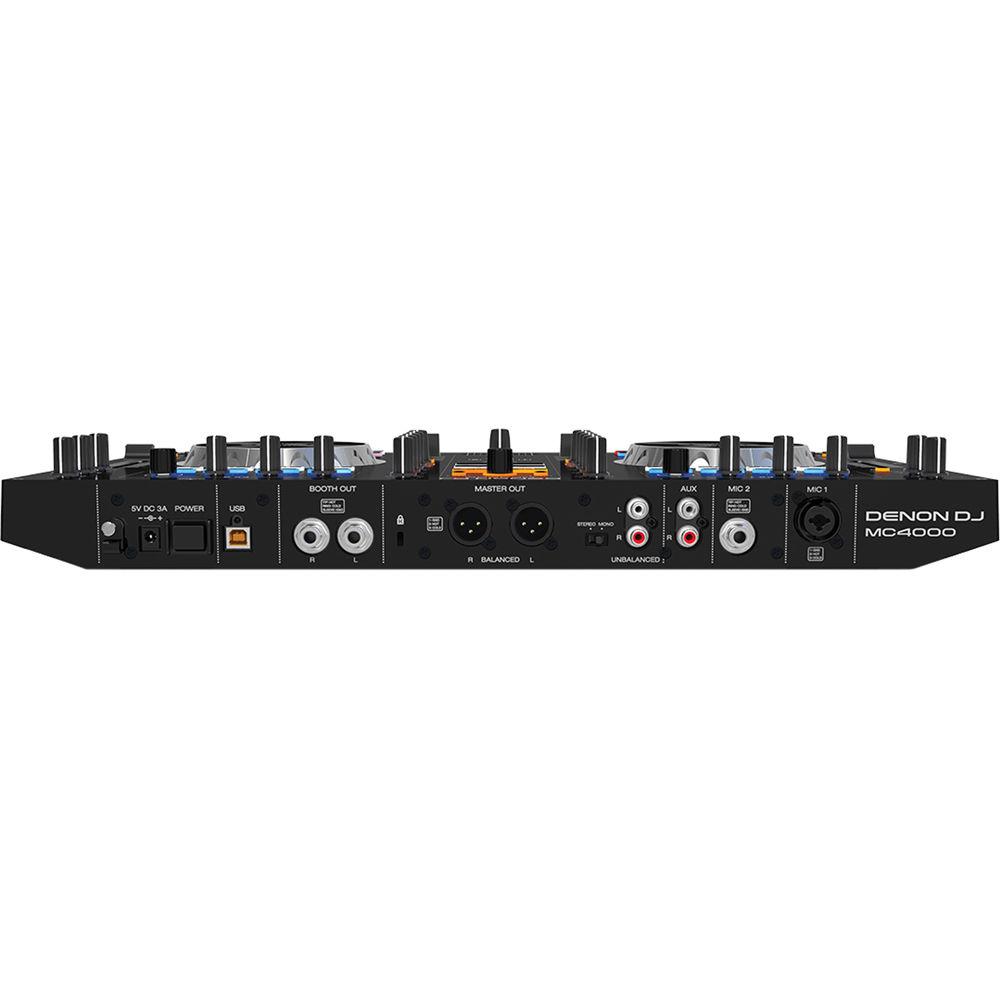

Technical parametersDenon DJ MC4000 Specs | Connections | 2 x XLR outputs (master left/right, balanced)
2 x RCA outputs (master left/right, unbalanced)
2 x 1/4" / 6.35 mm outputs (booth left/right)
1 x 1/4" / 6.35 mm stereo headphone output
1 x 1/8" / 3.5 mm stereo headphone output
2 x RCA inputs (aux left/right, unbalanced)
1 x Combo XLR-1/4" / 6.35 mm microphone input
1 x 1/4" / 6.35 mm) microphone input
1 x USB port
1 x Power adapter input | | Frequency Response | 20 Hz - 20 kHz (±1.0 dB) | | Dynamic Range | Digital-to-Analog Converter: > 112 dB (A-weighted)
Total: > 105 dB (A-weighted) | | Signal-to-Noise Ratio | > 88 dB, A-weighted | | Headroom | Aux Input: > 17 dB
Mic Input: > 20 dB
Outputs: > 20 dB | | THD + N | < 0.01% (1 kHz at unity) | | Channel Separation | < -80 dB (1 kHz at unity) | | Analog Input | Microphone: -60 dBu (minimum), -40 dBu (unity)
Aux: +17 dBV (maximum), 0 dBV (unity) | | Analog Output | Master (XLR): +24 dBu (maximum), +4 dBu (unity)
Master (RCA): +19 dBu (maximum), 0 dBu (unity)
Booth: +24 dBu (maximum), +4 dBu (unity)
Headphone: > 100 mW at 40 Ohms | | Microphone Input | Equivalent Input Noise: < -116 dBu (Rs = 150 Ohms, DIN)
Common Mode Rejection Ratio: > 75 dB | | Microphone Controls | Talkover:
-20 dB attenuation
40 ms attack time
250 ms hold time
100 ms release time
Echo:
199 ms rate
-6 dB feedback
-∞ to 0 dB range (-9 dB center)
EQ:
+15 dB high band (1 kHz cutoff)
+15 dB low band (1 kHz cutoff) | | USB Audio | Port: USB 2.0 (full-speed), 12 Mb/s
Sampling Rate: 44.1, 48 kHz (0 channels in, 4 channels out)
Bit Depth: 24-bit | | MIDI | USB MIDI I/O: MIDI 1.0 (1 channel in, 1 channel out) | | Operating System | Windows, Mac OS X | | Operation Conditions | Temperature: 41 to 95°F / 5 to 35°C
Humidity: 25 to 85% (non-condensing) | | Power | Power Adapter: 5 VDC, 3 A, center-positive
Input Voltage: 110-230 VAC, 50/60 Hz
Consumption: 9.5 W | | Dimensions (W x D x H) | 19.9 x 12.3 x 2.7" / 505 x 312 x 69 mm | | Weight | 8.95 lb / 4.06 kg | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 26.0 x 15.0 x 5.4" |
