User Manual for Denon DJ MC7000 4-Channel Serato DJ Controller Kit with Carrying Bag Click to enlarge the picture
Contents of the user manual for the Denon DJ MC7000 4-Channel Serato DJ
- Product category: DJ Controllers Denon DJ
- Brand: Denon DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon DJ DJ Controllers
|
User manual for the Denon DJ MC7000 4-Channel Serato DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon DJ product will considerably shorten its lifespan!
|

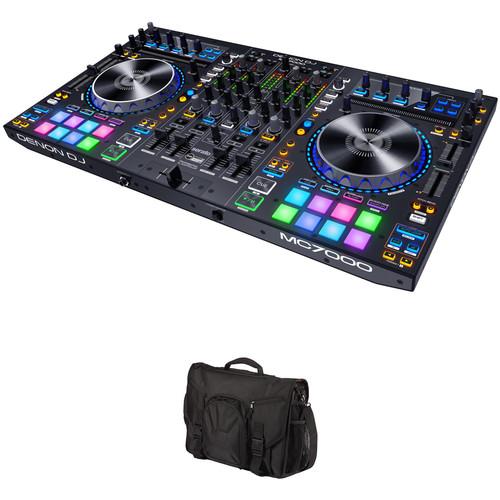

Product description This B&H Kit combines the Denon DJ MC7000 4-Channel Serato DJ Controller / Digital Mixer with Dual USB with a high-quality carrying bag to create a mobile digital DJ setup with protection from on-the-road wear and tear. - Denon DJ MC7000 4-Channel Serato DJ Controller / Digital Mixer with Dual USB The Denon DJ MC7000 is a 4-channel Serato DJ controller and digital mixer with dual USB ports for connecting two computers simultaneously and is well suited for the mobile DJ or club DJ looking to the next evolution of Serato controllers. The dual USB interfaces enable two DJs to play back-to-back sets on their preferred DJ software or transition seamlessly without interruption.
The dual 6" touch-capacitive platters offer rotational LED displays, offering feedback to optimize track manipulation performance in real time. The MC7000 also incorporates dedicated Key Matching and Changing controls for harmonically matched musical keys, resulting in an enhanced audience and dance floor experience. The controller is Serato DJ DVS compatible, giving DJs the power to utilize digital sources with the elegance and accuracy of legacy vinyl control. The digital mixer also allows DJs to mix and match between digital and analog sources for a wide pallet of content and sound. Additional features include 16 velocity-sensitive performance pads, two microphone inputs, and XLR Master and Booth outputs. The Denon DJ MC7000 ships with a power adapter, USB cable, and a software download card. - General Features
-
- 4-channel DJ controller with digital mixer
- Each channel features 3-band EQ and HP/LP filters
- Dual USB audio interfaces—connect 2 computers at once
- 16 velocity-sensitive performance pads
- New dedicated key-matching and changing controls
- Solid 6" touch-capacitive platters with tracking LEDs
- 2 mic inputs with dedicated controls
- XLR booth and master connections
- Serato DJ DVS-compatible
- Solid compact design
- Includes Serato DJ Pro and 3 Expansion Packs
-
- Serato P’NT [Pitch ‘n Time] Expansion
- Grab a cue point and ‘play’ it up ‘n down in musical key
- Use the MC7000’s ‘single press’ encoder to instantly match the key signatures of your tracks to create a beautifully harmonic mixing.
- Serato Flip Expansion
- Remix your tracks either live ‘on-the-fly’, or prepare them in advance with special edits.
- Serato Video
- Enables video transitions, in-depth FX blending, and integrate custom promotional graphics.
- Add custom visuals to existing video files in your library for the ultimate visual expression.
UPC: 694318021415 - Gator Cases G-Club Control Messenger-Style Bag The G-Club Control Messenger Style Bag from Gator Cases is designed to hold a laptop, a laptop-based DJ MIDI controller, and headphones. The ergonomically-designed bag is constructed using durable but lightweight materials and ample padding to make carrying your system easy. The padded shoulder strap and ergonomic handles help you transport the bag, and with its bright orange interior, the contents are easily visible in low light.
- Rugged nylon exterior and thick padded interior
- 10mm of EVA rubber sewn into bottom of bag
- Heavy-duty buckles, ergo-grip handle, and padded shoulder strap
- Bright orange interior lining for better visibility in dark clubs or rooms
UPC: 716408527925 In the Box - MC7000 4-Channel Serato DJ Controller / Digital Mixer with Dual USB
- USB Cable
- Power Adapter
- Software Download Card
- Limited 1-Year Warranty
- Gator Cases - G-Club Control Messenger-Style Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DJ MC7000 4-Channel Serato DJ Controller Kit with Carrying Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Denon DJ MC7000 4-Channel Serato DJ Controller / Digital Mixer with Dual USB
| Analog Output | Master
+24 dBu (Balanced, Maximum), +4 dBu (Balanced, Unity)
+20 dBu (Unbalanced, Maximum), 0 dBu (Unbalanced, Unity)
Booth
+24 dBu (Balanced, Maximum), +4 dBu (Balanced, Unity)
Headphones
>150 mW at 40 Ohms | | Analog Input | Microphone
-40 dBu (Unity), -60 dBu (Minimum)
Line
+18 dBV (Maximum), 0 dBV (Unity) | | Microphone | EIN: <-119 dBu (Rs = 150 Ohms, DIN)
CMRR: >80 dB | | Channel Separation | <-105 dB | | THD + N | Line/Phono: <0.01%
Microphone: <0.02% | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | Dynamic Range | >108 dB (A-Weighted) | | Signal-to-Noise Ratio (SNR) | >108 dB (A-Weighted) | | Audio Interface | USB Audio / MIDI Interface
Sample Rate: 44.1 kHz
Bit Depth: 24-Bit | | Connections | Audio Outputs
2 x XLR Outputs (Master Left/Right, Balanced)
1 x Stereo Pair RCA Output (Master Left/Right, Unbalanced)
2 x XLR Outputs (Booth Left/Right, Balanced)
1 x 1/4” / 6.35 mm Stereo Output (Headphones)
1 x 1/8” / 3.5 mm Stereo Output (Headphones)
Audio Inputs
2 x Stereo Pair RCA Inputs (Line-Level, Unbalanced)
2 x Stereo Pair RCA Inputs (Line- or Phono-Level, Unbalanced)
1 x XLR-1/4” / 6.35 mm Input (Microphone 1)
1 x 1/4” / 6.35 mm Input (Microphone 2)
Other
2 x USB Ports (to Computers)
1 x Power Adapter Input | | Power | Power Adapter: 5 VDC, 4 A, Center-Positive (Included)
Input Voltage: 100 to 240 VAC, 50/60 Hz
Consumption: 15 W (Maximum) | | Dimensions (W x D x H) | 26.1 x 14.9 x 2.7" / 662.9 x 378.5 x 68.6 mm | | Weight | 15.4 lb / 7.0 kg | | | | Box Dimensions (LxWxH) | 31.8 x 18.9 x 5.4" | - Gator Cases G-Club Control Messenger-Style Bag
| Type | Bag | | Interior Dimensions (W x H x D) | 19 x 14 x 3.5" / 48.3 x 35.6 x 8.9 cm | | Compartment Dimensions (W x H x D) | 8.5 x 3 x 8.8" / 21.6 x 7.6 x 22.2 cm | | Carrying/Transport Options | Handle, Shoulder Strap | | Type of Closure | Zipper | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 23 x 17 x 7.5" / 58.4 x 43.2 x 19.1 cm | | Weight | 6 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 22.2 x 18.5 x 3.3" |
