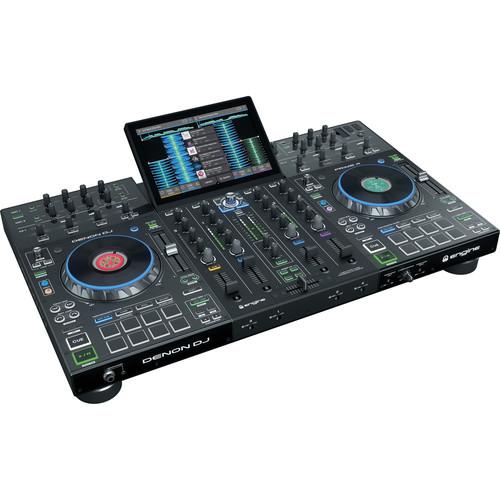

User Manual for Denon DJ Prime 4 - Standalone 4-Deck DJ System with 10" Touchscreen Click to enlarge the picture
Contents of the user manual for the Denon DJ Prime 4 - Standalone
- Product category: DJ Controllers Denon DJ
- Brand: Denon DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon DJ DJ Controllers
 |
User manual for the Denon DJ Prime 4 - Standalone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon DJ product will considerably shorten its lifespan!
|

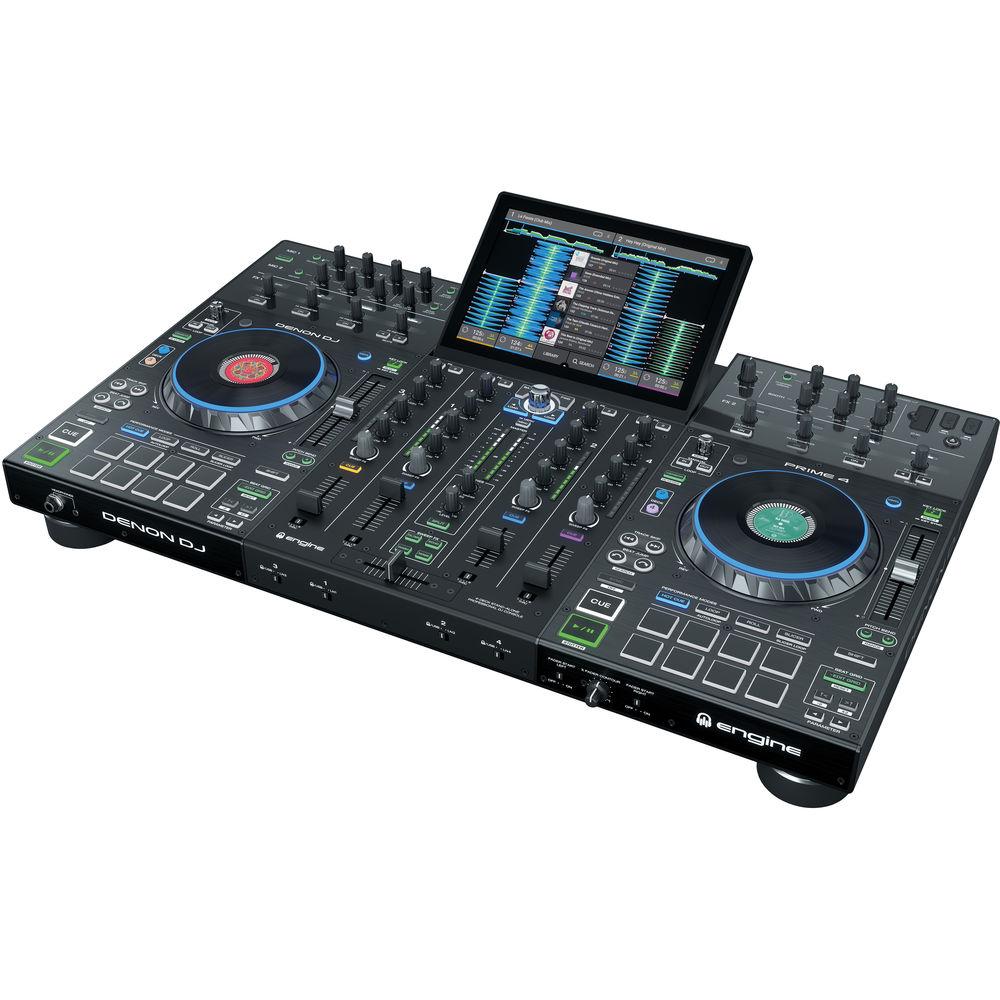

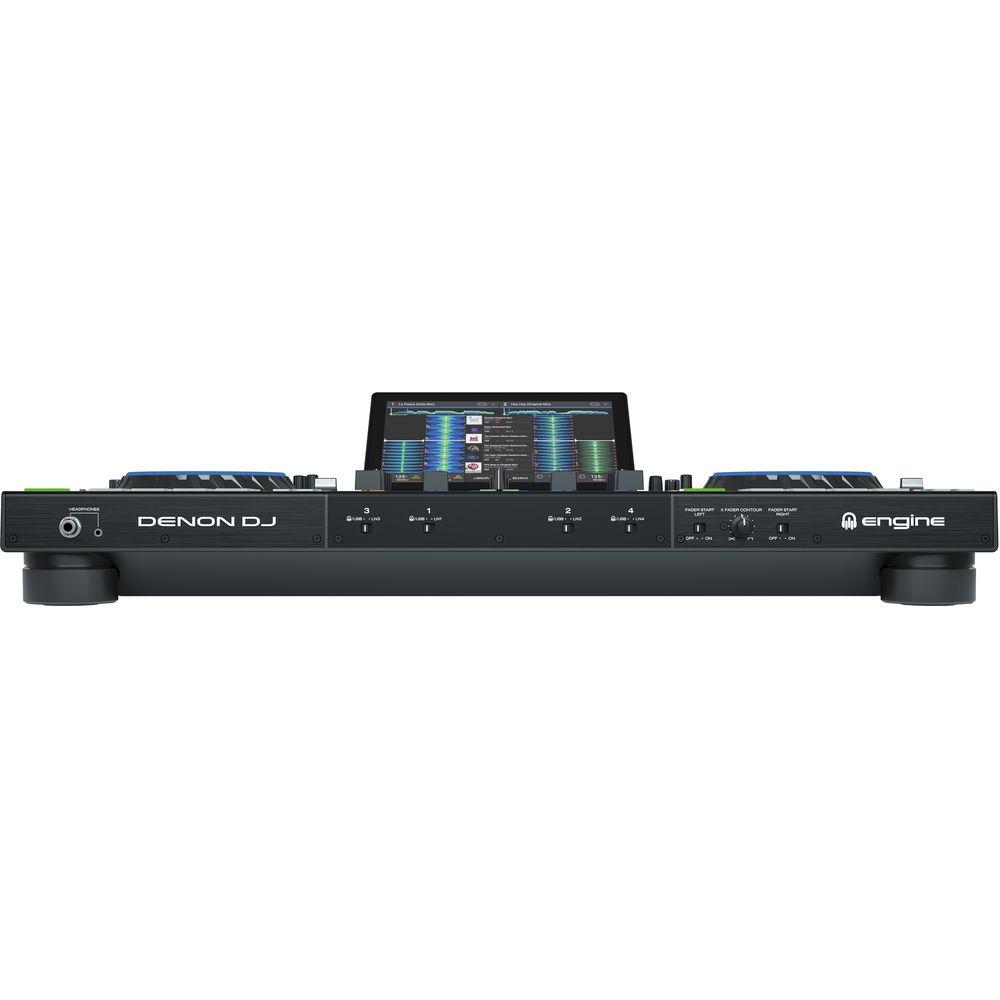

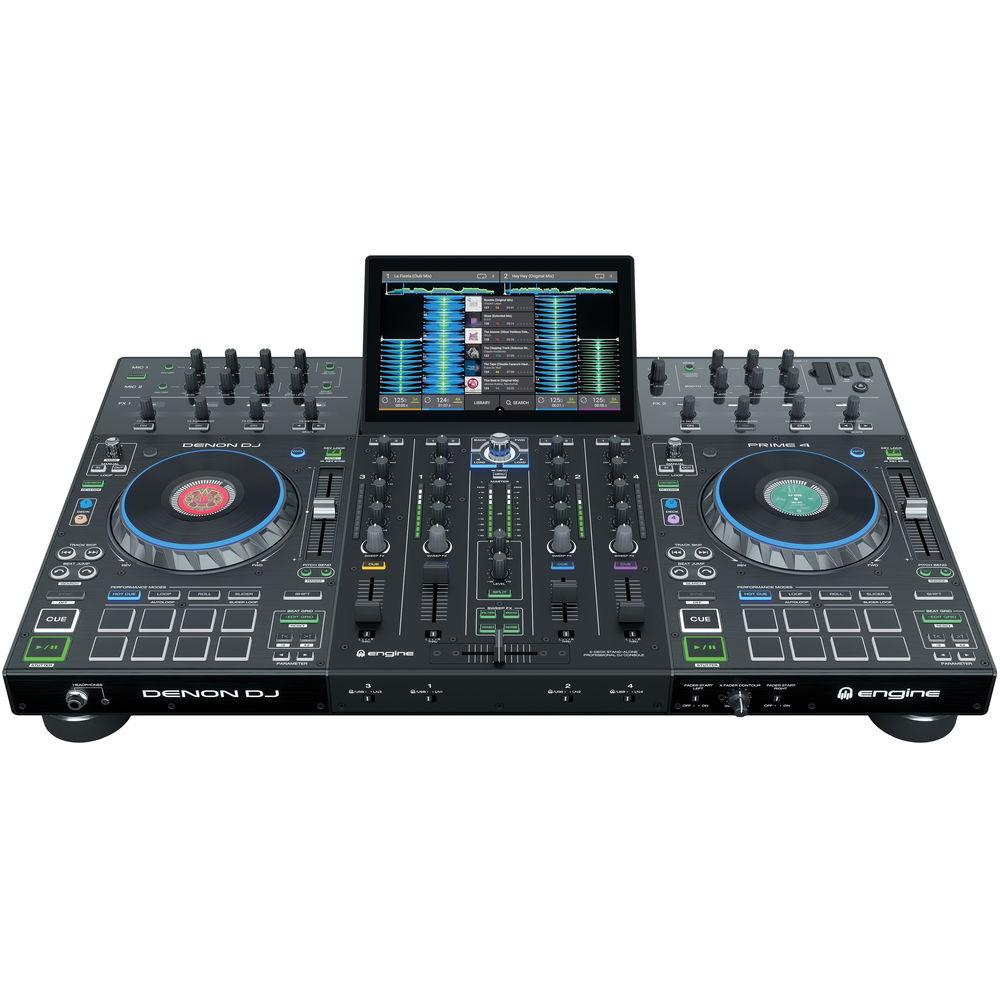

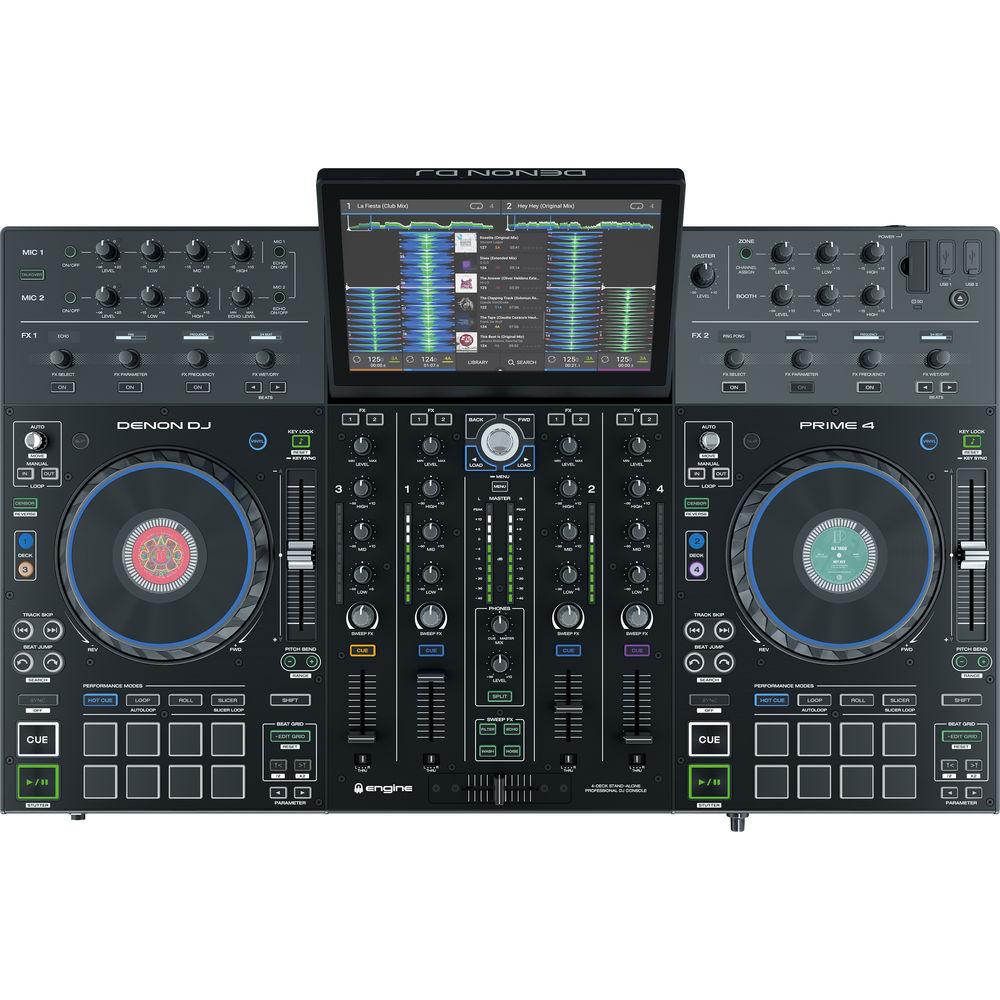

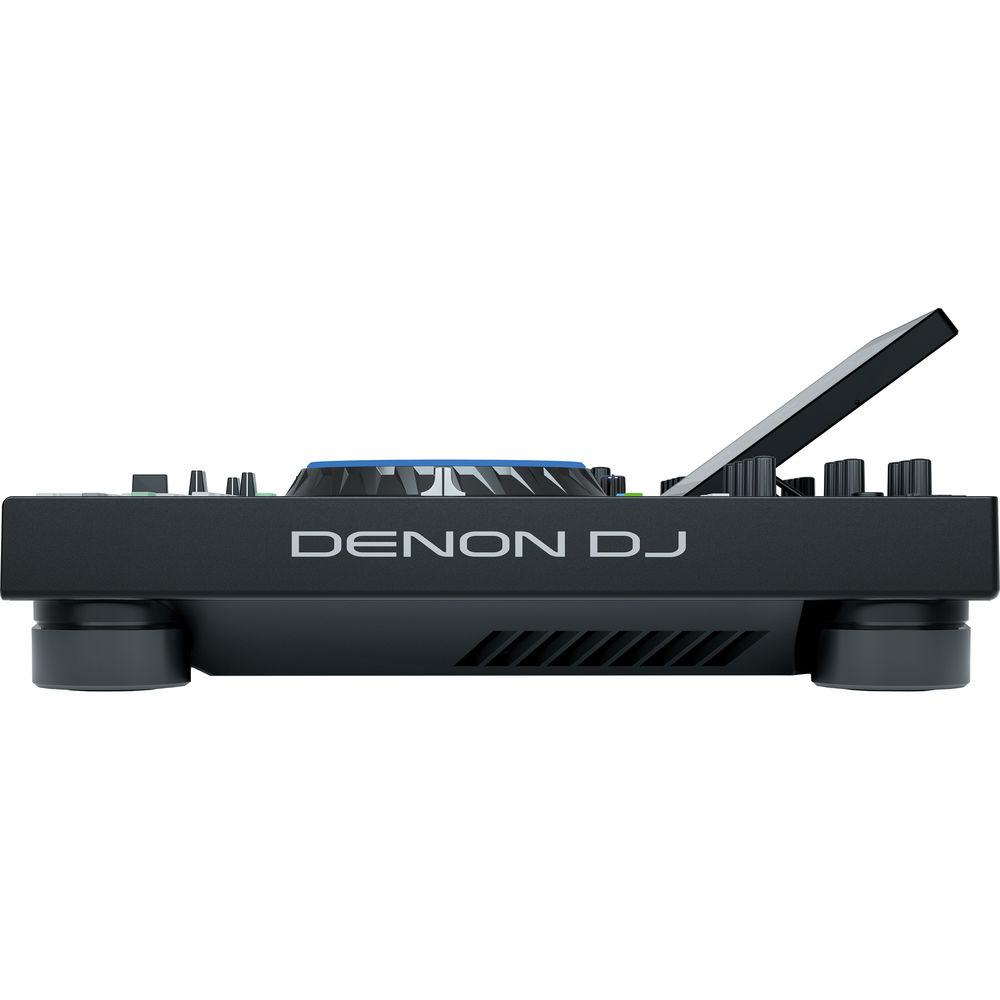

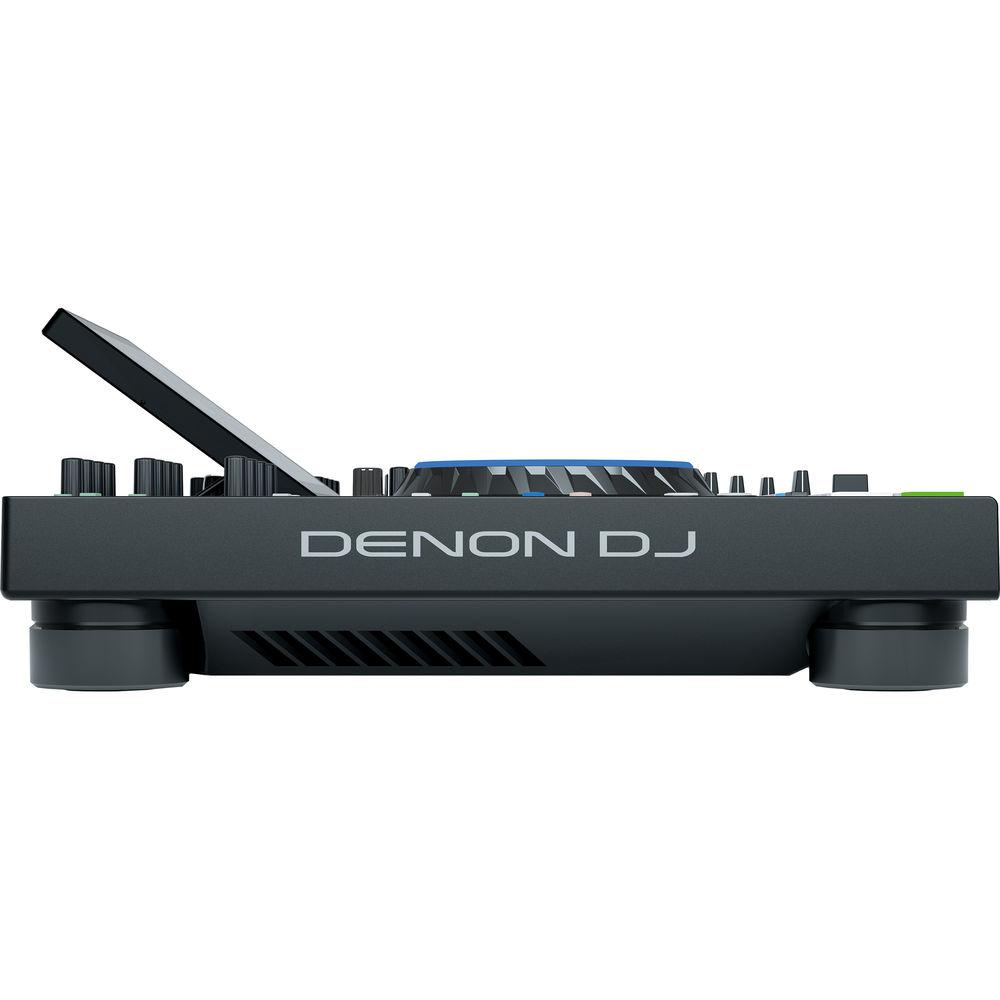

Product description The Denon DJ Prime 4 is a four-deck standalone DJ system with an integrated 10" touchscreen, designed for professional DJs wishing to perform without a laptop computer. The multicore processor powered Prime 4 makes your entire music collection available, transparently connecting you to your performance with advanced features including 13 DJ effects, sweep & filter effects, and 8 performance trigger pads per deck, which allows you to live remix whole tracks and beat juggle with super-responsive hot-cue control, as well as split bars and beats with quantize-locked rolls, slicer and advanced looping.

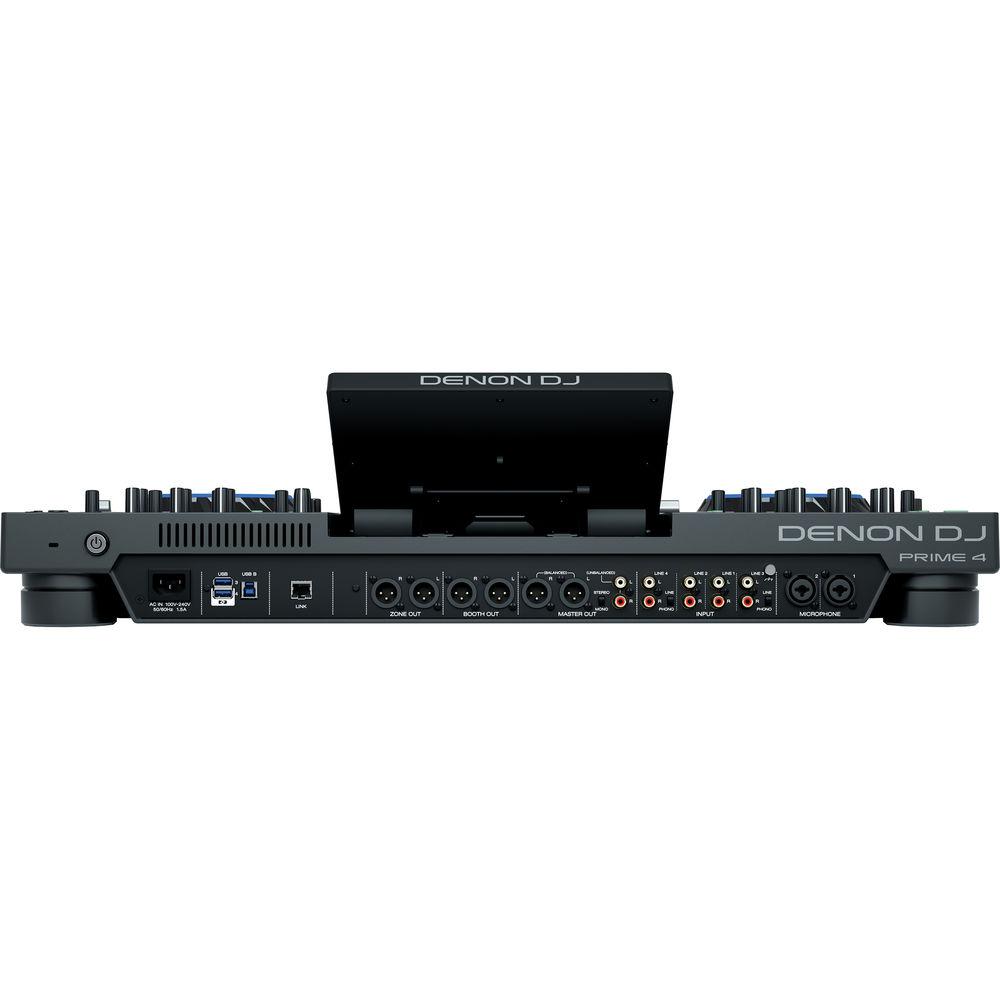

The rugged meal enclosure is built to handle the rigors of on-the-road wear and tear. Two responsive touch-capacitive jog wheels feature the DJ brand logo or playing track artwork, and the adjustable, 10-inch touchscreen allows you to perform as a standalone. The Prime 4 provides four USB inputs, a single SD input, and an under-panel 2.5" built-in SATA drive bay for quick and easy library and track selection. Plus, any source can be used to record a full set. With USB Keyboard support for optimized track browsing and playback facilities for uncompressed audio formats (FLAC, ALAC, WAV), Prime 4 allows you to call up your entire music collection via connectivity that guarantees immediate, hassle-free access to your library.The rear panel includes a multitude of inputs and outputs including RCA line-level inputs for all four decks. Inputs three and four feature phono switch inputs with ground lugs for turntable support. Each channel on the mixer offers gain control and a dedicated 3-band EQ plus effect 1 and 2 selectors. For outputs, the Prime 4 provides balanced XLR and unbalanced RCA master L/R. Booth outputs are balanced XLR as well as the Zone output, which allows you to send your performance or a separate mix to a different room with dedicated gain and EQ control. Additionally, there are two high-performance combo microphone inputs, each with dedicated gain, 3-band EQ, and echo effects.
Use Prime 4’s StagelinQ connection to easily create impactful, visually dynamic lighting and video scenes via Denon DJ’s partnerships with Soundswitch, Timecode and Resolume. -
- Four-deck standalone Engine Prime DJ system
- 10" HD multitouch display with tactile multi-gesture control
- Select tracks
- View waveforms
- Interact with your digital music collection
- View essential DJ parameters
- Dedicated XLR Zone output
- Gain and EQ control
- Stream back-to-back music automatically into 2nd room
- Easily assign any of the 4 playing channels to Zone outputs
- Party in one room, chill out in the other
- Built-in 2.5" SATA drive bay to store music onboard
- 6" rugged metal jog wheel with HD central display
- Pro-club mixer
- Four-channel line faders
- Channels 3/4 switchable to phono/line
- Each channel offers 3-band EQ and gain
- All four inputs are assignable to the replaceable Denon DJ crossfader
- Two dedicated XLR inputs for microphones
- Individual level control and 3-band EQ
- Dedicated echo effect for each microphone
- Eight performance trigger pads
- Remix whole tracks
- Beat juggle with super-responsive hot-cue control
- Split up bars and beats with quantized/locked Rolls, Slicer, and advanced Looping
- Expressive multi-FX with dedicated displays
- Choose from 13 diversely textured DJ FX, sourced directly from the festival/club X1800 Prime mixer
- Dual-function sweep FX and filter
- Engage single encoder for tactile sound manipulation with dynamic FX and elegant filter control
- Timestretch and key-match audio
- Timestretch algorithm allows DJs to perform: pitch-lock extreme track tempo changes and
match/shift harmonic musical keys live in the mix
- StagelinQ connection for Event/Pro DJ lighting and video control
- Easily create impactful, visually dynamic lighting and video scenes with Soundswitch, Timecode, and Resolume
- Engine Prime music management
- Import music collections from iTunes, Serato DJ Pro, Native Instruments Traktor Pro, and Rekordbox using
Engine Prime music management software and the Prime 4 itself- Import existing playlists, folders, hot cues and loop information
- Integrated support also available for Native Instruments Traktor
- Prime 4 internally analyzes music data with no laptop needed
- Play uncompressed audio formats (FLAC, ALAC, WAV)
- Crisp 24-bit Denon DJ legacy audio
- Four USB inputs and one SD media input for music playback
- USB keyboard support or optimized track browsing
- Serato DJ Pro control enabled (when available)
In the Box Denon DJ Prime 4 - Standalone 4-Deck DJ System with 10" Touchscreen Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DJ Prime 4 - Standalone 4-Deck DJ System with 10" Touchscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DJ Prime 4 Specs | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | Dynamic Range | >117 dB (A-Weighted) | | Signal-to-Noise Ratio (SNR) | >93 dB (A-Weighted) | | Headroom | Line Input: >15 dB
Mic Input: >20 dB
Outputs: >20 dB | | Channel Separation | <-90 dB (1 kHz, Unity) | | THD | Line/Phono: < 0.01% (1 kHz, Unity)
Microphone: <0.02% (1 kHz, Unity) | | Analog Input | Microphone:
Unity: -40 dBu
Minimum: -60 dBu
Line:
Minimum: +15 dBV
Maximum: 0 dBV | | Analog Output | Master, Balanced:
+24 dBu (Maximum)
+4 dBu (Unity)
Master, Unbalanced:
+20 dBu (Maximum)
0 dBu (Unity)
Zone, Balanced:
+24 dBu (Maximum)
+4 dBu (Unity)
Booth:
+24 dBu (Maximum)
+4 dBu (Unity)
Headphone Output: <150 mW | | Connections | Audio Outputs:
Master L/R: 2 x XLR (Balanced)
Master L/R: Stereo RCA Pair (Unbalanced)
Booth L/R: 2 x XLR (Balanced)
Zone L/R: 2 x XLR Balanced)
Headphone: 1 x 1/4" / 6.35 mm TRS
Headphone: 1 x 1/8" / 3.5 mm TRS
Audio Inputs:
Input 1: 1 x Stereo RCA (Pair) Line Level
Input 2: 1 x Stereo RCA (Pair) Line Level
Input 3: 1 x Stereo RCA (Pair) Switchable Phono / Line Level
Input 4: 1 x Stereo RCA (Pair) Phono / Line Level Switchable
Microphone 1/2: 2 x Combo XLR-1/4" / 6.35 mm
Other:
3 x USB Type-A Ports (for USB Drives, 5 V, 1 A)
1 x USB Type-B Port (to Computer)
1 x SD-Card Input
1 x Ethernet Port
1 x IEC Power Cable Input | | Power | Voltage: 100 to 240 VAC, 50/60 Hz
Consumption:
43 to 45 W (With Smartphone Charging from USB4 Port)
38 to 39 W (Without Smartphone Charging) | | Dimensions (W x D x H) | 28.7 x 19.6 x 4.1" / 728.5 x 496.8 x 103.6 mm | | Weight | 21.3 lb / 9.7 kg |
