User Manual for Denon DN-202WR Wireless Audio Receiver Click to enlarge the picture
Contents of the user manual for the Denon DN-202WR Wireless Audio Receiver
- Product category: Audio Conferencing Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Audio Conferencing
 |
User manual for the Denon DN-202WR Wireless Audio Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

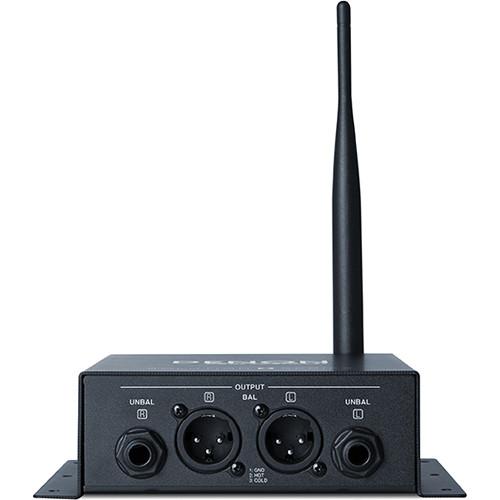

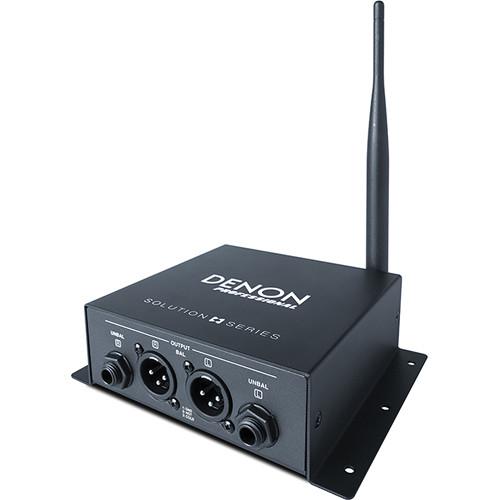

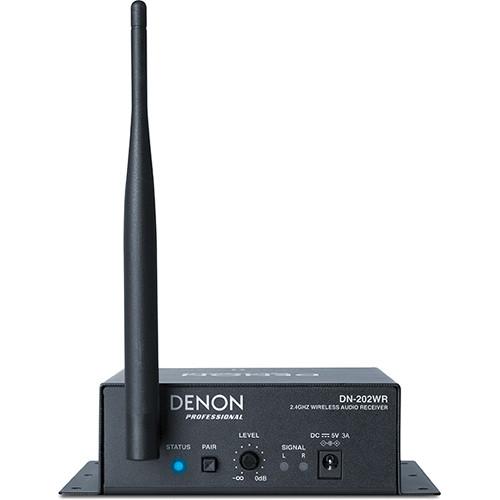

Product description The DN-202WR from Denon is a wireless audio receiver that is designed to be used with the DN-202WT transmitter, and is capable of recieving wireless audio through walls and ceilings up to 100 feet away. Designed for use in A/V applications where unsightly cable runs or drilling of holes is unideal, the DN-202WR offers a simple, straighforward wireless audio solution.
Featuring balanced XLR and 1/4" outputs, the DN-202WR can be easily connected to most loudspeakers or amplification systems. Multiple DN-202WR's may be used with a single DN-202WT to optimize sound coverage at an event, or split indoor/outdoor or multi-level venues. - Works with the DN-202WT companion transmitter
- Built-in eyelets for mounting screws
UPC: 694318017814 In the Box Denon DN-202WR Wireless Audio Receiver 5 VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-202WR Wireless Audio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-202WR Specs | Outputs | 2 x XLR 3-pin male (balanced)
2 x 1/4" TS (unbalanced) | | Frequency Response | 20 Hz to 20 kHz (+3 dB) | | Signal-to-Noise Ratio (SNR) | >80 dB | | Total Harmonic Distortion (THD) | <0.1% | | Output Level | +18 dBu | | Dynamic Range | >90 dB at 1 kHz | | Crosstalk | >90 dB at 1 kHz | | Latency | 20 ms | | Channel | 25 | | Modulation | GFSK | | Bandwidth | >1.8 MHz | | Receiver Frequency | 2.404 to 2.476 GHz | | Wireless Range | 100' / 30 m | | Receiver Sensitivity | 10 dBm | | Power Requirements | Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 5 VDC, 3 A, center-positive | | Dimensions (W x D x H) | 5.9 x 4.6 x 1.8" / 149 x 117 x 45 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.97 lb | | Box Dimensions (LxWxH) | 10.25 x 6.2 x 2.4" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
