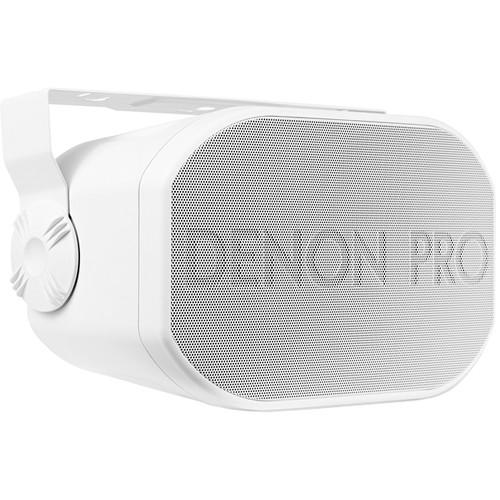

User Manual for Denon DN-205IO 6.5" 2-Way Passive Indoor Outdoor Speaker Click to enlarge the picture
Contents of the user manual for the Denon DN-205IO 6.5" 2-Way Passive Indoor
- Product category: Installed Speakers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Installed Speakers
|
User manual for the Denon DN-205IO 6.5" 2-Way Passive Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description The white Denon DN-205IO is a 6.5" 2-way passive speaker made for installation in a variety of indoor and outdoor environments such as restaurants, clubs, gyms, pools, and more. The weather-resistant design incorporates a cabinet and grille coated in a paintable white finish. The included angle-adjustable mounting bracket allows horizontal or vertical mounting, making the DN-205IO easy to position. The 6.5" woofer and 1" tweeter deliver a frequency response of 60 Hz to 20 kHz while handling up to 50W of RMS power. A rear-panel switch enables easy selection of the transformer taps, which support operation with 70V, 100V, or 8-Ohm systems. The dual binding post screw terminal input ensures simple and securing wiring to your power amplifier or powered mixer. - Ideal for installations in restaurant patio areas, outdoor bar vignettes, health clubs, outdoor pool areas, and other applications where outdoor music and paging is required
- Selectable transformer taps allow compatibility with 70V, 100V, and 8-Ohm systems
- Speaker binding post screw terminal connection accepts larger diameter wire for 8-Ohm use or smaller diameter wire for 70V/100V use
- Adjustable horizontal/vertical mounting bracket attaches to the top and bottom of the speaker and to the mounting surface
- Includes screws and speaker attachment knobs
UPC: 694318024355 In the Box Denon DN-205IO 6.5" 2-Way Passive Indoor/Outdoor Speaker (White, Single) Mounting Bracket with Hardware 2 x M4 x 40mm Screws 3 x M3.5 x 15mm Screws 2 x Speaker Attachment Knobs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-205IO 6.5" 2-Way Passive Indoor Outdoor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-205IO Specs | Active or Passive | Passive | | LF Driver Size | 6.5" / 16.5 cm | | HF Driver Size | 1" / 2.5 cm | | Power Handling | RMS: 50 W
PMPO: 100 W | | Impedance | 8 Ohms | | Transformer Taps | 70 V: 10 W, 20 W, 40 W, or 8 Ohms
100 V: 20 W, 40 W, or 8 Ohms | | Frequency Response | 60 Hz to 20 kHz | | Sensitivity | 86 dB
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
