User Manual for Denon DN-300ZB Media Player with Bluetooth Receiver & AM FM Tuner Click to enlarge the picture
Contents of the user manual for the Denon DN-300ZB Media Player with Bluetooth
- Product category: CD/DVD/Blu-Ray Recorders & Players Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon CD/DVD/Blu-Ray Recorders & Players
 |
User manual for the Denon DN-300ZB Media Player with Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

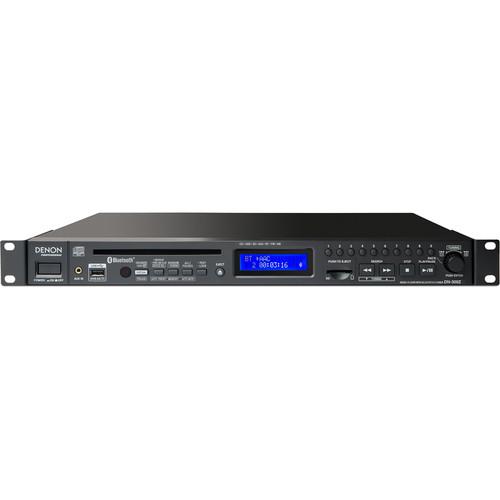

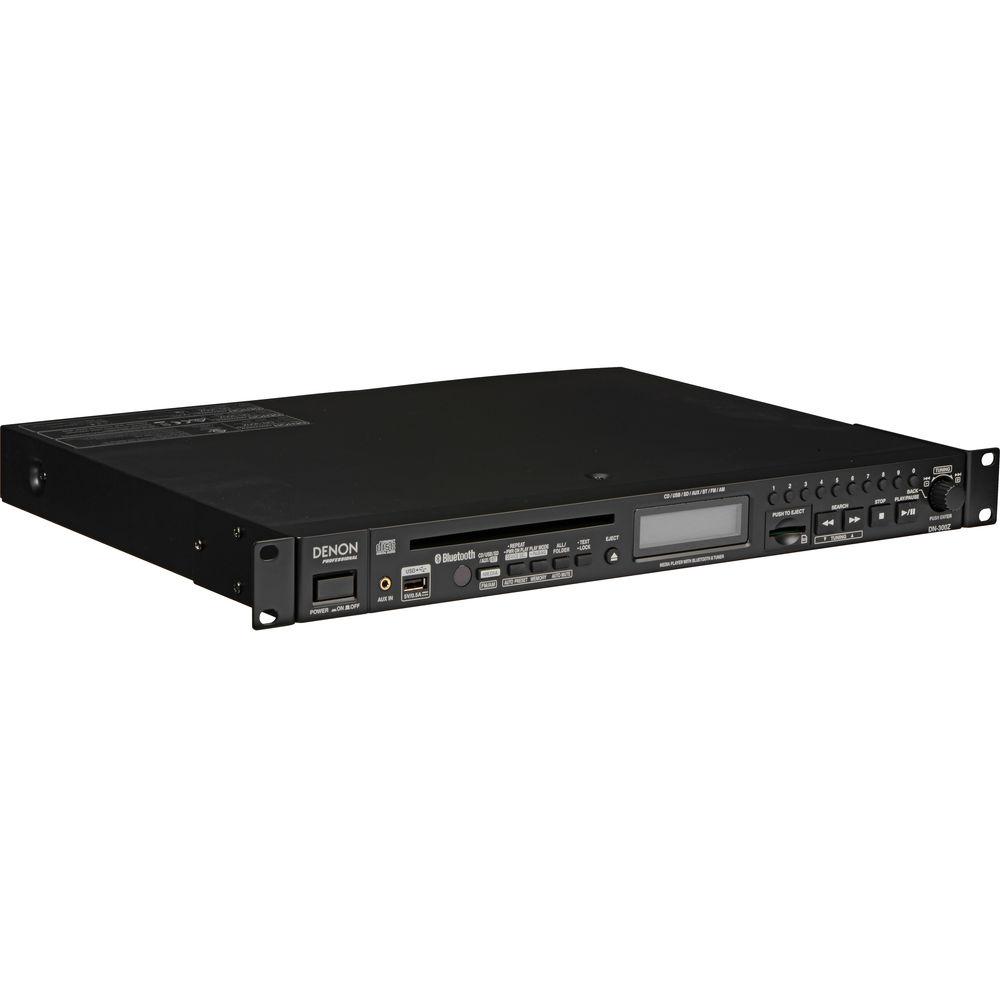

Product description The balanced DN-300ZB Media Player with Bluetooth Receiver & AM/FM Tuner from Denon is an all-in-one audio player that combines the best of disc, wireless, and solid-state media playback, consolidated into a compact 1RU design. It can be used for several applications such as sound reinforcement, schools, music and rehearsal studios, houses of worship, restaurants, and more. The DN-300ZB features front-loading media slots for CD, USB, and SD/SDHC cards delivering playback of today's mass-storage mediums, and can go wireless with long-range Bluetooth audio connectivity of up to 100' including instant recall of up to 8 devices such as smartphones and tablets. With support for CD-DA, MP3, WAV, and AAC file formats, the DN-300ZB is the BYOD (Bring Your Own Device) player that excels when the unpredictable occurs. In addition, the front panel's backlit LCD screen provides at-a-glance status of playback modes and provides clear readouts when switching formats on the fly, and controls are grouped together so users won't have to wrestle with deep menus or instruction manuals. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content. Finally, an IEC-weighted AC power port means no bulky transformers or "wall warts" required and when installed into a rack, the DN-300ZB has the versatility to tackle any playback task from one-off requests to rehearsed program material. - Wireless audio playback from tablets and smartphones via Bluetooth with up to 100' range
- Selectable Power-on-Play Mode automatically plays USB, SD or CD tracks when powered up - simply turn it on
- Random and repeat playback modes
- Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
- Lockable front-panel keeps program material from being interrupted
- 1RU chassis with removable rack ears
- Detachable IEC-weighted AC inlet

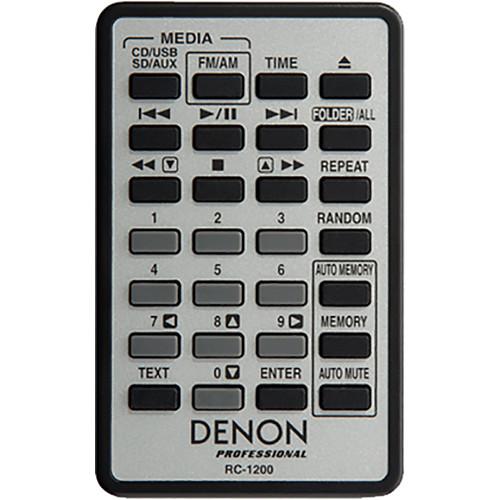

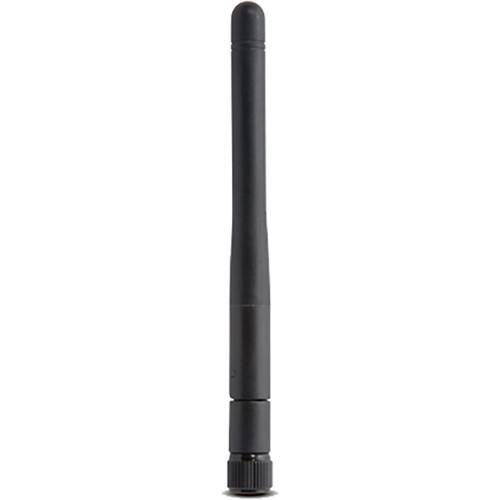

UPC: 694318016817 In the Box Denon DN-300ZB Media Player with Bluetooth Receiver & AM/FM Tuner (Balanced) Remote Control Power Cable AM Loop Antenna FM Coaxial Antenna Extended Range Bluetooth Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-300ZB Media Player with Bluetooth Receiver & AM FM Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-300ZB Specs | Playable File Formats | CD: CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD
USB: FAT16 / FAT32
SD/SDHC: FAT16 / FAT32 | | Supported WAV Format | Extension: WAV
Bitrate: 16-bit
Sampling Frequency: 44.1 kHz | | Supported AAC Format | Extension: M4A Compression Method: AAC-LA
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz | | MP3 | Extension: MP3
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz | | Channels | 2 (stereo), 1 (mono) | | Frequency Characteristics | 10 Hz - 20 kHz (± 1.0 dB) | | Signal to Noise Ratio | More than 95 dB (A-weighted) | | Total Harmonic Distortion (THD) | Less than 0.01% | | Dynamic Range | More than 85 dB | | Channel Separation | More than 80 dB | | Bluetooth | Version 3.0
Output Class 2
Range: Up to 100' (30 m) with included antenna
Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP
Device memory: Recall up to 8 pairings instantly | | Tuner | (America's)
FM Receiving Range: 87.5 MHz - 107.9 MHz
AM Receiving Range: 520 kHz - 1710 kHz
(EU and Asia Pacific)
FM Receiving Range: 87.5 MHz - 108.0 MHz
AM Receiving Range: 520 kHz - 1611 kHz
(Japan)
FM Receiving Range: 76.0 MHz - 90.0 MHz
AM Receiving Range: 522 kHz - 1629 kHz
Useable Sensitivity (FM): 30 dBuV/m
Useable Sensitivity (AM): 60 dBuV/m
Tuner Channel Separation: 20 dB (0 kHz)
Tuner S/N Ratio (FM): +40 dB
Tuner S/N Ratio (AM): +30 dB
THD+N (1 kHz): 3.0% | | Output | 2x Analog XLR | | Input | Aux In: 1/8" TRS (3.5 mm)
Input Impedance: Over 10 kOhms
Maximum Input Level: 1 Vrms
Maximum output level: 3 Vrms | | Storage | Max Storage Capacity: Up to 2 TB
Max File Size: 2 GB
Max Number of Files per Folder: 999
Max Number of Folders: 999
Max Number Hierarchies: 8
Max File/Folder Name Length: 255 characters | | Power Supply | USA & Canada: 120 VAC, 60 Hz EU, UK, APAC: 230 VAC, 50/60 Hz
Japan: 100 VAC, 50/60 Hz
Power Consumption: 30 W | | Operating Environment | Operating Temperature: 41-95°F (5-35°C)
Operating Humidity: 25-85%, no condensation | | Dimensions (L x W x H) | 19 x 13.7 x 2" (48.3 x 34.8 x 5.1 cm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 13.1 lb | | Box Dimensions (LxWxH) | 22.8 x 19.1 x 6.4" |
