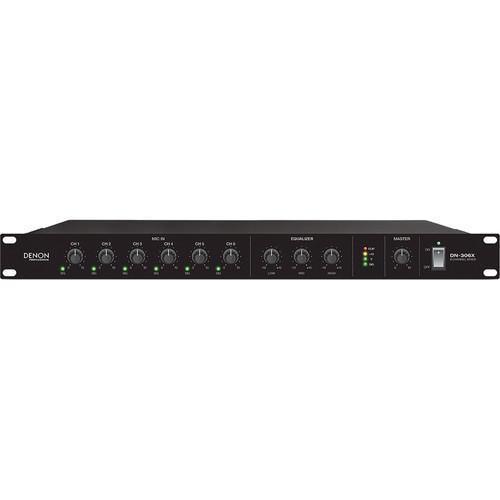

User Manual for Denon DN-306X 6-Channel Mixer Click to enlarge the picture
Contents of the user manual for the Denon DN-306X 6-Channel Mixer
- Product category: Install Sound Mixers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Install Sound Mixers
|
User manual for the Denon DN-306X 6-Channel Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description The DN-306X from Denon is a 1U rack-mounted 6-channel mixer, well suited for live performances, karaoke, bars, clubs, studios, and more. The mixer features 6 combo XLR-1/4" inputs that are switchable between Mic, Line and Phantom Power (PH), which allows for compatibility with condenser microphones.
Channel-1 offers a variable mic priority knob, which at its lowest setting will mute all other microphone channel inputs entirely when a signal is present on Mic 1. The highest setting has no effect at all, while any setting in between works well for ducking music when making announcements. Output is available via two XLR connectors, while the front panel offers volume controls for channels 1 through 6, an LED signal level indicator, a master volume control, and a master 3-band EQ with cut/boost controls for high, mid, and low frequencies. The DN306X ships with a standard IEC power cord. -
- Six-channel mixer in one rack space
- XLR/TRS combo input jacks with phantom power
- Two XLR line outputs
- Master level control and 3-band equalizer
- Mic one priority control
UPC: 694318021231 In the Box Denon DN-306X 6-Channel Mixer IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-306X 6-Channel Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-306X Specs | Inputs | Channels 1 to 6: 6x Combo XLR-1/4" / 6.35 mm | | Outputs | Main Output: 2x XLR | | Switches | Channels 1 to 6: Line, Phantom Power (PH), Mic | | Microphone Inputs | Max Input Level: -20 dBu
Sensitivity: -40 dBu
Impedance: 1.4 kOhms | | Line Inputs | Max Input Level: +24 dBu
Impedance: 10 kOhms | | Line Output Level | Max Output Level: +24 dBu | | Phantom Power | 48 VDC | | Maximum Voltage Gain | 60 dB | | Equalizer | High: ±15 dB @ 12 kHz
Mid: ±12 dB @ 2.5 kHz
Low: ±15 dB @ 80 Hz | | Signal to Noise Ratio (SNR) | > 94 dB | | Input Voltage | Universal (100 - 240 VAC, 50/60 Hz) | | Power Consumption | <5 W | | Operating Temperature | 40 to 140°F / 4 to 60°C | | Humidity | 25 to 85% (non-condensing) | | Dimensions (W x D x H) | 19.0 x 7.7 x 1.7" / 482.6 x 195.6 x 43.2 mm | | Weight | 5.6 lb / 2.5 kg | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 21.9 x 14.9 x 4.5" |
