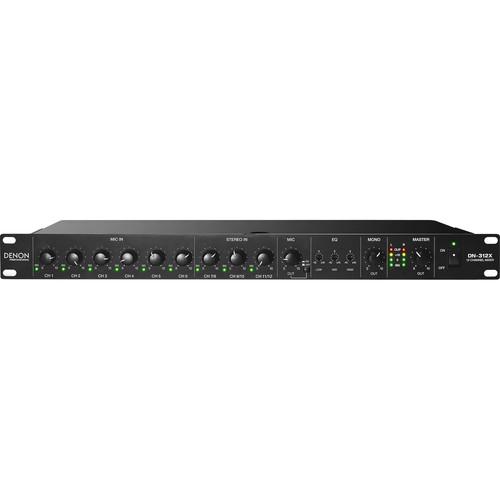

User Manual for Denon DN-312X 12-Channel Mixer w Mic Priority Click to enlarge the picture
Contents of the user manual for the Denon DN-312X 12-Channel Mixer w Mic
- Product category: Install Sound Mixers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Install Sound Mixers
|
User manual for the Denon DN-312X 12-Channel Mixer w Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description The DN312X from Denon is a 1U rack-mounted 12-channel mixer with microphone priority, well suited for live performance, karaoke, bars, clubs, studios, and more. The mixer features 6 combo XLR-1/4" inputs that are switchable between Mic, Line and Phantom Power (PH), which allows for compatibility with condenser microphones. Channel-1 offers a variable mic priority knob, which at its lowest setting will mute all other microphone channel inputs entirely when a signal is present on Mic 1. The highest setting has no effect at all, while any setting in between works well for ducking music when making announcements.
Additional inputs include three stereo RCA connectors for channels 7/8, 9/10, and 11/12. Output connectors include two XLR main outputs, stereo RCA recording outputs, a 1/4" mic monitor output, and a 1/4" mono output. The front panel offers volume controls for channels 1 through 6 as well as stereo channels 7/8 to 11/12. Additionally, there are dedicated volume controls for Mic, Mono, and Master output. A master 3-band EQ offers cut/boost controls for high, mid, and low frequencies. The DN312X ships with a standard IEC power cord. -
- 6 HDHQ Combination inputs with MIC, Phantom and Line selector switches
- 6 mono (3 stereo) RCA Inputs
- Mic monitor 1/4” output for private listening to all mic inputs
- Balanced XLR line outputs
- Mono 1/4” line output can be used to feed audio to external recording device
- AC or 24 VDC power inputs
- Mic 1 Priority Control
- Master and Individual level controls
- 1U rack mountable
UPC: 694318019399 In the Box Denon DN-312X 12-Channel Mixer w/ Mic Priority Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-312X 12-Channel Mixer w Mic Priority in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-312X Specs | | | Inputs | Channels 1 to 6: 6x Combo XLR-1/4" (6.35 mm)
Channels 7/8 to 11/12: 3x Stereo RCA | | Outputs | Main Output: 2x XLR
Mono Output: 1/4" (6.35 mm)
Mic Monitor: 1/4" (6.35 mm)
Rec Output: 1x Stereo RCA | | Switches | Channels 1 to 6: Line, Phantom Power (PH), Mic | | | | Microphone Inputs | Microphone Input (Channels 1–6)
Frequency Response: 20 Hz to 22 kHz
THD+N: < 0.03% @ 1 kHz
Sensitivity: -40 dBu
Maximum Input: -19 dBu
Signal-to-Noise Ratio: >103 dB
Phantom Power: 18–21 V, switch control | | Maximum Voltage Gain | Mic Input to Line Out, Mic Out & Mono Out: 60 dB
Mic Input to Rec Out: 50 dB | | | | Line Inputs | Line Inputs (Channels 1–6)
Frequency Response: 20 Hz - 22 kHz
THD+N: < 0.03% @ 1 kHz
Sensitivity: 0 dBu
Maximum Input: +21 dBu
Signal-to-Noise Ratio: > 103 dB
Line Inputs (Channels 7/8 to 11/12)
Frequency Response: 20 Hz to 22 kHz
THD+N: < 0.03% @ 1 kHz
Sensitivity: +10 dBu
Maximum Input: +21 dBu
Signal-to-Noise Ratio: > 103 dB | | Maximum Voltage Gain | Line Inputs (Channels 1-6)
Mic Input to Line Out, Mic Out & Mono Out: 20 dB
Mic Input to Rec Out: 10 dB
Line Inputs (Channels 7/8 to 11/12)
Line Input to Line Out: 10 dB
Line Input to Rec Out: 0 dB
Line Input to Mono Out: 4 dB | | | | Impedance | Mic/Line Input: 1.4 kOhms
Line Input: > 10 kOhms
All Outputs: 120 Ohms | | | | Equalizer | High: ±15 dB @ 12 kHz
Mid: ±12 dB @ 2.5 kHz
Low: ±15 dB @ 80 Hz | | | | Adjacent Channel Crosstalk | Channels 1-6: ≤ -70 dB @ 1 kHz
Channels 7/8-11/12: ≤ -68 dB @ 1 kHz | | Channel Crosstalk | Input to Output: ≤ -82 dB @ 1 kHz (channel level @ max., EQ @ unity, master level & others @ min., input selectors set to Line) | | | | Line Output | 0 dBu (+2 dBu), balanced (channel level, master level & EQ @ unity, all others at min., input selectors set to Line) | | Audio Outputs | Mic Output and Mono Output: 0 dBu (+2 dBu), unbalanced (channel level, master level & EQ @ unity, all others at min., input selectors set to Line) | | Maximum Output | +21 dBu balanced/unbalanced, 1/4" (6.35 mm) jacks | | Noise | Noise (Bus): < -83 dB @ 20 Hz - 22 kHz (channel level, master level & EQ @ unity, all others at min., input selectors set to Line) | | | | Connection | AC: IEC
DC: Binding post | | Input Voltage | AC: 110-120 VAC, 60 Hz
DC: 24 VDC, 500 mA | | | | Dimensions (W x D x H) | 19.0 x 7.7 x 1.7" / 482.6 x 195.6 x 43.2 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 4.0" |
