User Manual for Denon DN-333XAB Bluetooth-Enabled Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Denon DN-333XAB Bluetooth-Enabled Mixer Amplifier
- Product category: Mixer/Amplifiers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Mixer/Amplifiers
 |
User manual for the Denon DN-333XAB Bluetooth-Enabled Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

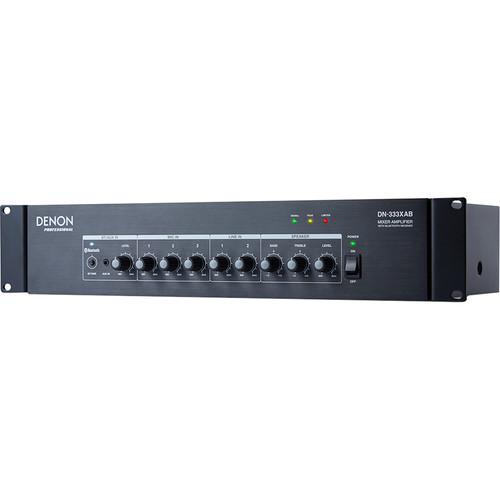

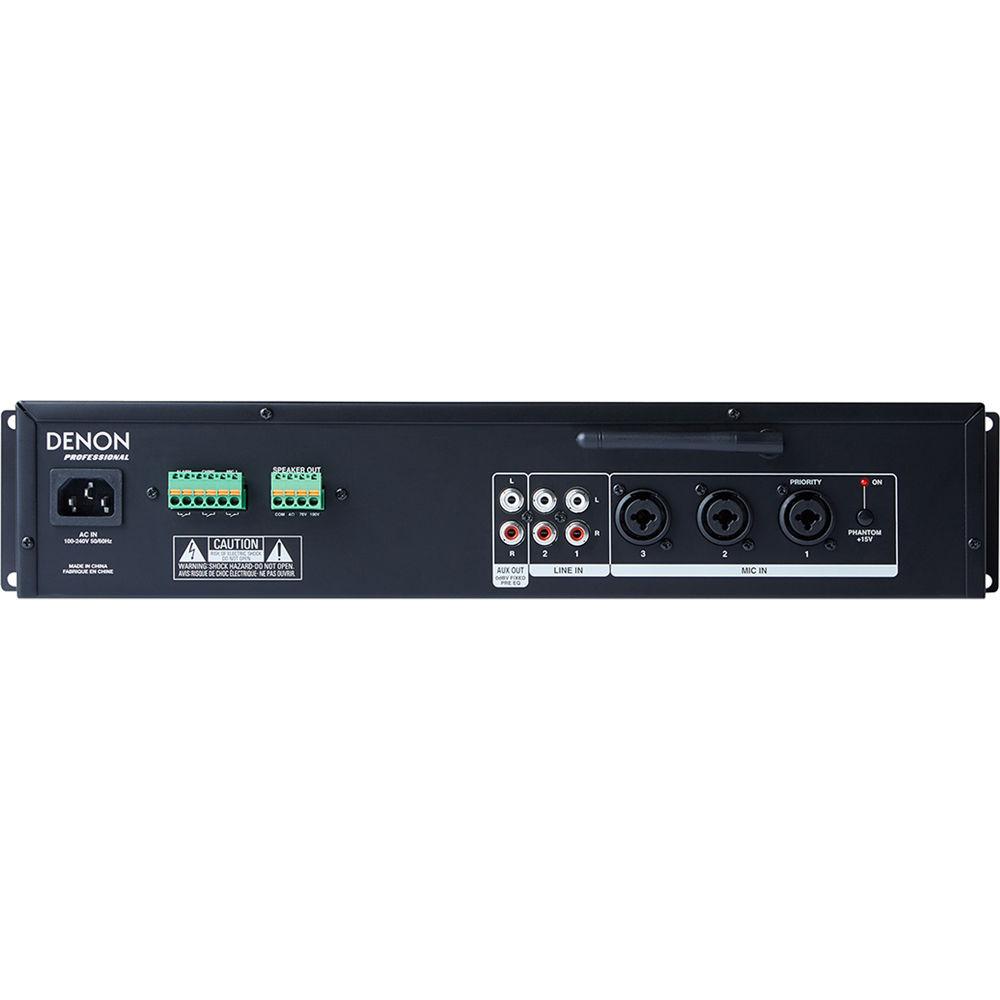

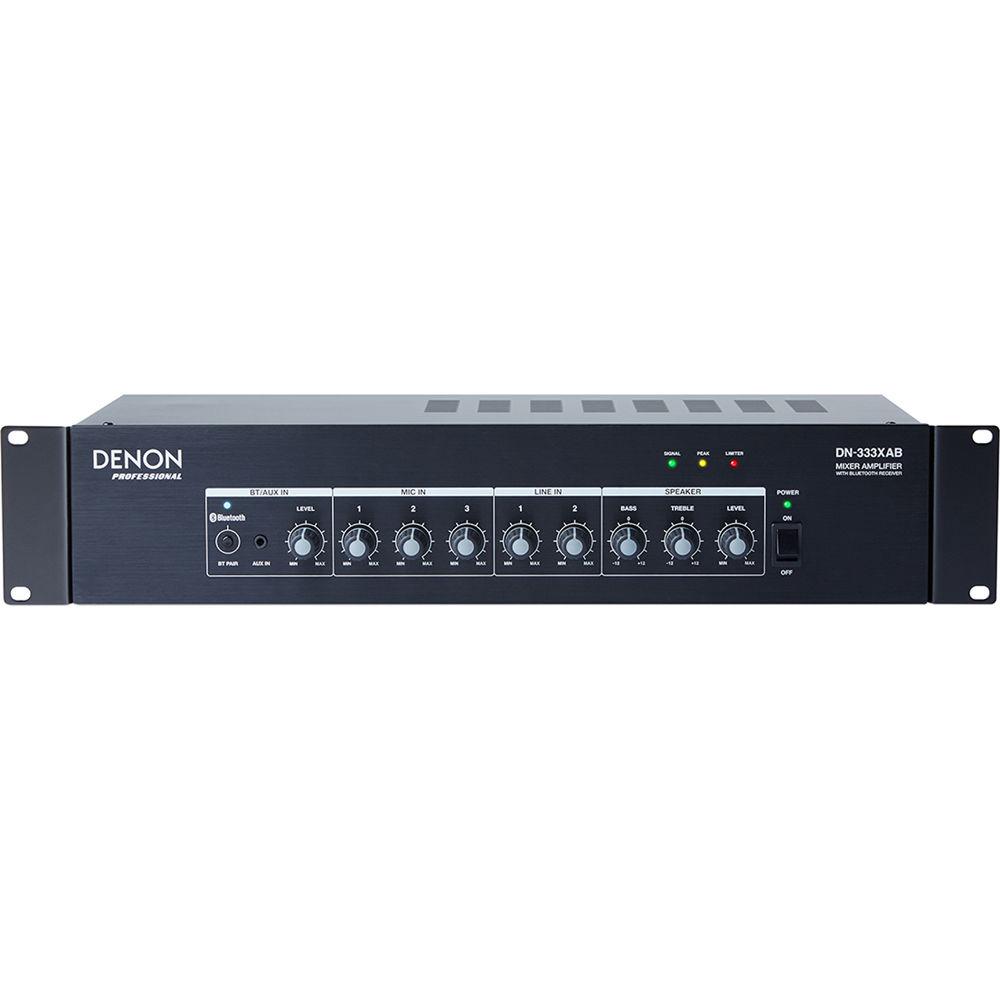

Product description The Denon DN-333XAB is a 2 RU Bluetooth-enabled mixer amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It can be installed in a standard 19” equipment rack or set on a surface such as a desk or ledge.Stream music wirelessly via Bluetooth, or connect a portable device such as a smartphone to the front-panel 3.5mm stereo aux jack. Utilize the back-panel connections to route line sources via RCA and mic sources via XLR-1/4” combo jacks. The integrated mixer offers level controls for six input sources. Bass, treble, and level adjustments are available for the outputs, which are Euroblock and RCA connectors driven by a 120W Class-D amplifier. There are LED indicators for signal and peak presence, Bluetooth and power status, and activity of the built-in limiter, which protects the DN-333XAB against clipping. - Front-panel, Bluetooth pairing control with status indicator
- Automatic audio-signal-limiting with peak LED indicators
- RCA line-level connections can be used for a send and return configuration
- Internal chime and alarm tone generator
- Detachable rack ears and rubberized feet
UPC: 694318018170 In the Box Denon DN-333XAB Bluetooth-Enabled Mixer Amplifier (2 RU) Power Cable 2 x Rack Ears 6 x Rack Ear Screws 3 x Euroblock Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-333XAB Bluetooth-Enabled Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-333XAB Specs | Rack Height | 2 RU | | Inputs | 3 x XLR combo jacks (XLR and 1/4"), selectable +15V phantom power
4 x RCA (two stereo pairs)
1 x 1/8" (3.5 mm) Aux | | Outputs | 2 x RCA (stereo pair)
1 x Euroblock: 4 Ohms line (transformer bypass), 70 V, 100 V, COM | | Control Port | Euroblock: Mic 1 Priority, Chime, Alarm | | LED Indicators | Peak
Signal
Limiter
Power
Bluetooth status | | Front Panel Controls | Independent Level controls for Mic, Line, and Bluetooth inputs
Master Section: Bass, Treble, and Level controls
Bluetooth Pair button
Power switch | | Amplifier | 120 W, Class-D | | Frequency Response | Line: 60 Hz to 20 kHz (-3 dB)
Mic: 120 Hz to 20 kHz (-3 dB) | | Signal to Noise Ratio | >90 dB | | THD | <0.1% | | Output Level | Aux: 0 dBV | | Bluetooth Specification | Version: 3.0
Supported Profile: A2DP
Maximum Transmission Power: Class 3, +4 dBm
Transmission Frequency: 2.4 GHz
Transmission Range: Up to 100' / 30.5 m
Receiver Sensitivity: <-70 dBm @ 0.1% BER | | Power Requirements | Connection: IEC (switching power supply)
Input Voltage: 100 to 240 VAC, 50/60 Hz | | Dimensions (W x D x H) | 19.0 x 8.3 x 3.8" / 482.6 x 209.6 x 95.3 mm | | Weight | 12.9 lb / 5.8 kg | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 12.3 x 6.7 x 1.0" |
