User Manual for Denon DN-410X Rackmount Mixer with Bluetooth Click to enlarge the picture
Contents of the user manual for the Denon DN-410X Rackmount Mixer with Bluetooth
- Product category: Analog Recording Mixers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Analog Recording Mixers
 |
User manual for the Denon DN-410X Rackmount Mixer with Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

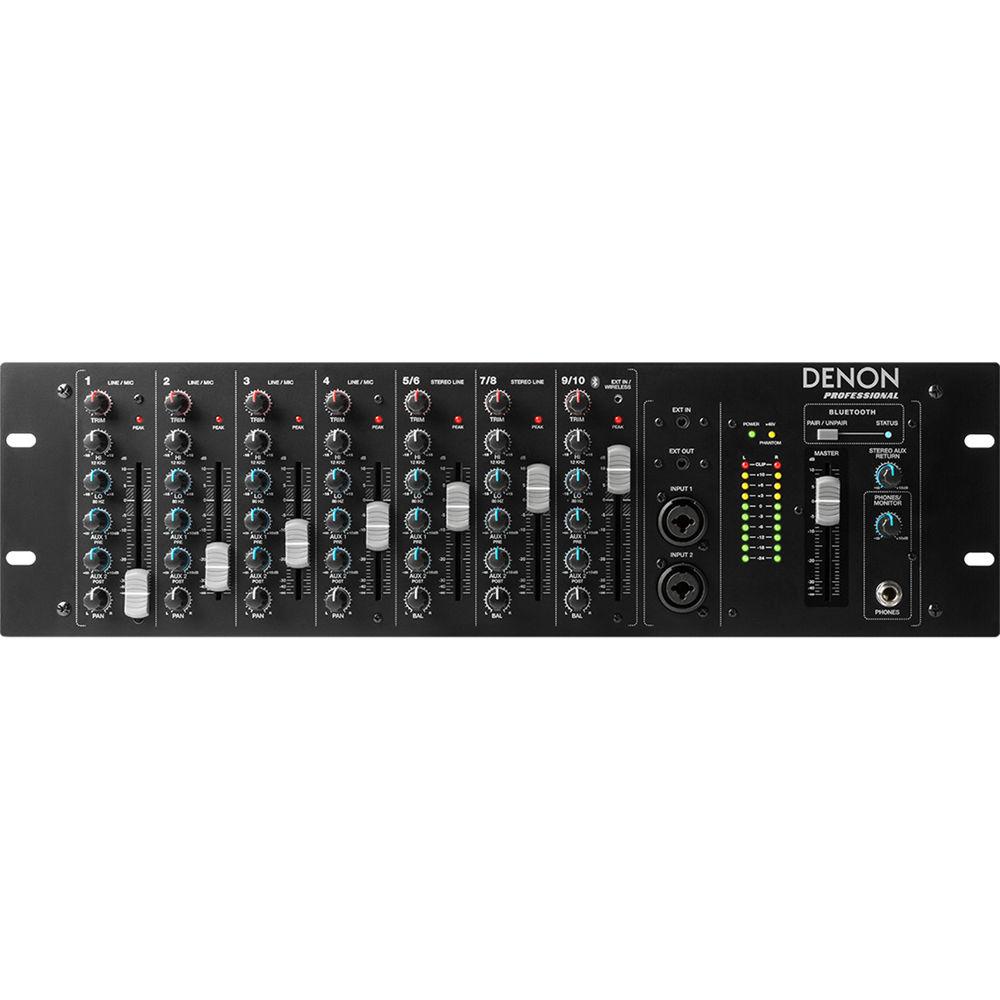

Product description Designed to integrate Bluetooth capability into a 3U rackmount mixer, the 10-Channel DN-410X from Denon is suitable for multiple scenarios, such as A/V applications, conference rooms, nightclubs, and restaurants. The mixer sports balanced XLR inputs, balanced 1/4" TRS connection points, stereo RCA terminations for unbalanced devices, and Bluetooth pairing with convenient single-button pairing. The unit uses Bluetooth 3.0 and has a transmission range of up to 100'. A plethora of outputs are provided, including 1/4" balanced TRS connections, a 3.5mm stereo connection, and a 1/4" headphone jack. - Bluetooth Connectivity
- You can stream a wireless stereo audio signal from any Bluetooth device onto channels 9 and 10. The articulating Bluetooth antenna provides reception, while a dedicated volume control can integrate additional audio sources at the touch of a button.
- Comprehensive Inputs
- The DN-410X allows you to accommodate various audio devices via a panoply of input options, such as XLR mic inputs with 48V phantom power, a balanced 1/4" TRS line input, and a TRS 1/4" insert jack for incorporating outboard effects. Channels 5 through 8 are coordinated stereo pairs, offering 1/4" left and right inputs. Additionally, channels 7 and 8 provide left and right RCA inputs.
- Input/Output Placement Convenience

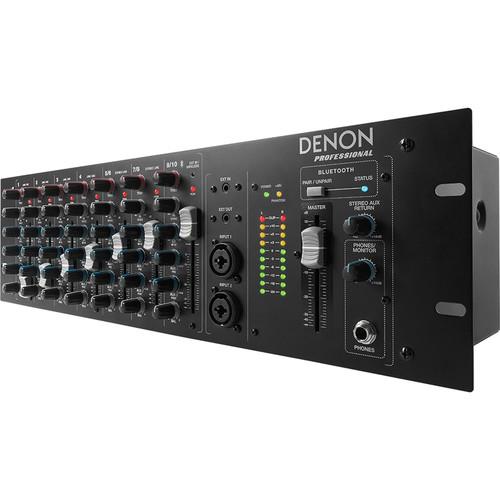

- With two front-panel XLR inputs, you can quickly adapt to performance changes on the fly, without reaching behind a rack of A/V equipment. Multiple output options provide adapter-free connection to loudspeakers or amplification systems.
- Additional Features
-
- 2x XLR inputs in the front for convenience
- Pre-fader and post-fader aux sends
- Stereo aux return
- Dual multi-segmented LED meters allow you to easily monitor your levels
- Master output fader for controlling levels
- 3U rackmount design is suitable for venues and mobile rigs
- Bluetooth streaming with single-button pairing
- 4x high-gain mic/line preamps with inserts
- 2-band high- and low-shelving EQ on every channel
UPC: 694318017616 In the Box Denon DN-410X Rackmount Mixer with Bluetooth (10-Channel) Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-410X Rackmount Mixer with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

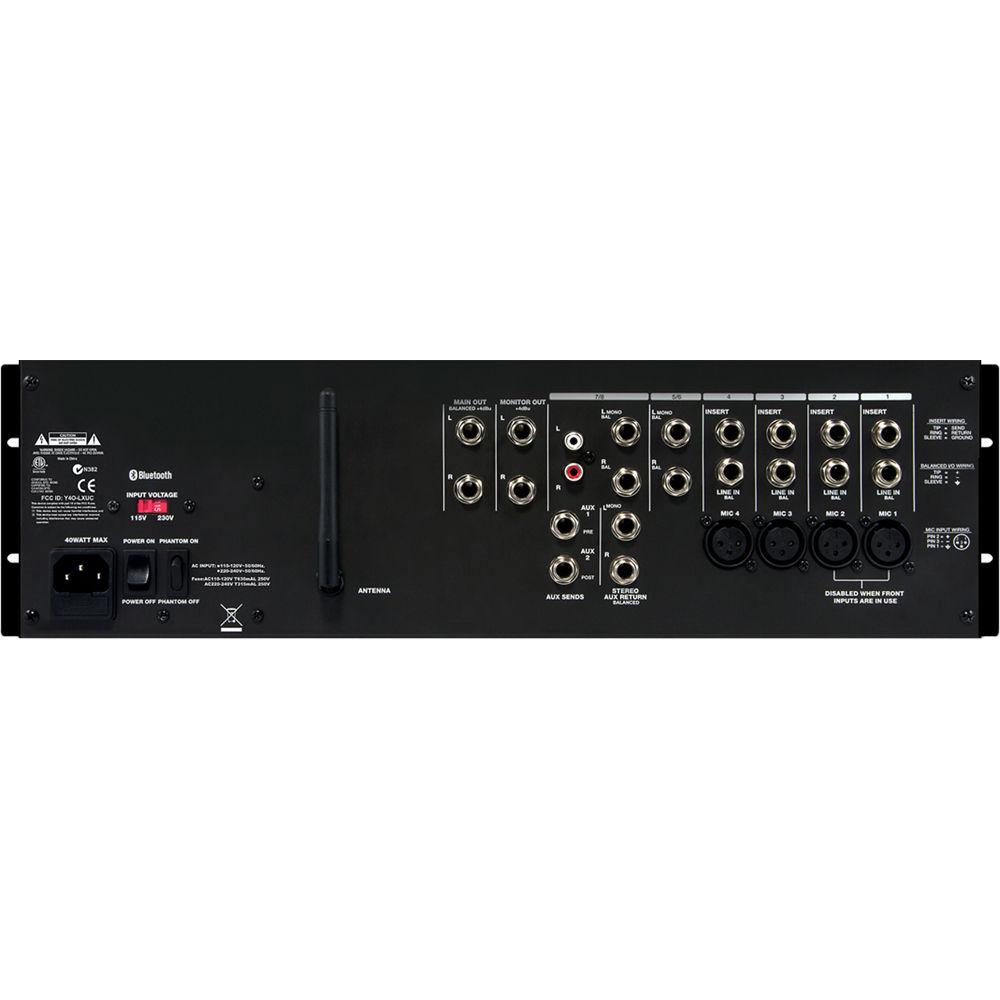

Technical parametersDenon DN-410X Specs | | | Inputs | Channels 1 to 4 (Mono):
Mic: XLR with switchable phantom power
Line: 1/4" mono
Insert: 1/4" TRS
Front: XLR+1/4" combo jacks (Channels 1 and 2 only; overrides rear jacks)
Channels 5 and 6 (Stereo Pair):
Line: 1/4" left, right
Channels 7 and 8 (Stereo Pair):
Line: 1/4" left, right
RCA: Left, right
Channels 9 and 10 (Stereo Pair):
Bluetooth: Stereo streaming in
Ext: 1/8" / 3.5 mm stereo (front panel)
Aux Return: 1/4" TRS balanced left, right | | Outputs | Main: 1/4" TRS balanced left, right
Monitor: 1/4" Left, right
Aux Send 1: 1/4"
Aux Send 2: 1/4"
Headphones: Stereo 1/4"
Ext: 1/8" stereo (front panel) | | Frequency Response | 20 Hz to 50 KHz, ±0.5 dB | | Dynamic Range | 108 dB | | THD+N | <0.005% (mic/line input to main out) | | Maximum Gain | 70 dB (mic input to main out) | | Headroom | 24 dB | | | | Version | 3.0 | | Transmission Power | Class 3, 4 dBm | | Transmission Frequency | 2.4 GHz | | Transmission Range | Up to 100.0' / 30.5 m | | Receiver Sensitivity | <-70 dBm @ 0.1% BER | | Supported Profiles | A2DP | | | | Power Cable | Detachable | | Input Voltage | 115 VAC, 60 Hz; 230 VAC, 50 Hz
Rear panel voltage selector | | Fuse | 115 VAC, 60 Hz: T630 mAL 250 V
230 VAC, 50 Hz: T315 mAL 250 V | | | | Design | 3U rackmount chassis | | Dimensions | 19.0 x 6.3 x 5.3" / 48.3 x 15.9 x 13.3 cm | | Weight | 8.9 lb / 4.0 kg | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 10.0" |
