User Manual for Denon DN-500CB CD USB Bluetooth Player with Remote Click to enlarge the picture
Contents of the user manual for the Denon DN-500CB CD USB Bluetooth Player
- Product category: CD/DVD/Blu-Ray Recorders & Players Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon CD/DVD/Blu-Ray Recorders & Players
 |
User manual for the Denon DN-500CB CD USB Bluetooth Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description - Denon Professional DN-500CB

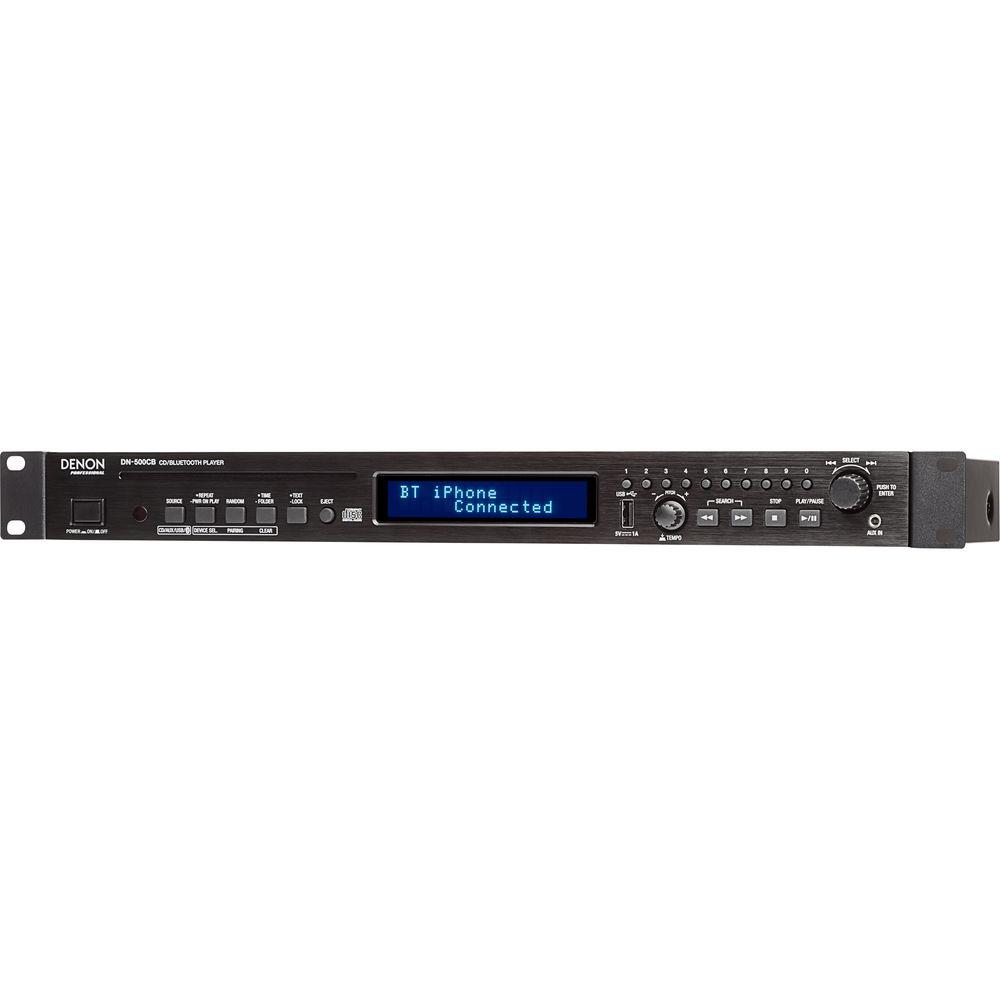

The DN-500CB from Denon is a 1 RU rack-mountable CD player with Bluetooth connectivity, USB playback, and a 3.5mm Aux input. It is designed for use in commercial installations such as retail and hotel/conference rooms or to be transported on location for education, instruction, and entertainment applications. The DN-500CB offers a host of convenient features such as Front Panel Lock, Power-On Play, direct access to tracks with 10 buttons, the ability to recall settings after loss of power, Bluetooth pairing for up to eight devices at a time, and balanced XLR outputs for hookup to pro audio rigs. The unit is RS-232c control capable, and includes an IR remote for operation from a distance. - CD player with Bluetooth, USB, and 3.5mm AUX input designed for retail, education, hotel/conference applications
- Bluetooth 4.0 pairing up to eight devices simultaneously
- Slot-loading CD transport
- USB host port for file playback
- 3.5mm Aux input for playback from portable players
- 10-button direct track access

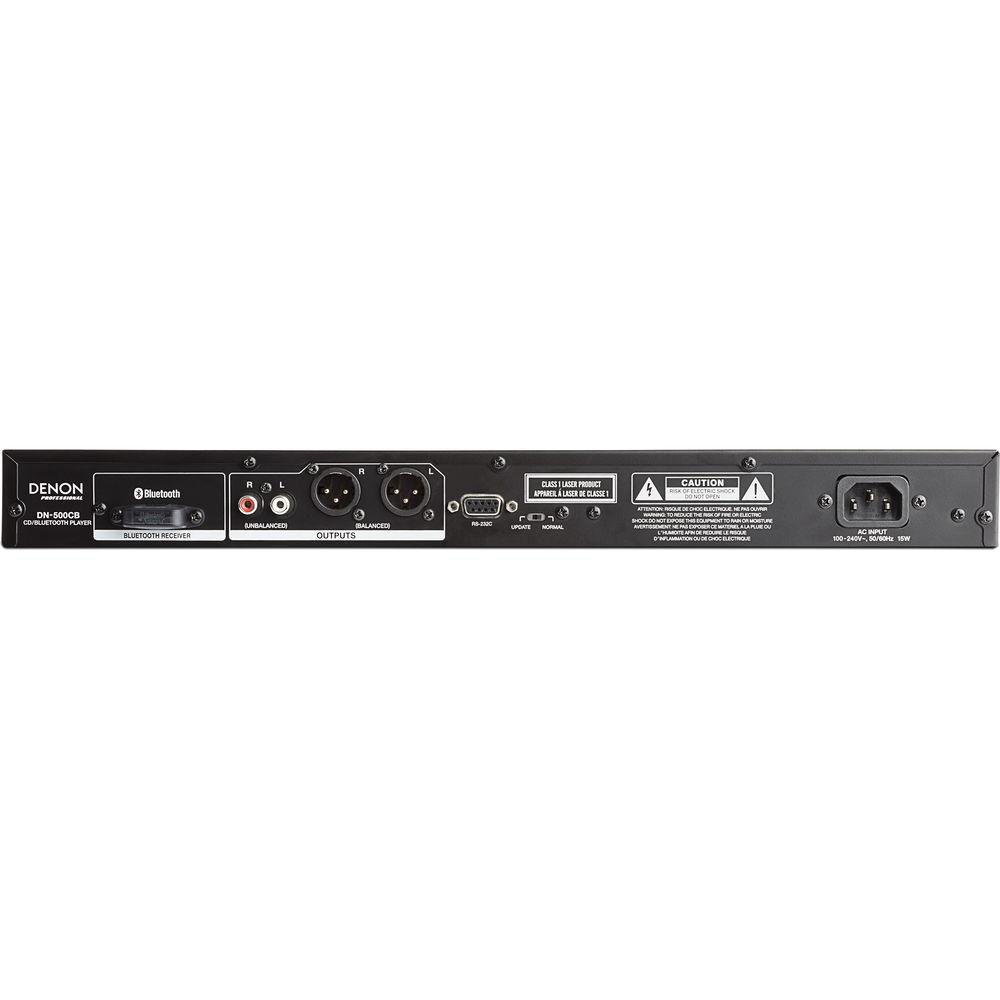

- Balanced XLR outputs, unbalanced RCA outputs
- Adjust tempo and/or pitch of audio playback (CD and USB playback)
- LCD display indicates current playback status
- Use the Panel Lock function to prevent accidental changes to the unit
- Power On Play to automatically start playback of the CD on powering the unit
- Memory of settings after loss of power

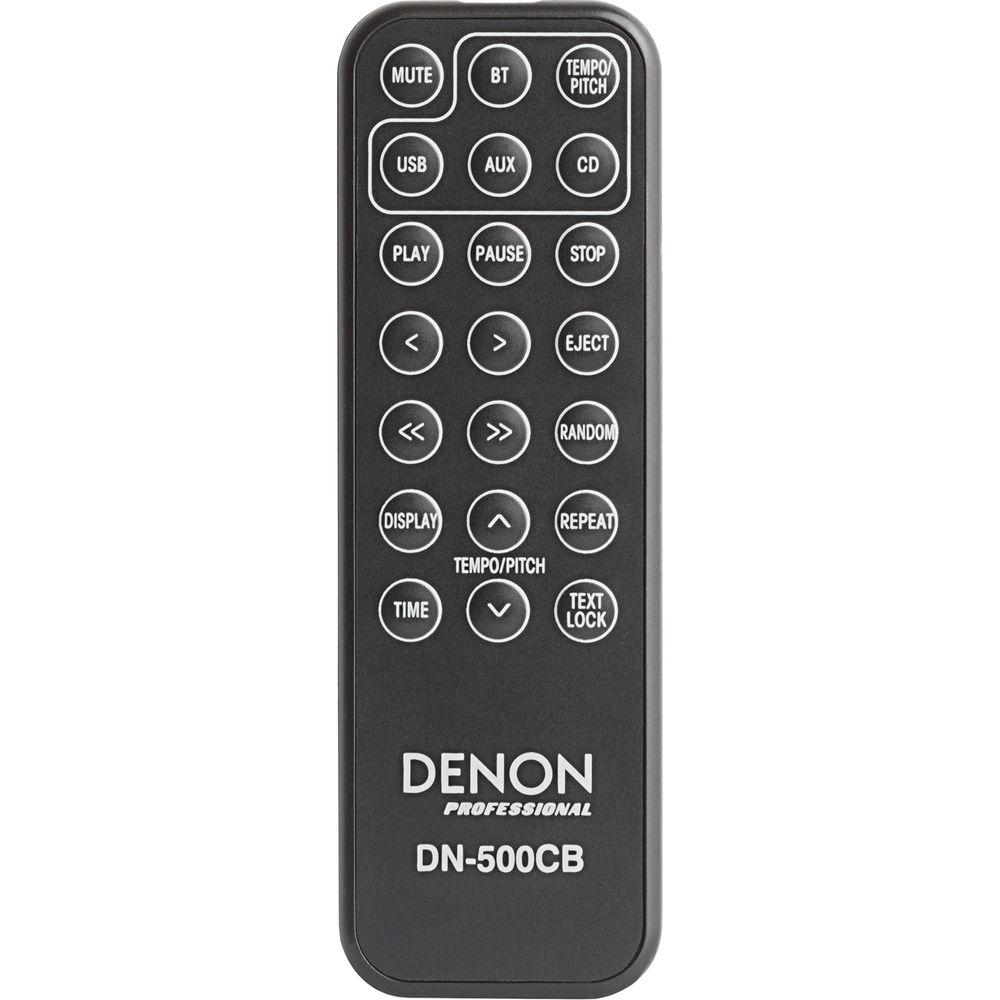

- Wireless IR remote included
UPC: 694318019313 In the Box Denon DN-500CB CD/USB/Bluetooth Player with Remote Power Cable Wireless Remote Control Stereo RCA Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-500CB CD USB Bluetooth Player with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-500CB Specs | Compatible Media | CD, USB device (mass storage class), Bluetooth audio | | Supported Device Format | CD-DA, CD-ROM (ISO9660) | | Supported File Systems | FAT16, FAT32 | | Supported File Formats | MP3 (CD or USB Mode)Sample Rate: 44.1 kHzBit Rate: 32 kbps to 320 kbps, VBRFormat: MPEG1 Audio Layer 3File Extension: .mp3 | | Channels | 1 x stereo
2 x mono | | Frequency Range | 20 Hz to 20 kHz (±1.0 dB) | | Signal to Noise Ratio | > 95 dB (A-weighted) | | THD | < 0.01% | | Dynamic Range | > 85 dB | | Channel Separation | > 80 dB | | Bluetooth | Range: 49' / 15 mVersion: 4.0Output Class: Class 2Profiles: A2DP, AVRCP, HFP, SPP, BAS, BLE, DIS, FMP, HRP, HRS, HTP, HTS, IAS, LLS | | Outputs | Analog Out L/R (Unbalanced)Connectors: RCA pairLoad Impedance: > 10 kOhms Output Level: 2 Vrms / at 10 kOhms load Analog Out L/R (Balanced)Connectors: 2 x XLR-MLoad Impedance: > 10 kOhmsOutput Level: +4 dBu | | Inputs | Aux InConnector: 1/8" / 3.5 mm, TRS terminalInput Impedance: > 10 kOhms Maximum Input Level: 1 Vrms | | File/Folder Limits | Storage Capacity: Up to 2 TBFile Size: Up to 2 GBFile Name Length: Up to 255 charactersNumber of Files: Up to 999 (for 1 folder)Number of Folders: Up to 999 folders (including the root directory)Number of Folder Levels: Up to 8 (including the root directory)Folder Name Length: Up to 255 characters | | Power | 100-240 VAC, 50/60 Hz | | Power Consumption | 15 W | | Environmental Conditions | Operating Temperature: 41 to 95°F / 5 to 35°COperating Humidity: 25 to 85%, no condensation | | Dimensions | 19.0 x 9.4 x 1.7" / 48.2 x 24.0 x 4.4 cm (with rack ears)
16.9 x 9.4 x 1.7" / 43.0 x 24.0 x 4.4 cm (without rack ears) | | Weight | 6.3 lb / 2.9 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 20.5 x 14.0 x 5.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
