User Manual for Denon DN-508MX 8-Zone Digital Mixer Click to enlarge the picture
Contents of the user manual for the Denon DN-508MX 8-Zone Digital Mixer
- Product category: Install Sound Mixers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Install Sound Mixers
 |
User manual for the Denon DN-508MX 8-Zone Digital Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

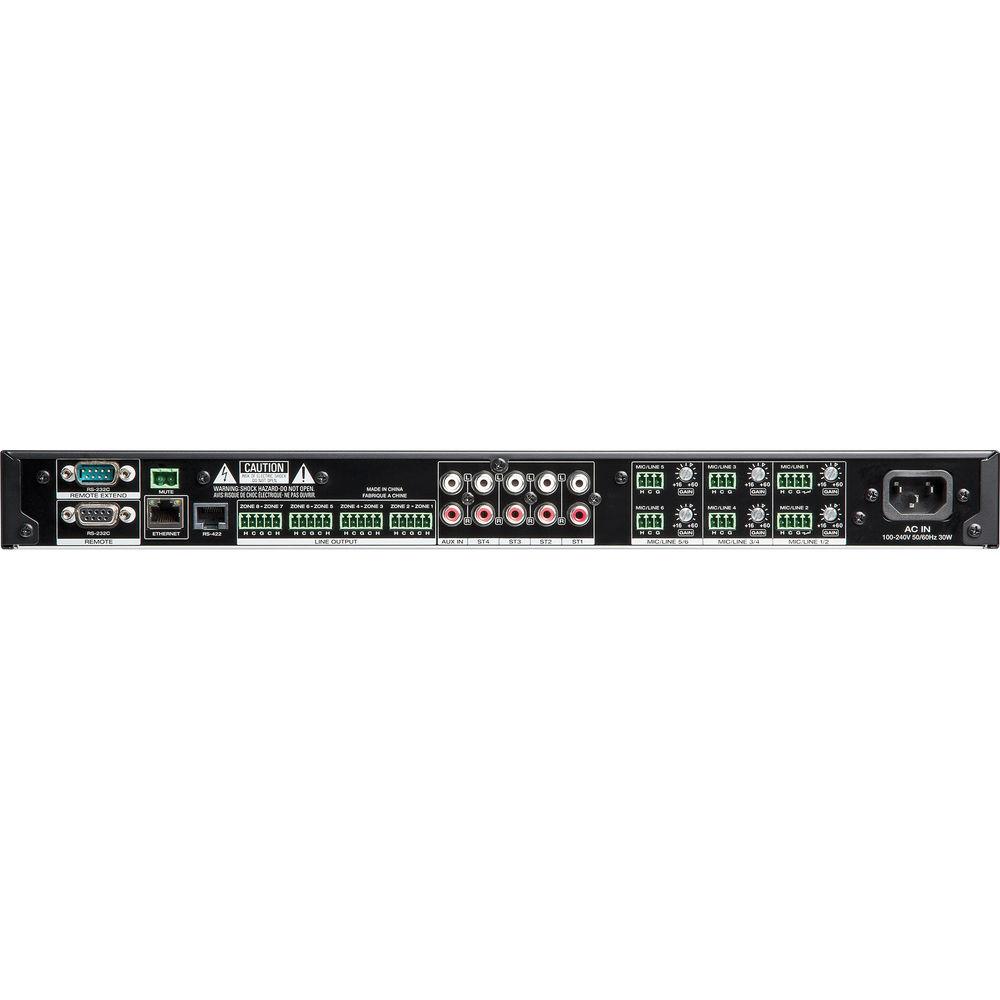

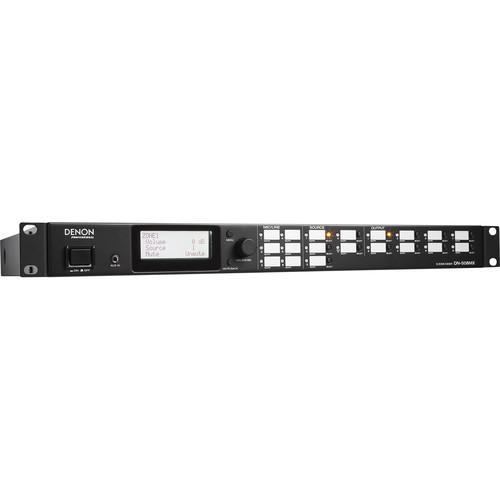

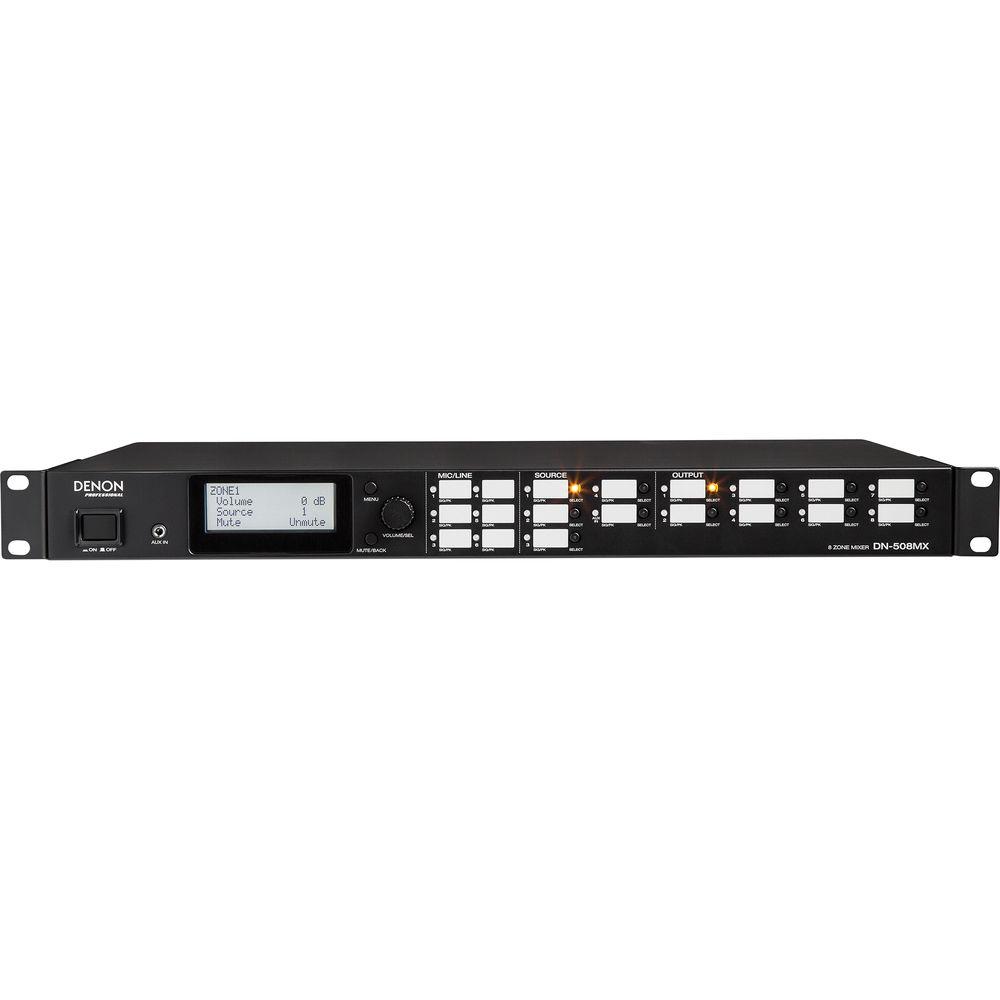

Product description Refreshingly uncomplicated, the DN508MX 8-Zone Digital Mixer from Denon provides a high performance solution for controlling and routing up to eight sources in a multi-room venue, such as restaurants, hotels, museums, nightclubs, sports bars, and large corporate offices. Special attention has been paid to the front panel user interface, making it easy and intuitive to operate.
The DN508MX offers several advanced features including a professional grade head-amp, Mic/Line pad, full BTL balanced outputs, 3-band EQ for all inputs, 5-band EQ for all outputs, priority, delay, dynamics, and a web based system control application for remote operation from whatever device is most convenient to the user. Additionally, the unit offers advanced scheduling functionality to operate automatically for optimum energy efficiency. The DN508MX ships with an assortment of Euroblock connectors and a power cord. -
- Six mic/line inputs
- Four stereo inputs
- One aux input on front and rear
- Eight zone outputs
- Professional-grade grounding and sound quality
- Remote control-ability using TCP/IP, RS-232, and RS-422
- 3-band equalizer for all inputs
- 5-band equalizer for all zone outputs
- Delay and dynamics function for all zone outputs
UPC: 694318018637 In the Box Denon DN-508MX 8-Zone Digital Mixer 4 x 5-Pin Euroblock Connectors 2 x 4-Pin Euroblock Connectors 4 x 3-Pin Euroblock Connectors 2-Pin Euroblock Connector Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-508MX 8-Zone Digital Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-508MX Specs | | | Connections | 6x 3-pin Euroblock inputs (1 hot, 1 cold, 1 ground)
1x stereo RCA auxiliary input
1x stereo 1/8" (3.5 mm) auxiliary input
4x stereo RCA ST inputs
4x 5-pin Euroblock outputs (2 hot, 2 cold, 1 ground)
1x LAN port
1x RJ11/RJ14 port, RS-422
1x 9-pin D-Sub female connector, RS-232C
1x 9-pin D-Sub male connector, RS-232C
1x IEC power input | | | | Frequency Response | 20 Hz to 20 kHz (+0.5 dB) | | Dynamic Range | > 109 dB (A-weighted) | | Signal-to-Noise Ratio (SNR) | > 89 dB (A-weighted) | | Headroom | > 20 dB | | Mic Input | Mic Input EIN: < -127 dBu (Rs = 150 Ohms, DIN)
Mic Input CMRR: > 80 dB | | Maximum Gain | 88 dB (Mic Input to Master Output) | | Channel Separation | < -100 dB | | THD + N | Mic/Line Inputs: < 0.05% Stereo Inputs: < 0.01% | | | | Mic Inputs | Maximum: -40 to -20 dBu (+4 dBu)
Unity: -60 to -40 dBu (-16 dBu) | | Line Inputs | Maximum: -20 to 0 dBu (+24 dBu)
Unity: -40 to -20 dBu (+4 dBu) | | Stereo Input | Maximum: +18 dBV
Unity: 0 dBV | | AUX Inputs | Maximum: +18 dBV
Unity: 0 dBV | | | | Zones | Maximum: +24 dBu
Unity: +4 dBu | | | | Equalization | Equalization (3-Band, Inputs)
SHH: 100 Hz – 20 kHz (+18 dB)
PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
SHL: 20 Hz – 20 kHz (+18 dB)
Equalization (5-Band, Outputs)
High PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid-High: PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid-Low PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Low PEQ: 20 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 | | Delay | Attenuation: 0-1000 ms | | AGC (Automatic Gain Control) | Compensation: 1-5
Response Time: 100-500 ms
Noise Gate: < -80 dBFS | | Attenuation | Priority Attenuation (1st & 2nd priorities)
Threshold: -74 to -20 dBFS
Attenuation: -∞ to 0 dB
Attack Time: 0–300 ms
Hold Time: 1–1960 ms
Release Time: 3–4270 ms | | Dynamics | Dynamics (Compressor/Limiter)
Threshold: -92 to -20 dBFS
Ratio: 1.0:1 – 20.0:1, ∞:1
Attack Time: 0–120 ms
Release Time: 3–4270 ms
Gain: 0 to +20 dB
Knee: Hard, 1–5 | | Fade Control | Auto Fade Out/In for Source Selector
Attenuation -30 dB
Attack Time 100 ms
Hold Time & Mixing 100 ms
Release Time 100 ms | | | | RS-232C | Connectors: 9-pin D-Sub female connector (Remote input), 9- pin D-Sub male connector (Remote Extend output)
Speed: 9600/38400 bps
Power: +5 V via D-Sub connection | | RS-422 | Connector: RJ-45
Speed: 38400 bps
Terminal: 110 Ohms on/off
Power: +5 V via RJ-45 connection | | Ethernet | Connector: LAN port
Standards: Ethernet 10/100 Base | | | | Indicators | Level Indicators
Mic/Line: 1x LED (green-amber-red) per mic/line input
Source: 1x LED (green-amber-red) per stereo input
Output: 1x LED (green-amber-red) per zone
Peak Indication: -1 dB to 0 dB | | | | Operation Conditions | Temperature: 41-95° F / 5-35° C
Humidity: 25-85%, non-condensing | | Power | Connection: IEC Requirement: 100-240 VAC, 50/60 Hz Consumption: 30 W | | Dimensions (W x D x H) | 19.0 x 13.5 x 1.8" / 482.6 x 342.9 x 45.7 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 12.45 lb | | Box Dimensions (LxWxH) | 23.5 x 16.8 x 6.0" |
