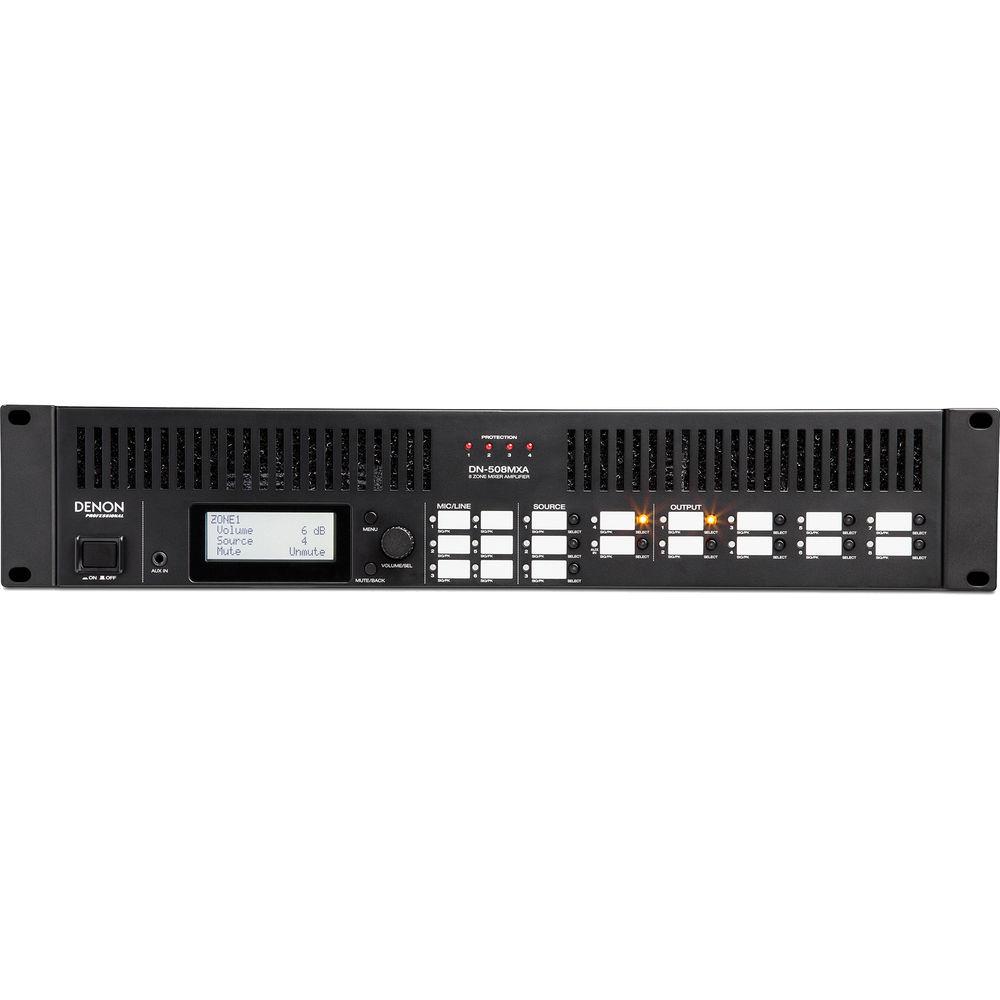

Product description Refreshingly uncomplicated, the DN508MXA Powered 8-Zone Digital Mixer from Denon provides a high performance solution for controlling and routing up to eight sources in a multi-room venue, such as restaurants, hotels, museums, nightclubs, sports bars, and large corporate offices. Special attention has been paid to the front panel user interface, making it easy and intuitive to operate.
The DN508MXA offers a four zone amplifier input and four zone 4 Ohm / 8 Ohm outputs or two zone 70V / 100V speaker outputs. Advanced features include a professional grade head-amp, Mic/Line pad, full BTL balanced outputs, 3-band EQ for all inputs, 5-band EQ for all outputs, priority, delay, dynamics, and a web based system control application for remote operation from whatever device is most convenient to the user. Additionally, the unit offers advanced scheduling functionality to operate automatically for optimum energy efficiency. The DN508MXA ships with an assortment of Euroblock connectors and a power cord. -
- Six mic/line inputs
- Four stereo inputs
- One aux input on front and rear
- Eight zone outputs
- Four zone amplifier input
- Four 4 Ohm / 8 Ohm output or two zone 70V / 100V / BLT speaker output
- Full BTL circuit for balanced output
- Professional-grade grounding and sound quality
- Remote controllable using TCP/IP, RS-232, and RS-422
- 3-band equalizer for all inputs
- 5-band equalizer for all zone outputs
- Delay and dynamics function for all zone outputs
UPC: 694318019238 In the Box Denon DN-508MXA Powered 8-Zone Digital Mixer 6 x 5-Pin Euroblock Connectors 2 x 4-Pin Euroblock Connectors 4 x 3-Pin Euroblock Connectors 5 x 2-Pin Euroblock Connector 2 x 5-Pin with Jumper Wires Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-508MXA Powered 8-Zone Digital Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

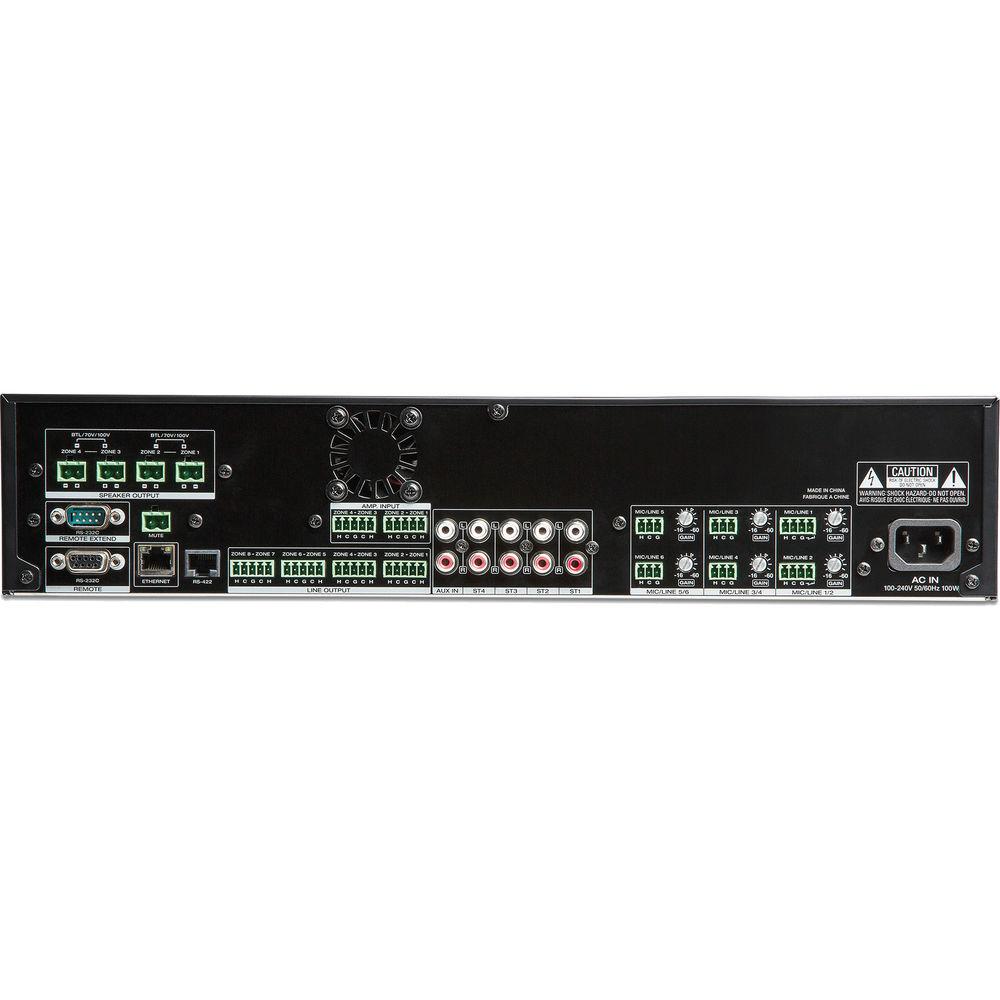

Technical parametersDenon DN-508MXA Specs | | | Connections | 2x 5-pin Euroblock inputs (2 hot, 2 cold, 1 ground)
2x 4-pin Euroblock inputs (1 hot, 1 cold, 1 ground, 1 Page Switch)
4x 3-pin Euroblock inputs (1 hot, 1 cold, 1 ground)
1x stereo RCA auxiliary input
1x stereo 1/8" (3.5 mm) auxiliary input
4x stereo RCA ST inputs
4x 5-pin Euroblock outputs (2 hot, 2 cold, 1 ground)
5x 2-pin Euroblock outputs (1 positive, 1 negative) 1x LAN port
1x RJ11/RJ14 port, RS-422
1x 9-pin D-Sub female connector, RS-232C
1x 9-pin D-Sub male connector, RS-232C
1x IEC power input | | | | Frequency Response | 20 Hz to 20 kHz (+0.5 dB) | | Dynamic Range | > 109 dB (A-weighted) | | Signal-to-Noise Ratio (SNR) | > 89 dB (A-weighted) | | Headroom | > 20 dB | | Mic Input | Mic Input EIN: < -127 dBu (Rs = 150 Ohms, DIN)
Mic Input CMRR: > 80 dB | | Maximum Gain | 88 dB (Mic Input to Master Output) | | Channel Separation | < -100 dB | | THD + N | Mic/Line Inputs: < 0.05%
Stereo Inputs: < 0.01% | | | | Mic Inputs | Maximum: -40 to -20 dBu (+4 dBu)
Unity: -60 to -40 dBu (-16 dBu) | | Line Inputs | Maximum: -20 to 0 dBu (+24 dBu)
Unity: -40 to -20 dBu (+4 dBu) | | Stereo Input | Maximum: +18 dBV
Unity: 0 dBV | | AUX Inputs | Maximum: +18 dBV
Unity: 0 dBV | | Built-in Amplifier | Maximum: +24 dBu
Unity: +4 dBu | | | | Zones | Maximum: +24 dBu
Unity: +4 dBu | | Speaker Output | Low Impedance: 60 W @ 8 Ohms / 4 Ohms
Low Impedance BTL: 120 W @ 8 Ohms / 4 Ohms, 2-Zone BTL
High Impedance: 70 V, 120 W / 100 V, 120 W / 2-Zone BTL | | | | Equalization | Equalization (3-Band, Inputs)
SHH: 100 Hz – 20 kHz (±18 dB)
PEQ: 100 Hz – 20 kHz (±18 dB), Q: 0.1–63.0
SHL: 20 Hz – 20 kHz (±18 dB)
Equalization (5-Band, Outputs)
High PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid-High: PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid-Low PEQ: 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Low PEQ: 20 Hz – 20 kHz (+18 dB), Q: 0.1–63.0 | | Delay | Attenuation: 0-1000 ms | | AGC (Automatic Gain Control) | Compensation: 1-5
Response Time: 100-500 ms
Noise Gate: < -60 dBFS | | Attenuation | Priority Attenuation (1st & 2nd priorities)
Threshold: -74 to -20 dBFS
Attenuation: -∞ to 0 dB
Attack Time: 0–300 ms
Hold Time: 1–1960 ms
Release Time: 3–4270 ms | | Dynamics | Dynamics (Compressor/Limiter)
Threshold: -92 to -20 dBFS
Ratio: 1.0:1 – 20.0:1, ∞:1
Attack Time: 20–120 ms
Release Time: 3–4270 ms
Gain: 0 to +20 dB
Knee: Hard, 1–5 | | Fade Control | Auto Fade Out/In for Source Selector
Attenuation -30 dB
Attack Time 100 ms
Hold Time & Mixing 100 ms
Release Time 100 ms | | | | RS-232C | Connectors: 9-pin D-Sub female connector (Remote input), 9- pin D-Sub male connector (Remote Extend output)
Speed: 9600/38400 bps
Power: +5 V via D-Sub connection | | RS-422 | Connector: RJ-45
Speed: 38400 bps
Terminal: 110 Ohms on/off
Power: +5 V via RJ-45 connection | | Ethernet | Connector: LAN port
Standards: Ethernet 10/100 Base | | | | Indicators | Level Indicators
Mic/Line: 1x LED (green-amber-red) per mic/line input
Source: 1x LED (green-amber-red) per stereo input
Output: 1x LED (green-amber-red) per zone
Protection: 1x LED (red) per speaker output zone
Peak Indication: -1 dB to 0 dB | | | | Operation Conditions | Temperature: 41-95° F / 5-35° C
Humidity: 25-85%, non-condensing | | Power | Connection: IEC
Requirement: 100-240 VAC, 50/60 Hz
Consumption: 135 W | | Dimensions (W x D x H) | 19.0 x 17.0 x 3.5" / 48.3 x 43.2 x 8.9 cm | | Weight | 23.2 lb / 10.5 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 24.0 x 20.5 x 8.0" |
