User Manual for Denon DN-700AV 7.1-Channel A V Receiver Click to enlarge the picture
Contents of the user manual for the Denon DN-700AV 7.1-Channel A V Receiver
- Product category: Receivers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Receivers
 |
User manual for the Denon DN-700AV 7.1-Channel A V Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

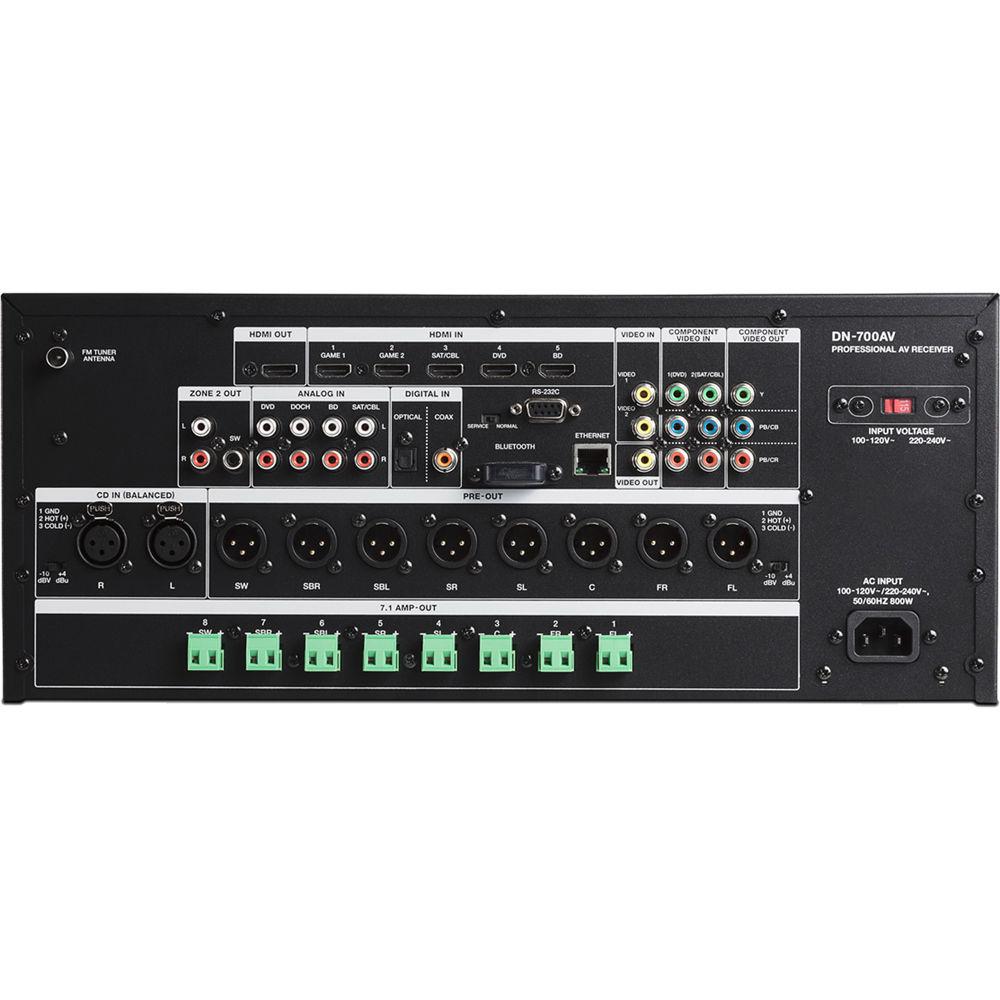

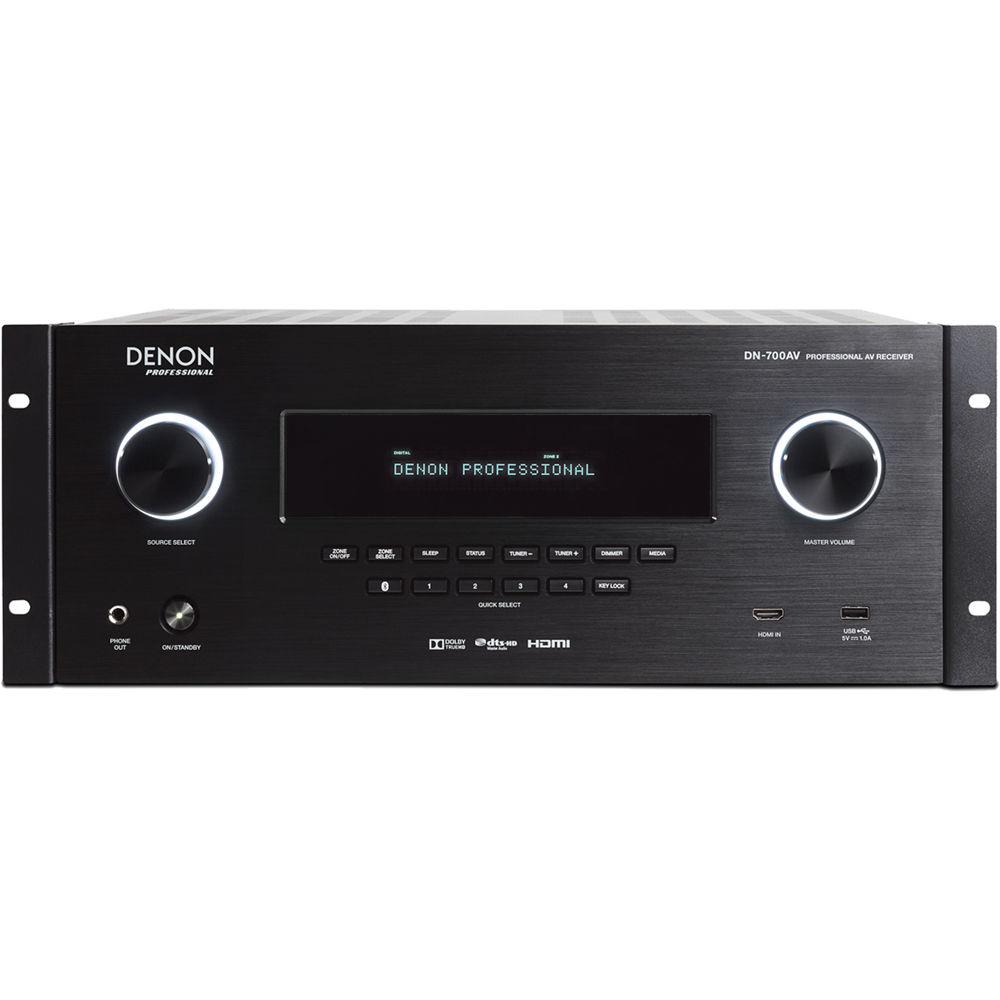

Product description The DN-700AV 7.1-Channel A/V Receiver from Denon features six HDMI inputs, component/composite input/output, XLR balanced 7.1 pre-out, and RS-232C and IP control. Equipped with Bluetooth 4.0 and DLNA media streaming, it is compatible with a wide variety of wired and wireless devices. It supports various multi-channel formats, including Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, and DTS ES. This HDCP-compatible unit also features a rackmount chassis, Euroblock amplifier outputs, balanced XLR preamplifier outputs, and a balanced XLR stereo input. - Six HDMI version 1.4 inputs and one output
- Component & composite video inputs and outputs
- Dolby TrueHD / Dolby Digital Plus / Dolby Digital / DTS-HD Master Audio / DTS ES
- XLR balanced 7.1 preamp outputs
- Euroblock 7.1 amplified outputs (75W per channel)
- FM tuner with 20-channel memory
- HDCP compatible and network streaming via DLNA 1.5

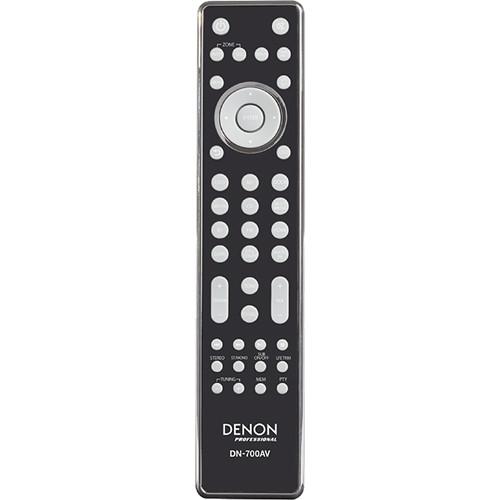

UPC: 694318022238 In the Box Denon DN-700AV 7.1-Channel A/V Receiver Power Cable FM Antenna Remote Control Euroblock Connectors Limited 1-Year Warranty User Manual PDF 6.5mbbfsfqddaruztxassdydybty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-700AV 7.1-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-700AV Specs | Bluetooth | Version: 4.0
Profile: A2DP, AVRCP
Range: Up to 50' / 15 m
Maximum Transmission Power: -6 to 4 dB, Class 2
Frequency: 2.4 to 2.48 GHz | | FM Tuner | Frequency Range: 87.5 to 108 MHz | | USB | File System: FAT16/32
Media Type: USB flash drive | | Audio Specifications | Preamp Output: 7.1 surround sound
Level: -10 dBv or 4 dBu
Output Power Per Channel: 75W/ch
Frequency Response: 10 Hz to 100 kHz (±1 dB)
Dynamic Range: 10 Hz to 100 kHz, A-weighted, >90 dB
Signal-to-Noise: 1 kHz, 0 dB, A-weighted, >90 dB
Distortion: <0.006%
T.H.D: 1 kHz, 0 dB, A-weighted, <0.01% | | Surround Formats Supported | Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES | | Supported File Types | WMA, MP3, WAV, MPEG-4 AAC, and FLAC files | | Analog Input | Unbalanced RCA: -10 dBV (nominal level), -16 dB (full scale)
Minimum Input Level: -19 dBv or higher
Input Impedance: 47 kOhms, ±10%, unbalanced | | Digital Inputs | Coaxial: RCA (IEC-60958 Type II)
Optical: Toslink (IEC-60958 Type II) | | Composite Video | Input/Output Level: 1 V p-p
Impedance: 75 Ohms
Frequency Response: 5 Hz to 10 MHz | | Input Level | Y signal, 1 V p-p
Pb/Cb signal, 0.7 V p-p
Pr/Cr signal, 0.7 V p-p | | Impedance | Y signal, 75 Ohms
Pb/Cb signal, 75 Ohms
Pr/Cr signal, 75 Ohms | | Frequency Response | 5 Hz to 60 MHz | | HDMI | Version 1.4 (3D and ARC supported) | | Inputs | 5 x HDMI audio/video input (back)
1 x HDMI audio/video (front)
4 x stereo RCA pair audio
1 x optical audio
1 x coaxial audio
2 x composite video
2 x component video
1 x stereo XLR balanced pair
1 x USB (front) | | Outputs | 1 x HDMI audio/video
1 x stereo RCA (pair) zone 2 audio
1 x RCA zone 2 subwoofer
1 x composite video
1 x component video
1 x 7.1-channel XLR balanced preout
1 x 7.1-channel Euroblock preout
1 x 1/4" (6.35 mm) headphone (front) | | Other Connections | 1 x RJ45 Ethernet
1 x 9-pin Sub-D RS-232C serial port control
1 x FM tuner antenna | | Power Connection Type | IEC | | Input Voltage | 100 to 240 V, 50/60 Hz | | Fuse | T10AL 250 V | | Power Consumption | <20 W | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 25 to 85%, non-condensing | | Dimensions | 19.00 x 13.66 x 6.93" / 48.3 x 34.7 x 17.6 cm | | Weight | 32.4 lb / 14.7 kg | | | | Package Weight | 42.55 lb | | Box Dimensions (LxWxH) | 21.8 x 21.4 x 12.8" |
