User Manual for Denon DN-700AVP 7.1-Channel Network Preamplifier Click to enlarge the picture
Contents of the user manual for the Denon DN-700AVP 7.1-Channel Network Preamplifier
- Product category: Amplifiers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Amplifiers
 |
User manual for the Denon DN-700AVP 7.1-Channel Network Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

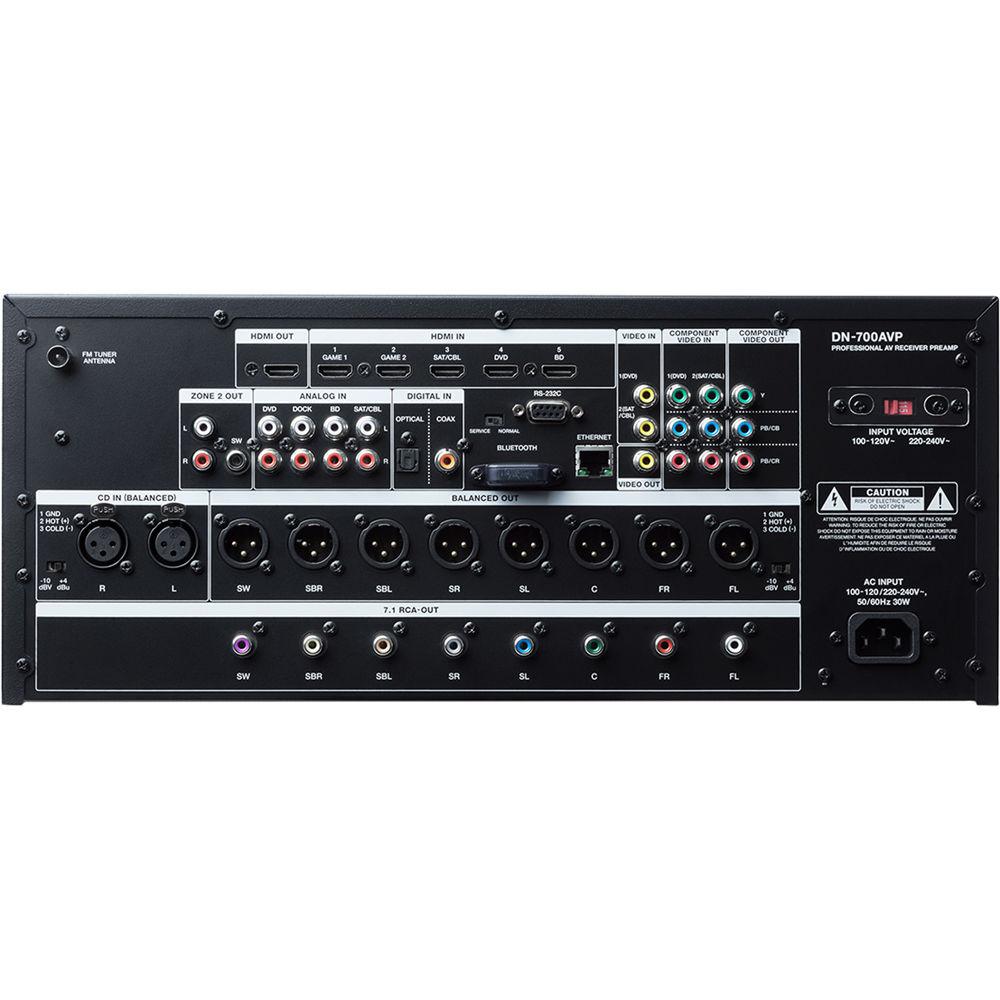

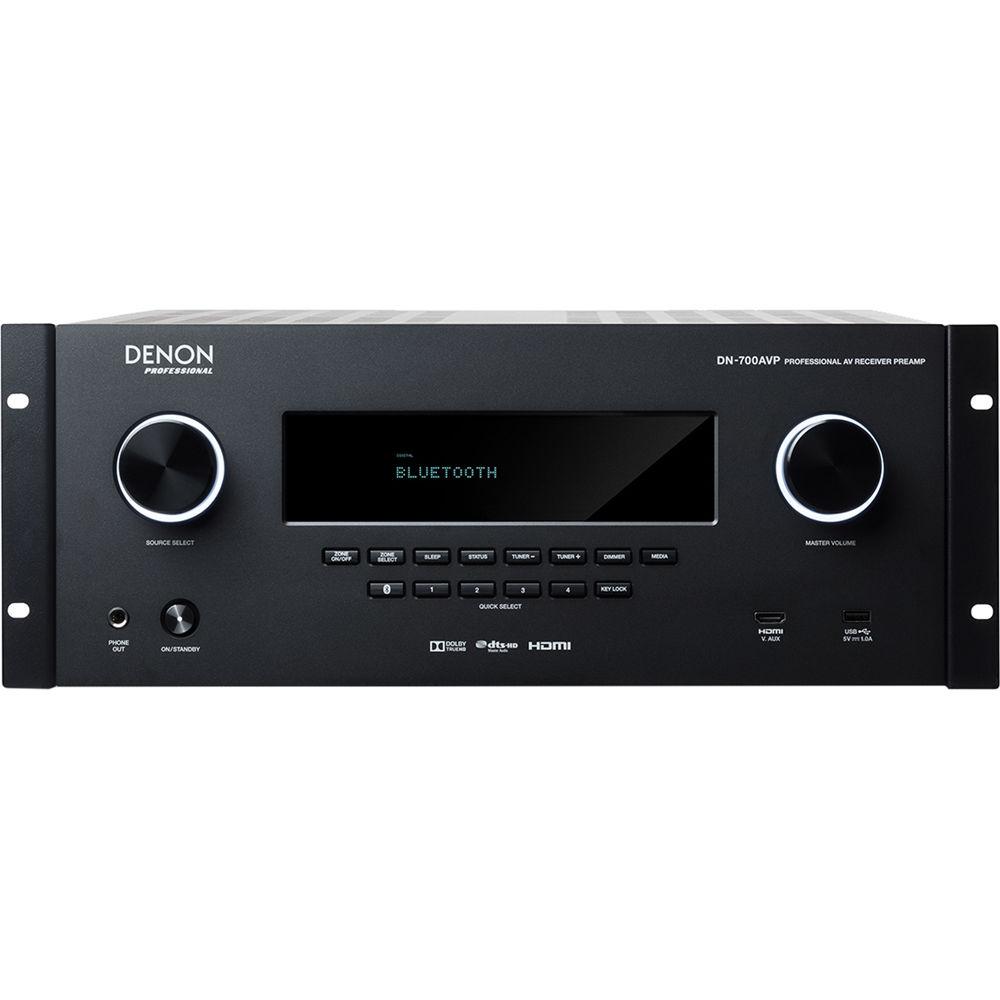

Product description Enjoy audiophile quality surround sound with your rackmount home theater system and the Denon DN-700AVP 7.1-Channel Network Preamplifier. It features both balanced XLR and unbalanced RCA 7.1-channel outputs to connect to your compatible amplifier or receiver and has a stereo XLR input for connecting your audiophile-grade CD player or other device. Bluetooth and Ethernet LAN connectivity let you stream from your favorite compatible devices, and a variety of A/V connectors let you easily integrate it with your TV or projector. An FM radio with the ability to store your 20 favorite stations is also onboard. -
- Support for various multi-channel audio formats, including Dolby TrueHD, Dolby Digital Plus, DTS-HD, DTS ES, and more
- HDCP-compatible
- DLNA streaming via Ethernet
- Bluetooth streaming
- Rackmount chassis
- Balanced XLR stereo input
- FM tuner with 20-channel memory

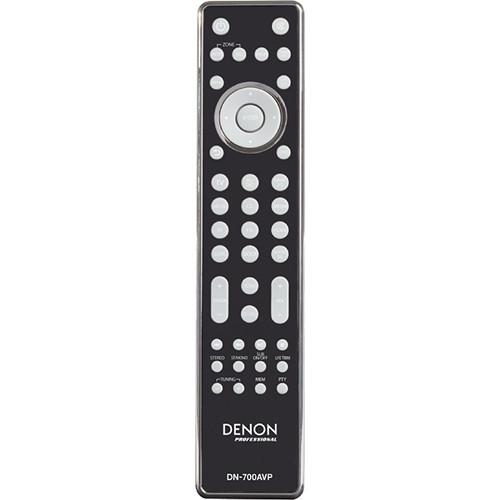

UPC: 694318023198 In the Box Denon DN-700AVP 7.1-Channel Network Preamplifier Remote Control FM Antenna Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-700AVP 7.1-Channel Network Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-700AVP Specs | | | Number of Channels | 7.1 | | Audio Level | -10 dB or +4 dB | | Frequency Response | 10 Hz to 20 kHz ±1 dB | | Dynamic Range | 10 kHz to 20 kHz, A-weighted >90 dB | | Signal to Noise Ratio | 1 kHz, 0 dB, A-weighted >90 dB | | Distortion | <0.006% | | THD | <0.01% @ 1 kHz, 0 dB, A-weighted | | Surround Formats Supported | Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES | | | | Bluetooth | Version: 4.0
Profile: A2DP, AVRCP
Maximum Transmission Power: -6 dB ±4 dB, Class 2
Frequency: 2.4 to 2.48 GHz | | Inputs | 6 x HDMI version 1.4b (1 front)
2 x component video
2 x composite video
1 x digital coaxial audio
1 x optical TOSLINK audio
1 x balanced XLR audio pair
4 x stereo RCA audio | | Outputs | 1 x HDMI
1 x component video
1 x composite video
7.1-channel balanced XLR pre-out
7.1-channel RCA pre-out
1 x zone 2 2.1-channel RCA pre-out
1 x 1/4" / 6.35 mm headphone (front) | | Other Connectors | 1 x RJ45 Ethernet LAN
1 x USB Type-A (front)
1 x FM antenna in
1 x D-sub 9 RS-232C control | | HDCP Support | Yes | | Input Level and Impedance | Composite Video: 1 Vp-p, 75 Ohms
Component Video, Y Signal: 1 Vp-p, 75 Ohms
Component Video, Pb/Cb & Pr/Cr Signal: 0.7 Vp-p, 75 Ohms | | Frequency Response | Composite Video: 5 Hz to 60 MHz | | Analog In | Nominal Level: -10 dBV (-16 dB at full scale)
Minimum Input Level: ≥-19 dBV
Input Impedance: 47 kOhms ±10%, unbalanced | | File System Support | FAT 16/32 | | File Formats | Via USB: WMA, MP3, WAV, MPEG-4 AAC, FLAC | | | | Frequency Range | 87.5 to 108 MHz | | | | Operating Temperature | 41 to 113°F / 5 to 40°C | | Operating Humidity | 25 to 85% (non-condensing) | | Power Requirements | 100 to 120 VAC, 220 to 240 VAC | | Power Consumption (Active) | 30 W | | Dimensions | 19 x 6.93 x 13.66" / 483 x 176 x 347 mm | | Weight | 19.1 lb / 8.66 kg | | | | Package Weight | 28.25 lb | | Box Dimensions (LxWxH) | 21.5 x 21.5 x 12.5" |
