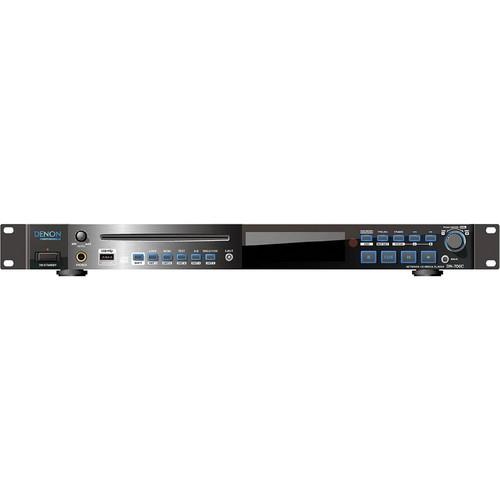

User Manual for Denon DN-700C Network CD Media Player Click to enlarge the picture
Contents of the user manual for the Denon DN-700C Network CD Media Player
- Product category: CD/DVD/Blu-Ray Recorders & Players Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon CD/DVD/Blu-Ray Recorders & Players
|
User manual for the Denon DN-700C Network CD Media Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|
Product description The Denon DN-700C Network CD / Media Player is designed to be a fully functional broadcast/professional installation network CD and media player with support for multiple audio sources. It's housed in rack-mountable 1U chassis and it can be controlled using a variety of remote control interfaces including an IR handset, Parallel GPIO, RS-232C or a via a network using the built-in web remote. The web-based interface also supports hot start playback. The player features a front panel USB port as well, which supports mass storage device playback and iPod/iPhone connectivity. The USB port supports a variety of file formats. The slot-loading CD mechanism also supports multiple disc types and file formats. Other front panel features include five front panel hot start buttons that provide direct access to specific audio files, cue to audio, program playback, a headphone jack and an OLED display with 'end monitor' and 'finish mode' features to signal the end of the audio track. The DN-700C also includes Denon's Professional's Product Manager Software, which affords single point control of multiple players from a PC or Mac over a network. You can use the web remote and the software to remotely control power on and off sequences for a single unit or for multiple units in groups. Other features include left and right balanced XLR analog audio outputs, a balanced AES/EBU digital XLR output and compatibility with the Denon Professional Pitch Control App, which supports instant access of music playback via artist, title, album and playlist filters. You can also use your mobile device touchscreen to increase or decrease the pitch and tempo as desired. - Streams audio over the network via DLNA
- Supports Playback of CD-DA , WAV, AIFF, MP3 and AAC files
- USB device (mass storage class) and iPod playback
- Large, bright OLED display
- Balanced left and right XLR analog audio outputs
- AES/EBU digital format XLR output
- Supports external control operation via IP Control (Ethernet), RS-232C, GPIO and IR
- Extended control via Ethernet using the improved web-GUI 'Web Remote' and/or the included Denon Professional Product Manager software for PC/Mac
- Compatible with the RC-F400S wired remote control (available separately)
- Supports the Denon Professional Pitch Control App (available from the App Store)
- Pitch control playback allows adjustment of the playback speed between -16 to +16% in 0.1% steps
- End monitor and user-selectable
- Detachable, IEC-weighted AC inlet
UPC: 883795002615 In the Box Denon DN-700C Network CD / Media Player RC-1177 Remote Control 2 x AAA Batteries (for Remote) Power Cord Power Plug Conversion Adapter CD-ROM (Owner's Manual) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-700C Network CD Media Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon DN-700C Specs | | | System | Network CD / Media Player | | Compatible Media | CD Media
USB flash memory
USB HDD
iPod | | File System Support | CD: CD-DA (CD Text), CD-ROM (ISO9660)
USB: FAT16, FAT32, HFS+ | | Playable File Formats | Playable WAV Format
Extension: WAV, AIFF, AIF
Resolution: 16 / 24-bit
Sampling Frequency: 96, 48, 44.1 kHz
Playable MP3 Format
Extension: MP3
Bit rate: 32-320 kbps, VBR
Sampling Frequency: 48, 44.1 kHz
Playable AAC Format
Extension: M4A, AAC
Compression Method: AAC-LC
Bit rate: 64-320 kbps, VBR
Sampling frequency: 48, 44.1 kHz | | Number of Channels | 2 (stereo)
1 (mono) | | Frequency Range | 20 Hz - 20 kHz (±0.5 dB) | | Signal to Noise Ratio | >105 dB (A-Weighted) | | Total Harmonic Distortion (THD) | <0.005% | | Dynamic Range | >105 dB (for 24-bit WAV playback) | | Channel Separation | <-106 dB | | Variable Pitch Width | ±16% | | Variable Trim Adjustment Width | ±2 dB | | | | Balanced Analog Out L/R | Type: XLR (3-pin) x 2 (L/R)
Pin Arrangement: Ground (1), Hot (2), Cold (3)
Load Impedance: Over 600 ohms
Output Level: 8.23 dBu (max 24 dBu) at 600 ohms load | | Unbalanced Analog Out L/R | Type: RCA terminal x 2 (L/R)
Load Impedance: Over 10 kohms
Output Level: 2 Vrms (max 10 dBV) at 10 kohms load | | Balanced Digital Out | Type: XLR (3-pin) x 1
Pin Arrangement: Ground (1), Hot (2), Cold (3)
Output Impedance: 110 ohms
Standard Output Level: 3.5 Vp-p
Format: IEC-60958 (AES/EBU) | | Unbalanced Digital Output | Type: Coaxial RCA terminal x 1
Output Impedance: 75 ohms
Standard Output Level: 0.5 Vp-p
Format: IEC-60958 (Coaxial) | | Headphone Output | Type: 1/4" (6.35 mm) jack x 1
Power Output: 20 mW
Impedance: 32 ohms | | LAN Interface | Ethernet (10/100Base-T) RJ-45 jack x 1 | | Remote Interface | RS-232C (9-pin) jack x 1
Parallel (25-pin) jack x 1 | | | | Max Storage Capacity | Up to 2TB | | Max File Size | 4GB | | Max Number of Files | 2000 files (for 1 folder) | | Max Number of Folders | 1000 folders | | Max Number of Folder Hierarchies | 8 (under the root directory) | | Max Number of Marks | 30 per file | | Max File Name Length | 255 characters | | Max Folder Name Length | 255 characters | | Max Preset Name Length | 8 characters | | Max Machine ID Name Length | 8 characters | | Power Supply | AC 120 V, 60 Hz | | Power Consumption | 30 W | | Standby Power Consumption | 0.4 W | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 25 to 85% (no condensation) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (WxHxD) | 19.0 x 1.7 x 12.8" (483 x 44 x 325 mm) | | Weight | 9.04 lb (4.10 kg) | | | | Package Weight | 15.1 lb | | Box Dimensions (LxWxH) | 21.1 x 20.3 x 6.4" |
