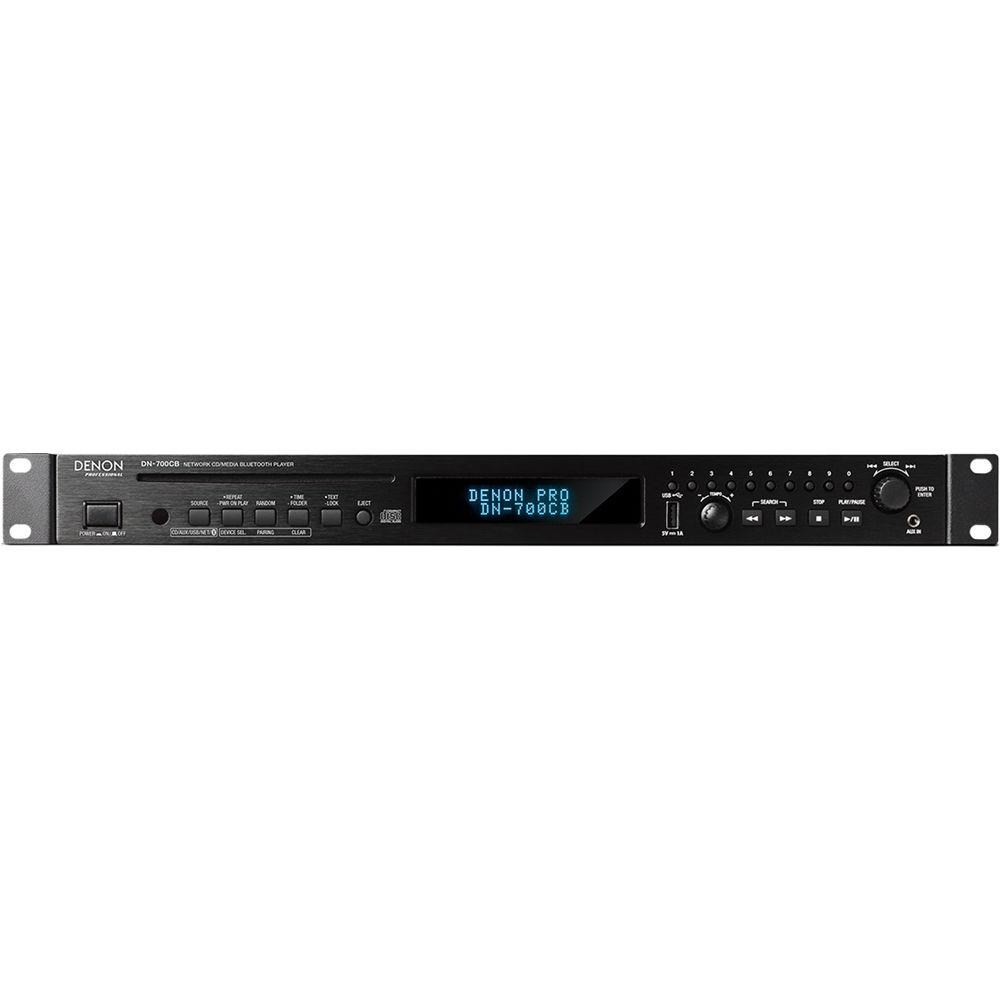

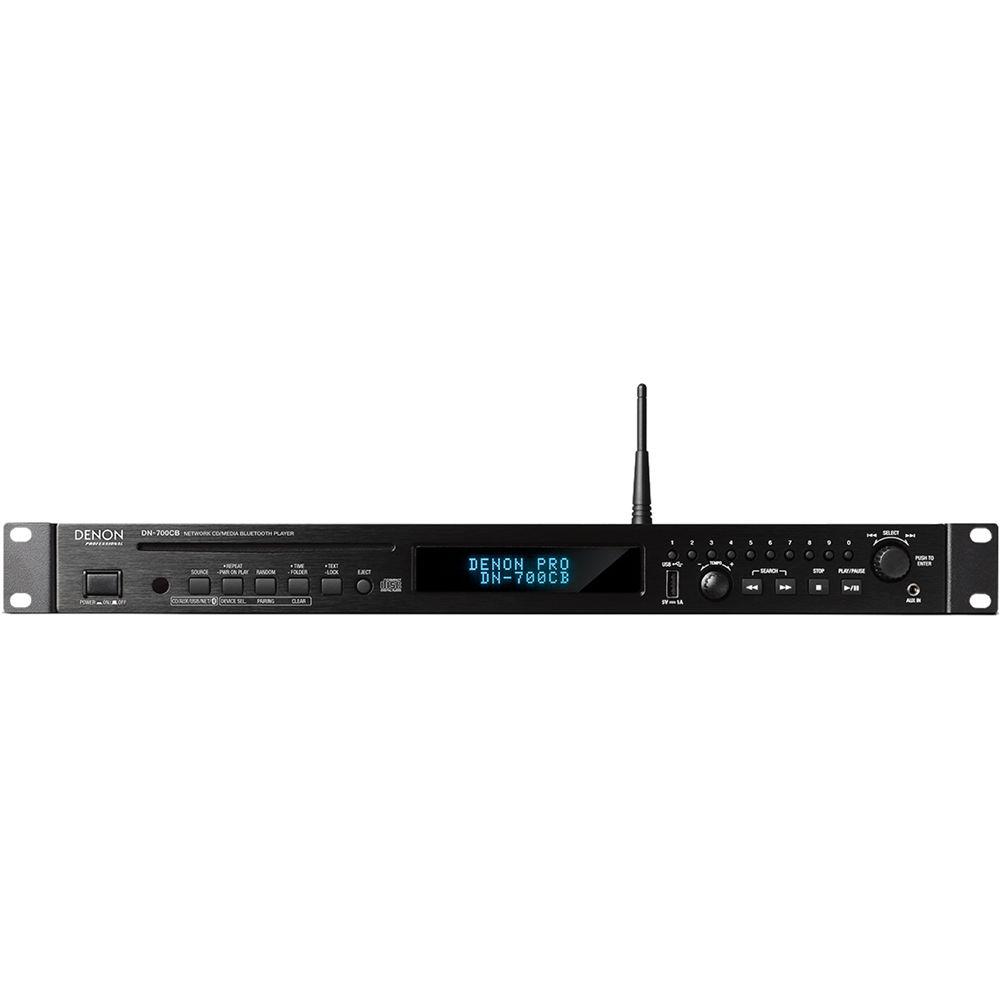

Product description Easily manage music playback from a variety of sources with the Denon DN-700CB, a rack-mountable network CD/media Bluetooth player that occupies just 1 RU of rack space. Thanks to an integrated CD disc drive, a USB Type-A port, and a built-in Bluetooth receiver, the DN-700CB can play audio files from CDs, USB drives, or Bluetooth-enabled phones/tablets/computers. Its 3.5mm aux input and RJ45 port further expand playback sources to include non-Bluetooth mobile devices and files on a local network. Utilize the informative display and full array of buttons on the DN-700CB's front panel for straightforward operation, or remotely control everything from source selection to tempo control via a user-friendly web browser or the supplied 21-button infrared remote. Connect the stereo outputs (balanced XLR and unbalanced RCA) to a mixer or PA system (available separately) for amplification into your store, house-of-worship, venue, classroom, or conference space. - Rack-mountable media player with network and RS-232C control capabilities
- Ideal for retail, house-of-worship, education, and hotel/conference applications
- Intuitive web browser and infrared user interface
- File playback from CD, USB, network audio, Bluetooth, or 3.5mm aux input
- Tempo control for CD and USB
- 10-track hot start buttons for CD, USB, and network playback
- Front-panel display and buttons for easy setup, navigation, and control

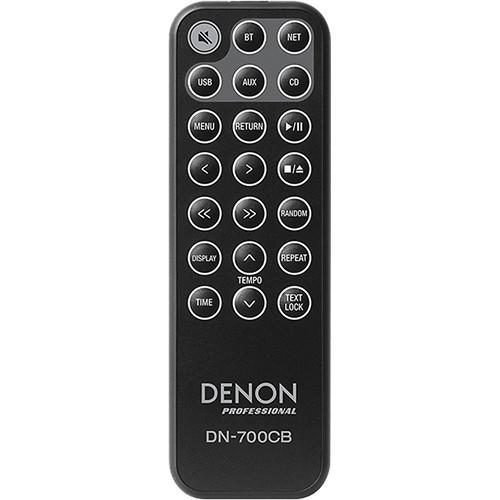

- Includes infrared remote control, power cable, and two Bluetooth antennas
- Rugged enclosure occupies 1 RU of rack space
UPC: 694318024232 In the Box Denon DN-700CB Network CD/Media Bluetooth Player Power Cable Remote Control Bluetooth Straight Antenna Bluetooth Remote Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DN-700CB Network CD Media Bluetooth Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

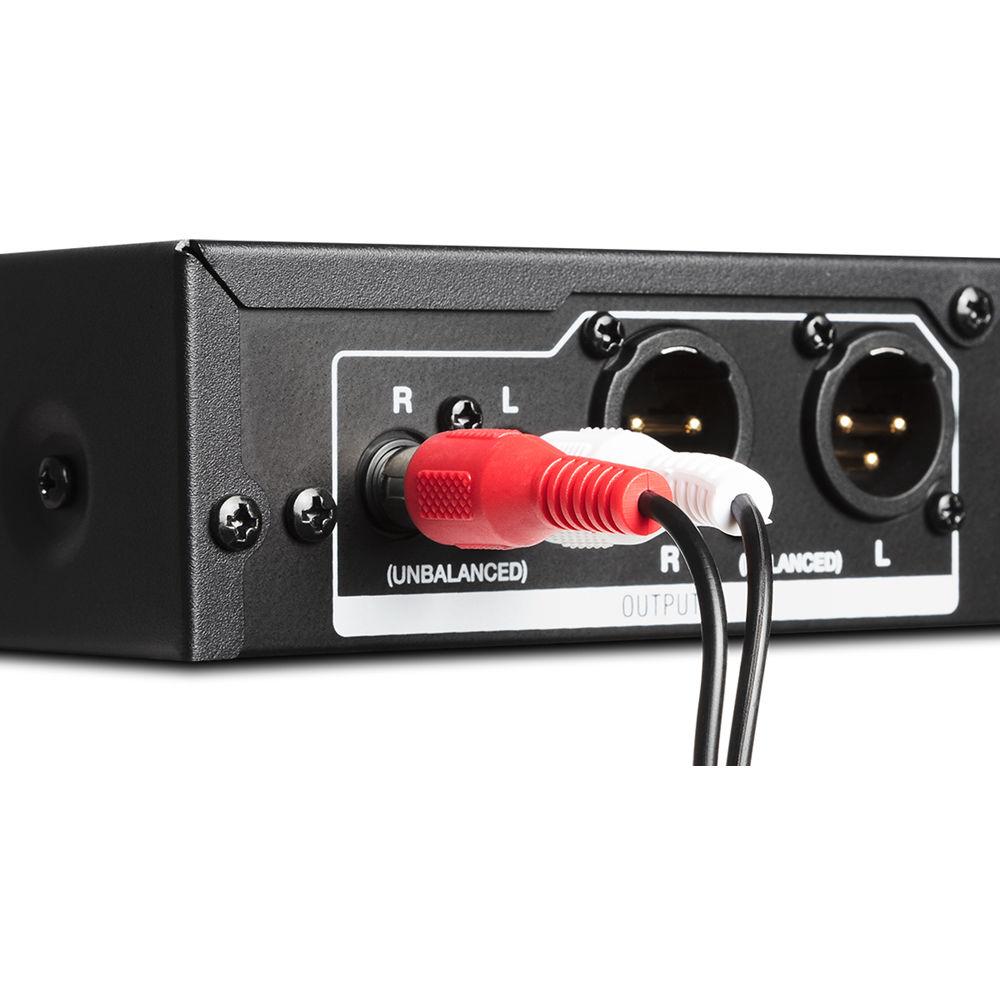

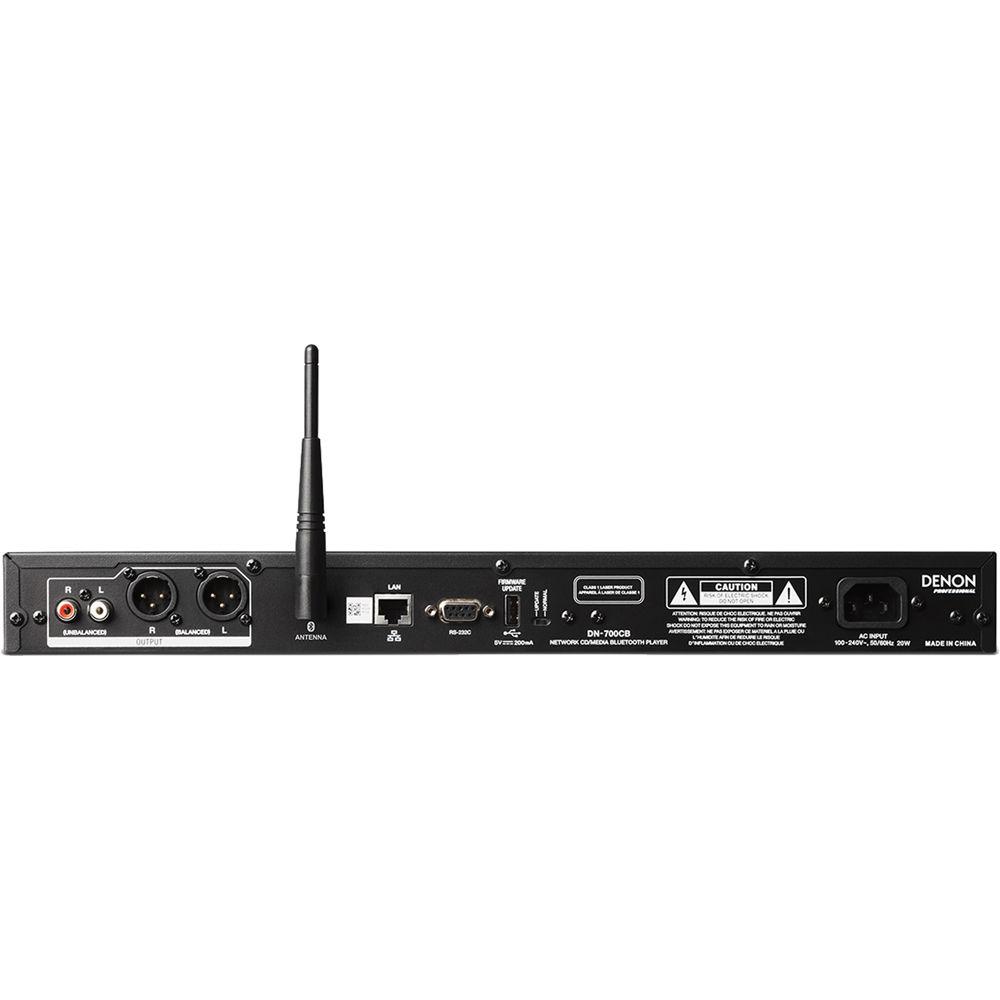

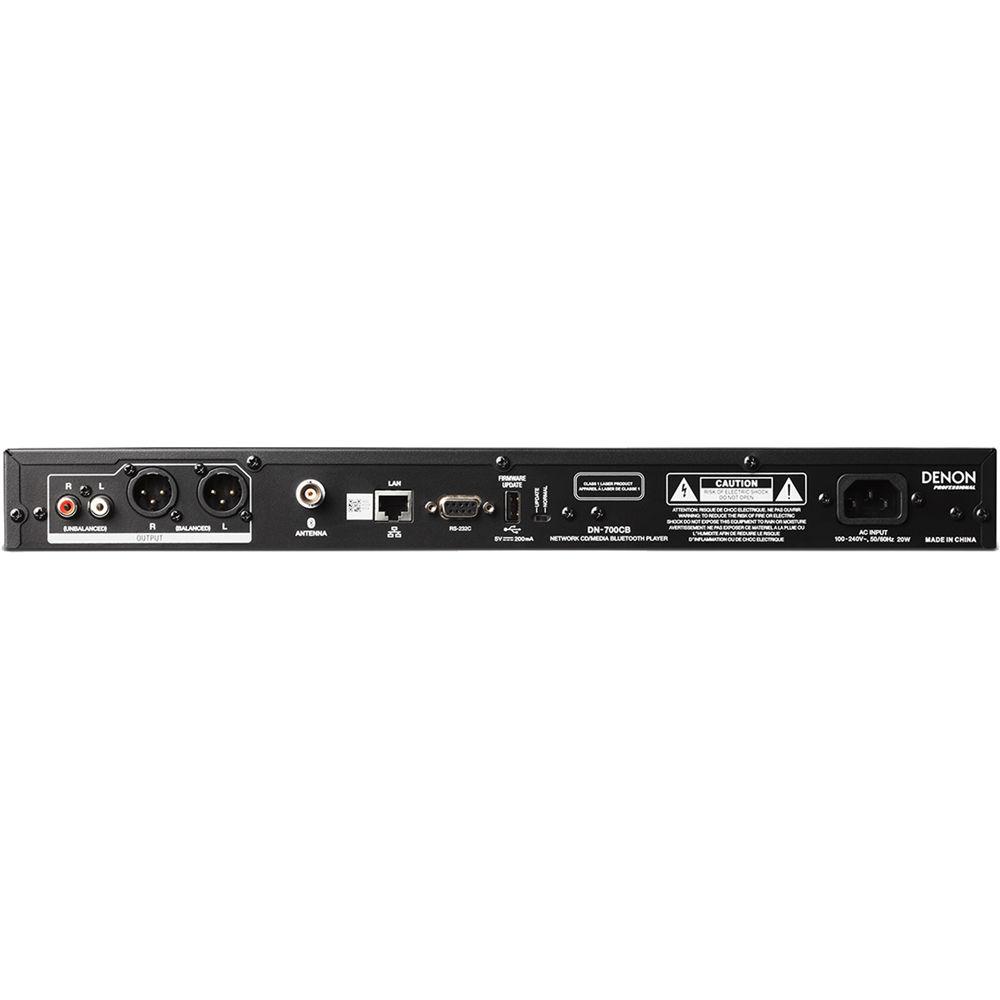

Technical parametersDenon DN-700CB Specs | Inputs | 1 x 1/8" / 3.5 mm TRS | | Outputs | 2 x 3-Pin XLR Male (Balanced)
2 x RCA Coaxial (Unbalanced) | | Disc Drive | 1 x CD Player | | Ethernet Connector | 1 x RJ45 | | USB Ports | 1 x USB Type-A for USB Mass Storage

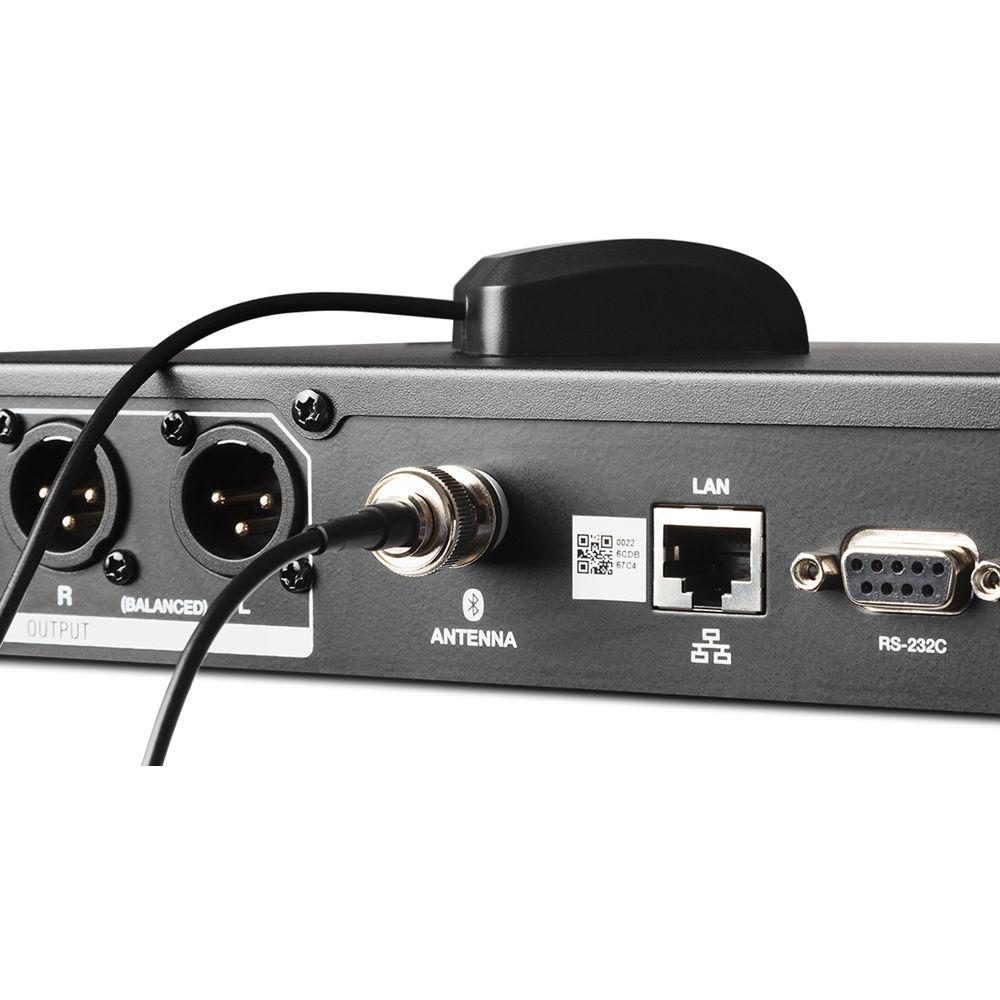

1 x USB Type-A for Firmware Update | | Bluetooth Version | 4.0 | | Bluetooth Class | Class 2 | | Bluetooth Profiles | A2DP, AVRCP 1.3 and 1.4 | | Bluetooth Codecs | SBC, MP3 | | Bluetooth Range | Up to 82' / 25 m | | Antenna Connector | 1 x BNC | | Remote Control Connector | 1 x DE9 (RS-232C) | | Serial Remote | Mode: Full Duplex
Baud Rate: 9600, 38,400, 115,200 b/s
Data: 8 Bits (Start Bit: 1 Bit, Stop Bit: 1 Bit)
Parity: None
Flow Control: None | | Infrared Remote | Protocol: NEC Format
Transmit Output Level: > 200 mV p-p | | IP Control | Web API: HTTP | | Supported Device Format | CD: CD-DA, CD-ROM (ISO 9660), CD-R
USB: FAT16, FAT32 | | Supported File Format | CD-DA, WAV, MP3 | | Sample Rate | CD-DA: 44.1, 48 kHz
WAV: 44.1, 48 kHz
MP3: 44.1 kHz | | Bit Depth | CD-DA: 16-/24-Bit
WAV: 16-/24-Bit
MP3: 32 to 320 kb/s (CBR and VBR) | | Supported Storage Capacity | Up to 2 TB | | Max File Size | 2 GB | | Max File Name Length | 255 Characters | | Max Number of Files | 999 for 1 Folder | | Max Number of Folders | 999 (Including Root Directory) | | Max Number of Folder Hierarchies | 8 (Including Root Directory) | | Max Folder Name Length | 255 Characters | | Number of Channels | 2 | | Maximum Input Level | 1 Vrms | | Output Level | Balanced: +4 dBu
Unbalanced: 2 Vrms at 10-kOhm Load | | Input Impedance | > 10 kOhms | | Load Impedance | > 10 kOhms (Balanced/Unbalanced) | | Frequency Response | 10 Hz to 20 kHz (
