User Manual for Denon DP-450 Stereo Turntable with USB Click to enlarge the picture
Contents of the user manual for the Denon DP-450 Stereo Turntable with USB
- Product category: Turntables Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Turntables
 |
User manual for the Denon DP-450 Stereo Turntable with USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

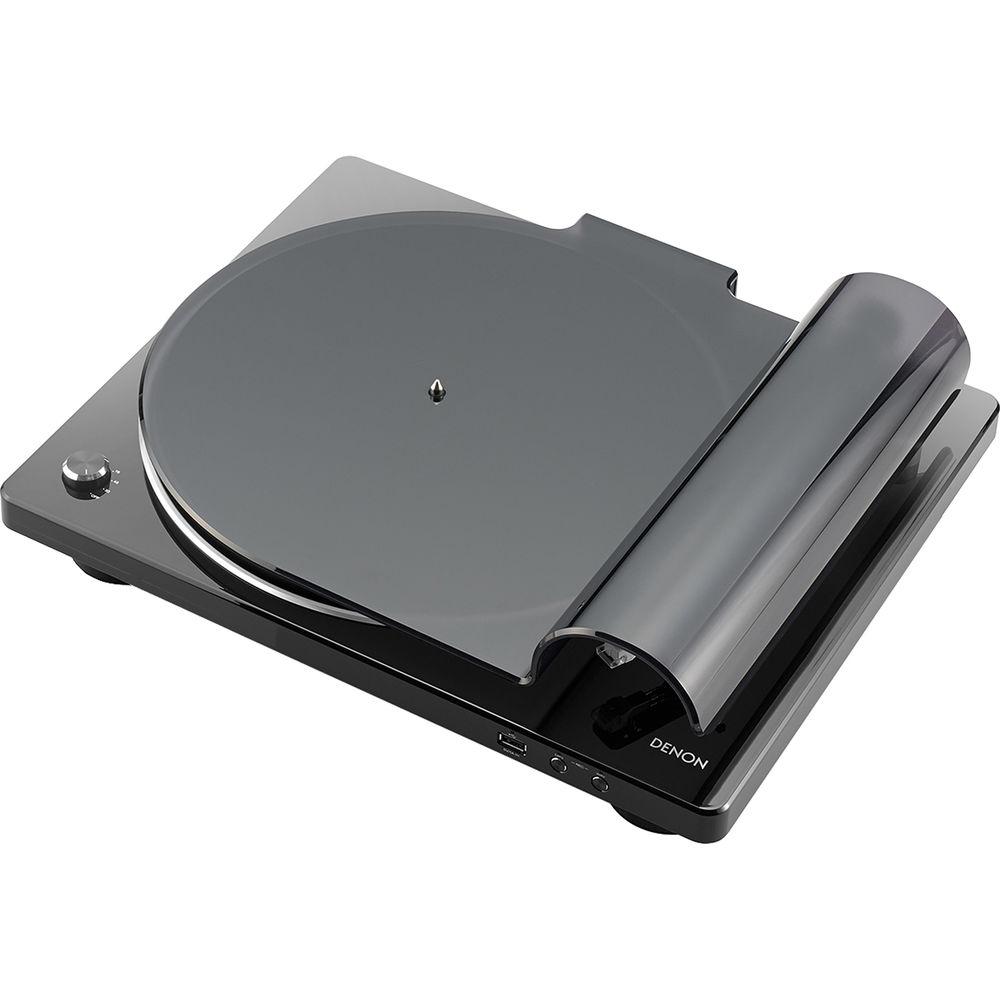

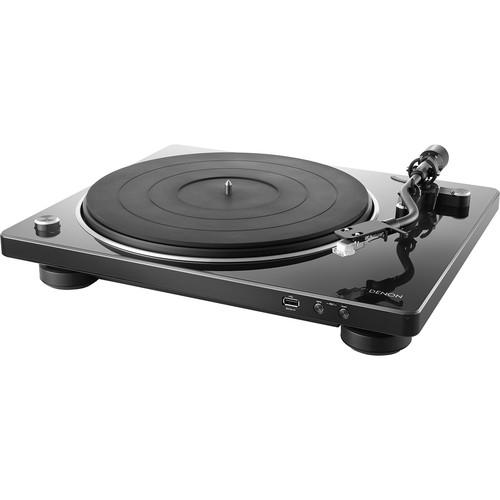

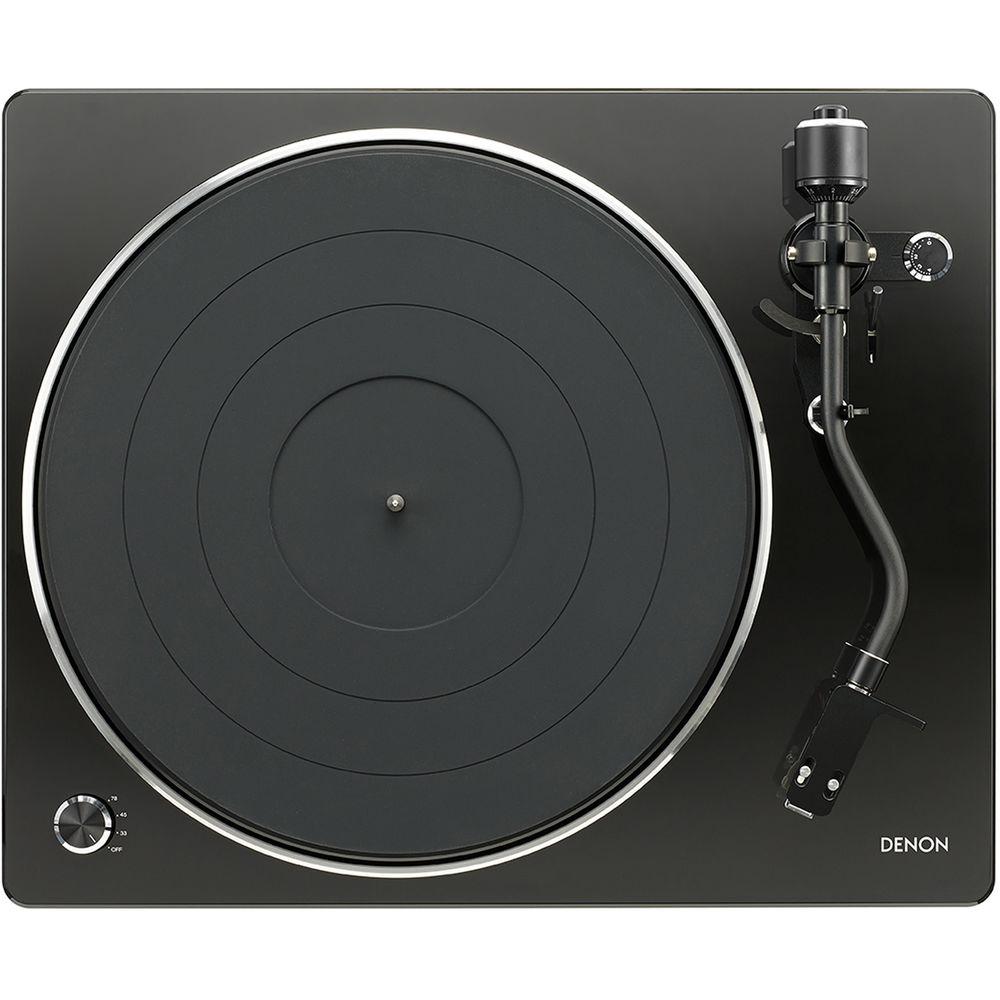

Product description Digitize your 33 1/3, 45, and 78 rpm vinyl records and listen through your stereo system with the black Denon DP-450USB Stereo Turntable. It has a USB output that enables you to rip your favorite tracks directly onto a USB flash drive in MP3 or WAV format. The turntable features an 8.66" tonearm tipped with a moving magnet (MM) cartridge and accepts optional moving coil (MC) cartridges to suit your preferences. The DP-450USB also has an RCA output with a built-in switchable equalizer, allowing you to connect it to virtually any stereo system. Its auto speed sensor helps prevent speed fluctuations during playback, which can distort the sound. - Turn Your Vinyl Records into Digital Files
- The integrated USB output allows for one-touch recording of your favorite vinyl tracks onto a USB drive as MP3 or WAV format files. Play your albums on the DP-450USB or record them and take them with you.
- Auto-Lift Tonearm

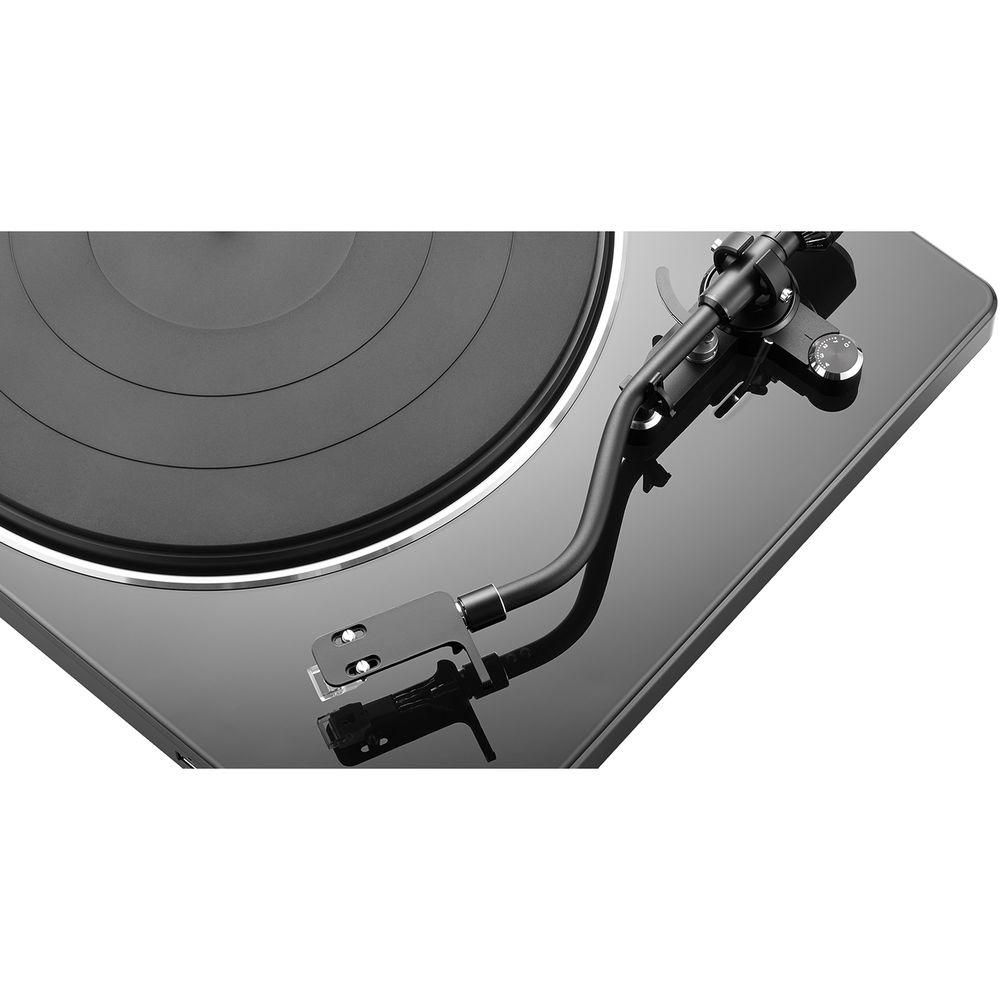

- The DP-450USB features a curved, horizontal-tracking, angled tonearm with auto-lift and playback stop; when the record reaches the end of playback, the tonearm automatically lifts 10 seconds prior to the groove end and returns to its seated position, helping to preserve the condition of your album. The curved design also helps reduce tracking distortion for clear audio.
- Weighted, Belt-Driven Platter with Rotation Control
- Integrated rotation control is designed to accurately control the platter, preventing unwanted speed fluctuations during playback, so you can enjoy playback as the artist intended. The base is also weighted to help minimize external vibrations.
- Speed Selector
- The DP-450USB supports playback at 33 1/3, 45, and 78 rpm, allowing you to play your entire vinyl collection.
- Designed for Easy Setup and Operation
- It takes just minutes to unbox and operate the DP-450USB. Plug it into your audio system and begin reconnecting with your vinyl collection.
- Removable Dual-Purpose Dust Cover
- The removable dust cover helps eliminate vibration issues that affect music quality associated with attached covers. You can place the dust cover upright on the included base to display your album cover.
- Phono Equalizer
- The built-in switchable phono equalizer helps create an open soundstage that keeps your music true to the original recording. Connect it directly to a component or integrated amp that lacks a dedicated phono terminal for seamless use.
- Engineered for Resonance-Free Music
- The turntable is engineered to provide the strength and density needed to reproduce detailed, resonance-free music. The cabinet walls and weighted platter help reduce external vibration.
- Cartridge Options
- The DP-450USB includes an MM cartridge for precise listening and musical detail, but if you prefer to use an MC cartridge, you can swap out the existing MM cartridge to suit your preferences.
- MusiCut Software for Windows 10
- Cut and organize your ripped vinyl albums with this MP3-only software. Download the metadata for each track and build a digital library of your vinyl collection with each record's original sound.
- Compact Design
- At just 16.3" wide, the DP-450USB is constructed to fit seamlessly into your existing hi-fi system.
UPC: 883795004503 In the Box Denon DP-450 Stereo Turntable with USB (Black) Stereo RCA Audio Cable Turntable Platter Turntable Sheet 45 rpm Adapter Headshell with Cartridge Counterweight Dust Cover Dust Cover Stand 5 x AC Adapter Plugs AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon DP-450 Stereo Turntable with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

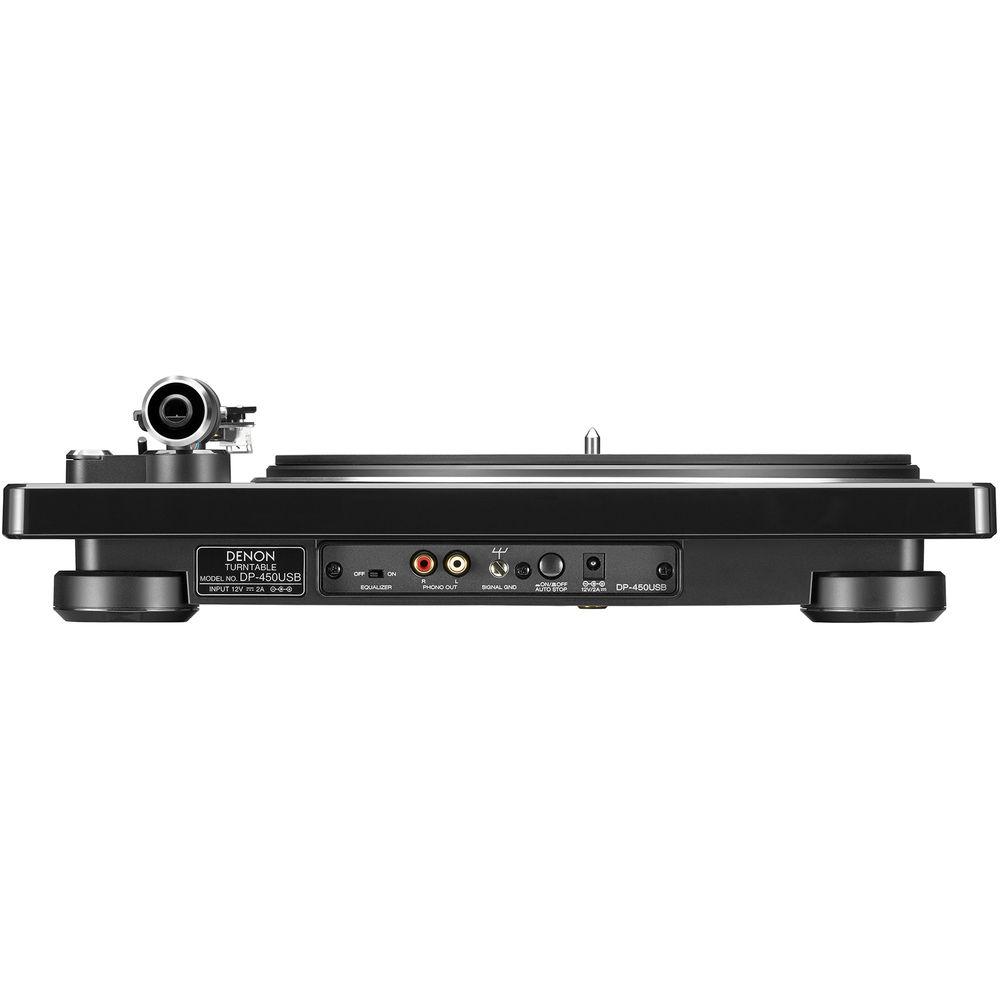

Technical parametersDenon DP-450USB Specs | | | Rotation Speed | 33 1/3, 45, 78 rpm | | Drive Method | Belt-Drive | | Motor | DC Servo | | Wow and Flutter | 0.1% WRMS | | Signal to Noise Ratio | 62 dB | | Platter Diameter | Not Specified by Manufacturer | | | | Design | Static Balanced, Curved | | Effective Arm Length | 8.66" / 220 mm | | Overhang | 0.63" / 16 mm | | Cartridge Weight | Compatible: 5 to 13 g / 59.2 to 127.5 mN | | | | Cartridge Type | MM-Type | | Output Voltage | Equalizer Off: 2.5 mV
Equalizer On: 150 mV | | | | Needle Pressure Range | 0 to 4 g / 0 to 39.2 mN
1 Gradation is 0.1 g / 0.98 mN
Optimal: 2 g / 19.6 mN | | Replacement | DSN-85 | | | | Output | 1 x Stereo RCA Pair with Ground Screw
1 x USB 2.0 Type-A (Front) | | Output File Formats | MP3, WAV | | | | Power Requirements | 100 to 230 VAC, 50/60 Hz | | Operating Power Consumption | 10 W | | Standby Power Consumption | ≤0.5 W | | Dimensions (W x H x D) | 16.2 x 5.2 x 13.7" / 41.1 x 13.2 x 34.8 cm Including Dust Cover | | Weight | 12.4 lb / 5.6 kg Including Dust Cover | | | | Package Weight | 17.65 lb | | Box Dimensions (LxWxH) | 19.5 x 17.0 x 9.5" |
