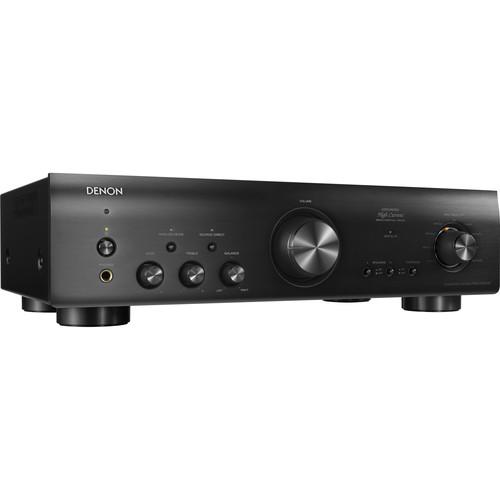

User Manual for Denon PMA-800NE Stereo 100W Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Denon PMA-800NE Stereo 100W Integrated Amplifier
- Product category: Amplifiers Denon
- Brand: Denon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Denon Amplifiers
 |
User manual for the Denon PMA-800NE Stereo 100W Integrated Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Denon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Denon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Denon product will considerably shorten its lifespan!
|

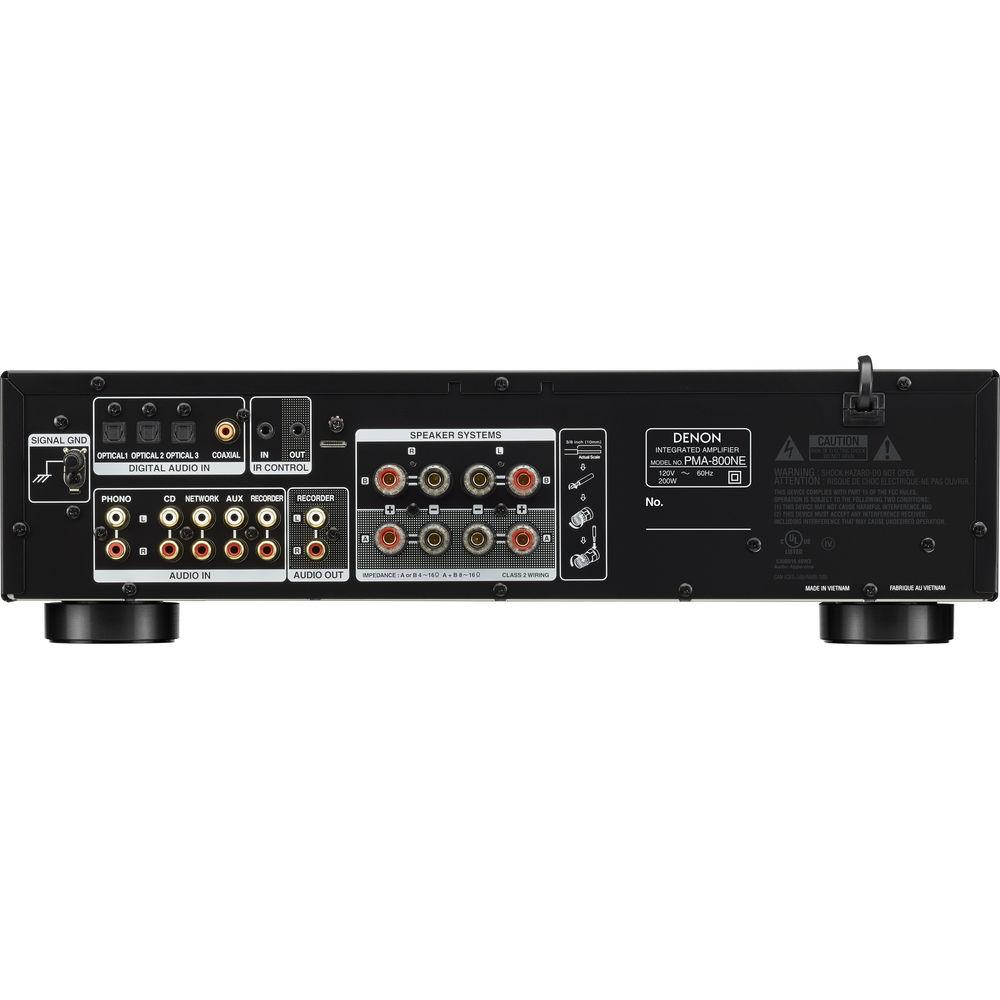

Product description Enjoy high-resolution stereo sound with the Denon PMA-800NE Stereo 100W Integrated Amplifier. It outputs up to 50W per channel at 8 Ohms and features an SLDC chassis design to help isolate the internal components to minimize interference. It allows you to input digital audio signals via three optical and one digital coaxial input. Four gold-plated stereo RCA inputs let you connect analog devices, and the MM/MC phono input enables connectivity with a variety of record players. The PMA-800NE includes a remote control as an added convenience. - Advanced High Current (AHC) Single Push-Pull Circuit
- The PMA-800NE features AHC (Ultra High Current) transistors designed to support a higher electrical current supply capacity than conventional audio power transistors.
- Up to 100 kHz Frequency Response
- The amplifier circuit is engineered to secure a frequency response of up to 100 kHz, while the volume circuit suppresses noise in the amplifier for enhanced sonic resolution, enabling the PMA-800NE to handle a variety of high-resolution audio sources with tone control and power throughout.
- Analog Mode
- This mode allows the amplifier to operate as a purely analog amp, disabling the digital inputs while you listen to an analog source. Enable this mode to cut power to the dedicated digital power source, preventing any high-frequency influence on the analog section for enhanced clarity and detail.
- MM/MC Phono Equalizer
- The PMA-800NE includes a phono equalizer that supports input from both MM and MC cartridges. This phono equalizer is designed for high gain, and as loops in the circuit board pattern can cause adverse effects on sound quality, the straightforward design helps mitigate these effects.
- Direct Mechanical Ground Construction

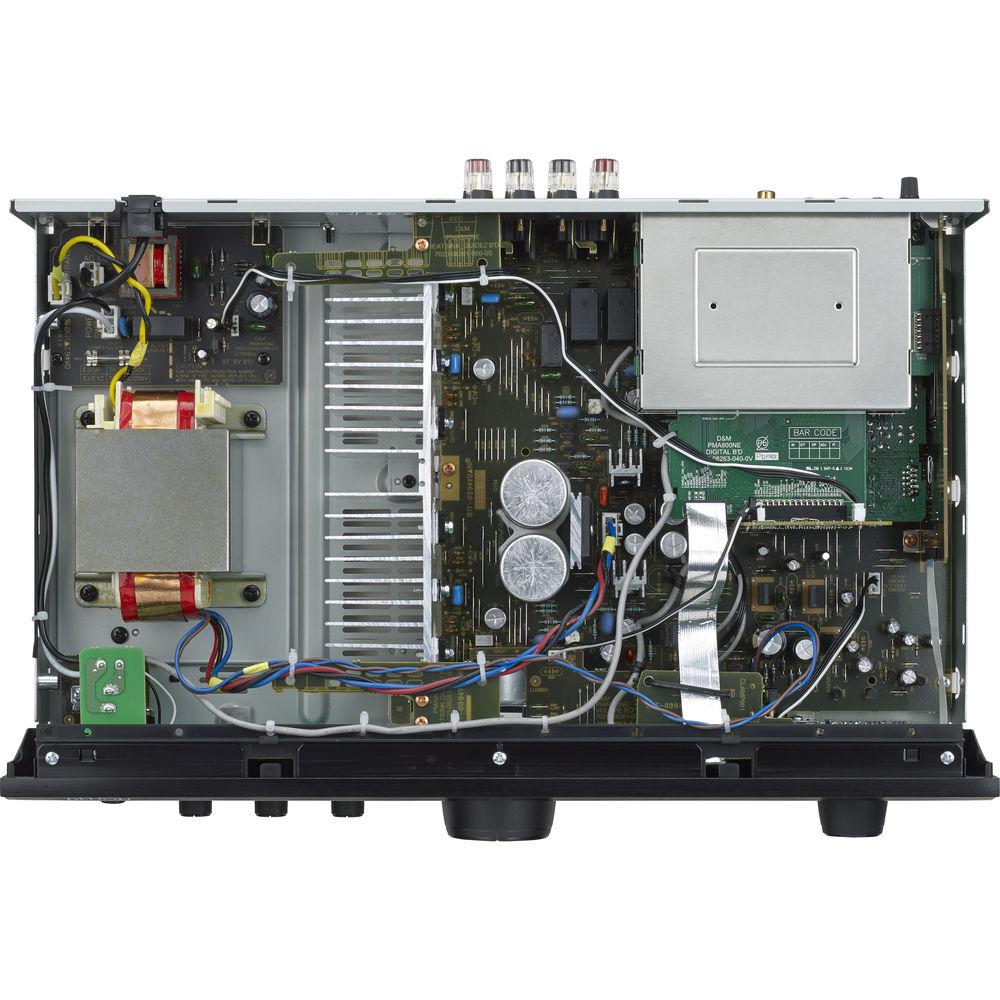

- The vibration-resistant design helps reduce the adverse effects of heavy components within the amplifier. The power transformer, which is the largest vibration source among amplifier components, is outfitted with a 1.6mm thick steel plate, suppressing vibration created by the transformer as well as external vibration toward the transformer. By directly supporting the transformer with this steel plate, the vibration surrounding the chassis is reduced, resulting in enhanced sound clarity.
- Optical and Digital Coaxial Inputs
- The PMA-800NE features three optical inputs and one digital coaxial input, and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve the sound quality of your TV audio, Blu-ray discs, media players, and more.
- Main Transformer with Individual Wiring
- To reduce interference and maintain sound quality, the main power transformer of the PMA-800NE has separate coiled wires for the audio and control circuits.
- Micro-Processor Stop Mode
- The micro-processor of the PMA-800NE features a Stop Mode that automatically ceases all operations of the micro-processor when it's not needed for playback. By stopping the oscillation of the micro-processor clock during these listening moments, the audio signal is protected from external noise, enhancing sound quality.
- Signal Level Divided Construction (SLDC)
- The Signal Level Divided Construction (SLDC) chassis is used in the audio circuit to help ensure that delicate musical signals are faithfully amplified and transmitted to the speakers.
- Additional Features
-
- Wide-range amplifier
- Balance, bass, and treble adjustment
- High current dynamic power supply
- Discrete amplification
- Micro-processor auto off
- Solid heat sinks
- Source Direct
- Metal front panel
- Auto power off
UPC: 883795004534 In the Box Denon PMA-800NE Stereo 100W Integrated Amplifier Remote Control 2 x AAA Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Denon PMA-800NE Stereo 100W Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDenon PMA-800NE Specs | | | Configuration | Stereo | | Power Output | 2 x 50 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD
2 x 85 W @ 4 Ohms, 1 kHz, 0.7% THD | | Speaker Impedance | A or B: 4 to 16 Ohms
A + B: 8 to 16 Ohms | | Total Harmonic Distortion | 0.01% (rated output -3 dB, 8 Ohms, 1 kHz) | | Tone Control | Treble: ±8 dB at 10 kHz
Bass: ±8 dB at 100 Hz | | Frequency Response | 5 Hz to 100 kHz (0, -3 dB) | | | | Analog Inputs | 4 x gold-plated stereo RCA
1 x gold-plated stereo RCA phono (MM/MC) with ground screw | | Digital Inputs | 3 x optical TOSLINK (>-27 dBm, 660 nm)
1 x digital coaxial (0.5 Vp-p / 75 Ohms) | | Outputs | 1 x stereo RCA
1 x 1/4" / 6.35 mm headphone (front) | | Speaker Connectors | 4 x binding post pairs | | Other Connections | 1 x 1/8" / 3.5 mm IR in
1 x 1/8" / 3.5 mm IR out | | Input Sensitivity and Impedance | Phono MC: 200 mV / 100 Ohms
Phono MM: 2.5 mV / 47 kOhms
Line, Source Direct Off: 105 mV / 40 kOhms
Line, Source Direct On: 105 mV / 17 kOhms | | S/N Ratio | Phono MC: 71 dB (0.5 mV input)
Phono MM: 86 dB (5 mV input)
Line: 105 dB | | RIAA Equalization Deviation | 20 Hz to 20 kHz, ±0.5 dB | | Maximum Input | Phono MC: 6 mV / 1 kHz
Phono MM: 70 mV / 1 kHz | | A/B Speaker Selection | Yes: A and/or B | | | | Operating Temperature | 41 to 95° / 5 to 35°C | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 200 W
Standby: 0.3 W | | Dimensions | 17.13 x 4.88 x 12.13" / 434 x 122 x 307 mm | | Weight | 16.5 lb / 7.5 kg | | | | Package Weight | 19.75 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 8.0" |
