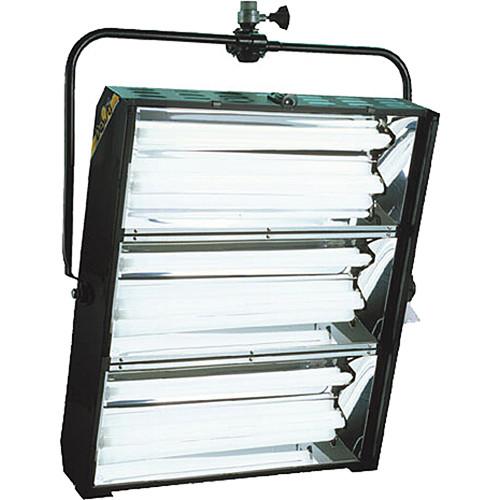

User Manual for DeSisti DE-LUX 120 V 6 x 55 DMX Symmetrical Reflector Click to enlarge the picture
Contents of the user manual for the DeSisti DE-LUX 120 V 6 x
- Product category: Fluorescent Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti Fluorescent Lights
|
User manual for the DeSisti DE-LUX 120 V 6 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description The pole operated DE-LUX 120 V 6 x 55 DMX Symmetrical Reflector from DeSisti is versatile and utilizes a dual accessory track for loading gel frames and egg crates. The high efficiency optical system does not require the use of intensifiers, reducing the overall dimensions and weight of the fixture.
This 120V DMX version features a very smooth control curve. The DE-LUX fixture uses the 55W biax lamps (compact fluorescents) rated for 10,000 hours, which are available in 5600°K daylight or 3200°K tungsten, with different color rendering indexes (RGB or STUDIO-LINE).
Dimming fluorescent lights is necessary to balance the light level of the different sections of the studio. The use of very high frequency ballasts guarantees color temperature stability, flicker-free, and noiseless operation. The DE-LUX complies with the very strict specifications of professional users. This reflector is efficient, economical, and easy to set up in locations that may be already equipped with existing dimmer systems. Therefore compatibility with existing installations is not a problem. The DE-LUX Fluorescent is available with several dimming systems to fit the specifications of each installation.
The built-in ballast dimming technology eliminates the need of a dimmer. The sources are powered on a standard non dimmed A/C line. They receive a separate control signal that can either be an analog 0 to 10 V D.C. Therefore it is sufficient to have a lighting console with the relevant output to control the intensity of the DE-LUX. This reflector features a potentiometer for local control of the light intensity. - Base light fluorescent luminaire manual operated stirrup, for lamps 55W
- Lightweight steel housing with low glare black epoxy powder coating
- High efficiency reflector system eliminates the need for an external intensifier, while reducing the weight, size, and cost
- Light intensity control by a local potentiometer
- On/off and light intensity control through a single DMX channel, local control included
- Use 6 x 55W biax lamps (compact fluorescents) rated for 10,000 hours, which are available in 5600°K daylight or 3200°K tungsten, with different color rendering indexes (for instance RGB or STUDIO-LINE)
- Equips pole operated yokes which can be used via the lighting pole for panning and tilting the lights as well as manually, since the mechanical activators are equipped with clutches
Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti DE-LUX 120 V 6 x 55 DMX Symmetrical Reflector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti De-Lux 6 Specs | Power Consumption | 330 W | | Amperage | 1.0 A (6 lamps-6 A) | | Power Supply | 120 V / 60 Hz | | Switch | On the fixture: Toggle 10 A 230 V - 6 A (0.5 Hp) 120 V | | Lamp | Holder: 2 G 11 | | Power Cable | 3.00 x 0.75 mm.sq. H05VV-F 194°F (90°C) (detachable) | | Protection Class | Class 1 - ground connection required | | Protection | Type: IP22 | | Housing | Maximum Housing surface temperature: 158°F (70°C) | | Positions | Working Position: Lighting fixture: Maximum Tilting ± 90° from horizontal | | Positioning | Lamp: Any | | Ambient Temperature | 113°F (45°C) (maximum) | | Distance | Minimum distances from inflammable surfaces: Top: 0.6' (0.2 m)
Back: 0.6' (0.2 m)
Sides: 0.6' (0.2 m)
Front: 1.6' (0.5 m) | | Weight | 29.7 lb (13.5 kg) |
