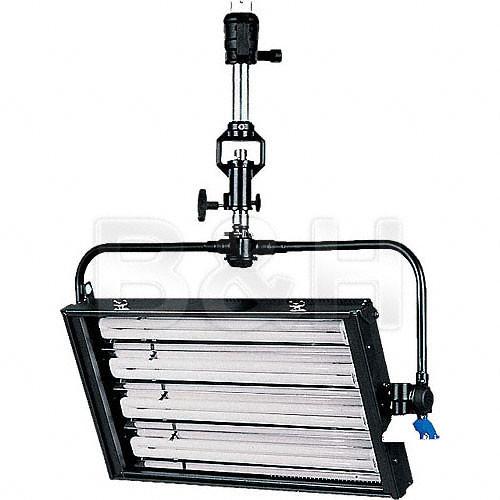

User Manual for DeSisti De-Lux 4-Tube Dimmable Fluorescent Fixture Click to enlarge the picture
Contents of the user manual for the DeSisti De-Lux 4-Tube Dimmable Fluorescent Fixture
- Product category: Fluorescent Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti Fluorescent Lights
|
User manual for the DeSisti De-Lux 4-Tube Dimmable Fluorescent Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description This 220 watt total De-Lux 4-Tube Dimmable Fluorescent Fixture is a hanging, pole operated, 120 VAC, 4-tube fixture with DMX address control pad dimming. The Desisti De-Lux Fluorescent fixture line is optimal for news sets, teleconferencing, web cameras, and location lighting. De-Lux utilizes color-corrected lamps (available separately) to provide a "warm" look to sets and people. The De-Lux is available in different configurations. When equipped with four 5600K tubes, this fixture will throw a wash of light of 82 footcandles 26 x 11.5 feet from 10 feet away. - Efficient, compact fluorescent fixtures eliminates external intensifier with redesigned reflector.
- On-board dimmer allows powering down to 10% of full power.
DMX dimming control is possible with your panel and cable. - Rugged, lightweight steel construction.
- Also available in manually controlled, and non-dimming models.
- Available in 2 or 4 lamp configuration for 120 or 230V voltages.
- Optional color frame and eggcrate allow control of color and spread of light output.
- Tilt and pan of this model are pole operated with optional pole.
In the Box DeSisti De-Lux 4-Tube Dimmable Fluorescent Fixture (DMX, Pole Operated) 12' Power Cable Brass C-Clamp (91200) Limited 2-Year Warranty Note: Fluorescent tubes not included Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti De-Lux 4-Tube Dimmable Fluorescent Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti De-Lux 4 Specs | Input Voltage | 110-120 VAC | | Lamps | 4 x 55 W Osram delux or studioline, optional | | Ballast | On-board & DMX interface, dimmable to 10% | | Mounting | Junior 1 1/8" pin | | Weight | 22.1 lb / 10 kg | | Dimensions | 28.3 x 24 x 6.6" / 71.8 x 44.4 x 16.7 cm (including pin) |
