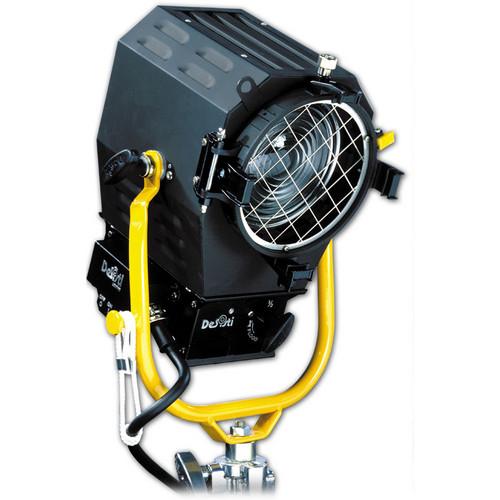

User Manual for DeSisti Leonardo 2K 6" Studio Fresnel Click to enlarge the picture
Contents of the user manual for the DeSisti Leonardo 2K 6" Studio Fresnel
- Product category: Tungsten Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti Tungsten Lights
|
User manual for the DeSisti Leonardo 2K 6" Studio Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description Designed for grid mounting, the DeSisti Leonardo Piccolo 2K 6" Studio Fresnel is a 6" tungsten-halogen fixture that weighs in at 16 lb versus the standard Leonardo's 26 lb. With a beam spread from 10-49°, this is an ideal luminaire for a key light or backlight, as well as for sun or sharp shadow effects. Flooded out, it's good choice for punching light through a silk. Focusing, which is impressively silky thanks to Teflon bushings, can be done from both front and rear. The Piccolo 2K uses 2000W, 1500W, or 1000W G38-based lamps rated at 115-240 VAC, 50/60 Hz. - Physical
-
- Octagonal-shaped, lightweight stainless steel construction
- Double wall and internal baffles for efficient ventilation
- Coated with a high temperature, heat-resistant, powder coat black epoxy paint finish
- High-efficiency convection cooling
- Hinged lens door with wire guard for easy re-lamping; includes accessory clips which can be positioned to suit various applications
- Top-locking safety bracket for barndoors and color frame
- Capable of being disassembled with a screwdriver for easy replacement of parts and maintenance
- Reinforced steel tube yoke
- Clutch activated T-handle for secure, single hand operation
- UL Listed
- Optics and Focusing
- The focusing system uses Teflon bushings, which glide over chrome plated brass rods, eliminating the binding and slippage associated with metal bushings. This helps the rails stay clean, and avoids pitting. The Leonardo Piccolo has a 6" (152 mm) Fresnel lens with a bi-metallic clad aluminum reflector. You can focus from the front or rear.
- Photometrics
- At 10°
1593 fc at 10' (3.0 m) with a beam diameter 1.7' (0.5 m)
398 fc at 20' (6.0 m) with a beam diameter 3.5' (1.0 m)
177 fc at 30' (9.0 m) with a beam diameter 5.2' (1.5 m)
100 fc at 40' (12 m) with a beam diameter 7.0' (2.0 m)
At 50°
293 fc at 10' (3.0 m) with a beam diameter 9.0' (2.7 m)
73 fc at 20' (6.0 m) with a beam diameter 18.2' (5.5 m)
33 fc at 30' (9.0 m) with a beam diameter 27.3' (8.3 m)
18 fc at 40' (12 m) with a beam diameter 36.5' (11 m)
In the Box DeSisti Leonardo 2K 6" Studio Fresnel Power Cord: 6.0' (1.8 m) Brass C-Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Leonardo 2K 6" Studio Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Leonardo 2K Specs | Rating | 2000 W maximum | | Socket (Lampholder) | G38 bi-post | | Lens (Condenser) | 6.0" / 152.4 mm Fresnel | | Reflector (Mirror) | Bi-metallic clad aluminum | | Mounting | Included brass C-clamp | | Yoke | Heavy duty tubular fork | | Cable | 6.0' / 1.8 m, no plug, no switch | | Focusing | Front and rear knob | | Dimensions | 19.1 x 13.8 x 11.4" / 48.5 x 30 x 31 cm | | Weight | 16 lb / 7.3 kg |
