User Manual for DeSisti Leonardo Piccolo 2K 6" Fresnel - Stand Mount Click to enlarge the picture
Contents of the user manual for the DeSisti Leonardo Piccolo 2K 6" Fresnel
- Product category: Tungsten Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti Tungsten Lights
|
User manual for the DeSisti Leonardo Piccolo 2K 6" Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|

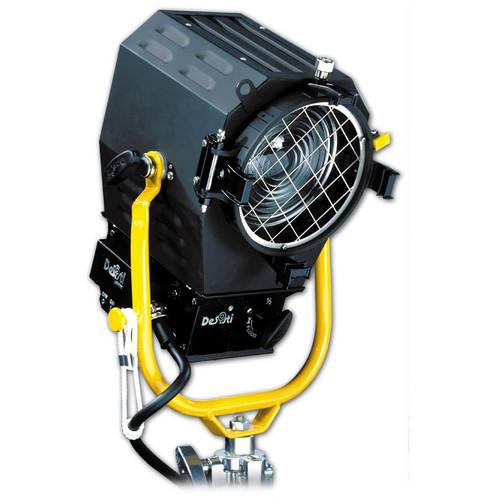

Product description Designed for stand or clamp mounting, the DeSisti 2K Leonardo Piccolo Fresnel is a 6" tungsten-halogen fixture that's made just for location work. The Leonardo Piccolo weighs in at just 16.1 lb versus the standard Leonardo's 26 lb and it's about 20% smaller than the studio version as well. With a beam spread from 10-49°, this is the perfect light for a key light or backlight as well as sun or sharp shadow effects. Flooded out, it's great for punching through a silk. Although lighter than the studio line, you can expect similar rugged construction and silky performance evident throughout the DeSisti Brand. The 2K Leonardo Piccolo accepts 1000W and 2000W G38-based lamps. A full line of accessories is available, including barndoors, snoots, gel holders, and scrims. Lamps and accessories must be purchased separately. - Physical
-
- Octagonal-shaped, lightweight, stainless steel construction
- Double wall and internal baffles for efficient ventilation
- Coated with a high temperature, heat-resistant, powder coat black epoxy paint finish
- High-efficiency convection cooling
- Supplied with stainless steel wireguard
- Hinged lens door with wire guard for easy re-lamping; includes accessory clips which can be positioned to suit various applications
- Top locking safety bracket for barndoor and color frame
- Capable of being disassembled with a screwdriver for easy replacement of parts and maintenance
- Reinforced steel tube yoke with 1" male spigot attached for C-clamp or stand
- Clutch-activated T-handle for secure, single hand operation
- UL Listed
- Optics and Focusing
- The focusing system uses Teflon bushings, which glide over chrome-plated brass rods, eliminating the binding and slippage associated with metal bushings. This helps the rails stay clean and avoids pitting. The Leonardo Piccolo has a 6" (152 mm) Fresnel lens with a bi-metallic clad aluminum reflector. You can focus from the front or rear.
In the Box DeSisti Leonardo Piccolo 2K 6" Fresnel - Stand Mount 6' (1.8 m) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Leonardo Piccolo 2K 6" Fresnel - Stand Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Leonardo Piccolo 2K Specs | Rating | 2000 W | | Socket (Lampholder) | G38 bi-post | | Photometrics | 10-49° Spot to Flood
10°: 1593 fc at 10' (3.0 m)
40°: 293 fc at 10' (3.0 m)
Beam Diameter
10° Spot: 1.7' (3.0 m) at 10' (3.0 m)
49° Flood: 9.1' (2.8 m) at 10' (3.0 m) | | Lens (Condenser) | 6" / 152.4 mm Fresnel | | Reflector (Mirror) | Bi-metallic clad aluminum | | Mounting | 1" / 2.54 mm male spigot | | Yoke | Heavy duty tubular fork | | Cable | 6' / 1.8 m, no plug, no switch | | Focusing | Front and rear knob
Stainless steel cable driven
1.5 full knob turns from spot to full flood | | Weight | 16.1 lb / 7.3 kg | | Dimensions | 19.1 x 13.8 x 11.4" / 48.5 x 30 x 31 cm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
