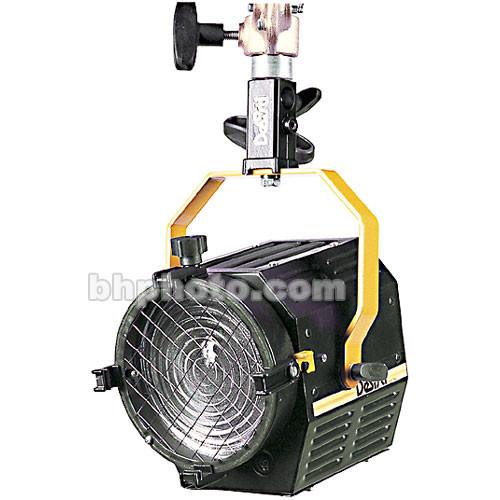

User Manual for DeSisti Magis 300, 500, 650 Watt Fresnel Tungsten Light - Hanging Click to enlarge the picture
Contents of the user manual for the DeSisti Magis 300, 500, 650 Watt
- Product category: Tungsten Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti Tungsten Lights
|
User manual for the DeSisti Magis 300, 500, 650 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description The Magis tungsten Fresnel has double-walls of brushed stainless steel sheets, which are screwed togeher for easy maintenance and repair. The sheets are covered by heat resistant electrostatically deposited black epoxy paint. Focusing is accomplished by use of a worm gear. The lamp holder carraige sits on Teflon bushings which move along brass rods, providing a smooth focusing operation even after years of use.This is a hanging, manually operated tungsten fresnel light. - Ventilation slots on top and bottom of the housing allow for airflow over the bulb, keeping the unit cool and insuring a long life.
- The Magis is capable of using 300, 500 and 650 watt bulbs.
- Allows easy access to bulb for changing.
In the Box DeSisti Magis 300, 500, 650 Watt Fresnel Tungsten Light - Hanging Aluminum C Clamp 6' Power cable without switch 1 Year warrantyNote: Bulb is not included Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Magis 300, 500, 650 Watt Fresnel Tungsten Light - Hanging in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Magis Specs | Rating | 300, 500, 650 Watts | | Socket (Lampholder) | Bi-post GY9 | | Lens (Condenser) | 4.75" (120 mm) Fresnel | | Reflector (Mirror) | Bi-metallic clad aluminum parabola | | Mounting | C Clamp, M10 thread | | Yoke | Tubular steel | | Cable | 6' without switch | | Focusing | Worm gear | | Weight | 5.3 lbs (2.4 kg) | | Dimensions | 8 x 11 x 7" (20 x 28 x 18 cm) | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 10.4 x 10.2 x 8.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
