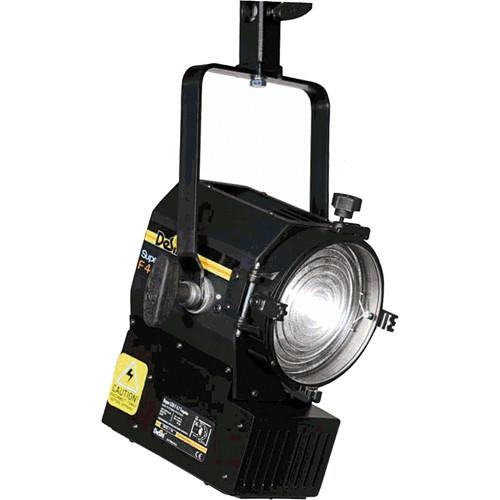

Product description Produce high quality light without consuming much power with the manually operated MAGIS Tungsten-Balanced LED Fresnel Light from DeSisti which utilizes a highly efficient 3200K LED with an output equivalent to a 750W halogen fixture. It uses a 4.75" diameter Fresnel lens to adjust the spot-to-flood beam angle of 12-41°. Also, it is DMX-controlled for smooth dimming from 0-100%. Further benefiting performance are a self-stabilizing active cooling system which regulates temperature of the LED array, and a durable carbon steel housing to protect the electronics. Additionally, it has a built-in universal 120-240 VAC power supply for worldwide use. - 4.75" (120mm) diameter shock resistant Borosilicate glass Fresnel lens on spring supports.
- Durable, lightweight carbon steel housing with low glare, black epoxy powder coating, with internal double walls and reinforcements.
- High efficiency, self-stabilizing active cooling system with automatic thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan, and heat sink. This maintains the LED array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a low RPM.
- Brass helix screw-driven focus mechanism guides Teflon bushings-supported LED engine along two rods for smooth operation during focusing and in any tilting position. The bushings also provide a wiping action, which cleans the steel guide rails during focus.
- Unit is equipped with a hinged lens door with wire-guard and includes accessory holding brackets. One of the four brackets has a locking knob and is spring-loaded, it can be locked to either safely hold barndoors, color frame and scrims, or be rotated 90° and locked in an open position for fast changes.
- Accessories can be secured regardless of the fixture's orientation, and they have been designed for one-handed installation.
- Photometrics
- Flood (50% Center Value) 48°
885 lux / 82 fc at 9.8' (3 m) with beam diameter of 7.4' (2.2 m)
319 lux / 30 fc at 16.4' (5 m) with beam diameter of 12.3' (3.7 m)
80 lux / 7 fc at 32.8' (10 m) with beam diameter of 24.5' (7.5 m)
Spot (50% Center Value) 12°
3,580 lux / 333 fc at 9.8' (3 m) with beam diameter of 2.1' (0.6 m)
1,289 lux / 120 fc at 16.4' (5 m) with beam diameter of 3.5' (1.1 m)
322 lux / 30 fc at 32.8' (10 m) with beam diameter of 6.9' (2.1 m) In the Box DeSisti MAGIS Super Tungsten-Balanced LED Fresnel Light (Manual Operation) Manually Operated Yoke with 5/8" (16mm) Socket Powercon Detachable Mains Cable for CST Fixtures - 12' (3.6m) tcrrydfwsabxztcqzezvtqccazf 4 Leaf Barndoor Set for Magis Color Frame for Magis 650 Extruded C-Clamp with 5/8" Stud Limited 1-Year Warranty User Manual PDF 9.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti MAGIS Super Tungsten-Balanced LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti LED F4.7 Specs | Light Source | 60 W LED
Lamp Life: 50,000 hours with 70% lumen maintenance, tested and certified to LM80 | | Color Temperature | 3200K | | CRI | 90+ | | Beam Angle | 12-41° | | Field Angle | 22-64° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX in/out
DMX daisy chaining up to 32 lights | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Yoke with 5/8" (16 mm) spigot | | Operating Voltage | 120-240 VAC 50/60 Hz | | Power Consumption | 75 W at 120 VAC, 50/60 Hz
71 W at 230 VAC, 50/60 Hz | | IP Rating | IP 22 | | Dimensions | 6.8 x 7.8 x 13.8" (176 x 200 x 352 mm) including yoke
Lens Diameter: 4.75" (120 mm) | | Weight | 7.7 lb (3.5 kg) without barndoors |
