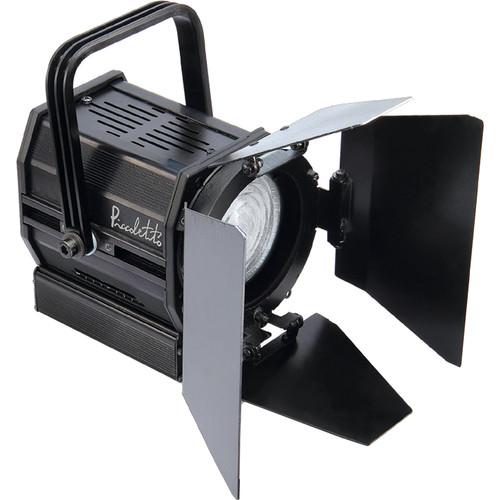

User Manual for DeSisti Piccoletto F Tungsten-Balanced LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the DeSisti Piccoletto F Tungsten-Balanced LED Fresnel
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti Piccoletto F Tungsten-Balanced LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description Produce high quality light without consuming much power with the manually operated Piccoletto F Tungsten-Balanced LED Fresnel Light from DeSisti which utilizes an efficient 3200K LED with an output equivalent to a 300W tungsten fixture. It uses a 3" diameter Fresnel lens to achieve spot-to-flood beam angles of 18-80°. The beam can be further shaped using the included 4-way barndoors. Also, it is DMX controlled for smooth dimming from 0-100%. Other performance features include a self-stabilizing active cooling system with a silent fan which regulates the temperature of the LED array and a durable carbon steel housing to protect the electronics. Additionally, the Piccoletto has a built-in universal 90-240 VAC power supply for worldwide use. - Benefits
-
- 3" (80mm) Diameter high quality borosilicate glass Fresnel lens
- The light levels with the daylight LED are 181 lux at 9.8' at full flood and 941 lux at full spot with a wide flood (80°) beam angle.
- Rugged and lightweight aluminum housing with low glare black epoxy powder coating,internal double walls and reinforcements - an exact miniature of the bigger lights.
- High efficiency, Self-Stabilizing Active Cooling - automatic, thermal stabilization of the LED.
- Operating temperature is managed by an internal thermal sensor and CPU, variable speedfan and heat sink to maintain the LED array's constant temperature at a maximum of 149°F.
- The hydrodynamic bearing fan operates silently with a very low RPM.
- Linear Bearing sliding focus mechanism guides the LED engine. This ensures smoothoperation during focusing, in any tilting position of the fixture.
- Light Intensity Control: via DMX and external local potentiometer.
- Power Supply:
- The Piccoletto runs on a 14.8 VDC supply and accepts 90-240 VAC input voltage.
- The bottom of the fixture features a Fast Fit mounting system.
- Photometrics
- Flood (50% Center Value) 80°
408 lux / 38 fc at 6.6' (2.0 m) with beam diameter of 11' (3.36 m)
181 lux / 17 fc at 9.8' (3.0 m) with beam diameter of 16.5' (5.0 m)
65 lux / 6 fc at 16.4' (5.0 m) with beam diameter of 27.5' (8.39 m)Spot (50% Center Value) 18°
2073 lux / 193 fc at 6.6' (2.0 m) with beam diameter of 2.1' (0.63 m)
921 lux / 86 fc at 9.8' (3.0 m) with beam diameter of 3.1' (0.95 m)
332 lux / 31 fc at 16.4' (5.0 m) with beam diameter of 5.2' (1.58 m) In the Box DeSisti Piccoletto F Tungsten-Balanced LED Fresnel Light 4-Way Barndoors Limited 1-Year Warranty Brochure PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Piccoletto F Tungsten-Balanced LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Piccoletto F Specs | Light Source | 30 W LED
Lamp Life: 50,000 hours | | Color Temperature | 3200K | | CRI | 92 | | Beam Angle | 18-80° | | Field Angle | 30-96° | | Dimming | 0-100% via DMX | | Control | DMX512
Connectors: miniature XLR connector | | Mount | Hole in yoke for clamp or TVMP connector | | Operating Voltage | Input: 100-240 VAC 50/60 Hz
Output: 14.8 V | | Power Consumption | 30 W | | Dimensions | 4.7 x 5.5 x 3.0" (120 x 140 x 80 mm) | | Weight | 2.5 lb (1.13 kg) without barndoors | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 10.4 x 10.2 x 8.5" |
