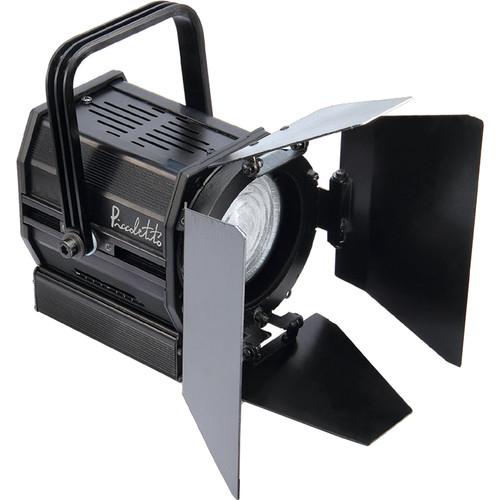

User Manual for DeSisti Piccoletto P Daylight LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the DeSisti Piccoletto P Daylight LED Fresnel
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti Piccoletto P Daylight LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description A miniature version of DeSisti's larger lights, the Piccoletto P Daylight LED Fresnel Light has a 3" borosilicate lens, and at just 2.2 lb, lives up to its "P" designation, short for portable. Its impressive 18 to 80-degree spot-to-flood adjustment range offers both hard spot lighting effects for long throw work, as well as wide coverage. The Piccoletto P employs a 30W high-output COB LED array that provides clean-cut, single shadow performance like its traditional tungsten counterparts. The output is daylight-balanced with a color temperature and a high CRI of 90+ which indicates accuracy in color rendering. The fixture has advanced features that you'd expect from a manufacturer of DeSisti's stature. It's fully dimmable either locally on the fixture or remotely from a console via onboard DMX. The Linear Bearing sliding focus mechanism ensures smooth operation during focusing, regardless of the tilt angle. Self- Stabilizing Active Cooling uses an internal thermal sensor and CPU to activate a silent, low-rpm fan to maintain the LEDs at a maximum of 149 degrees. Structural integrity is addressed by fabrication from rugged but lightweight aluminum with reinforced internal double walls. Four-way barndoors come with the fixture to allow selective lighting. The Piccoletto P doesn't come with a power supply allowing you to separately obtain a 90-270 AC supply or a Fast Fit V-mount Adapter for 14.8V batteries. There's also a Fast Fit (Sony BP-U series) battery for direct connection (battery not included). - Benefits
-
- 3" Diameter Borosilicate glass Fresnel lens
- The light levels with the daylight version are in excess of 185 lux at 9.8' in 80° wide flood mode and in excess of 940 lux in 18° full spot
- Rugged, lightweight aluminum housing with low glare black epoxy powder coating, and internal double walls - an exact miniature of bigger lights
- Weighs 2.2 lb in battery operation mode and 2.8 lb in mains operation
- High efficiency Self Stabilizing Active Cooling: automatic, thermal stabilization of the LEDs by an internal thermal sensor. Quiet, variable speed, low rpm fan
- Linear bearing sliding focus mechanism which guides the LED engine ensures smooth operation during focusing, in any tilting position
- Light Intensity Control: external local potentiometer and DMX addressing rotary switches.
- Miniature XLR Connector for DMX control
- Power supply: mains or battery operation
- The Piccoletto requires a 14.8 VDC power supply
- The bottom of the fixture features a Fast Fit mounting system for utilizing a 90 to 270 VAC Fast Fit Mains Power Supply, Fast Fit Adapter for connection to V-mount batteries or Fast Fit Battery for direct connection to a standard 14.8V portable camera battery (Sony BP-U series)
In the Box DeSisti Piccoletto P Daylight LED Fresnel Light Yoke with 5/8" Receiver Power Cable 4-Way Barndoors Limited 1-Year Warranty Brochure PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Piccoletto P Daylight LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Piccoletto P Specs | | | Beam Angle | 18 to 80° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | Fan | | Dimming | Yes | | Display | None | | Housing Material | Aluminum | | Photometrics | 80° at 5600K:
39 fc / 416 lux at 6.6' / 2 m
18° at 5600K:
196 fc / 2115 lux at 6.6' / 2 m | | Fixture Dimensions | Overall: 5.3 x 16.5 x 6.0" / 13.5 x 41.9 x 15.2 cm (Including Yoke) | | Fixture Weight | 2.20 lb / 1 kg (Including Yoke, Bracket) 2.86 lb Including AC Power Supply | | | | Lens Diameter | 3" / 76.2 mm | | Lens Material | Borosilicate Glass | | | | Fixture Mount | 5/8" Receiver | | | | AC Input Power | 90 to 270 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | IP Rating | IPXX | | Operating Temperature | 149°F / 65°C |
